IQ Lighting SKY Rack LED Top Light User Guide
Rack LED Top Light
The SKY fixture design allows for high-performance lighting in vertical and low mounting grow applications.This powerful, full-spectrum light is intended for experienced growers from the vegetative stage through the higher PPFD flower stage.
MODEL SKY
TYPE
7 FLOWER (720W)6 FLOWER (630W)3 VEG (340W)
VOLTAGE
120 120-277V277 277-480V
ACCESSORIES
EXTEXT 6’ CORD
DRIVER
World class LED driver. Input options Auto Sensing 90V-305V and 245V-528V.
CONTROL
0-10V (Option) Fixture is equipped with an external RJ14 cable and allows for daisy chained installation of up to 160 fixtures per controller (80 fixtures per controller port).
DIMMING
SKY 7 is dimmable in 720W, 580W, 430W, and 290W. SKY 6 is dimmable in 630W, 500W, 380W, and 250W.SKY 3 is dimmable in 340W, 270W, 200W, and 140W.
SPECTRUM
Our Broad Spectra offers light emission across the PAR 400-700nm wavelength range. We balance efficiency with quality of light toachieve the desired plant response and work environment.
CHROMACITY
IQ // IQ.LIGHTING · 844.445.6447 · · 2727 W 2ND AVENUE DENVER, CO 80219SPECIFICATIONS AND DETAILS ARE SUBJECT TO CHANGE WITHOUT NOTIFICATION. CONTACT IQ FOR UP TO DATE DETAILS. REV-08042021
SPECIFICATIONS
|
Rack LED Top Light |
|||||
| PECIFICATIONS | |||||
| INPUT POWER | 340W, 630W, or 720W | CERTIFICATION | UL8800, UL 1598 Wet | ||
| EFFICACY | 2.53, 2.46, or 2.43 μmol/J | WARRANTY | 5 Year Standard | ||
| PPF | 860, 1550, or 1750 μmol/s | AMBIENT TEMP | -10°C / 40°C | ||
| INPUT VOLTAGE | 120V – 277V; 277V – 480V | STORAGE | -40°C / 85°C | ||
| MOUNTING | ≥ 6” Above Canopy | ACCESSORY | 6’ Extension Power Cord | ||
| THERMAL | Passive | FIXTURE LENGTH | 45.7” | ||
| LIFE | 50,000 hrs | FIXTURE WIDTH | 41.7” | ||
| POWER FACTOR | > 90% | FIXTURE HEIGHT | 4.5” | ||
| IP RATING | IP66 | FIXTURE WEIGHT | 27.5lb / 12.5 kg |
Line Voltage Daisy Chain Options Available, Consult Factory For Configurations.

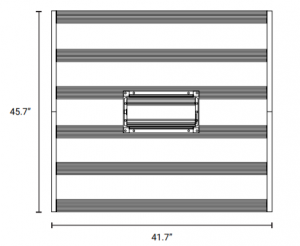

DIMENSIONS
Fixture:
Power Supply
IQ // IQ.LIGHTING · 844.445.6447 · · 2727 W 2ND AVENUE DENVER, CO 80219SPECIFICATIONS AND DETAILS ARE SUBJECT TO CHANGE WITHOUT NOTIFICATION. CONTACT IQ FOR UP TO DATE DETAILSTolerance +/- 5%, Horticultural Lighting Not Suitable for Household Illumination
