IQ Lighting ZEN Linear LED Top Light
The ZEN fixture design allows for high-performance lighting in supplemental greenhouse lighting, and indoor sole-source grow applications. This powerful, full-spectrum light has flexibility for growers of any crop at any growth stage.
ORDERING INFORMATION
DRIVER
World class LED driver. Input options Auto Sensing 90V-305V and 245V-528V.
CONTROL
0-10V (Option) Fixture is equipped with an external RJ14 cable and allows for daisy chained installation of up to 160 fixtures per controller (80 fixtures per controller port).
DIMMING
ZEN 7 is dimmable in 720W, 580W, 430W, and 290W.ZEN 6 is dimmable in 630, 500W, 380W, and 250W.

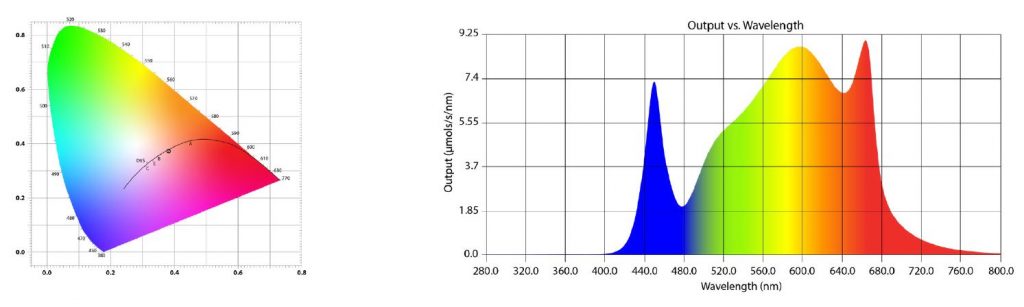

SPECTRUM
Our Broad Spectra offers light emission across the PAR 400-700nm wavelength range. We balance efficiency with quality of light to achieve the desired plant response and work environment.
CHROMACITY
SPECIFICATIONS
| INPUT POWER | 630W or 720W | CERTIFICATION | UL8800, UL 1598 Wet | |
| EFFICACY | 2.7 or 2.64 μmol/J | WARRANTY | 5 Year Standard | |
| PPF | 1700 or 1900 μmol/s | AMBIENT TEMP | -10°C / 40°C | |
| INPUT VOLTAGE | 120V – 277V; 277V – 480V | STORAGE | -40°C / 85°C | |
| MOUNTING | ≥ 1.5’ Above Canopy | ACCESSORY | 6’ Extension Power Cord | |
| THERMAL | Passive | FIXTURE LENGTH | 46” | |
| LIFE | 50,000 hrs | FIXTURE WIDTH | 3.8” | |
| POWER FACTOR | > 90% | FIXTURE HEIGHT | 3” | |
| IP RATING | IP66 | FIXTURE WEIGHT | 14lb / 6.5 kg |
Line Voltage Daisy Chain Options Available, Consult Factory For Configurations.
DIMENSIONS
