User Manual
Safe. Comfortable. Cost efficient.
iQ parts NORMA Face Shield
NORMA FACE SHIELD
Our contribution for safety in your day-to-day work
- Developed in cooperation with the University Hospital Frankfurt .
- Improved design in terms of functionality and comfort
- Large quantities available on short delivery times thanks to injection moulding
- Made in Germany
- Very good price/performance ratio
LARGER AREA COVERED
compared to many conventional versions
- Extra large visor (larger than the standard with A4), specially cut from polycarbonate
- Visor extends almost to the side of the ears
- Extended visor length
- Rounded design, no sharp corners
- Foil sits on the outside of the frame and
INCREASED COMFORT
compared to many conventional versions
- Every light material
- Comfortable to wear with FFP2 mask and (protective) glasses due to increased distance between foil and face
- Better ventilation due to open construction of the frame towards the top
- Large contact surfaces at the temples avoid pressure points for extended wear
- Polycarbonate visor for best possible vision
- Ergonomic cut ensures maximum freedom of movement
EFFICIENT SOLUTION
compared to many conventional versions
- Frame is made of medical polymer (certified according to VDI standard for medical devices, so-called “Medical Grade Plastics”)
- Frame can be reused if it is sterilized professionally
- Replacing the foils is quick and easy (foils are for single use only)
- Also usable with conventional A4 foils (instructions for perforation available from us)
- Polycarbonate film offers best optical properties and very good resistance to chemical substances
ORDER INFORMATION
for NORMA Face Shield
Note: NORMA Face Shield is derived from Face Shield Frame v2r6 by Duokino/Muhammad Rahmat Md Padzil, which is licensed and can be used in accordance with CC BY 4.0 as wellof Protective Visor by Erik Cederberg/3DVerkstan, used and licensed under CC BY-SA 3.0. The NORMA face shield is not a medical device. The face shield is not certified as a medical device and not as personal protective equipment. The user is responsible for its specialist use, cleaning and disinfection. The face shield is not a substitute for wearing a suitable face mask and does not guarantee safety against infections of any kind. The recommended precautions, such as hand disinfection and wearing gloves and a suitable face mask, must also be observed.
NORMA FACE SHIELDThe cooperation between the University Hospital Frankfurt, the FWS and the NORMA Group
Three strong partners – one strong solution
- Due to the Corona pandemic, the NORMA Group contacted the University Hospital Frankfurt to offer that face shields could be produced using injection molding if required.
- This resulted in a close cooperation with a project team of the University Hospital, which was already involved in the production of face shields.
- The development from the first prototype to the finished product took place in a record time of only four weeks, to which our partner, Formen- und Werkzeugbau GmbH from Schönebeck, contributed significantly.
- Doctors and nurses at the University Hospital Frankfurt tested different design variants and submitted suggestions for further optimization.
- The combination of the medical-technical know-how of the University Hospital Frankfurt, the development expertise of the NORMA Group and the experience of the toolmaking professional FWS were instrumental to the success of the project.
NORMA GROUP
is a partner of the medical industry
Our products are used in a wide range of medical applications
NORMAPLAST hose connectors are used by leading manufacturers of ventilators and dialysis devices for the safe and reliable connection of hoses.

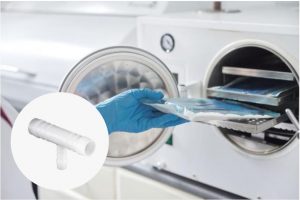

NORMAPLAST hose connectors & screw-in nozzles are used in sterilization equipment.
Hose clamps from the NORMA Group are used in mobile hand washing stations, among others.
Harsweg 34A2461 EZ Ter AarT +31 252 624 126The Netherlands
iQ parts NORMA Face Shield User Manual – iQ parts NORMA Face Shield User Manual –
