Since 1956Pruners – Fiberglass Poles – Pole Saws
JA Pruners with Adapter
Adapters Allow Quick and Easy Replacement ofPruner Head or Pole Saw
WARNING
HOLD PRUNER BY BASE – NOT BLADE OR HOOK

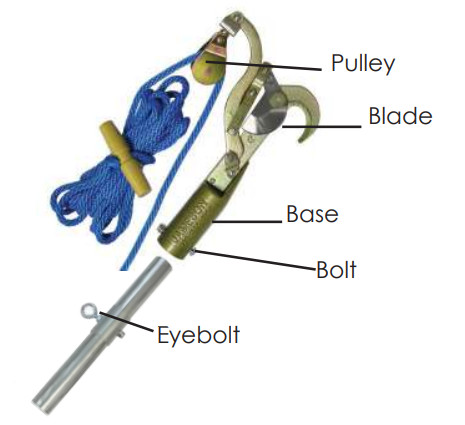

Attach AdapterRemove the bolt from Pruner.Insert Adapter, lining up holes onAdapter with bolt holes on Pruner.Insert the bolt and tighten.
Attach Rope
JA-14 Fixed Pulley PrunerJA-14S Swivel Pulley PrunerJA-34 Big Mouth PrunerThread rope end over pulley and tie to an eyebolt on Adapter.
JA-14DP Double Pulley PrunerJA-34DP Double Pulley Big Mouth PrunerThread rope over an upper pulley, thread under lower pulley on adapter and tie end to upper pulley.
PH Pruners with AdapterAdapters Allow Quick and Easy Replacement of Pruner Head or Pole Saw
HOLD PRUNER BY BASE – NOT BLADE OR HOOK
POLE SAWS
Adapters Allow Quick and Easy Replacement of Pruner Head or Pole Saw
Attach Saw Blade to Pole Saw Head
Fiberglass PolesWith Leaf Spring Ferrules
Connecting Poles or Attaching Tool HeadsLift leaf spring on pole’s female ferrule to allow male pole ferrule or tool head adapter to be inserted. Align holes and drop leaf spring’s button back into hole for a secure connection.

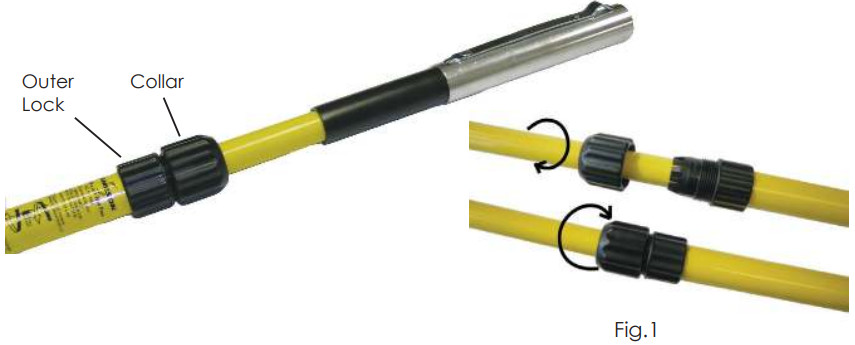

Double Lock™ Telescoping Poles
Pole Must Be Locked Into Position Before Using
To Adjust Pole Length:Unscrew threaded collar by turning until loose. (Fig. 1)Unlock the inner lock by twisting the upper pole section counter-clockwise, approximatelyquarter-turn, while holding the lower pole section in place. (Fig. 2)Extend poles to the desired length.
To Lock Into Position:Twist upper pole section clockwise, approximately quarter-turn, until the inner lock engages (there is an audible click).Re-attach collar to outer lock, turning until completely secure.
Pruners & Pole SawsPermanent Mount – No Adapter
HOLD PRUNER BY BASE – NOT BLADE OR HOOK

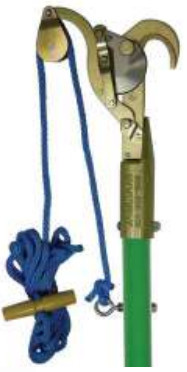

Attach RopeJAPruners Permanently Mounted To PoleThread rope end over pulley and tie to an eyebolt on Adapter.
Wing Nut
Replace lock washer and wing nut, tighten.
Care For Pruner and Saw Blades
WarrantyJameson products carry a warranty against any defect in material and workmanship for a period of one year from date of shipment unlessfailure is due to misuse or improper application.Jameson shall in no event be responsible or liable for modifications, alterations, misapplications or repairs made to its products by purchaser or others.This warranty is limited to the repair or replacement of the product and does not include reimbursement for shipping or other expenses incurred.Jameson disclaims any other express or implied warranty.
