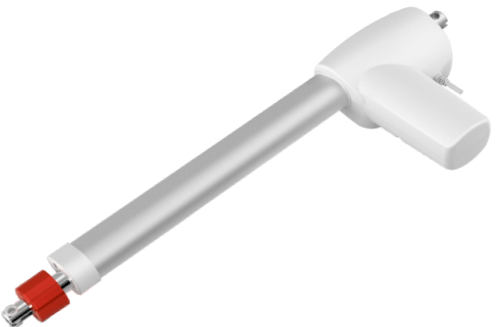

JIECANG Linear Actuator JC35L11 Data Sheet
JC35L11 has a maximum thrust of 12000N and a maximum pull of 6000N, providing a good solution for the patient lift. JC35L11 shows its superior performances in the aspect of high load capacity, excellent IP rating, low noise level as well as some safety features, among which are:
- Brake to increase friction so that strengthen the self-locking ability.
- Safety nut to avoid unintended rapid lowering due to the damage of the nut.
- Electronic limit switches and mechanical limit.
- Manual lowering to ensure nursing carers could lower the actuator when power supplier has been cut or other emergency occurs.
These features make JC35L11 a good choice to be applied in patient lift.
Features
- Load thrust up to 12000N
- Max. load pull 6000N
- Color: Grey /Black
- Manual clevis:Red Max IP rating: IPX6 (standard or with manual lowering)
- 24V DC permanent magnet motor
- Stroke length:0-350mm(±2mm) when in push load of 10000N;0-200mm(±2mm) when in push load of 12000N
- Noise levelc≤50dB(ambient level≤35dB)
- Safety nut: necessary
- Electrical limit switches or signal switch: built-in
- Mechanical limit switches:upper limit and end limit
- Certificated by: EN60601-1, UL60601-1
Options
- Built-in hall sensor
- Manual descent in emergency
- Only push
Usage
- Compatible with: JCB35K3 for patient lifter
- Duty cycle: 10%, continuous work for most 2 minutes with a pause of 18 minutes
- Using temperature: 5℃~40℃
Technical specifications
| Power Supply
(VDC) |
Spindlepitch(mm) | Max. LoadPush(N) | Self-LockLoad(N) | Speed at 0/Full Load(mm/s) | Current atFull Load(A) |
| 24 | 8 | 12000 | 12000 | 5/3.8 | 6 |
| JCB35K329 | 8 | 12000 | 12000 | 6/4.5 | 6 |
| 24 | 10 | 10000 | 10000 | 7/5.0 | 7 |
| JCB35K329 | 10 | 10000 | 10000 | 8.5/6.0 | 7 |
- When the actuators are not running, Jiecang’s control boxes could short-circuit the motor terminals (electrodes). Such solutions give actuators higher self-locking load.
- These data above are typical ones.

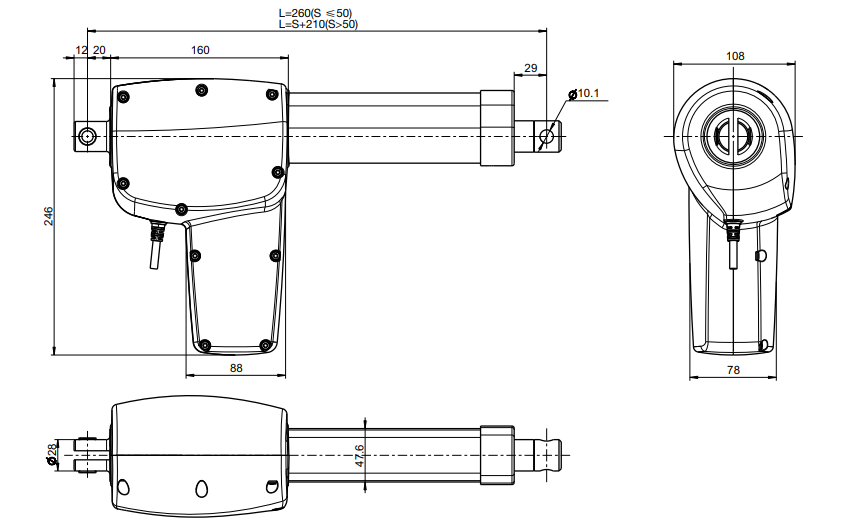

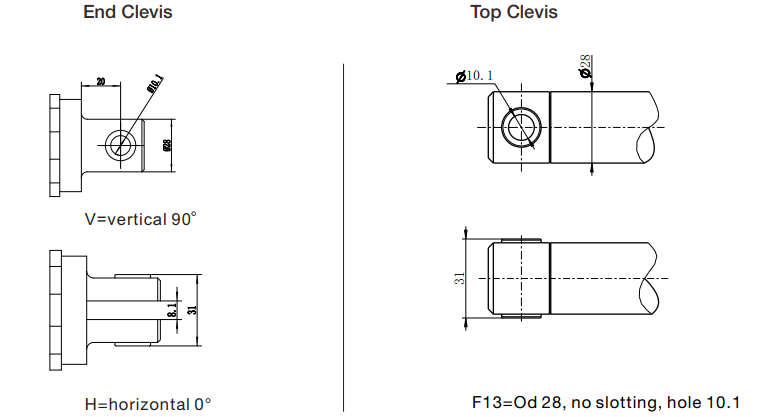

Dimensions with standard top clevis
Dimensions with manual lowering
Installing Dimensions of 10000N(spindle pitch of 2mm)
| Stroke Length(S) | Retraced Length | |
| Standard | 0-350mm(±2mm) | L=260(S≤50)L=S+210(50＜S≤350) |
| With manual lowering | 50-350mm(±2mm) | L=S+265(50≤S<300)L=S+290(300≤S≤350) |
| Safety nut does not matter |
Installing Dimensions of 12000N(spindle pitch of 4mm)
| Stroke Length(S) | Retraced Length | |
| Standard | 0-200mm(±2mm) | L=260(S≤50）L=S+210(50＜S≤200) |
| With manual lowering | 50-200mm(±2mm) | L=S+265 |
| Safety nut does not matter |

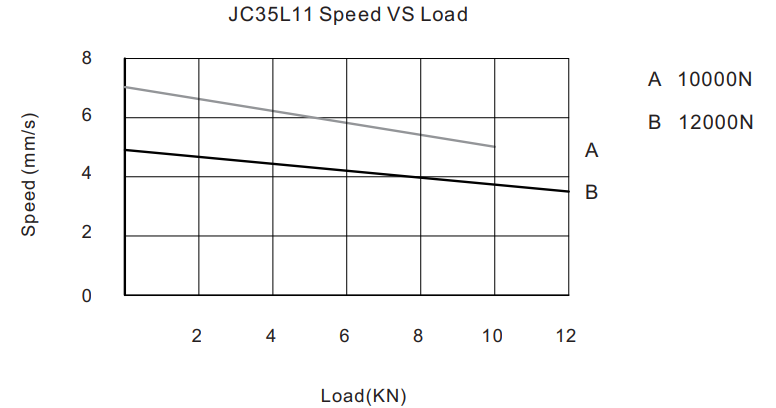

Performance Data (24V DC)
Ordering Key Example
