JMC System Engineering UB570 PRO UVC
3. PRODUCT INTRODUCTION
3.1. Product Brief
UB570 PRO UVC is a high-quality, high-performance capture device that is specially designed for high-definition video capture applications. It supports up to 1 channel of high-definition, 1920x1200p60 video from HDMI source and alternatively one 3G SDI input.
3.2. Specification
4. HARDWARE INSTALLATION
4.1. Package Contents

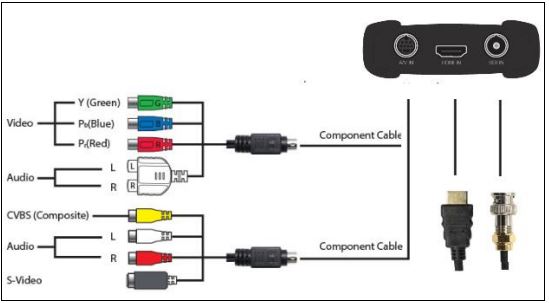

Signal Source Connection Diagram
Front Side
Rear Side
4.2. Precaution
Before proceeding, make sure to touch a safely grounded object or metal object before touching the device. Please follow the below chapter for installation operations
4.3. USB UVC Dongle
• Connect USB3.0 cable to the computer
• Connect USB Type B connector to UB570 PRO UVC• Connect signal source
5. SOFTWARE INSTALLATION
5.1. Support OS
5.2. Driver Installation
For UVC devices, there is no need to install drivers. The driver will activate automatically when the device is attached.
Utility (Win) for UVC settings can be downloaded fromhttp://jmc.se/Download/2020/UVC.UTILITY.X86_V1.50.EXE
