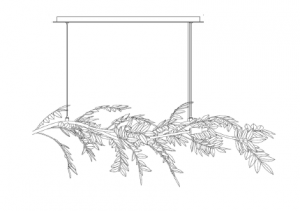

Gold Leaves 6 Light Ceiling Bar

Recommended bulb6 x 5 Watt G9 energy efficient LEDBulb not includedSpecificationMax power: 5WVoltage: 220~240V, 50/60HzIP20Weight 6 Kg

Please retain these instructions for future reference.This symbolindicates that this product should not be treated as normal house-hold waste and it should be recycled. John Lewis does not operate in store take back, but as members of the Distributer Take Back scheme have funded the development and upgrade of recycling facilities across the UK. Please take it to your nearest collection facility or for further details contact your local council or visit www.recycle-more.co.uk.We have taken great care to ensure that this product reaches you in perfect condition. However, should any parts be damaged or missing please e-mail

Trouble shooting:

Why is the light not working when switched on? Check your power supply is switched on Turn off light and check that the bulb is inserted correctlyCheck the bulb is still in working order.

John Lewis partnership 171 Victoria StreetLondon SW1E 5NN Johnlewis.comMade in China Issue 3 09/20

Thank you for purchasing this Gold Leaves Ceiling Bar. Please read the instructions carefully before use to ensure safe and satisfactory operations of this product. Please keep this instruction for future reference.

Warnings!

For your safety, this product must be installed in accordance with local Building Regulations.If in any doubt, or where required by the law, consult a competent person who is registered with an electrical self-certification scheme. Further information is available online or phone your Local Authority. To prevent electric shock, switch off the mains supply before installing or maintaining this product. Ensure other persons cannot restore the electricity supply without your knowledge. Always use the correct bulb type with the correct wattage as indicated in the specification table. This product is Class I = and should be fitted to a lighting Supply (with earth) protected by a 5 amp fuse or equivalent circuit breaker. When changing the bulb, always switch off at the mains and allow the old bulb to cool down before handling. Dispose of used bulbs carefully.

Caution! The bulb and surrounding parts can become hot during use.For indoor use only.

Care instructionsWe recommend cleaning with a soft dry cloth. Do not use abrasive materials as these will damage the finish. Replace bulb from John Lewis or established brand of the same type and compatibility

Parts list

Assembly

Never install your appliance on a wet, freshly painted or plastered surface. Ensure the house electricity supply is switched off at the fuse box. If removing an existing fitting, note down all wiring connections. Check the fixings will not touch any existing wiring before drilling and attaching the light to the wall.Ensure you thread the wall wires through the black insulating tube fixed to the appliance.

Step 1

Remove mounting bracket from fitting or fixing pack. Using the mounting bracket as a template, mark and then drill the fixing holes in the ceiling (ensure the screws are firmly fixed into a solid or other suitable mounting and not just the plasterboard.) Attach mounting bracket to the mounting surface using suitable fixings. Do not attach fitting to mounting bracket at this stage.

Step 2

Ensuring that the power has been isolated, connect the electrical supply wires to the connector blocks corresponding terminals. Make the electrical connections as follows:

Connect supply live (normally brown or red) to fitting live (marked “L”) on the terminal block.
Connect supply neutral (normally blue or black) to fitting neutral (marked “N”) on the terminal block.
Connect the supply earth (normally green/yellow or unsheathed) to the earth (marked “”) on the terminal block

NOTE:

Ensure electrical connections are tight and no loose strands of wire are left out of the connector block. Ensure terminals and rubber sleeve are correctly seated then close connector block housing.

Height Adjustment:

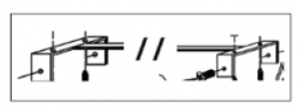

The height of the fitting is adjustable prior to electrical installation only. To adjust the length of cable, pull the metal support wire through into the ceiling cup until the desired height is achieved. If you wish to lengthen the wire again simply push the small tube that the wire passes through in on itself (it is spring loaded) and gently pull the wire back through to the desired length As soon as the tube is released it will automatically lock in position again. With the support wire length achieved gently pull the supply cable through into the ceiling cup until the desired length is achieved. Ensure that the supply cable is left slack so it is the metal support wire taking all of the strain of the weight once installed and not the supply cable. Secure the position of the supply cable using the figure 8 cord restraint that is fitted inside the ceiling cupNote: The weight of the fitting must be supported by the wires and not the electrical cable.

Step 3

Carefully offer fitting over mounting bracket then secure in place with the screws and any washers removed earlier

Fit the bulb: type and wattage as indicated on the fitting. The wattage indicated must not be exceeded. Once installation is complete, the house electricity may be restored at the fuse box.

John Lewis

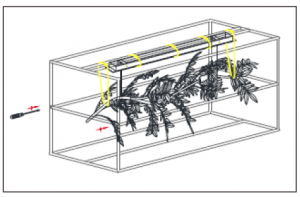

Unpacking in.structions for the Gold Leaves Bar PendantTo prevent damage to the delicate leaves in transit, the pendant has been suspended inside a metal frame. After opening the box, carefully lift the metalframe out of the box.

. Cut the cable ties marked in Green on the diagram below
Remove the two screw.s that .secure the end bar
Whilst supporting the weight of the product, cut the cable t ies ind icatedIn ye llow and carefully manoeuvre the pendant from t he frame
