Johan Lewis Mezze Wall light
Recommended bulb (not included)
2 x 6W max. SES LED energy efficient candle or 2 x 18WSES Eco Halogen candleWhen changing a bulb, always switch off at the mains and allow the bulb to cool before handling. Dispose of used bulbs carefully. Do not exceed the rated power stated or use a different shape bulb from that indicated on the fitting.
Specifications
Max. Power: 25WVoltage: 240V, 50HzIP rating: IP20Weight: 1.1kg
This symbol indicates that this product should not be treated as normal household waste and it should be recycled. John Lewis do not operate instore take back, but as members of the Distributor Trade Back scheme have funded the development and upgrade of recycling facilities across the UK. Please take it to your nearest collection facility or for further details contact your local council or visit www.recycle-more.co.uk.We have taken great care to ensure that this product reaches you in perfect condition. However, should any parts be damaged or missing please contact the Product Helpline on (01202) 690945.
John Lewis Partnership171 Victoria StreetLondon SW1E 5NNjohnlewis.comThank you for purchasing this Mezze wall light. Please read the instructions carefully before use to ensure safe and satisfactory operation of this product.
Warnings!This product is Class I and must be earthed. Please read these instructions carefully before commencing any work. It is recommended that this fitting is installed by a qualified electrician. Install in accordance with the IEE Wiring regulations and the Building Regulations. To prevent electric shock switch off at mains supply before installing or maintaining this fitting. Ensure other persons cannot restore the electrical supply without your knowledge. If you are in any doubt, please consult a qualified electrician. This light fitting should be connected to a 5 amp fused circuit. If replacing an existing fitting, make a note of the connections. This product is suitable for indoor use only. This product is suitable for installation on surfaces with normal flammability e.g. wood, plasterboard, masonry. It is not suitable for use on highly flammable surfaces (e.g. polystyrene, textiles). For your safety, always switch off the supply before changing lightbulbs, cleaning or removing shades. Always take care when handling lightbulbs to avoid injury in case of breakage.
Assembly

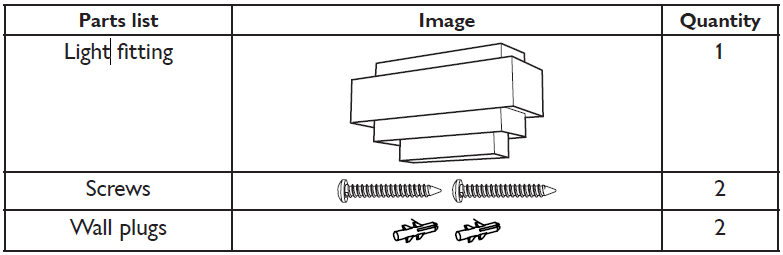

Carefully unpack the carton, making sure all the parts are present before assembly.Step 1 See Fig. 1. Remove the fixing strap (A) from the wall back (C) removing the side screws (B).

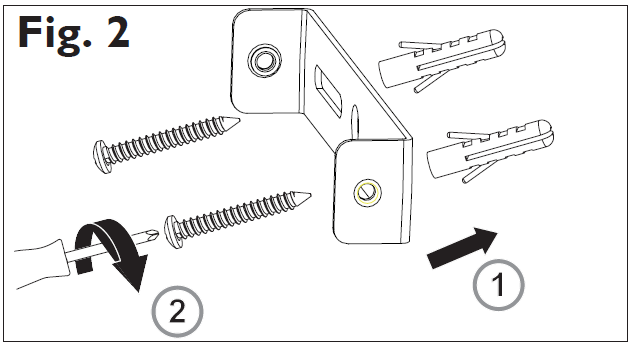

Step 2 See Fig. 2. Attach fixing strap to the wall using the screws provided. Take care to avoid damaging any concealed wiring and pipes.

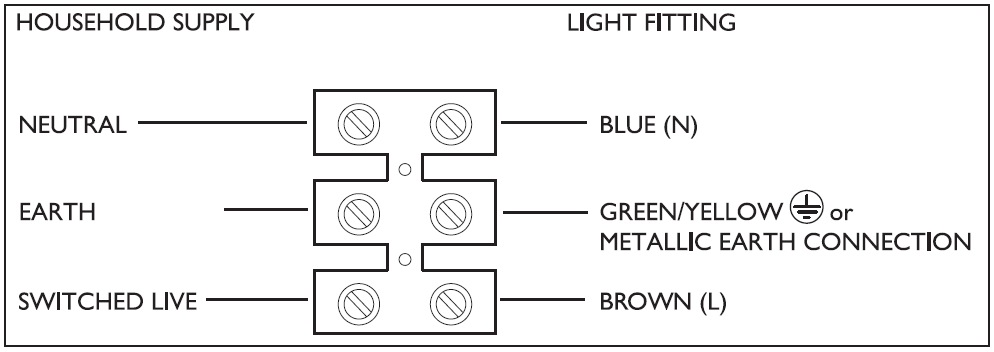

Step 3 Having identified the household wiring from your existing light fitting, connect to the connection block inside the product as shown.
Check that…..
- You have correctly identified the house wires.
- The connections are tight.
- No loose strands have been left out of the connection block.
- When completed, ensure that there are no bare or loose strands of wire exposed, and cover all exposed areas of the connection block with 2 layers of insulation tape.
Step 4 Refer back to Fig. 1. This product has “L” shaped fixing slots to allow easy fixing to the fixing strap. Locate the “L” slots (C) around the small screws (B) on the fixing strap (A). Place the wall back over the strap and gently push down. Tighten the screws to secure. Take care not to trap any wiring.
Step 5 Fit the bulbs per the requirement overleaf. The lampholders tilt to allow bulbs to be fitted with ease – See Fig. 3. Replace fuse or circuit breaker and switch on. Your light is now ready for use.
Care instructions
We recommend cleaning with a soft dry cloth. Do not use abrasive materials as these will damage the finish.
