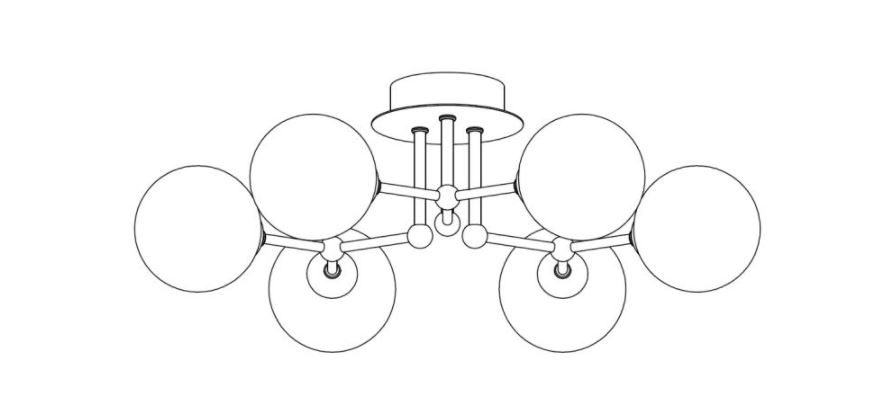

Johan Lewis Molecule 6lt Flush Ceiling Light User Manual
Thank you for purchasing this Molecule flush ceiling light. Please read the instructions carefully before use to ensure safe and satisfactory operations of this product. Please keep this instruction for future reference.
Warnings!For your safety, this product must be installed in accordance with local Building Regulations.If in any doubt, or where required by the law, consult a competent person who is registered with an electrical self-certification scheme. Further information is available online or by phone at your Local Authority.To prevent electric shock, switch off the mains supply before installing or maintaining this product. Ensure other persons cannot restore the electricity supply without your knowledge.Always use the correct bulb type with the correct wattage as indicated in the specification table. This product is Class I = and should be fitted to a lighting Supply protected by a 5 amp fuse or equivalent circuit breaker. When changing the bulb, always switch off at the mains and allow the old bulb to cool down before handling. Dispose of used bulbs carefully.Caution! The bulb and surrounding parts can become hot during use.For indoor use only.
Care instructions
We recommend cleaning with a soft dry cloth. Do not use abrasive materials as these will damage the finish. Replace bulb from John Lewis or established brand of the same type and compatibility.

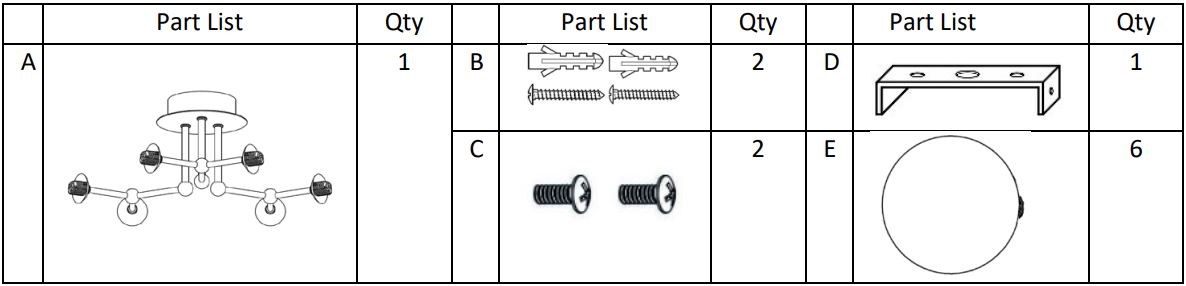

Parts list
Assembly
Never install your appliance on a wet, freshly painted or plastered surface. Ensure the house electricity supply is switched off at the fuse box. If removing an existing fitting, note down all wiring connections. Check the fixings will not touch any existing wiring before drilling and attaching the light to the ceiling. Ensure you thread the ceiling wires through the black insulating tube fixed to the appliance.
Step 1
Remove mounting bracket from the fitting by removing the retaining screws and any washers, retain for later. Using the mounting bracket as a template, mark and then drill the fixing holes in the ceiling (ensure the screws are firmly fixed into a solid or other suitable mounting and not just the plasterboard.) Take care not to damage wiring. Attach the mounting bracket to the mounting surface using suitable fixings. Do not attach the fitting to the mounting bracket at this stage. Make sure no wires are trapped in the process.
Step 2
Ensuring that the power has been isolated, connect the electrical supply wires to the connector blocks corresponding terminals. Make the electrical connection as follows: · Connect the supply live (normally brown or red) to fitting live (marked “L”) on the terminal block housing. · Connect the supply neutral (normally blue or black) to fitting neutral (marked “N”) on the terminal block housing. · Connect the supply earth (normally green/yellow or Step 2 unsheathed) to earth (marked ” “) on terminal block housing. Ensure electrical connections are tight and no loose strands of wire protrude from the terminal block then close the connector block cover by snapping back together. Please note that residential wiring can vary, if you are unsure about the correct polarity please consult a qualified electrician.
Step 3

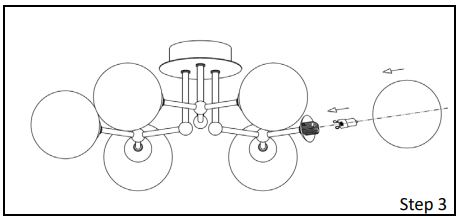

The excess cable must be carefully located inside the ceiling cup or within the ceiling cavity itself. Carefully offer fitting over mounting bracket then secure in place with the screws and any washers removed earlier.Fit the shades by placing the threaded hole in the shade over the lamp holder section and rotating it into place. If cross-threading occurs undo and start again. Take care not to overtighten as this may cause damage to the fitting.Fit the bulb: type and wattage as indicated on the fitting. If using tungsten-halogen bulbs these must be self-shielded bulbs marked Do not touch halogen bulbs with bare hands as this will shorten their life. The wattage indicated must not be exceeded. Once installation is complete, the house electricity may be restored at the fuse box.
Recommended bulb
6 x 2-3 Watt G9 energy-efficient LEDor6 x 20 Watt G9 eco halogen capsuleBulb not included
Specification
Max power: 20WVoltage: 220~240V, 50/60HzIP20Weight 2Kg
Please retain these instructions for future reference.
This symbol
indicates that this product should not be treated as normal household waste and should be recycled. John Lewis does not operate in-store take back, but members of the Distributor Take Back scheme have funded the development and upgrade of recycling facilities across the UK. Please take it to your nearest collection facility or for further details contact your local council or visit www.recycle-more.co.uk.
We have taken great care to ensure that this product reaches you in perfect condition. However, should any parts be damaged or missing please e-mail [email protected]
Troubleshooting:
Why is the light not working when switched on?Check your power supply is switched onTurn off the light and check that the bulb is inserted correctlyCheck the bulb is still in working order.
John Lewis partnership171 Victoria StreetLondon SW1E 5NNJohnlewis.com
Made in ChinaIssue 1 09/18
