John Lewis Rhea Textured Glass Wall User Manual
IL3600
Thank you for purchasing this Rhea textured wall light. Please read the instructions carefully before use to ensure safe and satisfactory operation of this product.
Warnings!
- For your safety, this product must be installed in accordance with local Building Regulations. If in any doubt, or where required by the law, consult a competent person who is registered with an electrical self-certification scheme. Further information is available online or phone your Local Authority.
- To prevent electric shock, switch off the mains supply before installing or maintaining this product. Ensure other persons cannot restore the electricity supply without your knowledge.
- Always use the correct bulb type with the correct wattage as indicated in the specification table. Never exceed the Max. power rating. When changing a bulb always switch off at the mains first and allow the bulb to cool down before handling. Dispose of used bulbs carefully. The bulb and surrounding parts can become extremely hot during use.
- This product is Class II =
and should be fitted to a lighting Supply protected by a 5 amp fuse or equivalent circuit breaker. - For indoor use only.
and should be fitted to a lighting Supply protected by a 5 amp fuse or equivalent circuit breaker.
Assembly
Never install your appliance on a wet, freshly painted or plastered surface.
Ensure the house electricity supply is switched off at the fuse box.
If removing an existing fitting, note down all wiring connections.

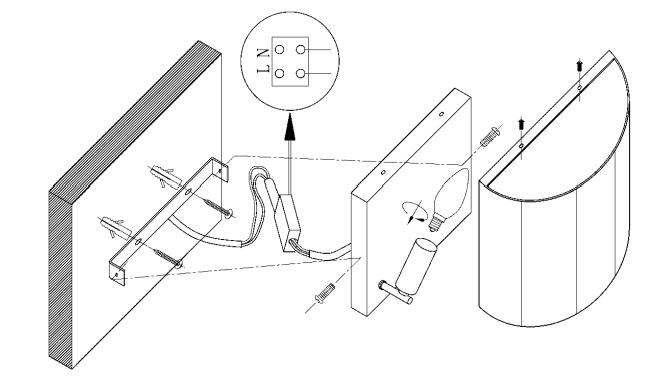

Follow the diagram below for fixing detail.
Check the fixings will not touch any existing wiring before drilling and attaching the light to the wall.
Ensure you thread the wall wires through the black insulating tube fixed to the appliance.
- Ensure the house electricity supply is off at the fuse board.
- If removing an existing fitting, first note down all wiring connections.
- Remove mounting bracket from fitting by removing the retaining screws and washers, retain for later.
- Remove the retaining screws and washers, from shade and retain them for later. Carefully remove shade form the fitting.
- Using the mounting bracket as a template, mark and then drill the fixing holes in the wall. Ensure the screws are firmly fixed into a solid or other suitable mounting and not just the plasterboard. Make sure no wires are trapped in the process.
- Lever open the terminal block box cover with a screwdriver then feed supply cable through rubber sleeving. The weight of the fitting must be supported whilst making the electrical connections as follows:
- Connect supply live (normally brown or red) to fitting live (marked “L”) on the terminal block.
- Connect supply neutral (normally blue or black) to fitting neutral (marked “N”) on the terminal block.NO EARTH must be connected to any part of this fitting. If there are any earth wires present in the ceiling these must be terminated into a separate terminal block (not supplied) to ensure continuity of the earth circuit is maintained.NOTE: Ensure electrical connections are tight and no loose strands of wire are left out of the connector block. Ensure terminals and rubber sleeve are correctly seated then close connector block housing.
- Excess cable must be carefully located inside the wall cup or within the wall cavity itself. Carefully offer fitting over mounting bracket then secure in place with the screws and washers removed earlier.
- Fit the bulb, type and wattage as displayed on the fitting. The stated wattage must not be exceeded.
- Place the shade over the fitting and replace screws and washer removed earlier. Take care not to over tighten as this may cause damage to the fitting.Once installation is complete, the house electricity may be restored at the fuse box.
Care instructions
Wipe clean with a clean dry cloth, when product is switched off and has cooled down.
Recommended bulb
1 x 28W E14 (SES) eco halogen candle bulbOr1 x 9W energy saving spiral bulb
Specifications
Max. Power: 40WVoltage: 230V, 50Hz
Please retain these instructions for future reference.
John Lewis Partnership171 Victoria StreetLondon SW1E 5NNjohnlewis.com
Made in ChinaIssue 1 04/17
