JOYO Multimode Wah Owner’s Manual

JOYO Multimode Wah Owner’s Manual

WAH-II

Thank you for purchasing this product!

In order to use this product properly and safely, please read this owner’s manual carefully before operating this product, and keep it for future reference.

Safety instructions:

  • It can only be used within the voltage and current range of this power supply.
  • Don’t use it near water or damp areas, don’t drop water or other liquid substance into this product.
  • Do not expose it to any dusty, extremely cold or hot areas(for example, direct sun light, near heater or in the car during hot summer).
  • Make sure there is no paper, plastic, metal or other solid object falls into any of the ventilation openings.
  • Clean only with a clean dr y cloth. Don’t use inflammable substances such as benzene, thinner, detergent and so on.
  • Do not open the case for any reason, please switch it off and contact professional maintenance men if it malfunctions, and this product doesn’t contain any spare parts for users to do-it-yourself.
  • Don’t dump this product with household garbage. Proper treatment can reduce pollution and health hazards. Please contact your local dealer for correct approaches.
  • This product is produced according to strict product specifications and supposed to be used inspecific areas. If you purchase it online, by mail order or telesales, please verify whether yourarea is authorized to use this product or not. It’s dangerous to use this product in any unqualified area and you will no longer enjoy the factor y warranty. Besides, please keep your invoice as proof of purchase for after-sales service.
  • Don’t open the case for any reason nor replace any components by yourself, please contact professional maintenance men for maintenance service.
  • Heed all the warnings so as to avoid harm or product damage.

Product’s introduction:

MULTIMODE WAH is a multifunctional WAH-WAH pedal, featuring both WAH-WAH and VOLUME functions. With a WAHWAH sound Q value knob, ensuring the sound changes from compact, sharp to mellow, wide style. Moreover, 6 WAH-WAH frequency ranges are available, you can choose different center frequencies to get diverse tones catering to various music styles. In VOLUME Control Mode, minimum volume control knob is one of its characteristics, by adjusting this knob you can obtain volume while toeing down the pedal completely. For example, you can turn down the volume a lot according to the needs of your performance, or just attenuate half of the volume. The feel for MULTIMODE WAH pedal is amazing and the range of motion is ergonomic, besides, skidproof rubber cushion for the feet enhances durability, the bright LEDs on both sides indicate the pedal’s working status.

Product’s characteristics:

  • Its RM shielded inductance is specially designed for WAHWAH sound, which guarantees outstanding tone.
  • It takes lesser space of the pedal board, lightweight and portable.
  • Easy to operate, with WAH-WAH /VOLUME and WAH-WAH /BYPASS toggle switch and minimum volume control knob.
  • With a WAH-WAH sound Q value knob.
  • WAH-WAH frequency range: 6 are available.
  • With both WAH-WAH and VOLUME functions.
  • LED indicators on both sides clearly show the pedal’s working status.
  • TrueBypass(for WAH-WAH mode only).
  • Active volume control circuit design ensures tone’s minimum signal loss and the signal intact.

Panel’s introduction:

  1. Power Input Jack: DC9V Power Input, center minus.
  2. Output Jack: 6.35mm single channel signal Output Jack.
  3. Input Jack: 6.35mm single channel signal Input Jack.
  4. WAH/VOL and WAH/BYPASS toggle switch: WAH/VOL is WAH-WAH mode and VOLUME mode, WAH/BYPASS is WAH-WAH mode and BYPASS mode.
  5. Minimum Volume Control Knob: In VOLUME mode, the adjusting range for the volume of the footswitch’s initial position is 0%-50%.
  6. Q value knob: to adjust WAH-WAH effect’s Q value.
  7. Select switch for the 6 WAH-WAH frequency ranges: you can choose different center frequency range of WAH-WAH sound.
  8. Working status Indicator: The working status indicator is green when the WAH-WAH mode is turned on, while the working indicator goes out once the VOLUME mode or BYPASS mode is turned on.
  9. Footswitch: WAH-WAH mode is the default mode in WAH/VOL mode, you can toe down the footswitch and switch to the VOLUME mode; inWAH/BYPASS mode, WAH-WAH mode is the default control mode, toe down the footswitch and switch between WAH/BYPASS mode.

How to use?

WAH Mode:

  • When WAH/VOL and WAH/BYPASS footswitch is at the position of WAH/VOL or WAH/BYPASS, WAH mode is the pedal’s default control mode.
  • In WAH-WAH mode, you can adjust the Q value knob to change the WAH-WAH sound, sharp sound can be obtained when you turn this knob clockwise.

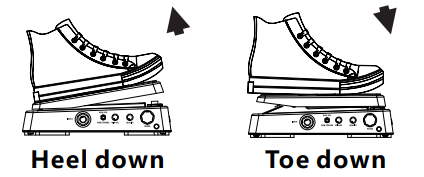

  • Toe down and heel down continuously offers continuing smooth WAH-WAH sound, toe down will give you more treble, heel down will give you more bass.
  • When the LED is green, it means the WAH tone is on and enters into WAH-WAH pedal mode.

VOLUME mode:

  • When WAH/VOL WAH/BYPASS footswitch is at WAH/VOL, toe down and choose the VOLUME mode, the LED indicator won’t illuminate.
  • Toe down will turn up the volume, while heel down will turn down the volume.
  • Adjust the minimum volume control knob, and also adjust the initial volume in VOLUME mode.

BYPASS mode:

  • When WAH/VOL and WAH/BYPASS footswitch is at WAH/BYPASS, toe down and choose the BYPASS mode, the LED indicator won’t illuminate.
  • Please choose BYPASS mode when you need to perform the original sound.

Parameters:

  1. Power voltage: DC9V (center minus)
  2. Supply current: 18mA
  3. Input Jack: 6.35mm single channel
  4. Output Jack: 6.35mm single channel
  5. Input Impedance: 2.2M
  6. Output Impedance: 100

JOYO TECHNOLOGY CO., LTD

Address: 2/F, Lushi Industry Building, 28th District, Bao’an, Shenzhen, 518133 China.www.joyoaudio.comEmail: [email protected]Tel: 0086-755-29765381

JOYO Technology is committed to guarantee the highest quality standards. All Technical Parameters or pictures are only for your information, subject to the actual products.
