KALANG DANTE 4 channel headphone amp User Guide

Quelle

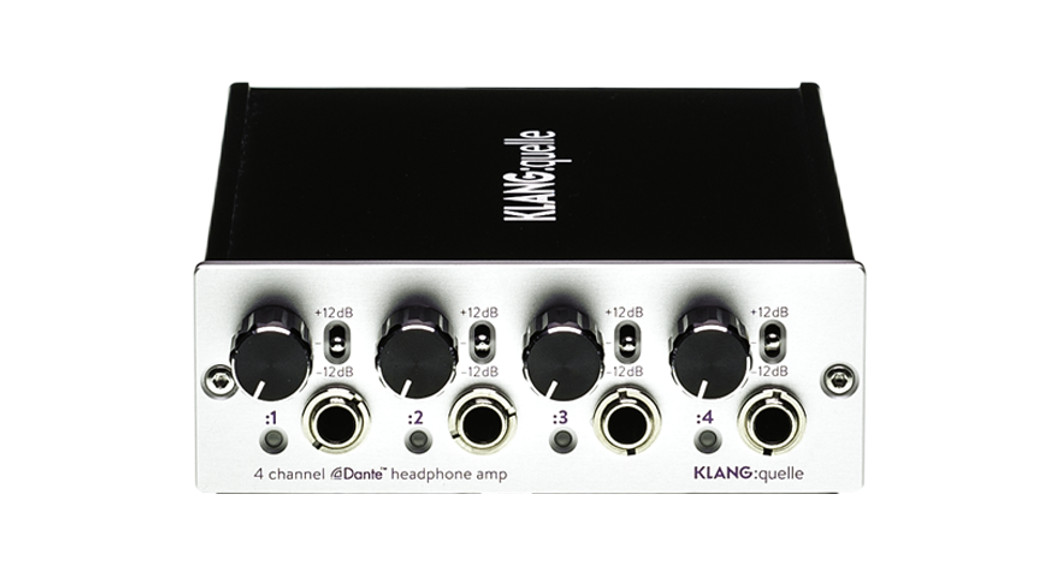

4 channel headphone amp

MORE INFORMATION ONLINE:www.kling.com/quelle

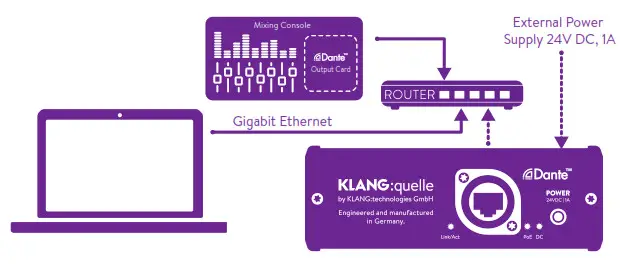

CONNECT DEVICE

  1. Connect external power supply if your network does not offer Power over Ethernet (PoE)
  2. Connect CAT5e/CAT6 network cable to KLANG:quelle and to your computer or Dante enabled product/network

SOURCE

If you have another Dante-enabled product (e.g. mixing console) proceed with STEP 3. Otherwise, your computer can also stream audio.

  1. OPEN klang.com/dante
  2. Install Dante Virtual Soundcard
  3. Open DVS and click on START
  4. Set DVS as your default sound card
  5. Start your DAW or audio player

CONTROLLER

  1. OPEN klang.com/dante
  2. Install & Start Dante Controller
  3. Turn of WiFi on your computer
  4. Go to the ROUTING tab and double-click on your sound source. Go to DEVICE CONFIG tab and choose the preferred sampling rate. Close this window.
  5. Now, do the same for KLANG:Quelle and use the same sampling rate.Note: Dante devices can only be connected if they run at the same sampling rates! (default: 48kHz)

ROUTING

Connect (stereo) audio stream from the sound source to KLANG:quelle Out Left and Right.

ENJOY LISTENING

Connect your headphones and adjust the Gain Select Switch.

In-Ears: -12 or 0dB | Other: 0 or +12dB.

TECHNICAL DATA

WARNINGS AND PRECAUTIONSDo not remove covers. Connect only to main sockets outlets with protective earth. Do not handle power cords with wet hands. Do not expose to water or other types of liquids or moisture (rain, fog, dew, etc.). Operating temperature: 0 °C to 50 °C (32 °F to 122 °F). Do not expose to heat sources.

COMPLIANCEKLANG:quelle has been tested and found to comply with the requirements defined in: EN55103-1:2009 EN 55103-2: 2009. EN 55022:2006 / CISPR 22:1997 CAN/CSA-CEI/IEC CISPR 22:02 FCC 47 CFR, Part 15.

SAFETYUL 60065, 7th Edition, Rev.: 09/21/2012;CAN/CSAC22.2 No. 60065:03 (R2012).RoHS Compliant and Pb-Free.

WEEE – RECYCLINGAccording to RL2002/96/EG (WEEE – Directive on Waste Electrical and ElectronicEquipment) electronic equipment has to be recycled and does not belong in the standard waste. If you are unsure how to recycle this product please contact us and we will recycle the device for you.

DIMENSIONS, WEIGHT, POWERWeight: 0.9 kgSize (W/H/D): 12 / 4.5 / 19 cmMax. Voltage +20 dBu at 0 dBFS, Max. channel current 130 mAMax. Power 25 dBm, Output impedance < 0.1 Ohm

© KLANG:technologies GmbH, Aachen, Germany, 2019. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means—electronic, mechanical, photocopy, recording, or otherwise—without written permission by KLANG:technologies GmbH | Wespienstr. 8-10 | 52064 Aachen | Germany. +49 241 89 03 01 22 – [email protected] – www.KLANG.com/quelle
