Kappa Earphones P507076

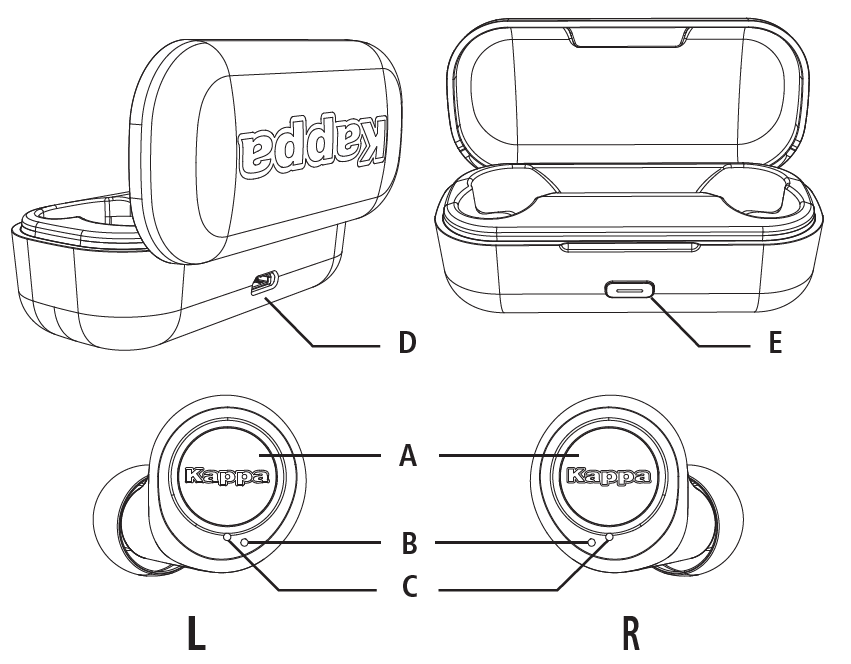

Overview
- A. Multifunctional Button
- Answer or end a call
- Reject a call
- Play or Pause
- Volume Up or Down
- Tack Forward or Backward
- B. Bluetooth Indicator
- C. Microphone
- D. USB Port
- E. Charging Case Button
- L. Left (Slave)
- R. Right (Master)
Safety Instructions
- Please read, follow and keep these instructions.
- Heed all warnings on the product and in the instructions for use.
- Stop using this product immediately if it causes discomfort or pain. When using this product, it is recommended that you limit the volume to help avoid causing harm to your ears and danger resulting from being unable to hear what is going on around you.
- Keep the device out of extreme heat and humidity.
- Do not use the device near water, such as sinks, bathtubs, swimming pools, washing machines, tubs of water, etc.
- Observe all signs and instructions that require an electrical device or radio product to be switched off in the designated areas, such as petrol / refueling stations, hospitals, blasting areas, potentially explosive atmospheres and aircraft.
- Using headphones while driving can distract you and increase the likelihood of an accident. If driving conditions demand it (such as bad weather, high traffic density, presence of children in the car, difficult road conditions), pull off the road and park before making or answering calls.
- Battery life may differ depending on personal habits.
- This appliance should be used in moderate climates.
Warning
- To prevent potential hearing damage, do not listen at high volume levels for long periods.
- Do not turn the volume up too high; doctors warn against prolonged exposure to high volumes.
- Stop using the product or lower the volume if you feel your ears ringing.
- Prolonged listening at high volume could lead to hearing damage.
- Danger of explosion if battery is incorrectly replaced. Replaced only with the same or equivalent type.
- The batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
- No naked flame sources, such as lighted candles, should not be placed on the apparatus.
- For ages 12 up. This is not a toy.
- IPX4 water proof is for earphone only, but not for charging case.
Specification
- Bluetooth Version: V 5.0
- Bluetooth Chipset: BK3266
- Driver Unit: 6mm x 2
- Water Proof: IPX4 (for earphone only)
- Working Distance Range: 10M
- Frequency Range: 2.4000 – 2.4835GHz
- Frequency Response: 20Hz – 20KHz
- Impedance: 32Ohm ± 15% at 1KHz (DC)
- Maximum Radio Transmit Power: < 10mW
- Battery for Earbuds: 45mAh x2, 3.7V
- Charging Time: About 1.5 hours
- Battery for Charging Case: 400mAh, 3.7V (3 times recharge for charging case)
- Charging Time: About 2.5 hours
- Working Time: Up to 3 hours
- Standby Time: About 200 hours
Using the TWS Bluetooth Earphones
This guideline is provided to help you get started quickly with your wireless stereo earphones; please read it carefully and save it for future reference.
What’s in the box
- Bluetooth earphones
- Charging Case
- Instruction manual
- XS / S / M / L Ear tips
- USB charging cable
Power Supply
- We recommend that you fully charge the battery before using for the first time
- Put the earbuds into charging case for charging.
- Allow about 1.5 hours for a full charge of earbuds.
- Charging case blink white LED when charging, LED will be off when fully charged.
- Plug the Micro USB end of the supplied USB cable into the USB micro port charger connector of charging case.
- Allow about 2.5 hours for a full charge of charging case. Charging case pulsing white LED when charging, LED will be solid when fully charged.

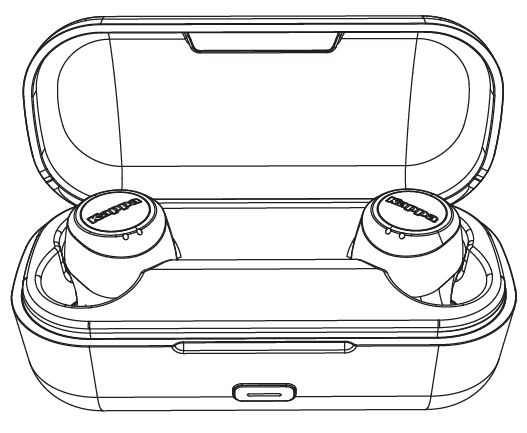

Power On
Mode 1: Open the charging case, the earbuds will auto power on.
Mode 2: Press and hold L&R buttons for 3s while the earbuds are out of the charging case.
Power Off
Mode 1: Put earbuds into charging case and close the lid, the earbuds will auto power off.
Mode 2: Press and hold L&R buttons for 3s while the earbuds are out of the charging case.
Mode 3: L & R Pairing with each other beyond 5 mins, earbuds will power off.Mode 4: Earbuds paring with device, no connection beyond 5 mins, TWS will auto power off.
Bluetooth Connection
- Activate the Bluetooth feature function on your native device to begin set-up.
- The “Search new device” screen will be displayed.
- Place both devices no more than 3 feet away from each other.
- Open the charging case, the earbuds will auto power on and pair with each other. After earbuds pairing with each other successfully (There’s a warning tune “connected”, the LED of master side (R) starts blinking red/blue light alternately.
- As soon as the system detects the new device in your dialog box, select the icon that reads “Kappa P507076”, there’s a warning tune “You device is connected” when connect successfully.
- For second use, it will connect previous device automatically
Music
Functions L R
Pause Short press (each side is OK)Play Short press (each side is OK)
Volume – Double Click – – –Volume + – – – Double Click
Next Track – – – Press and hold for 2s
Previous Track Press and hold for 2s – – –
Voice On Triple Click (each side is OK)
Voice Off Triple Click (each side is OK)
LED Lights Indication
| Earbuds LED
Mode 1 |
Power On |
LED solid blue 2s |
| Mode 2 | Power Off | LED blink solid red once |
| Mode 3 | Pairing Mode | LED lights blink red/blue |
| Mode 4 | Connect Mode | LED lights slow-blink blue |
| Mode 5 | Reset Mode | LED blink blue 3 times, then LED solid red once |
Charging Case LED
| Mode 1 | Charging Case Charging Earbuds | LED pulsing white |
| Mode 2 | Earbuds fully charged | LED goes off |
| Mode 3 | Charging the charging case | LED lights slow-blink white |
| Mode 4 | Charging case fully charged | LED solid white |
Charging Case Battery Indication
Short press charging case button
75% – 100% battery White LED flash 4 time25% – 50% battery White LED flash twice50% – 75% battery White LED flash 3 timeBelow 25% battery White LED off
FAQ
- Single side connect with earbuds, need to switch to both sides.
- Under shutdown status, press and hold both buttons for 10S(L/R, both sides), LED flash blue 3 times, LED Flash red once, earbuds will power off.
- Put earbuds into charging case, press and hold charging case button for 6S to reset L/R LED flash blue three times, LED flashed once and power off.
Declaration of Conformity
TCC hereby declares that the radio equipment type P507076 is in compliance with Directive 7014/5 J/EU. The full text of the EU declaration of conformity is available at the following internet address upon request. http://www.tccgIobal.com/en/contactTCC Global N.V.Zuidplein 84, 1077 XV Amsterdam, The Netherlands
Disposal of your old product
Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.
Attention should be drawn to the environment aspects of battery disposal. Processing of electric and electronic equipment at the end of their service life is applicable to all in member counties of the European Union and other European countries operating a selective waste collection system. This symbol, affixed to the product or its packaging, indicates that the product must not be processed with household waste. It must be brought to an electric and electronic waste collection point for recycling and disposal. By ensuring the appropriate disposal of this product you also help in preventing potentially negative consequences for the environment and human health. The recycling of materials helps preserve our natural resources.
For further information regarding the recycling of this product, please contact your municipality, local waste disposal centre of the shop where the product was purchased.
This symbol means that the product contains a built-in rechargeable battery covered by European Directive 2013/56/EU which cannot be disposed of with normal household waste. We strongly advise you to take your product to an official c lection point to have a professional remove the rechargeable battery. Inform yourself about the local separate collection system for electrical and electronic products and rechargeable batteries. Follow local rules and never dispose of the product or rechargeable batteries with the normal household waste. Correct disposal of old products and rechargeable batteries helps prevent negative consequences for the environment and human health.
