KidsEmbrace Deluxe Light Weight Compact Stroller Owner’s Manual
Recommended for childrenWeight: 5 – 50 lbs.Max Height: 43in.
WARNING!
Read all instructions before using the KidsEmbrace Deluxe Light Weight Compact Stroller.
WARNING!Failure to follow all warnings and instructions may result in serious injury or death.Your child’s safety is important to us, so please follow the owner’s manual and labels when using this product. Important – Please keep the owner’s manual for future use.•Always ensure that all components are correctly fitted and adjusted before use. To avoid the danger of suffocation, remove all plastic covers before using the stroller. Immediately destroy the plastic cover to keep it away from babies and children.•NEVER leave child unattended. Always keep child in view while in stroller•Prevent serious injury or death from falls or sliding out. ALWAYS secure child in the restraint with the harness.•When making adjustments to the stroller, ALWAYS ensure that all parts of the child’s body are clear of any moving parts of the stroller.•To prevent injury keep children at a safe distance away from the stroller during the opening and folding. Care should be taken toprevent finger injury.•DO NOT leave child in stroller near walls, curtains, or windows, where the child can become tangled, or where a child may be able to use its feet to push against the stroller.•DO NOT use the storage basket to transport child.•DO NOT overload the storage basket, Maximum weight should not exceed 6 lbs.•It is recommended to use the most reclined backrest postion for children up to 6 months and with footrest in the up position.•ALWAYS engage the parking brakes when placing and removing child from the strollerWARNING!•DO NOT place any heavy bags, packages, or other items on the stroller handle, canopy, sides, backrest, or bumper bar of stroller as they can tip the stroller over and injure child.•DO NOT use the stroller if any part is broken, torn, or missing.•DO NOT use this stoller for more than one child at a time and•DO NOT leave other children playing unattend near the stroller.•DO NOT use stroller with child in it on stairs and escalators•DO NOT allow child to climb on or stand on stroller•To avoid the risk of fire, never leave the stoller near sources of strong heat such as open fires, electric heaters, and gas stoves,•If the stroller is exposed to direct sunlight, wait for it to cool down before placing your child in it. This stroller is recommend for children up to 36 months old, or for children who weight less than 50 pounds and height of 43”.•DO NOT use accessories, spare parts, and components other than those supplied by KidsEmbrace.•Ensure the person using the stroller is responisble and knows how to use it safely.•Always apply the brakes when the stroller is stationary.•NEVER leave the stroller on a sloped surface with a child on board, even with the brakes engaged.•DO NOT use the stroller on a beach as the sand and salt could damage the stroller.•DO NOT use any infant car seat with this product. Serious injury could occur.•This is not an excercise stroller. DO NOT run, jog, or in-inline skae or participate in other athletic activity.
Stroller Features
A.CanopyB. Harness system (3) height adjustmentsC. Bumper barD. FootrestE. Front wheel swivel lockF. Front wheelsG. 2 buttons to fold stroller (slide and squeeze button)H. Padded stroller handleI. Comfort harness padsJ. Safety harness buckle
K. Deluxe trim coverL. LegrestM. Large storage basketN. Backrest adjustmentO. Rear brakes (2)P. Back wheels
Assembly
Unpack all contents and please check that all parts are present before starting assembly. Please see PARTSLIST on page 2. After checking all parts are present discard the packaging materials.WARNING: Please make sure children are at a safe distance while you are opening the stroller.
Open the stroller
First protect the floor with cardboard, blanket, or small rug until wheels have been installed. Next, locate the two buttons on the handle sliding button across with your thumb and then squeeze button with your fingers simultaneously to unlock the stroller. Pick up on the handle to open then release both buttons and continue until you hear a “click” and the stroller is in the fully open position shown in Figure 1.
Figure 1
Assemble front wheels
The front wheels are interchangable and can be installed on either side of the front of the stroller. Insert the front wheel set peg into the plastic base until you hear a “click” shown in Figure 2.
Figure 2

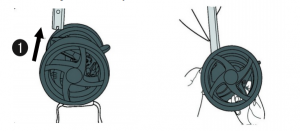

Assemble rear wheels
The back wheels are NOT interchangeable and can only be installed on the correct side. Put both wheels on floor with the break towards back. Locate the button locks in the cog hole and position to the outside. After locating the left and right wheels, align the cog hole with the rear leg tube, push into until you hear a “click” shown in Figure 3. If you did not hear a click, and you can pull the wheel downward it is on the wrong side.
Figure 3
Assemble canopy
Align the canopy plastic peg with the slot then press tightly to insert the peg into the slot shown in Figure 4. To disassemble, press both tabs on the back side and pull the peg from each slot.
Figure 4
Assemble bumper bar
Align the bumper bar pegs with the holes in the front of the seat and insert into until you hear a “click” shown in Figure 5. To disassemble, press down on the button of the bumper bar and pull out one side.
Figure 5
one page left
Adjust Canopy / Fold Stroller
Adjust the Canopy
To extend canopy, hold on front of canopy and push towards front of stroller shown in Figure 12. To retract canopy, hold on front of canopy and pull to the back of the stroller towards the stroller handle shown in Figure 13.
Figure 12
Figure 13
WARNING: Please make sure children are at a safe distance while you are opening the stroller.
Fold the Stroller First, fold the canopy then locate the two buttons on the handle sliding button across with your thumb and then squeeze button with your fingers simultaneously to unlock the stroller. Release the two buttons once the lock is released and push the handle forward until the stroller is closed and locked. The stroller is self standing on the wheels shown in Figure 14.
Figure 14
To avoid serious injury, DO NOT raise or recline the backrest with child in stroller
Adjust Backrest
Grasp the adjuster on the back and squeeze both sides then pull down on the strap to recline the backrest shown in Figure 15. To raise the seat, hold the d-ring at the end of the strap and slide the adjuster up.
Figure 15
Adjust Legrest
The legrest has two adjustment positions for the child. To adjust, squeeze both buttons on the sides of the leg rest and rotate up or down into position as shown in Figure 16.
Figure 16
Other
Maintenance
Before using always check for worn parts, torn fabric, or stitching. Replace or repair the parts as needed. Use only Kids Embrace replacement parts.
Cleaning
Use only household soap and warm water to clean the stroller including trim cover. Always dry plastic and metal parts.DO NOT use bleach or detergent. DO NOT iron. DO NOT tumble dry. DO NOT dry clean.
Limited One-Year Warranty
This product is warranted against defective materials or workmanship for one year from the date of original purchase. Proof of purchase is required. The exclusive remedy for this warranty is that Kids Embrace will at its option, provide repair or replacement components for this product or refund the original purchase price of the product. Kids Embrace reserves the right to discontinue or change fabrices, parts, or products, or to make substitutions. To make a claim under this warranty, contact Kids Embrace consumer services at 1-866-947-3287.
Warranty Limitations
This warranty does not include damages which arise from negligence, misuse or use not in accordance with the product instructions. The use of non-KidsEmbrace covers, inserts, toys, accessories, or tightening devises is not approved by KidsEmbrace. Their use could take this stroller out of compliance with the safety standard or negatively affect the performance. Their use automatically voids the KidsEmbrace warranty.
Register
To register your KidsEmbrace product visit us online at www.kidsembrace.com/product-registration or return the registration cardprovided with your stroller. We do not accept product registrations from those living outside the United States of America.
Keep this instruction manual for future use.
KidsEmbrace, LLC6711 Odessa AveVan Nuys, CA 91406www.KidsEmbrace.comQuestions or comments?Email: [email protected]Call: 1-866-947-3287
