LED 12VRV Ceiling Dome Light
Thank you for purchasing the Kohree LED 12V RV Dome LightThis RV Ceiling Dome Light is a great idea for adding functionality to any area in your RVs, Campers, Motorhomes, Trailers, white light output bringing to you cozy soft lighting just like being at home. Please read below specifications and instructions before installation.
Specifications
- Product size: L295*W130*H85MM,
- Power voltage: 8W DC10-30V
- Number of lamp beads Model: 2835SMD 84LED
- Product material: ABC+PC
- Product features: Simple and convenient installation
- Color Temperature: 4000-4500K
- Luminous Flux: 800LM
- Beam angle: 120 degree
- Working temperature: -13°F ~ +113°F
- Stored temperature: -40°F ~ +140°F
Press down ON/OFF

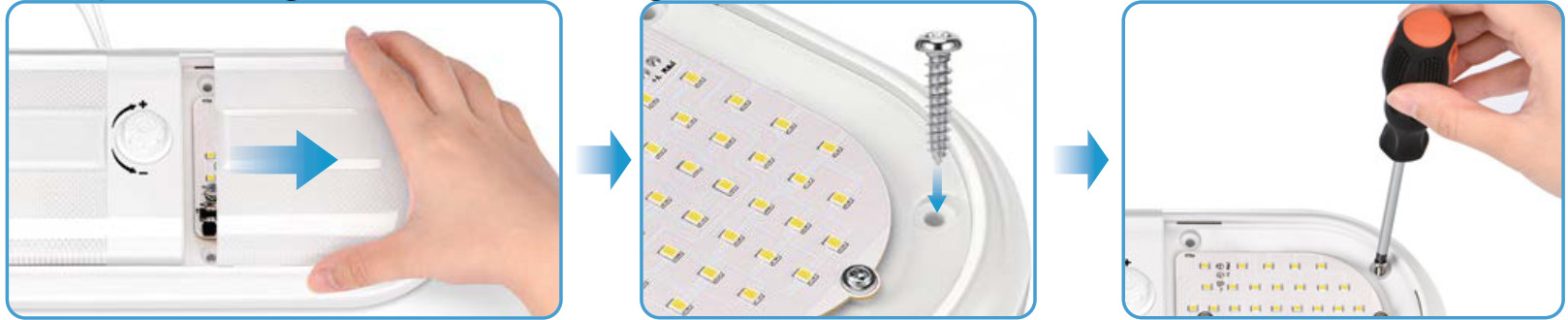

Remove light cover
- Plastic shell, waterproof glue, high temperature resistance, corrosion resistance;
- Constant voltage and constant current, high efficiency and high reliability;
- No bad glare, no strobe, avoid long-term visual switching times can reach more than one million times;
- Comply with ROHS directive, and do not contain mercury or other harmful substances.
User Instructions
◆Polarity Independent Power Design.◆2 White wires, the light is polarity insensitive.1. Connect either one car power wire with one light wire(there are no positive and negative anodes), and insert the two-wire connector into the blue cap and tighten the connector.
2. Open the light cover, fix the light with 4 screws on each side.
3. Press the button down to turn on the light (with memory function, save the last setting) When the green light is on, the brightness reaches the maximum. When the red light is on, the brightness reaches the minimum.
Package Includes
◆1 x 12V LED Double Dome Light◆2 x Wire nuts◆4 x Screws◆1 x User Manual
Warranty
We have one year warranty, if you have any problem during use, please do not hesitate to contact us.
