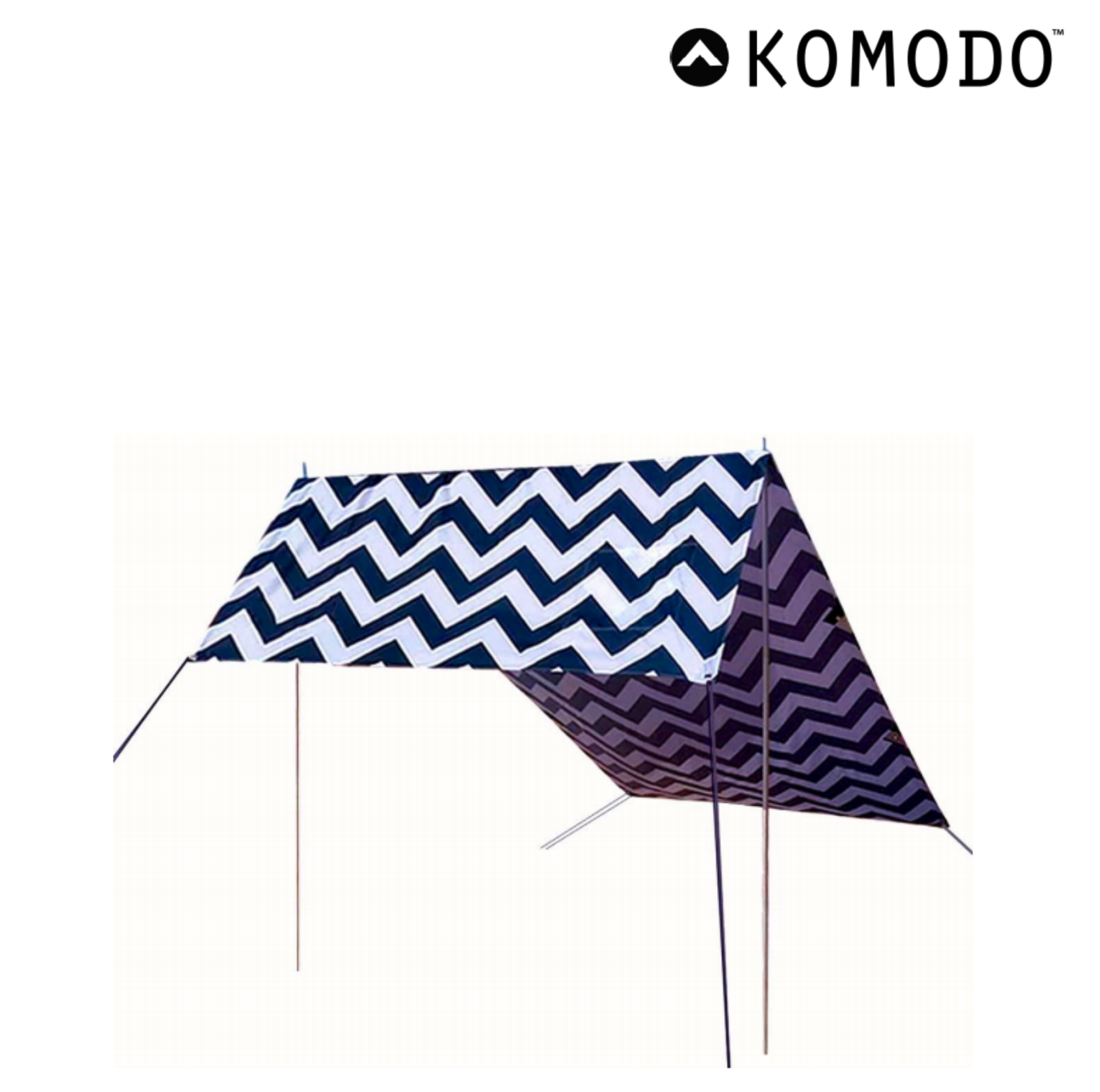

KOMODO KDBCHSHTNTA UV50 Beach Shade Tent User Guide

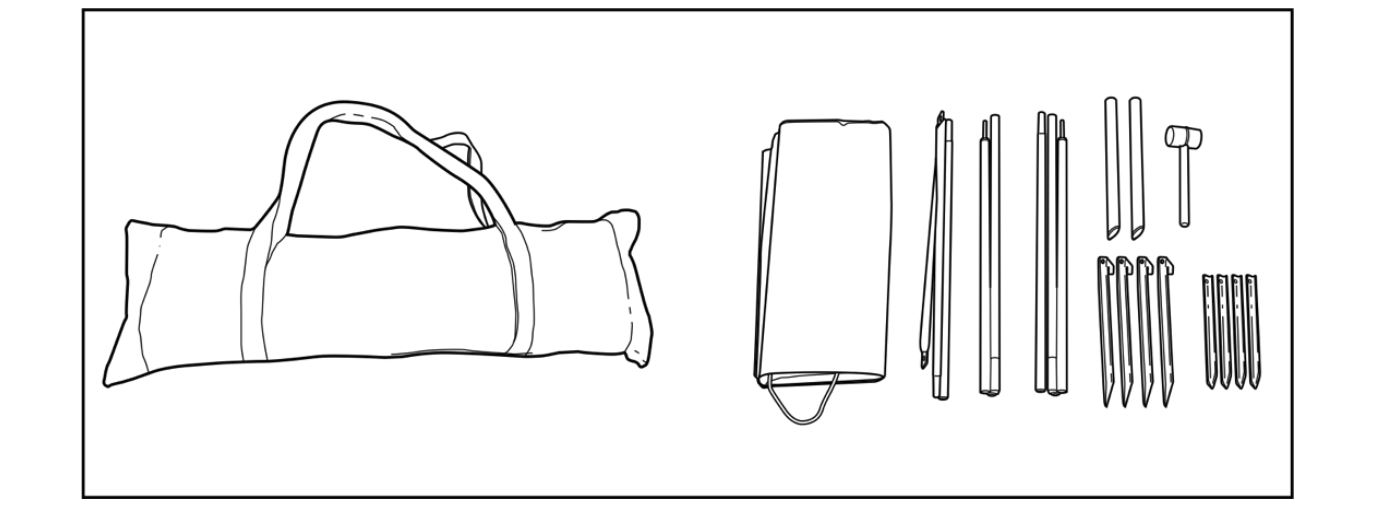

COMPONENTS
ASSEMBLY
Step 1:Open the storage bag and remove the shade cloth and all the accessories.
Step 2: (Figure 1)
- Unfold the crossbar and use the eyelets as a guide for how wide the upright supports need to be spaced apart.
- Insert the two upright supports into the sand.Note: Ensure the supports are buried firmly enough to keep the upright poles in place.
Step 3: (Figure 2)
- Insert the two upright poles into the upright supports.
- Attach the crossbar to the top of the two upright poles. Figure 2
Step4:

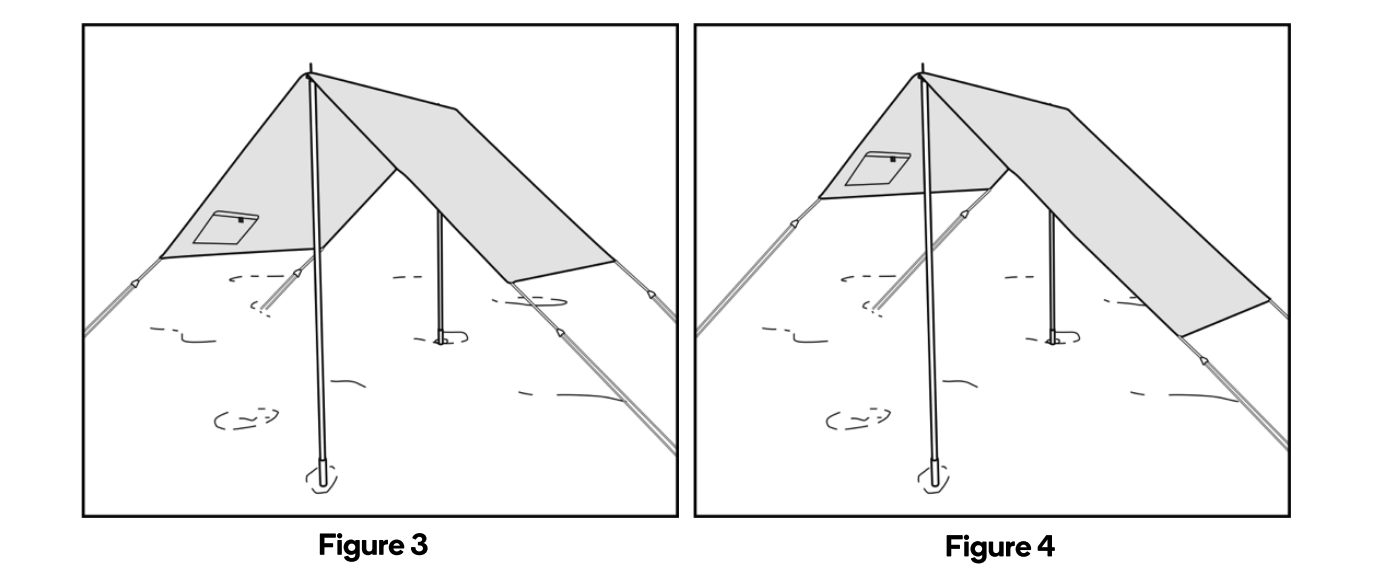

- Place the shade cloth over the crossbar and insert the spigots on the top of upright poles into the eyelets on the shade cloth.Note: The shade cloth can be setup in either an “L” or an “A” shape depending on which eyelets the spigots are inserted into (Figures 3 & 4).
- Using either the plastic or steel pegs, stretch out and secure the guy ropes to the sand.Note: If the sand is particularly soft, use the supplied mallet to bury the pegs deeper into the sand until the shade cloth is secure.
NOTES
Need more information?
We hope that this user guide has given you the assistance needed for a simple set-up. Forthe most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
