Introduction

This manual describes the FlexATX Kabylake S board. This board will also be denoted FlexATX-KBL-S within this Users Guide.

The use of this Users Guide implies a basic knowledge of PC hard- and software. This manual is focussed on describing the FlexATX-KBL-S board’s special features and is not intended to be a standard PC textbook. New users are recommended to study the short installation procedure stated in the following chapter before switching on the power.

All configuration and setup of the CPU board is either done automatically or manually by the user via the BIOS setup menus. Latest revision of this manual, datasheet, BIOS, drivers and BSP’s (Board Support Packages) can be downloaded from Kontron Web Page.

Description

The mainboard FlexATX-KBL-S is based on the Kabylake processor family. It uses the Chipset C236 PCH from Intel. This powerful hardware with efficient graphic and network capabilities offers a broad range of application areas.

Main characteristics are:

Support Kabylake Family Processors on a LGA1151 CPU Socket (37.5 mm x 37.5 mm) Processor range up to 80 W Thermal Design Power (TDP)
Chipset Kabylake C236 PCH
2x ECC/NON ECC SODIMM Memory Architecture
Two Display Ports (DP) and and LVDS, or optional three DPs
Four Gigabit Ethernet Ports
Six SATA 3.0 Ports
One PCI Express x16 for expansion
Monolithic 4Core and 2Core with Integrated Memory Controller (IMC) & Graphics

Built with these functions, FlexATX-KBL-S Mother Board is ideal for Automated Teller Machines (ATM), Automation, multi-media, gaming, Kiosk, medical equipment, industrial automation, financial automation, process control, semiconductor equipment and network security markets.

Installation procedure

Packing Check List

The FlexATX-KBL-S package includes the following basic items accompany with this manual.

One main board
One IO shield

If any of these items are damaged or missed, please contact your vendor and save all packing materials for future replacement and maintenance. Note: The above packing list is for standard single box packing only.

Installing the Board

ESD Sensitive Device!

Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry.

Wear ESD-protective clothing and shoes
Wear an ESD-preventive wrist strap attached to a good earth ground
Check the resistance value of the wrist strap periodically (OK: 1 MΩ to 10 MΩ)
Transport and store the board in its antistatic bag
Handle the board at an approved ESD workstation
Handle the board only by the edges

To get the board running follow these steps. If the board shipped from Kontron has already components like RAM and CPU cooler mounted, then the next steps below can be skipped.

Only connect to a power supply delivering the specified input rating and complying with the requirements of Safety Extra Low Voltage (SELV) and Limited Power Source (L.P.S.) of IEC 60950-1 and the Energy sources (ES1) of IEC 62368-1.

Turn off the PSU (Power Supply Unit)

Turn off PSU completely (no mains power connected to the PSU) or leave the Power Connectors unconnected while configuring the board. Otherwise components (RAM, LAN cards etc.) might get damaged. Make sure to use +12V single supply only. Alternatively use a standard ATX PSU with suitable cable kit and PS_ON# active.

Insert the DDR4 SO-DIMM 260 pin module(s) Be careful to push it in the slot(s) before locking the tabs. For a list of approved SO-DIMMs contact your Distributor or FAE. See also chapter “System Memory Support”. Use SO-DIMM with the same memory density in both sockets.
Cooler Installation: The FlexATX-KBL-S comes with a passive heatsink pre-installed and a separate fan, which can be mounted onto the heatsink, should the system require additional airflow. Connect Cooler Fan electrically to the FANCPU connector.
Connecting Interfaces: Insert all external cables for hard disk, keyboard etc. A monitor must be connected in order to change BIOS settings.
Connect and turn on PSU: Connect PSU to the board by the ATX-24-pin connector.
Power Button: If the board does not start by itself when switching on the ATX/DC PSU AC mains, then follow these instructions to start the board.
BIOS Setup: Enter the BIOS setup by pressing the <F2> key during boot up. Enter “Exit Menu” and Load Setup Defaults.

To clear all BIOS settings, including Password protection, activate “Load Default BIOS Settings” Jumper for > 10 sec (without power connected).

Mounting the board in the chassis

When mounting the board to chassis etc. please notice that the board contains components on both sides of the PCB which can easily be damaged if board is handled without reasonable care. A damaged component can result in malfunction or no function at all.

When fixing the Motherboard on a chassis it is recommended to use screws with integrated washer and a diameter of > 7 mm. Do not use washers with teeth, as they can damage the PCB and cause short circuits.

Recommended Power Supply for KabyLake motherboard should be above or equal to 473 W.

1T44B he ATX 12V specification does not clearly state a requirement for the ramp-up of the 5VSB standby voltage. However, we strongly recommend to use only PSUs where the 5VSB ramp up follows the same rules as listed for +5VDC. 1T45B his should ensure that the board behaves properly, in particular when powering up without or with a weak/empty battery.

Requirements IEC60950-1

Take care when designing chassis interface connectors in order to fulfil the IEC60950-1 standard.

Users of FlexATX-KBL-S must evaluate the end product to ensure compliance the requirements of the IEC60950-1 safety standard are met:

The motherboard must be installed in a suitable mechanical, electrical and fire enclosure.
The system in its enclosure must be evaluated for temperature and air flow considerations.
The motherboard must be powered by a CSA or UL approved power supply that limits the maximum input current to 10 A via 24-pin ATX connector.
For interfaces having a power pin such as external power or fan, ensure that the connectors and wires are suitably rated. All connections from or to the product shall be with Safety Extra Low Voltage (SELV) circuits only.
Wires have suitable rating to withstand the maximum available power.
The enclosure of the peripheral device fulfills the fire protecting requirements of IEC60950-1.

If any of the supply voltages drops below the allowed operating level longer than the specified hold-up time, all the supply voltages should be shut down and left OFF for a time long enough to allow the internal board voltages to discharge sufficiently.

If the OFF time is not observed, parts of the board or attached peripherals may work incorrectly or even suffer a reduction of MTBF. The minimum OFF time depends on the implemented PSU model and other electrical factors and needs to be measured individually for each case.

System specifications

Block Diagram

Figure 1: Block Diagram of FlexATX-KBL

Component Main Data

The table below summarizes the features of the FlexATX-KBL-S embedded motherboard.

Table 1: Component Main Data

Motherboard FlexATX-KBL-S
Form factor	FlexATX with 229 mm x 191 mm (9 inch x 7.5 inch)
Processor	Onboard CPU variants Intel® Kabylake-S Processor line with FCLGA1151 Socket (37.5 mm x 37.53 mm), range from 65 to 80 W TDP, Kabylake processors Core™ i7-7700, Core™ i5-7500, Core™ i3-7101E, Xeon® Processor E3- 1275 v6
Platform Controller Hub (PCH)	Intel®KBL Intel C236 PCH
Memory	2x Dual-Channel DDR4SO-DIMM, support DDR4 (1.2 V) with 2133 MT/s (PC4-2133), Kabylake version supports up to 2400 MT/s, max. up to 32 GB memory using 2×16 GB modules
Storage	4x SATA 3.0 with 6 Gb/s, 2x SATA optional, one M.2 card slot optional
Watchdog Timer	Implemented in embedded controller (IT8528E)
H/W Status Monitor	Monitoring system temperature
Trusted Platform Module (TPM)	Infineon SLB9665TT 2.0 and WIBU Safenet TPM
Power management	ACPI 4.0a C0, C1, C1E, C3, C6, C7, C8, C9, C10 states
Battery	CR2032, 220mAh See Safety Instructions below this table.
Expansion	One PCIe x16 slot (PCIe Gen3), can operate at 2.5 GT/s, 5 GT/s, or 8 GT/s, 1x PCIe x4, 1x PCIe x1
Operating System Support	Windows 10
External I/O
LAN , USB	4x Gbit-Ethernet RJ-45 LAN Port (with two LED indicators), dual USB3.0 and dual USB2.0
Audio	3x Audio Jacks for MIC-input, Line-out and Line-input
Display Port	2x Display Port dual stack, one additional Display Port upright type
COM	2 x COM Ports

Internal I/O
SATA	6 x SATA 3.0 (6 Gb/s)
PC Buzzer	Standard PC buzzer on board
LVDS (40-pin)	1 x ( 2 x 20 ) 1.25 mm pin-header for 24-bit dual channel with brightness control
PCI	1×16 PEG Gen3, 1x PCI x4, 1x PCI x1
M.2 (M-Key, 2280)	2x (SATA-PCIe x4/Optane Memory)
Mini PCIe	1 x full size with USB 2.0
Audio	1x (1×3) S/PDIF, 1x (1×3) H/P, 1 x ( 1 x 4 ) 2.0 mm pin-header for Speaker with 2 W + 2 W amplifier
Internal Header
Fan	2 x (1 x 4 ) 2.54 mm pin-header for CPU & System fan with Pulse Width Modulation (PWM) function
CMOS Clear	1 x (1 x 3 ) 2 mm pin-header
Front Panel	1 x 2.54 mm 24 pin-header
Display
Graphics Controller	Intel®Gen 9 LP (generation 9 Low Power) graphics core: Support below API Direct3D* 2015, Direct3D 11.2, Direct3D 11.1, Direct3D 9, Direct3D 10, Direct2D OpenGL* 5.0 OpenCL* 2.1, OpenCL 2.0, OpenCL 1.2 Supports full HW accelerated video decoding for AVC, VC1, MPEG2, HEVC, VP8, JPEG. Supports full HW accelerated video encode for AVC, MPEG2, HEVC, VP8. Switchable/Hybrid graphics when discrete graphics card available.
DP to LVDS Controller	PTN3460BS
Display Interface	Display Port 1.2 and LVDS Note: Three (3) Independent Displays Max.
Resolution	DP/LVDS 4096×2304 @ 60 Hz, 24 bpp (One panel display)
Ethernet
Controller	LAN1: Intel® I219LM 10/100/1000 Gigabit Ethernet PHY with AMT11.0 LAN2: Intel® I211AT10/100/1000 Gigabit Ethernet Controller LAN3 and LAN4 I211 LAN
Interface	IEEE 802.3 10BASE-T / 100BASE-TX / 1000BASE-T compliant
Audio
HDAC	Realtek®ALC269Q High Definition Audio Codec
Power Supply
Power Type	4-pin ATX 12V power connector and : 20-pin or 24-pin ATX Power connector.

Danger of explosion if the lithium battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the manufacturer
Dispose of used batteries according to the manufacturer’s instructions

Table 2: Environmental Conditions

Operating	0°C to +60°C (32°F~140°F) operating temperature (forced cooling). It is the customer’s responsibility to provide sufficient airflow around each of the components to keep them within allowed temperature range. 50 % to 90 % relative humidity (non-condensing)
Storage	-40°C to~70°C (-40°F~176°F); lower limit of storage temperature is defined by specification restriction of on-board CR2032 battery. Intel CPUs and PCHs only support commercial temperature ranges (0° to 60°C), but the board will be tested to extended temperatures (-25° to +70°C) with standard cooler running at maximum speed to provide overall stability report at extended temperature ranges. Absolute margin test will be performed to obtain absolute limits of the board, when the board stops to operate properly.
Radiated Emissions (EMI)	EN 55032: 2012 / AC: 2013, Class B CISPR 32: 2012 (Ed 1.0) EN 61000-6-4:2007, Generic emission standard part 6-4: Emission standard for industrial environments EN 61000-6-2:2005, Generic standard – Immunity for industrial environment IEC 61000 PT4-2 (EN 61000-4-2), Eletrostatic discharge immunity (ESD) IEC 61000 PT4-3 (EN 61000-4-3 and ENV 50204), Radiated field IEC 61000 PT4-4 (EN 61000-4-4), Electrical Fast Transient IEC 61000 PT4-5 (EN 61000-4-5), Surge immunity test IEC 61000 PT4-6 (EN 61000-4-6), Immunity to conducted disturbances IEC 61000 PT4-8 (EN 61000-4-8), Immunity to magnetic fields (LOW) IEC 61000 PT4-11 (EN 61000-4-11), Testing and measuring techniques – voltage dips, short interruption and voltage variants immunity tests
Shock	Follows IEC 60068-2-27. Half-sine wave, acceleration 2g, pulse duration 11ms, shock count 600 (100 per face).
Vibration	IAW IEC 60068-2-64, Test Fh, Random Vibration. 90 min per axis, 3 axes, at 1.9 grms, with PSD 10-20 Hz 0.05 g²/Hz and 20-500 Hz -3dB/octave.
Restriction of Hazardous Substances (RoHS)	All boards in the FlexATX-KBL family are RoHS compliant

Table 3: Certification and Compliance Information

UL	E147705-A97-UL: Equipment Including Electrical Business Equipment
CE	EMC Directive 2014/30/EU EN55032/EN55024
FCC/ISED	47 CFR FCC Part 15 Subpart B class B ANSI C63.4:2014
CE EMC	EN 55032:2012/AC:2013 CISPR 32:2012 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 55024:2010 + A1:2015
Safety	EN60950-1:2006+A11:2009+A1:2010+A12:2011

Jumpers and Connectors

Hardware Configuration Setting

This chapter gives the definitions and shows the positions of jumpers, headers and connectors. All of the configuration jumpers on the board are in the proper position. The default settings shipped from factory are marked with an asterisk (*).

In general, jumpers on the board are used to select options for certain features. Some of the jumpers are designed to be user-configurable, allowing for system enhancement. The others are for testing purpose only and should not be altered. To select any option, cover the jumper cap over (SHORT) or remove (NC) it from the jumper pins according to the following instructions. Here, NC stands for “Not Connect”.

Connectors

Table 4: Connectors

Connectors	Function	Remark
CPU_FAN	CPU FAN Connector	1 x 4 Wafer
SYS_FAN	SYS FAN Connector	1 x 4 Wafer
FP	Front Panel Connector	2 x 12 Header
LVDS	LVDS Connector	2 x 20 Connector
ATX	ATX Power Connector	2 x 12 Connector
PWR_CPU1	CPU Power Connector	2 x 2 Connector
MINI-PCIE	Mini PCIe Connector
PCIEx16X	PCIe x16 3.0 Connector
PCIEx4x	PCIe x4 Connector
PCIEx1	PCIe x1 Connector
SPI_SOCKET	Bios Socket	2 x 4 socket
SPI ROM	SPI connector	12-pin header
SATA1	SATA3.0 Connector	Standard
SATA2	SATA3.0 Connector	Standard
SATA3	SATA3.0 Connector	Standard
SATA4	SATA3.0 Connector	Standard
SATA5	SATA3.0 Connector	Standard
SATA6	SATA3.0 Connector	Standard
BAT1	Battery Socket	CR2032 compatible
DIMM	Memory Socket	Slot

Mainboard Placement and Rear I/O locations

Battery holder
ATX 12 V power interface
Memory connector
SATA connector
PCIe connector
Front panel connector
SATA power connector
PCH controller
USB 3.0
MiniPCIE
LPC-Header
PCIeX4

PCIeX1
Feature Connector
Buzzer
LVDS Connector
ATX-4-pin Power connector
CPU connector
Display Ports
USB/Ethernet
Ethernet
COM1/2
Audio Jacks

Rear Side

Pin Definitions

The following sections provide pin definitions and detailed description of all on-board connectors. The connector definitions follow the following notation:

Table 5: Connector Definitions

Column Name	Description
Pin	Shows the pin-numbers in the connector. The graphical layout of the connector definition tables is made similar to the physical connectors.
Signal	The mnemonic name of the signal at the current pin. The notation “XX#” states that the signal “XX” is active low.
Type	AI: Analogue Input. AO: Analogue Output. I: Input, TTL compatible if nothing else stated. IO: Input / Output. TTL compatible if nothing else stated. IOT: Bi-directional tristate IO pin. IS: Schmitt-trigger input, TTL compatible. IOC: Input / open-collector Output, TTL compatible. IOD: Input / Output, CMOS level Schmitt-triggered. (Open drain output) NC: Pin not connected. O: Output, TTL compatible. OC: Output, open-collector or open-drain, TTL compatible. OT: Output with tri-state capability, TTL compatible. LVDS: Low Voltage Differential Signal PWR: Power supply or ground reference pins.
	Ioh: Typical current in mA flowing out of an output pin through a grounded load, while the output voltage is > 2.4 V DC (if nothing else stated). Iol: Typical current in mA flowing into an output pin from a VCC connected load, while the output voltage is < 0.4 V DC (if nothing else stated).
Pull U/D	On-board pull-up or pull-down resistors on input pins or open-collector output pins.
Note	Special remarks concerning the signal.
Designation	Type and number of item described
see Section	Number of section in this manual containing detailed description

Processor Support

The FlexATX is designed to support the following processors:

7th generation Intel® Core i7, -i5, -i3 Quad Core processor
Intel® Xeon processor

Kontron has defined the board versions as listed in the following table, so far all based on Embedded CPUs.

Table 6: Processor Support

Name	Speed	Turbo	Embed.	Cache	Sspec	TDP / Tj	Part number
Core™ i7-7700	3.6 GHz	4.2 GHz	Yes	8 MB	SR338	65 W / 100ºC	1060- 9526
Core™ i5-7500	3.4 GHz	3.8 GHz	Yes	8 MB	SR335	65 W / 100ºC	1060- 9525
Core™ i3-7101E	3.9 GHz		Yes	3 MB	SR32Z	54 W / 100ºC	1060- 9524
Xeon™ E3-1275 V6	3.8 GHz	4.2 GHz	Yes	8 MB	SR32A	73 W /	1060- 9489

System Memory Support

The memory system has two DDR4 sockets. The sockets support the following memory features:

2x DDR4 SO-DIMM, 1.2 V
Max up to 32 GB (2×16 GB).
Dual channel, 260 pins, 1866/2133 MT/s (PC4-1866/PC4-2133)
ECC is supported

Kontron offers the following memory modules:

Table 7: Memory Support

Memory Module Description	Part number
DDR4-2133 non-ECC SODIMM 4GB	1060-2753
DDR4-2133 non-ECC SODIMM 8GB	1060-2760
DDR4-2133 non-ECC SODIMM 16GB	1060-2761
DDR4-2133 ECC SODIMM 4GB	1060-2762
DDR4-2133 ECC SODIMM 8GB	1060-2763
DDR4-2133 ECC SODIMM 16GB	1060-2764

Ethernet Connectors (I/O area)

The FlexATX-KBL-S supports four channels of 10/100/1000 Mbit Ethernet.

In order to achieve the specified performance of the Ethernet port, Category 5 twisted pair cables must be used with 10/100 MByte/s and Category 5E, 6 or 6E with 1 Gbit/s LAN networks.

Figure 4: Ethernet Connector

Pin	Signal	Ethernet 10 BaseT/100BaseT	Gigabit-Ethernet
1	MDI0+	TX+	D1+
2	MDI0-	TX-	D1-
3	MDI1+	RX+	D2+
4	MDI1-		D3+
5	MDI2+		D3-
6	MDI2-	RX-	D2-
7	MDI3+		D4+
8	MDI3-		D4-

Signal	Description
MDI[0]+ / MDI[0]-	In MDI mode, this is the first pair in 1000Base-T, i.e. the BI_DA+/- pair, and is the transmit pair in 10Base-T and 100Base-TX. In MDI crossover mode, this pair acts as the BI_DB+/- pair, and is the receive pair in 10Base-T and 100Base-TX.
MDI[1]+ / MDI[1]-	In MDI mode, this is the second pair in 1000Base-T, i.e. the BI_DB+/- pair, and is the receive pair in 10Base-T and 100Base-TX. In MDI crossover mode, this pair acts as the BI_DA+/- pair, and is the transmit pair in 10Base-T and 100Base-TX.
MDI[2]+ / MDI[2]-	In MDI mode, this is the third pair in 1000Base-T, i.e. the BI_DC+/- pair. In MDI crossover mode, this pair acts as the BI_DD+/- pair.
MDI[3]+ / MDI[3]-	In MDI mode, this is the fourth pair in 1000Base-T, i.e. the BI_DD+/- pair. In MDI crossover mode, this pair acts as the BI_DC+/- pair.

USB Connectors (I/O area)

Pin	Type	Signal	Note
1	PWR	5 V / SB 5 V	USB2.0 / 3.0
2	IO	USB 3-	USB2.0 / 3.0
3	IO	USB 3+	USB2.0 / 3.0
4	PWR	GND	USB2.0 / 3.0
5	IO	RX 2-	USB3.0
6	IO	RX 2+	USB3.0
7	PWR	GND	USB3.0
8	IO	TX 2-	USB3.0
9	IO	TX 2+	USB3.0

Signal

Description

USBn+ USBn-

RXn+ RXn- TXn+ TXn-

Differential pair works as serial differential receive/transmit data lines. (n= 0,1,2,3)

5 V / SB5 V

5 V supply for external devices.

SB5 V is supplied during power-down to allow wakeup on USB device activity. Protected by resettable 2.6 A of USB3.0 and 1.5 A of USB2.0.

For HiSpeed rates it is required to use a USB cable, which is specified in USB2.0 standard:

Figure 6: USB 2.0 High Speed Cable

Outer Shield ≥ 65% Interwoven Tinned Copper Braid

For SuperSpeed rates it is required to use a USB cable, which is specified in USB3.0 standard:

Figure 7: USB 3.0 High Speed Cable

Fan Connector (internal, J34, J35)

The FANSYS (SYS_FAN) can be used to power, control and monitor a fan for chassis ventilation etc.

The 4-pin header is recommended to be used for driving 4-wire type fan in order to implement FAN speed control.

Figure 8: 4-pin Fan Connector

Pin	Signal	Description	Type
1	PWM	FAN speed sense	O
2	TACHO	FAN speed control	I
3	12 V	Power +12 V	PWR
4	GND	Ground	PWR

Signal	Description	Type
GND	Power Supply GND signal	PWR
12 V	+12 V supply for fan. A maximum of 2000 mA can be supplied from this pin.	PWR
TACHO	Tacho input signal from the fan, for rotation speed supervision RPM (Rotations Per Minute).	I
PWM	PWM output signal for FAN speed control.	O

Front Panel (internal)

Figure 9: FP1 Connector

Pin	Description	Pin	Description
1	USB Port 1 VBUS	2	USB Port 2 VBUS
3	USB Port 1 Data-	4	USB Port 2 Data-
5	USB Port 1 Data+	6	USB Port 2 Data+
7	Ground	8	Ground
9	Not present (Key)	10	Headphone out left
11	Power 5.0V S0	12	Power 5.0V S0
13	SATA LED output (Active low)	14	Suspend LED output
15	Ground	16	Power button input (Active low)
17	Reset button input (Active low)	18	Ground
19	Power 3.3V S5	20	Headphone out right
21	Analog Ground	22	Analog Ground
23	Microphone in left	24	Microphone in right

USB3.0 Internal Header

Figure 10: USB Internal Connector

Pin	Description	Pin	Description
1	Power	2	SSRX0-
3	SSRX0+	4	GND
5	SSTX0-	6	SSTX0+
7	GND	8	USB0-
9	USB0+	10	NC
11	USB1+	12	USB1-
13	GND	14	SSRT1+
15	SSTX1-	16	GND
17	SSRX1+	18	SSRX1-

Pin	Description	Pin	Description
19	Power

Internal Feature Connector

Figure 11: GPIO Internal Connector

Pin	Description	Pin	Description
1	INTRUDER#	2	SMBus Clock
3	SLP_S4#	4	SMBus Data
5	SYS_PWROK	6	External Battery
7	N/C	8	N/C
9	Power 3.3V S5	10	Power 5.0V S5
11	GPIO0	12	GPIO1
13	GPIO2	14	GPIO3
15	GPIO4	16	GPIO5
17	GPIO6	18	GPIO7
19	Ground	20	Ground
21	GPIO8	22	GPIO9
23	GPIO10	24	GPIO11
25	GPIO12	26	GPIO13
27	GPIO14	28	GPIO15
29	GPIO16	30	GPIO17
31	Ground	32	Ground
33	External GPIO Bus Clock	34	External GPIO Bus Chip Select (Active low)
35	External GPIO Bus Address/Data	36	Timer 0
37	Power 12.0V S0	38	Ground
39	N/C	40	N/C
41	Ground	42	Ground
43	Ground	44	SLP_S3#

Audio Jack Connectors (I/O area)

Pin Designation	Signal	Type	Note
Tip	Front_L	OA	For headphone, max 1.6 VRMS
Ring	Front R	OA	For headphone, max 1.6 VRMS
Sleeve	GND	PWR

Pin Designation	Signal	Type	Note
Tip	LINE1_L	IA	1.0 VRMS, 30 kΩ
Ring	LINE1_R	IA	1.0 VRMS, 30 kΩ
Sleeve	GND	PWR

Pin Designation	Signal	Type	Note
Tip
Ring
Sleeve	GND	PWR

Signal	Description	Note
LINE1_L	Line In signal Left
LINE1_R	Line In signal Right
Front_L	Line Out Left
Front_R	Line Out Right

S/PDIF and Lineout header (internal, J31)

Figure 13: S/PDIF and Lineout Header

Table 8: S/PDIF

Pin	Description
1	SPDIF_Out
2	GND
3	SPDIF_In

LVDS (internal)

Figure 14: LVDS Connector

Pin	Description	Pin	Description
1	Power 12.0V S0	2	Power 12.0V S0
3	Power 12.0V S0	4	Power 12.0V S0
5	Power 12.0V S0	6	Ground
7	Power 5.0V S0	8	Ground
9	Power LVDS Logic	10	Power LVDS Logic
11	DDC Clock	12	DDC Data
13	Backlight Control / PWM	14	VDD Enable
15	Backlight Enable	16	Ground
17	LVDS Channel A Data0-	18	LVDS Channel A Data0+
19	LVDS Channel A Data1-	20	LVDS Channel A Data1+
21	LVDS Channel A Data2-	22	LVDS Channel A Data2+
23	LVDS Channel A Clock-	24	LVDS Channel A Clock+
25	LVDS Channel A Data3-	26	LVDS Channel A Data3+

Pin	Description	Pin	Description
27	Ground	28	Ground
29	LVDS Channel B Data0-	30	LVDS Channel B Data0+
31	LVDS Channel B Data1-	32	LVDS Channel B Data1+
33	LVDS Channel B Data2-	34	LVDS Channel B Data2+
35	LVDS Channel B Clock-	36	LVDS Channel B Clock+
37	LVDS Channel B Data3-	38	LVDS Channel B Data3+
39	Ground	40	Ground

SATA (Serial ATA) Disk Interfaces (internal)

Figure 15: SATA Connector

Pin	Signal	Type
1	GND	PWR
2	SATA* TX+
3	SATA* TX-

4	GND	PWR
5	SATA* RX-
6	SATA* RX+
7	GND	PWR

Signal	Description
SATA* TX+ / TX-	Host transmitter differential signal pair
SATA* RX+ / RX-	Host receiver differential signal pair

specifies 0 or 1 depending on SATA port.

Figure 16: Available Cable Kit

SATA Internal Power(SATA_PWR1)

The SATA power connector (SATA_PWR1) supplies the SATA hard disk with either 12 V or 5 V.

Figure 17: SATA Power Internal Connector

Pin Assignment SATA Power (SATA_PWR)

Pin	Signal
1	+12V
2	GND
3	GND
4	VCC5

PCIe x1 connector 1 (J2)

Figure 18: 52-pin PCIe x1 connector

Pin	Signal	Pin	Signal
A1	PRSNT1#	B1	V_12V0_S0
A2	V_12V0_S0	B2	V_12V0_S0
A3	V_12V0_S0	B3	V_12V0_S0
A4	GND	B4	GND
A5	JTAG2_TCK	B5	SMCLK
A6	JTAG3_TDI	B6	SMDAT
A7	JTAG4_TDO	B7	GND
A8	JTAG5_TMS	B8	V_3V3_S0
A9	V_3V3_S0	B9	JTAG1_TRST#
A10	V_3V3_S0	B10	V_3V3_AUX
A11	PERST#	B11	WAKE#
A12	GND	B12	RSVD – N.C.
A13	REFCLK+	B13	GND

Pin	Signal	Pin	Signal
A14	REFCLK-	B14	PET0+
A15	GND	B15	PET0-
A16	PER0+	B16	GND
A17	PER0-	B17	PRSNT2#
A18	GND	B18	GND

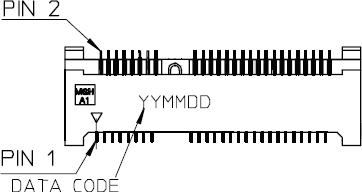

Mini PCIe Card socket

Figure 19: 52-pin Mini PCIe Card

Pin	Signal	Pin	Signal
1	WAKE#	2	+3.3V_S5
3	N.C.	4	GND
5	N.C.	6	+1.5V_S0
7	CLKREQ#	8	UIM-PWR
9	GND	10	UIM-DATA
11	PCIe_REFCLK-	12	UIM-CLK
13	PCIe_REFCLK+	14	UIM-RST
15	GND	16	UIM-VPP
17	UIM-C8	18	GND
19	UIM-C4	20	W_DISABLE#
21	GND	22	PLTRST#
23	PCIe_RX-	24	+3.3V_S5
25	PCIe_RX+	26	GND
27	GND	28	+1.5V_S0
29	GND	30	PU 3.3V(S5) (Optional: SMB_CLK)
31	PCIe_TX-	32	PU 3.3V(S5) (Optional: SMB_DAT)
33	PCIe_TX+	34	GND
35	GND	36	USB_D-
37	GND	38	USB_D+
39	+3.3V_S5	40	GND

Pin	Signal	Pin	Signal
41	+3.3V_S5	42	PU 3.3V(S0)
43	GND	44	PU 3.3V(S0)
45	N.C.	46	PU 3.3V(S0)
47	N.C.	48	+1.5V_S0
49	N.C.	50	GND
51	N.C.	52	+3.3V_S5

Double USB 3.0 Connector (J21)

This connector provides two USB 3.0 connections (downstream). The 5 V output is electronically fused to 900 mA each port.

Figure 20: Double USB 3.0 Connector

Pin	Signal	Remark
1	VBUS +5V (900mA max.)	Low, Full & High Speed (USB 2.0) contact pins Bottom con.
2	USB Data –
3	USB Data +
4	GND
5	USB SSRX-	Super Speed (USB3.0) contact pins Bottom con.
6	USB SSRX+
7	GND
8	USB SSTX-
9	USB SSTX+
10	VBUS +5V (900mA max.)	Low, Full & High Speed (USB 2.0) contact pins Top con.
11	USB Data –
12	USB Data +
13	GND
14	USB SSRX-	Super Speed (USB3.0) contact pins Top con.
15	USB SSRX+
16	GND
17	USB SSTX-

Pin	Signal	Remark
18	USB SSTX+
Shield	Shield

DP connector (J12)

Figure 21: 20-pin DP connector

Pin	Signal	Pin	Signal
1	ML LANE 0+	2	GND (ML LANE 0)
3	ML LANE 0-	4	ML LANE 1+
5	GND (ML LANE 1)	6	ML LANE 1-
7	ML LANE 2+	8	GND (ML LANE 2)
9	ML LANE 2-	10	ML LANE 3+
11	GND (ML LANE 3)	12	ML LANE 3-
13	AUX_SEL#	14	Pull-down to GND
15	AUX CH+	16	GND (AUX CH)
17	AUX CH-	18	Hot plug
19	GND (GND_DDC)	20	+3.3V (DDC EEPROM power) Max 500mA

RTC battery holder

Figure 22: RTC battery holder

Pin	Signal
Positive (+)	V_BAT_INT
Negative (-)	GND

Module Power-In Connector

Figure 23: Module Power-In Connector

Pin	Signal	Description
1	V_MODULE	Module Power 3.0 V to 5.25 V may be independent of Carrier power.
2	GND
3	N.C.	Not connected
4	GND

Internal Power Connector

Figure 24: Internal Power Connector

Pin	Signal	Pin	Signal
1	Power Input 3.3V S0	13	Power Input 3.3V S0
2	Power Input 3.3V S0	14	Power Input -12.0V S0
3	Ground	15	Ground
4	Power Input 5.0V S0	16	ATX PS_ON# Signal
5	Ground	17	Ground
6	Power Input 5.0V S0	18	Ground
7	Ground	19	Ground
8	ATX Power Good signal	20	Power Input -5.0V S0
9	Power Input 5.0V S5	21	Power Input 5.0V S0

Pin	Signal	Pin	Signal
10	Power Input 12.0V S0	22	Power Input 5.0V S0
11	Power Input 12.0V S0	23	Power Input 5.0V S0
12	Power Input 3.3V S0	24	Ground

Recommended Power Supply for KabyLake motherboard should be above or equal to 473 W.

PS/2 Header (J30)

Figure 25: PS/2 Header

Pin	Signal
1	Keyboard Clock
2	Keyboard Data
3	Mouse Clock
4	Mouse Data
5	Power 5.0V S5
6	Ground

LPC Header (J33)

Figure 26: 20-pin LPC Header

Pin	Signal	Pin	Signal
1	LPC Clock (33MHz)	2	Ground
3	LPC Frame#	4	Not present (Key)
5	Platform Reset (PLTRST#)	6	Power 5.0V S0
7	LPC LAD3	8	LPC LAD2

Pin	Signal	Pin	Signal
9	Power 3.3V S0	10	LPC LAD1
11	LPC LAD0	12	Ground
13	SMBus Clock	14	SMBus Data
15	Power 3.3V S0	16	SERIRQ
17	Ground	18	N/C
19	N/C	20	N/C

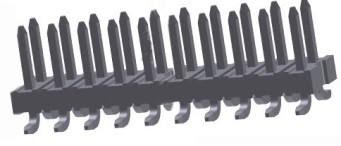

SPI External Flash header (J36)

Figure 27: 12-pin SPI Header

Pin	Signal	Pin	Signal
1	SPI Clock	2	Power 3.3V S5
3	SPI CS#	4	SPI ADDIN
5	Power 3.3V S5	6	N/C
7	SPI MOSI	8	SPI ISOLATE
9	SPI MISO	10	Ground
11	SPI IO2	12	SPI IO3

SPI External GPIO header (J37)

Figure 28: 12-pin GPIO Header

Pin	Signal	Pin	Signal
1	SPI Clock	2	Power 3.3V S5
3	SPI CS#	4	SPI ADDIN
5	Power 3.3V S5	6	N/C

Pin	Signal	Pin	Signal
7	SPI MOSI	8	SPI ISOLATE
9	SPI MISO	10	Ground
11	SPI IO2	12	SPI IO3

RS-232/RS-485, RS-422 Header

Pin	RS232	RS422/RS485 Full Duplex	RS 485 Half duplex
1	DCD	Tx-	Data-
2	RxD	Tx+	Data+
3	TxD	Rx+
4	DTR	Rx-
5	GND	GND	GND
6	DSR
7	RTS
8	DCTS
9	RI

Figure 29: 9-pin RS-232 Header (upper connector), 9-pin RS-232/RS-485/RS-422 Header (lower connector) Table 9: RS232, RS485/RS422 Connector

Signal	Description
TxD	Transmitted Data, sends data to the communications link. The signal is set to the marking state (-12 V) on hardware reset when the transmitter is empty or when loop mode operation is initiated.
RxD	Received Data, receives data from the communications link.
DTR	Data Terminal Ready, indicates to the modem etc. that the on-board UART is ready to establish communication link.
DSR	Data Set Ready, indicates that the modem etc. is ready to establish a communications link.
RTS	Request To Send, indicates to the modem etc. that the on-board UART is ready to exchange data.
CTS	Clear To Send, indicates that the modem or data set is ready to exchange data.
DCD	Data Carrier Detect, indicates that the modem or data set has detected the data carrier.

Signal	Description
RI	Ring Indicator, indicates that the modem has received a ringing signal from the telephone line.

RS-485/422: Receiver Termination enabled

RTC/SRTC Reset Jumper (J45, J46)

Figure 30: 2-pin RTC Reset Jumper

RTC Reset Jumper (J45)

Pin	Signal
1	RTCRST#
2	Ground

SRTC Reset Jumper (J46)

Pin	Signal
1	SRTCRST#
2	Ground

Indicators

Attached Indicators List

Table 10: LEDs internal

Part	Indicator	Function
J2	Upper Port Left LED	GbE Link / Activity
Upper Port Right LED	GbE Speed 100/1000
Lower Port Left LED	GbE Link / Activity
Lower Port Right LED	GbE Speed 100/1000
J3	Left LED	GbE Link / Activity
Right LED	GbE Speed 100/1000
J4	Left LED	GbE Link / Activity
Right LED	GbE Speed 100/1000

External indicators list

Table 11: External Indicators

Location	Indicator	Function
J25	SATA LED#	SATA Activity LED
SUS LED	Suspend state LED

System Status LED

Table 12: System Status LEDs

System state	Red LED Status	Green LED Status	Color
S0	Off	On	Green
S3	Blink @1Hz	Blink @1Hz	Yellow
S5	On	On	Yellow
Overheat below limit	Blink @1Hz	Off	Red
Overheat above limit	On	Off	Red
G3 / Error state	Off	Off

BIOS Setup structure

The Setup utility features for menus listed in the selection bar at the top of the screen:

Main
Advanced
Chipset
Security
Boot
Save & Exit

The Setup menus are selected via the left and right arrow keys. The currently active menu and the currently active uEFI BIOS Setup item are highlighted in white. Each Setup menu provides two main frames. The left frame displays all available functions. Functions that can be configured are displayed in blue. Functions displayed in gray provide information about the status or the operational configuration. The right frame displays an Item Specific Help window providing an explanation of the respective function.

Main Setup Menu

Upon entering the uEFI BIOS Setup program, the Main Setup menu is displayed. This screen lists the Main Setup menu sub-screens and provides basic system information as well as functions for setting the system time and date.

Table 13: Main Setup Menu Sub-Screens Functions

Sub-Screen/Function	Description
BIOS Information	Display BIOS Vendor, Core Version, and etc.
Board Information	Display Product Name, PCB ID, and etc.
Processor Information	Display Name, Type, Speed, and etc.
PCH Information	Display Name, PCH SKU, and etc.
System Language	Set System Language
System Date	Set System Date
System Time	Set System Time

Advanced Setup Menu

The Advanced Setup menu provides sub-screens and functions for advanced configuration.

Table 14: Advanced Setup Menu Sub-Screens and Functions

Sub-Screen	Function	Description
Intel RC ACPI Settings	PTID Support	Enable/Disable PTID Support
PECI Access Method	Direct I/O or ACPI PECI Access Method
Native PCIE Enable	Enable/Disable Native PCIE Enable
Native ASPM	Auto/Enable/Disable Controlled ASPM
BDAT ACPI Table Support	Enable/Disable BDAT ACPI Table Support
Wake system from S5	Enable/Disable system wake on alarm event

Sub-Screen	Function	Description
	ACPI Debug	Enable/Disable ACPI Debug
Low Power SO Idle	Enable/Disable Low Power SO Idle
Lpit Recidency Counter	Select Recidency Counter
PCI Delay Optimization	Enable/Disable PCI Delay Optimization
ZpODD	Enable/Disable ZpODD
CPU Configuration	C6DRAM	Enable/Disable C6DRAM
SW Guard Extensions (SGX)	Enable/Disable Software Guard Extensions (SGX)
Select Owner EPOCH input type	There are three owner EPOCH modes (No Change in Owner EPOCHs; Change to New Random Owner EPOCHs; Manual User Defined Owner EPOCHs)
PRMRR Size	Display the PRMRR
CPU Flex Ratio Override	Enable/Disable CPU Flex Ratio Override
CPU Flex Ratio Settings	Display the CPU Flex Ratio Settings
Hardware Prefetcher	Enable/Disable Hardware Prefetcher
Adjacent Cache Line Prefetch	To turn on/off prefetching of adjacent cache lines
Intel (VMX) Virtualization Technology	Enable/Disable Intel (VMX) Virtualization Technology
PECI	Enable/Disable PECI
Active Processor Core	Number of cores to enable in each processor package
BIST	Enable/Disable BIST (Built-In Self Test) on reset
JTAG C10 Power	Enable/Disable Power JTAG in C10 and deeper power states
AP threads Idle Manner	Ap thread Idle Manner for waiting signal to run
AP threads Handoff Manner	AP threads Handoff to OS Manner from end of POST
AES	Enable/Disable AES (Advance Encryption Standard)
MachineCheck	Enable/Disable Machine Check
MonitorMWait	Enable/Disable MonitorMWait
Intel Trusted Execution Technology	Enable utilization of additional hardware capabilities provided by Intel (R) Trusted Execution Technology
Alias Check Request DPR Memory Size (MB)	Display Alias Check Request DPR Memory Size (MB)
Reset AUX Content	Reset TPM Aux content. Txt may not

Sub-Screen	Function	Description
		functional after AUX content gets reset
Flash Wear Out Protection	Enable/Disable Flash Wear Out Protection
Current Debug Interface Status	Display Current Debug Interface Status
Debug Interface	Enable/Disable Debug Interface Support
Debug Interface Lock	Enable/Disable Debug Interface Lock
Processor trace memory allocation	Disable or select processor trace memory region size: from 4KB ~ 128MB
CPU SMM Enhancement	SMM Code Access Check	Enable/Disable support for SMM Code Access feature
SMM Use Delay Indication	Enable/Disable usage of SMM_DELAYED MSR for MP sync in SMI
SMM Use Block Indication	Enable/Disable usage of SMM_BLOCKED MSR for MP sync in SMI
FCLK Frequency for Early Power On	FCLK can take values of 400MHz, 800MHz and 1GHZ
Voltage Optimization	Enable/Disable/Auto Voltage Optimization
Power & Performance	CPU – Power Managemen t Control	Boot Performance mode	Select the performance state that the BIOS will set starting from reset vector
Intel (R) SpeedStep(tm)	Allows more than two frequency to be supported
Race To Halt (RTH)	Enable/Disable Race To Halt
Intel (R) Speed Shift Technology	Enable/Disable Intel (R) Speed Shift Technology support
HDC Control	This option allows HDC configuration
Turbo Mode	Enable/Disable processor Turbo Mode
View/Configure Turbo Options	Energy Efficient P- State	Enable/Disable Energy Efficient P-State feature
Package Power Limit MSR Lock	Enable/Disable locking of Package Power Limit
1-Core Ratio Limit Override	Display 1-Core Ratio Limit Override
2-Core Ratio Limit Override	Display 2-Core Ratio Limit Override
3-Core Ratio Limit Override	Display 3-Core Ratio Limit Override
4-Core Ratio Limit Override	Display 4-Core Ratio Limit Override
Energy Efficient Turbo	Enable/Disable Energy Efficient Turbo Feature
Config TDP	Configurable TDP	Configurable TDP Mode as

Sub-Screen	Function	Description
		Configurations	Boot Mode	Nominal/Up/Down/Deactivate TDP selection
	Configurable TDP Lock	Enable/Disable Configurable TDP Lock
	CTDP BIOS Control	Enable/Disable CTDP Control via
		runtime ACPI BIOS methods
	ConfigTDP Levels	ConfigTDP Turbo Activation Ratio, Power Limit 1, Power Limit 2
	Custom Settings	Setting for Power Limit 1, Power Limit 2,
	Nominal ConfigTDP Nominal	Power Limit 1 Time Window, ConfigTDP Turbo Activation Ratio
	Custom Settings	Setting for Power Limit 1, Power Limit 2,
	Down ConfigTDP Level 1	Power Limit 1 Time Window, ConfigTDP Turbo Activation Ratio
	Custom Settings Up	Setting for Power Limit 1, Power Limit 2,
	ConfigTDP Level 2	Power Limit 1 Time Window, ConfigTDP Turbo Activation Ratio
CPU VR Settings	PSYS Slope	Display PSYS Slope
	PSYS Offset	Display PSYS Offset
	PSYS Pmax Power	Display PSYS Pmax Power
	Acoustic	Acoustic	Enable/Disable Acoustic Noise
	Noise Settings	Noise Mitigatio n	Mitigation
		IA VR Domain	Display Disable Fast PKG C State Ramp for IA Domain and Slow Slew Rate for IA Domain
		GT VR	Display Disable Fast PKG C State Ramp
		Domain	for GT Domain and Slow Slew Rate for GT Domain
		SA VR Domain	Display Disable Fast PKG C State Ramp for SA Domain and Slow Slew Rate for SA Domain
	Core/IA	VR Config	Enable/Disable VR Config
	VR Settings	Enable
AC Loadline	Display AC Loadline
		DC	Display DC Loadline
		Loadline
		PS	Display PS Current Threshold1
		Current
		Threshol d1
		PS	Display PS Current Threshold2

Sub-Screen	Function	Description
			Current
Threshol d2
PS	Display PS Current Threshold3
Current
Threshol d3
PS3	Enable/Disable PS3
Enable
PS4 Enable	Enable/Disable PS4
IMON	Display IMON Slope
Slope
IMON Offset	Display IMON Offset
IMON	Set the Offset value as positive or
Prefix	negative
VR	Display VR Current Limit
Current Limit
VR	Display VR Voltage Limit
Voltage Limit
TDC Enable	Enable/Disable TDC
TDC	Display TDC Current Limit
Current Limit
TDC Time Windows	TDC Time Window, value in milliseconds. 1ms is default. Range from
	1ms to 10ms, except for 9ms as it has no valid encoding in the MSR definition
TDC Lock	Enable/Disable TDC Lock
GT- UnSliced	VR Config Enable	Enable/Disable VR Config
VR Settings
AC Loadline	Display AC Loadline
	DC Loadline	Display DC Loadline
	PS	Display PS Current Threshold1
	Current
	Threshol d1
	PS	Display PS Current Threshold2
	Current
	Threshol

Sub-Screen	Function	Description
			d2
PS	Display PS Current Threshold3
Current
Threshol d3
PS3	Enable/Disable PS3
Enable
PS4 Enable	Enable/Disable PS4
IMON	Display IMON Slope
Slope
IMON Offset	Display IMON Offset
IMON	Set the Offset value as positive or
Prefix	negative
VR	Display VR Current Limit
Current Limit
VR	Display VR Voltage Limit
Voltage Limit
TDC Enable	Enable/Disable TDC
TDC	Display TDC Current Limit
Current Limit
TDC Time Windows	TDC Time Window, value in milliseconds. 1ms is default. Range from
	1ms to 10ms, except for 9ms as it has no valid encoding in the MSR definition
TDC Lock	Enable/Disable TDC Lock
GT- Sliced	VR Config Enable	Enable/Disable VR Config
VR Settings
AC Loadline	Display AC Loadline
	DC Loadline	Display DC Loadline
	PS	Display PS Current Threshold1
	Current
	Threshol d1
	PS	Display PS Current Threshold2
	Current
	Threshol d2

Sub-Screen	Function	Description
			PS Current Threshol d3	Display PS Current Threshold3
PS3 Enable	Enable/Disable PS3
PS4 Enable	Enable/Disable PS4
IMON Slope	Display IMON Slope
IMON Offset	Display IMON Offset
IMON Prefix	Set the Offset value as positive or negative
VR Current Limit	Display VR Current Limit
VR Voltage Limit	Display VR Voltage Limit
TDC Enable	Enable/Disable TDC
TDC Current Limit	Display TDC Current Limit
TDC Time Windows	TDC Time Window, value in milliseconds. 1ms is default. Range from 1ms to 10ms, except for 9ms as it has no valid encoding in the MSR definition
TDC Lock	Enable/Disable TDC Lock
VR Mailbox Command options	Display VR Mailbox Command options
Platform PL1 Enable	Enable/Disable Platform Power Limit 1 Programming
Platform PL2 Enable	Enable/Disable Platform Power Limit 2 Programming
Power Limit 4 Override	Enable/Disable Power Limit 4 Override
C States	Enable/Disable CPU Power Management
Enhanced C-states	Enable/Disable C1E
C-State Auto Demotion	Configure C-State Auto Demotion
C-State Un-demotion	Configure C-State Un-demotion
Package C-State Demotion	Enable/Disable Package C-State Demotion

Sub-Screen	Function	Description
		Package C-State Un-demotion	Enable/Disable Package C-State Un- demotion
Cstate Pre-Wake	Enable/Disable Cstate Pre-Wake
IO MWAIT Redirection	When set, will map IO_read instructions sent to IO registers PMG_IO_BASE_ADDRBASE+off set to MWAIT(offset)
Package C State Limit	Maximum Package C State Limit Setting
C3 Latency Control (MSR 0X60A)	Setting of Time Unit (Unit of measurement for IRTL value) and Latency
C6/7 Short Latency Control (MSR 0X60B)	Setting of Time Unit (Unit of measurement for IRTL value) and Latency
C6/7 Long Latency Control (MSR 0X60C)	Setting of Time Unit (Unit of measurement for IRTL value) and Latency
Thermal Monitor	Enable/Disable Thermal Monitor
Interrupt Redirection Mode Selection	Interrupt Redirection Mode Select for Logical Interrupts
Timed MWAIT	Enable/Disable Timed MWAIT
Custom P-state Table	Display Number of P states
Energy performance gain	Enable/Disable Energy performance gain
EPG DIMM Idd3N	Display EPG DIMM Idd3N
EPG DIMM Idd3P	Display EPG DIMM Idd3P
Power Limit 3 Settings	Enable/Disable Power Limit 3 Override
CPU Lock Configuration	CFG Lock	Configure MSR 0XE2[15], CFG Lock bit
Overclocking Lock	Enable/Disable Overclocking Lock
GT – Power Managemen t Control	RC6 (Render Standby)	Check to enable render standby support
Maximum GT frequency	Choose between 350MHz (RPN) and 1000MHz (RPO). Value beyond the range will be clipped to min/max supported by SKU
PCH-FW Configuration	ME Firmware Version	Display ME Firmware Version
ME Firmware Mode	Display ME Firmware Mode
ME Firmware SKU	Display ME Firmware SKU
ME File System Integrity Value	Display ME File System Integrity Value
ME Firmware Status 1	Display ME Firmware Status 1
ME Firmware Status 2	Display ME Firmware Status 2
NFC Support	Display NFC Support

Sub-Screen	Function	Description
	ME State	Display ME State
Manageability	Display Manageability
Features State	Display Features State
AMT BIOS Features	Display AMT BIOS Features
AMT Configuration	ASF support	Enable/Disable Alert Standard Format Support
USB Provisioning of AMT	Enable/Disable of AMT USB Provisioning
CIRA Configuration	Active Remote Assistance Process	Trigger CIRA boot
CIRA Timeout	Display CIRA Timeout
ASF Configuration	PET Progress	Enable/Disable PET Events Progress to receive PET Events
Watchdog	Enable/Disable Watchdog Timer
OS Timer	Display OS Timer
BIOS Timer	Display BIOS Timer
Secure Erase Configuration	Secure Erase Mode	Change Secure Erase module behavior
Force Secure Erase	Force Secure Erase on next boot
OEM Flags Settings	MEBx hotkey Pressed	Enable/Disable MEBx hotkey Pressed
MEBx Selection Screen	Enable/Disable MEBx Selection Screen
Hide Unconfigure ME Confirmation Prompt	Enable/Disable Hide Unconfigure ME Confirmation Prompt
MEBx OEM Debug Menu Enable	Enable/Disable MEBx OEM Debug Menu
Unconfigure ME	Enable/Disable Unconfigure ME
MEBx Resolution Settings	Non-UI Mode Resolution	Resolution for non-UI text mode
UI Mode Resolution	Resolution for UI text mode

Sub-Screen	Function	Description
			Graphic Mode Resolution	Resolution for graphics mode
ME Unconfig on RTC Clear	Display ME Unconfig on RTC Clear
Comms Hub Support	Enable/Disable support for Comms Hub
JHI Support	Enable/Disable Intel® DAL Host Interface Service (JHI)
Core Bios Done Message	Enable/Disable Core Bios Done message sent to ME
Firmware Update Configuration	Enable/Disable Me FW Image Re-Flash function
PTT Configuration	PTT Capability/State	Display PTT Capability/State
TPM Device Selection	Selects TPM device: PTT or dTPM
PTP aware OS	Display PTP aware OS
ME Debug Configuration	HECI Timeouts	Enable/Disable HECI Send/Receive Timeouts
Force ME DID Init Status	Force the DID Initialization Status value
CPU Replaced Polling Disable	Setting this option disables CPU replacement polling loop
ME DID Message	Enable/Disable ME DID Message
HECI Retry Disable	Setting this option disables retry mechanism for all HECI APIs
HECI Message check Disable	Setting this option disables message check for Bios Boot Path when sending
MBP HOB Skip	Setting this option will skip MBP HOB
HECI2 Interface Communication	Adds and Removes HECI2 Device from PCI space
KT Device	Enable/Disable KT Device
IDER Device	Enable/Disable IDER Device
End Of Post Message	Enable/Disable End Of Post Message sent to ME
DOI3 Setting for HECI Disable	Setting this option disables setting DOI3 bit for all HECI devices
RTD3 settings	RTD3 Support	Enable/Disable Runtime D3 Support
VR Staggering delay	Delay between subsequent VR power on to avoid current spike
VR Ramp up delay	Delay between subsequent VR ramp ups if they are all turn ON at the same time
PCIE Slot 5 Device Power-on delay in ms	Delay between applying core power and Deasserting PERST#
PCIE Slot 5 Device Power-off delay in ms	Delay after removing core power

Sub-Screen	Function	Description
	Audio Delay	Delay after applying power to HD Audio(Realtex) codec device
I2C0 Controller	Delay in _PSO I2C0 Controller
SensorHub	Delay after applying power to SensorHub device
I2C1 Controller	Delay in _PSO I2C1 Controller
TouchPad	Delay after applying power to TouchPad device
TouchPanel	Delay in PR _ON after applying power to TouchPanel device
P-state Capping	Set _PPC and send ACPI notification
USB Port 1	USB RTD3 support
USB Port 2	USB RTD3 support
I2C0 Sensor Hub	Enable RTD3 support for I2C0 Sensor Hub
ZPODD	Zero power ODD option is applicable only for WhiteTipMountain1 and AdenHills with ZPODD Feature rework
WWAN	Enable/Disable RTD3 support for WWAN
Sata Port 0	Setup option to control the SATA port RTD3 functionality
Sata Port 1	Setup option to control the SATA port RTD3 functionality
Sata Port 2	Setup option to control the SATA port RTD3 functionality
MiniCard SATA Port3	Setup option to control the SATA port RTD3 functionality
Sata Port 4	Setup option to control the SATA port RTD3 functionality
PCIe Remapped CR1	Display PCIe Remapped CR1
PCIe Remapped CR2	Display PCIe Remapped CR2
PCIe Remapped CR3	Display PCIe Remapped CR3
RST Raid Volumes	Valid only with RST Storage Driver
OverClocking Performance Menu	OverClocking Feature	Performance Menu for Processor and Memory
WDT Enable	Enable/Disable WatchDog Timer
RSR	Enable/Disable RSR Feature
Intel ICC	ICC/OC WatchDog Timer	Enable/Disable ICC/OC WatchDog Timer
ICC Locks after EOP	Display ICC Locks after EOP
ICC Profile	Display ICC Profile

Sub-Screen	Function	Description
ACPI Settings	Enable ACPI Auto Configuration	Enable/Disable BIOS ACPI Auto Configuration
Enable Hibernation	Enable/Disable System ability to Hibernate
ACPI Sleep State	Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed
Lock Legacy Resources	Enable/Disable Lock Legacy Resources
S3 Video Repost	Enable/Disable S3 Video Repost
SMART Settings	SMART Self Test	Run SMART Self Test on all HDDs during POST
IT8528 Super IO Configuration	Super IO Chip	IT8528
Serial Port 1 Configuration	Serial Port	Enable/Disable Serial Port (COM)
Device Settings	Display Device Settings
Change Settings	Select an optimal settings for Super IO Device
RS485 Duplex Mode	Sets full or or half duplex mode
Termination Control	Select COM1 receiver termination
Direction Control	Select COM1 direction
Serial Port 2 Configuration	Serial Port	Enable/Disable Serial Port (COM)
Device Settings	Display Device Settings
Change Settings	Select an optimal settings for Super IO Device
Serial Port Console Redirection	Console Redirection	Enable/Disable Console Redirection
Console Redirection Settings	Terminal Type	Emulation: ANSI: Extended ASCII char set. VT100: ASCII char set. VT100+: Extends VT100 to support color, function keys, etc. VT-UTF8: Uses UTF8 encoding to map Unicode
Bits per second	Select serial port transmission speed
Data Bits	Data Bits
Parity	A parity bit can be sent with the data bit to detect some transmission errors
Stop Bits	Stops bits indicate the end of a serial data packet
Flow Control	Flow control can prevent data loss from buffer overflow
VT-UTF8 Combo Key Support	Enable VT-UTF8 Combination Key Support for ANSI/VT100 terminals
Recorder Mode	With this mode enable only text will be sent. This is to capture terminal data

Sub-Screen	Function	Description
		Resolution 100×31	Enables/Disables extended terminal resolution
Legacy OS Redirection Resolution	On Legacy OS, the number of rows and columns supported redirection
Putty KeyPad	Select function key and keypad on Putty
Redirection After BIOS POST	The settings specify if bootLoader is selected then Legacy console redirection is disable before booting to Legacy OS
COM1(Pci Bus0, Dev0, Func0)	Enable
Console Redirection	Port is disable
Legacy Console Redirection Settings	Legacy Serial Redirection Port	Select a COM port to display redirection of Legacy OS and Legacy OPROM Messages
Serial Port for Out-of-Band Management/Windows Emergency Management Services (EMS) Console Redirection	Enable/Disable Console Redirection
AMI Graphic Output Protocol Policy	Intel (R) GOP Driver	Shows GOP Driver Version
Output Select	Output Interface
PCI Subsystem settings	AMI PCI Driver Version	Shows AMI PCI Driver Version
Above 4G Decoding	Enable/Disable Above 4G Decoding
Hot-Plug Support	Hot-Plug Support
Restore PCIE Registers	Enable/Disable Restore PCIE Registers
Don’t Reset VC-TC Mapping	Enable/Disable Don’t Reset VC-TC Mapping
Network Stack Configuration	Network Stack	Enable/Disable UEFI Network Stack
CSM Configuration	CSM Support	Enable/Disable Compatibility Support Module
NVMe Configuration	NVMe controller and Device information	No NVMe Device Found
USB Configuration	Legacy USB Support	Enables Legacy USB support
XHCI Hand-off	This is a workaround for OSes without XHCI hand-off support
USB Mass Storage Driver Support	Enable/Disable USB Mass Storage Driver Support
Port 60/64 Emulation	Enable/Disable Port 60/64 Emulation
USB transfer time-out	The time-out value for Control, Bulk, and Interrupt transfer
Device reset time-out	USB mass storage device start unit

Sub-Screen	Function	Description
		command time-out
Device power-up delay	Maximum time for the device will take before it properly report itself to the Host Controller
LVDS Configuration	LVDS Flat Panel Display Support	Enable/Disable LVDS Flat Panel Display Support
Panel Type	Select the type or Manufacturer’s name of the display panel
Resolution	Select the screen resolution of the display panel
Panel Color Depth	Select the display panel color depth
Panel Voltage	Select the voltage level for powering the LVDS Display Panel
Channel	Select LVDS Interface Signals mode Single-Channel or Dual-Channel (Sometimes called “Single-Pixel” or “Dual-Pixel”)
Bus Swapping	Swap LVDS interface signals: Normal – use bus as indicated by pin name, Swapped – swap odd bus signals with even bus signals
Clock Frequency Center Spread	Programmable center spreading of pixel clock frequency to minimize EMI
Differential Output Swing Level	Programmable LVDS signal swing to pre-compensate for channel attenuation or allow for power saving
Backlight	Enable/Disable Backlight
Backlight Signal Inversion	Enable – Active High Disable – Active Low for display panel Backlight signal
Backlight PWM Frequency	Set the PWM frequency the backlight
Brightness Level	Select the Brightness Level for the backlight of the display panel
Hardware Health Configuration	System Temperature	Display the System Temperature
System Temperature Offset	Adjust the offset value in C (Two’s Complement)
CPU Temperature	Display CPU Temperature
System Fan Speed	Display System Fan Speed
System Fan Cruise Control	Disable = Full speed Thermal = does regulate fan speed according to specified temperature Speed = does regulate according to specified speed

Sub-Screen	Function	Description
	CPU Fan Speed	Display CPU Fan Speed
CPU Fan Cruise Control	Disable = Full speed Thermal = does regulate fan speed according to specified temperature Speed = does regulate according to specified speed
Watchdog Function	0 = Disable. Enter the service interval in seconds before the system will reset
ITE8528 Firmware Update	This option is enable Auto Update when version is not match, force update or disable update EC firmware
PC Speaker/Beep	Control the default beeps during boot of the system

Chipset Setup Menu

The Chipset Setup menu provides information about the configuration.

Table 15: Chipset Setup Menu Functions

Sub-Screen	Function	Description
System Agent (SA) Configuration	Memory Configuration	Memory Thermal Configuratio n	Memory Power and Thermal Throttling	DDR PowerDown and idle counter	BIOS: BIOS is in control of DDR CKE mode and idle timer value
For LPDDR Only:	For LPDDR Only: BIOS: BIOS
				DDR PowerDown and idle conter	is in control of DDR CKE mode and idle timer value
				Refresh_2X_MODE	Disable
					iMC enables 2xRef when warm and hot
					iMC enables 2xRef when hot
				LPDDR Thermal	When enabled, MC uses
				Sensor	MR4 to read LPDDR thermal sensors
				SelfRefresh Enable	Enable, Disable (Enable=Def)
				SelfRefresh	Range [64K-1;512] in
				IdleTimer	DLCK800s, (512=Def)
				Throttler CKEMin Defeature	On, Off
				Throttler CKEMin	Timer value for CKEMin,
				Timer	range [255;0]

Sub-Screen	Function	Description
			Dram	Use user	Enabled: User provided
Power Meter	provide d weights,	power weights, scale factor, and channel power floor values are used.
	scale	Disabled: BIOS set power
	factors, and channel	weights, scale factor, and channel power floor
	power
	floor values
	Dram	Display Dram Power Meter
	Power	Setting
	Meter Setting
Memory	Lock	Enabled: lock several PCU
Thermal	Thermal	registers related to DDR
Reportin g	Manage ment	power/thermal management
	Register s
	Extern	Enabled: The value from
	Therm Status	EXTTS is used Disabled: Pcode ignores the EXTTS
	Closed	Enabled: CLTM pcode
	Loop	algorithm will be used
	Therm Manage
	Open Loop	Enabled: OLTM pcode algorithm will be used
	Therm Manage
	Warm	Range [255;0]=[31.875;0] in
	Thresho ld Ch0 Dimm0	W for OLTM, [127.5;0] in C for CLTM
	Warm	Range [255;0]=[31.875;0] in
	Thresho ld Ch0 Dimm1	W for OLTM, [127.5;0] in C for CLTM
	Hot	Range [255;0]=[31.875;0] in
	Thresho ld Ch0 Dimm0	W for OLTM, [127.5;0] in C for CLTM
	Hot	Range [255;0]=[31.875;0] in
	Thresho ld Ch0	W for OLTM, [127.5;0] in C for CLTM

Sub-Screen	Function	Description
			Dimm1
Warm	Range [255;0]=[31.875;0] in
Thresho ld Ch1 Dimm0	W for OLTM, [127.5;0] in C for CLTM
Warm	Range [255;0]=[31.875;0] in
Thresho ld Ch1 Dimm1	W for OLTM, [127.5;0] in C for CLTM
Hot	Range [255;0]=[31.875;0] in
Thresho ld Ch1 Dimm0	W for OLTM, [127.5;0] in C for CLTM
Hot	Range [255;0]=[31.875;0] in
Thresho ld Ch1 Dimm1	W for OLTM, [127.5;0] in C for CLTM
Warm	Range [255;0]=[31.875;0] in
Budget Ch0 Dimm0	W for OLTM, [127.5;0] in C for CLTM
Warm	Range [255;0]=[31.875;0] in
Budget Ch0 Dimm1	W for OLTM, [127.5;0] in C for CLTM
Hot	Range [255;0]=[31.875;0] in
Budget Ch0 Dimm0	W for OLTM, [127.5;0] in C for CLTM
Hot	Range [255;0]=[31.875;0] in
Budget Ch0 Dimm1	W for OLTM, [127.5;0] in C for CLTM
Warm	Range [255;0]=[31.875;0] in
Budget Ch1 Dimm0	W for OLTM, [127.5;0] in C for CLTM
Warm	Range [255;0]=[31.875;0] in
Budget Ch1 Dimm1	W for OLTM, [127.5;0] in C for CLTM
Hot	Range [255;0]=[31.875;0] in
Budget Ch1 Dimm0	W for OLTM, [127.5;0] in C for CLTM
Hot	Range [255;0]=[31.875;0] in
Budget Ch1	W for OLTM, [127.5;0] in C for CLTM

Sub-Screen	Function	Description
			Dimm1
Memory RAPL	RAPL PL Lock	Enable= lock Rapl Limit register, Disable(Disable=Def)
	RAPL PL	Enable= enable,
	1 enable	Disable(Disable= Def)
	RAPL PL	Range[0;2^14-
	1 Power	1]=[2047.875;0] in W, (0= Def)
	RAPL PL	Power PL 1 time windowX
	1	value,
	Window X	(1/1024)(1+(x/4))(2^y)(0= Def)
	RAPL PL	Power PL 1 time windowY
	1	value,
	Window Y	(1/1024)(1+(x/4))(2^y)(0= Def)
	RAPL PL 2 enable	Enable= enable, Disable(Disable= Def)
	RAPL PL 2 Power	Range[0;2^14- 1]=[2047.875;0] in W, (0= Def)
	RAPL PL	Power PL 2 time windowX
	2	value,
	Window X	(1/1024)(1+(x/4))(2^y)(0= Def)
	RAPL PL	Power PL 2 time windowY
	2	value,
	Window Y	(1/1024)(1+(x/4))(2^y)(0= Def)
Memory Thermal Management	Enable/Disable Memory
	Thermal Management
Memory Training Algorithms	Early Command Training	Enable/Disable Early Command Training
	Sense Amp Offset Training	Enable/Disable Sense Amp
		Offset Training
	Early ReadMPR Timing Centering 2D	Enable/Disable Early ReadMPR Timing Centering 2D
	Read MPR Training	Enable/Disable Read MPR
		Training
	Receive Enable Training	Enable/Disable Receive Enable Training
	Jedec Write Leveling	Enable/Disable Jedec Write
		Leveling

Sub-Screen	Function	Description
			Early Write Time Centering 2D	Enable/Disable Early Write Time Centering 2D
Early Write Drive Strentgh/ Equalization	Enable/Disable Early Write Drive Strentgh/ Equalization
Early Read Time Centering 2D	Enable/Disable Early Read Time Centering 2D
Write Timing Centering 1D	Enable/Disable Write Timing Centering 1D
Write Voltage Centering 1D	Enable/Disable Write Voltage Centering 1D
Read Timing Centering 1D	Enable/Disable Read Timing Centering 1D
Dimm ODT Training*	Dimm On-Die Termination Training
Max RTT_WR	Caps the maximum RTT_WR in power training
DIMM RON Training*	Enable/Disable DIMM RON Training
Write Drive Strenght/Equalization 2D*	Enable/Disable Write Drive Strenght/Equalization 2D
Write Slew Rate Training*	Enable/Disable Write Slew Rate Training
Read ODT Training*	Enable/Disable Read On- Die Termination Training
Read Equalization Training*	Enable/Disable Read Equalization Training
Read Amplifier Training*	Enable/Disable Read Amplifier Training
Write Timing Centering 2D	Enable/Disable Write Dq- DqsTiming Centering 2D
Read Timing Centering 2D	Enable/Disable Read Dq- Dqs Timing Centering 2D
Command Voltage Centering	Enable/Disable Command Voltage Centering
Write Voltage Centering 2D	Enable/Disable Write Voltage Centering 2D
Read Voltage Centering 2D	Enable/Disable Read Voltage Centering 2D
Late Command Training	Enable/Disable Late Command Training
Round Trip Latency	Enable/Disable Round Trip Latency

Sub-Screen	Function	Description
			Turn Around Timing Training	Enable/Disable Turn Around Timing Training
Rank Margin Tool	Enable/Disable Rank Margin Tool Training
Memory Test	Enable/Disable Memory Test Training
DIMM SPD Alias Test	Test to determine if the SPD has been corrupted to cause memory aliasing
Receive Enable Centering 1D	Enable/Disable Receive Enable Centering 1D
Retrain Margin Check	Enable/Disable Retrain Margin Check
Write Drive Strength Up/Dn independently	Enable/Disable Write Drive Strength Up/Dn independently
CMD Slew Rate Training	Enable/Disable CMD Slew Rate Training
CMD Drive Strength/ Tx Equalization	Enable/Disable CMD Drive Strength/ Tx Equalization
CMD Normalization	Enable/Disable CMD Normalization
Memory Configuration	Display Memory Configuration
MRC ULT Safe Config	MRC ULT Safe Config for PO
Maximum Memory Frequency	Maximum Memory Frequency Selections in Mhz
HOB Buffer Size	Size to set HOB Buffer
ECC Support	Enable/Disable DDR ECC Support
Max TOLUD	Maximum value of TOLUD
SA GV	System Agent Geyserville
SA GV Low Freq	System Agent Geyserville. Set frequency for low point
Retrain on Fast Fail	Restart MRC in Cold mode if SW MemTest fails during Fast flow
Command Tristate	Command Tristate Support
Enable RH Prevention	Activity prevent Row Hammer
Row Hammer Solution	Type of method used to prevent Row Hammer

Sub-Screen	Function	Description
		RH Activation Probability	Used to adjust MC for Hardware RHP
Exit on Failure (MRC)	Exit on Failure for MRC
	training steps
MC Lock	Enable/Disable capacity to lock or not MC registers
Probeless Trace	HD Port, GDXC IOT/MOT od
	Disable
Enable/Disable IED (Intel Enhanced Debug)	Intel Enhanced Debug requires 4MB SMM memory
Ch Hash Support	Enable/Disable Channel
	Hash Support
Ch Hash Mask	Set the BIT(s) to be included in the XOR function
Ch Hash Interleaved Bit	Select the BIT to be used for
	channel interleaved mode
VC1 Read Metering	Enable/Disable VC1 Read Metering Feature (RdMeter)
VC1 RdMeter Time Window	VC1 Read Metering Time
	Window: time window over
	which VC1 read request counter is tracked
VC1 RdMeter Threshold	VC1 Read Metering
	Threshold: threshold of counter within time window
Strong Weak Leaker	Value for Strong Weak
	Leaker
Memory Scrambler	Enable/Disable Memory Scrambler
Force ColdReset	Force ColdReset OR Choose
	MrcColdBoot mode, when
	coldboot is required during MRC execution
Channel A DIMM Control	Channel A DIMM Control
	Support – Enable or Disable Dimms on Channel A
Channel B DIMM Control	Channel B DIMM Control
	Support – Enable or Disable Dimms on Channel B
Force Single Rank	When enabled, only Rank 0 will be used in each DIMM
Memory Remap	Enable/Disable Memory
	Remap above 4GB
Time Measure	Enable/Disable printing of
	the time it takes to execute

Sub-Screen	Function	Description
			MRC
DLL Weak Lock Support	Enable/Disable DLL Weak Lock Support
Pwr Down Idle Timer	The minimum value should
	= to the worst case
	Roundtrip delay +
	Burst_Length. 0 means
	AUTO: 64 for ULX/ULT, 128 for DT/Halo
Mrc Fast Boot	Enable/Disable fast path thru the MRC
Lpddr Mem WL Set	Only applicable to LPDDR,
	Memory Write Latency Set
	selection (A is default, B will
	be used if memory devices support it)
EV Loader	Enable/Disable EV Loader Functionality
EV Loader Delay	Enable/Disable EV Loader 2
	Second Delay
Graphics Configuration	Graphics Turbo IMON Current	Graphics turbo IMON current values supported (14-31)
	Skip Scanning of External Gfx Card	If Enable, it will not scan for
		External Gfx Card on PEG and PCH PCIE Ports
	External Gfx Card Primary Display Configuration	External Gfx Card Primary Display Configuration
	Internal Graphics	Keep IGFX enabled based on
		the setup options
	GTT Size	Select the GTT Size
	Aperture Size	Select the Aperture Size
		Note: Above 4BG MMIO BIOS
		assignment is automatically
		enable when selecting 2048MB aperture
	DVMT Pre-Allocated	Select DVMT 5.0 Pre-
		Allocated (Fixed) Graphics
		Memory size used by the Internal Graphics Device
	DVMT Total Gfx Mem	Select DVMT 5.0 Total
		Graphics Memory size used
		by the Internal Graphics Device
	Gfx Low Power Mode	This option is applicable for SFF only

Sub-Screen	Function	Description
		VDD Enable	Enable/Disable forcing of VDD in the BIOS
HDPC Support	HDCP provisioning BIOS support
Algorithm	HDCP Re-encryption flow
PM Support	Enable/Disable PM Support
PAVP Enable	Enable/Disable PAVP
Cdynmax Clamping Enable	Enable/Disable Cdynmax Clamping
Cd Clock Frequency	Select the highest Cd Clock Frequency supported by the platform
IUER Button Enable	Enable/Disable IUER Button Functionality
DMI/OPI Configuration	DMI Max Link Speed	Set DMI Speed Gen1/Gen2/Gen3
DMI Gen3 Eq Phase 2	Perform Gen3 Equalization Phase 2
DMI Gen3 Eq Phase 3 Method	Select Method for Gen3 Equalization Phase 3
DMI Vc1 Control	Enable/Disable DMI Vc1
DMI Vcm Control	Enable/Disable DMI Vcm
Program Static Phase Eq	Program Phase1 Preset/CTLEp
Gen3 Root Port Preset value for each Lane	Lane 0	Value for Lane 0
Lane 1	Value for Lane 1
Lane 2	Value for Lane 2
Lane 3	Value for Lane 3
Gen3 Endpoint Preset value for each Lane	Lane 0	Value for Lane 0
Lane 1	Value for Lane 1
Lane 2	Value for Lane 2
Lane 3	Value for Lane 3
Gen3 Endpoint Hint value for each Lane	Lane 0	Value for Lane 0
Lane 1	Value for Lane 1
Lane 2	Value for Lane 2
Lane 3	Value for Lane 3
Gen3 RxCTLE Control	Bundle0	Gen3 RxCTLE setting for Bundle0 (Lane0, Lane1)
Bundle1	Gen3 RxCTLE setting for Bundle1 (Lane2, Lane3)

Sub-Screen	Function	Description
		DMI Link ASPM Control	Enable/Disable the control of Active State Power Management on SA side of the DMI Link
DMI Extended Sync Control	Enable DMI Extended Synchronization
DMI De-emphasis Control	Configure the De-emphasis control on DMI
DMI IOT	Enable/Disable DMI IOT
PEG Port Configuration	PEG 0:1:0 Enable Root Port	Enable/Disable the Root Port
Max Link Speed	Configure PEG 0:1:0 Max Speed
PEGO Slot Power Limit Value	Sets the upper limit on power supplied by slot
PEGO Slot Power Limit Scale	Select the scale used for the slot power limit value
PEGO Physical Slot Number	Set the physical slot number attached to this port
PEGO Hotplug	PCI Express Hot Plug Enable/Disable
PEG 0:1:1 Enable Root Port	Enable/Disable the Root Port
Max Link Speed	Configure PEG 0:1:1 Max Speed
PEG1 Slot Power Limit Value	Sets the upper limit on power supplied by slot
PEG1 Slot Power Limit Scale	Select the scale used for the slot power limit value
PEG1 Physical Slot Number	Set the physical slot number attached to this port
PEG 0:1:2 Enable Root Port	Enable/Disable the Root Port
Max Link Speed	Configure PEG 0:1:2 Max Speed
PEG2 Slot Power Limit Value	Sets the upper limit on power supplied by slot
PEG2 Slot Power Limit Scale	Select the scale used for the slot power limit value
PEG2 Physical Slot Number	Set the physical slot number attached to this port

Sub-Screen	Function	Description
		PEG Port Feature Configuration	Detect Non-Compliance Device	Detect Non-Compliance PCI Express Device in PEG
Program PCIe ASPM after OpROM	Enable/Disable Program PCIe ASPM after OpROM
Program Static Phase1 Eq	Program phase Presets/CTLEp
Gen3 Root Port Preset value for each Lane	Lane 0	Value for Lane 0
Lane 1	Value for Lane 1
Lane 2	Value for Lane 2
Lane 3	Value for Lane 3
Lane 4	Value for Lane 4
Lane 5	Value for Lane 5
Lane 6	Value for Lane 6
Lane 7	Value for Lane 7
Lane 8	Value for Lane 8
Lane 9	Value for Lane 9
Lane 10	Value for Lane 10
Lane 11	Value for Lane 11
Lane 12	Value for Lane 12
Lane 13	Value for Lane 13
Lane 14	Value for Lane 14
Lane 15	Value for Lane 15
Gen3 Endpoint Preset value for each Lane	Lane 0	Value for Lane 0
Lane 1	Value for Lane 1
Lane 2	Value for Lane 2
Lane 3	Value for Lane 3
Lane 4	Value for Lane 4
Lane 5	Value for Lane 5
Lane 6	Value for Lane 6
Lane 7	Value for Lane 7
Lane 8	Value for Lane 8
Lane 9	Value for Lane 9
Lane 10	Value for Lane 10
Lane 11	Value for Lane 11
Lane 12	Value for Lane 12
Lane 13	Value for Lane 13
Lane 14	Value for Lane 14

Sub-Screen	Function	Description
			Lane 15	Value for Lane 15
Gen3 Endpoint Hint value for each Lane	Lane 0	Value for Lane 0
Lane 1	Value for Lane 1
Lane 2	Value for Lane 2
Lane 3	Value for Lane 3
Lane 4	Value for Lane 4
Lane 5	Value for Lane 5
Lane 6	Value for Lane 6
Lane 7	Value for Lane 7
Lane 8	Value for Lane 8
Lane 9	Value for Lane 9
Lane 10	Value for Lane 10
Lane 11	Value for Lane 11
Lane 12	Value for Lane 12
Lane 13	Value for Lane 13
Lane 14	Value for Lane 14
Lane 15	Value for Lane 15
Gen3 RxCTLE Control	Bundle0	Gen3 RxCTLE setting for Bundle0 (Lane0, Lane1)
Bundle1	Gen3 RxCTLE setting for Bundle1 (Lane2, Lane3)
Bundle2	Gen3 RxCTLE setting for Bundle2 (Lane4, Lane5)
Bundle3	Gen3 RxCTLE setting for Bundle3 (Lane6, Lane7)
Bundle4	Gen3 RxCTLE setting for Bundle4 (Lane8, Lane9)
Bundle5	Gen3 RxCTLE setting for Bundle5 (Lane10, Lane11)
Bundle6	Gen3 RxCTLE setting for Bundle6 (Lane12, Lane13)
Bundle7	Gen3 RxCTLE setting for Bundle7 (Lane14, Lane15)
RxCTLE Override	When Enables, it overrides PEG’s RxCTLE adaptive behavior
Always Attempt SW EQ	Always Attempt SW EQ, even it has been done once
Number of Presets to test	Choose between 7, 3, 5, 8 and 0-9. Auto = current

Sub-Screen	Function	Description
			default (7, 3, 5, 8 for SKL.) Do not change from default unless debugging
Allow PERST# GPIO Usage	Enable/Disable GPIO-based reset to PEG endpoint(s) during margin search, if needed
SW EQ Enable VOC	Select Jitter & VOC test mode (default) or Jitter only test mode
Jitter Dwell Time	PEG Gen3 Preset Search dwell time [0..65535] in [usec]
Jitter Error Target	The margin search error target value [1..65535]
VOC Dwell Time	The VOC margin search dwell time [0..65535] in [usec]
VOC Error Target	The VOC margin search error target value [1..65535]
Generate BDAT PEG Margin Data	Enable to generate BDAT PCIe margin tables
PCIe Rx CEM Test Mode	Enable/Disable PEG Rx CEM Loopback Mode
PCIe Spread Spectrum Clocking	Allows disabling Spread Spectrum Clocking for compliance testing
Stop Grant Configuration	Automatic/Manual stop grant configuration
VT-d	VT-d capability
CHAP Device (B0:D7:F0)	Enable/Disable SA CHAP Device
Thermal Device (B0:D4:F0)	Enable/Disable SA Thermal Device
GMM Device (B0:D8:F0)	Enable/Disable SA GMM Device
CRID Support	Enable/Disable CRID control for Intel SIPP
Above 4GB MMIO BIOS assignmnet	Enable/Disable Above 4GB MemoryMappedIO BIOS assignmnet
X2APIC Opt Out	Enable/Disable X2APIC_Opt_Out bit
SKY CAM Device (B0:D5:F0)	Enable/Disable SA SKY CAM Device

Sub-Screen	Function	Description
PCH-IO Configuration	PCI Express Configuration	PCI Express Clock Gating	PCI Express Clock Gating Enable/Disable for each root port
DMI Link ASPM Control	The control of active state power management of the DMI link
Port8xh Decode	PCI Express Port8xh Decode Enable/Disable
Peer Memory Write Enable	Peer Memory Write Enable/Disable
Compliance Test Mode	Enable when using Compliance Load Board
PCIe-USB Glitch W/A	PCIe-USB Glitch W/A for bad USB device(s) connected behind PCIE/PEG Port
PCIe Function swap	When Disabled, prevents PCIE rootport function swap
PCI Express Gen3 Eq Lanes	PCIE1 Cm	Display PCIE1 Cm
PCIE1 Cp	Display PCIE1 Cp
PCIE2 Cm	Display PCIE2 Cm
PCIE2 Cp	Display PCIE2 Cp
PCIE3 Cm	Display PCIE3 Cm
PCIE3 Cp	Display PCIE3 Cp
PCIE4 Cm	Display PCIE4 Cm
PCIE4 Cp	Display PCIE4 Cp
PCIE5 Cm	Display PCIE5 Cm
PCIE5 Cp	Display PCIE5 Cp
PCIE6 Cm	Display PCIE6 Cm
PCIE6 Cp	Display PCIE6 Cp
PCIE7 Cm	Display PCIE7 Cm
PCIE7 Cp	Display PCIE7 Cp
PCIE8 Cm	Display PCIE8 Cm
PCIE8 Cp	Display PCIE8 Cp
PCIE9 Cm	Display PCIE9 Cm
PCIE9 Cp	Display PCIE9 Cp
PCIE10 Cm	Display PCIE10 Cm
PCIE10 Cp	Display PCIE10 Cp
PCIE11 Cm	Display PCIE11 Cm

Sub-Screen	Function	Description
			PCIE11 Cp	Display PCIE11 Cp
PCIE12 Cm	Display PCIE12 Cm
PCIE12 Cp	Display PCIE12 Cp
PCIE13 Cm	Display PCIE13 Cm
PCIE13 Cp	Display PCIE13 Cp
PCIE14 Cm	Display PCIE14 Cm
PCIE14 Cp	Display PCIE14 Cp
PCIE15 Cm	Display PCIE15 Cm
PCIE15 Cp	Display PCIE15 Cp
PCIE16 Cm	Display PCIE16 Cm
PCIE16 Cp	Display PCIE16 Cp
PCIE17 Cm	Display PCIE17 Cm
PCIE17 Cp	Display PCIE17 Cp
PCIE18 Cm	Display PCIE18 Cm
PCIE18 Cp	Display PCIE18 Cp
PCIE19 Cm	Display PCIE19 Cm
PCIE19 Cp	Display PCIE19 Cp
PCIE20 Cm	Display PCIE20 Cm
PCIE20 Cp	Display PCIE20 Cp
Overrides SW EQ settings	Enable/Disable Overrides SW EQ settings
PCI Express Root Port x (x= 1,2, etc. Depends on available port)	PCI Express Root Port x	Control the PCI Express Root Port
Topology	Identify the SATA topology if it is default or ISATA or Flex or Direct Connect or M2
ASPM	Set the ASPM level
L1 Substates	PCI Express L1 Substates settings
Gen3 Eq Phase3 Method	PCIe Gen3 Equalization Phase 3 Method
UPTP	Upstream Port Transmitter Preset
DPTP	Downstream Port Transmitter Preset
ACS	Enable/Disable Access Control Services Extended Capability
URR	PCI Express Unsupported Request Reporting

Sub-Screen	Function	Description
			Enable/Disable
FER	PCI Express Device Fatal Error Reporting Enable/Disable
NFER	PCI Express Device Non- Fatal Error Reporting Enable/Disable
CER	PCI Express Device Non- Correctable Error Reporting Enable/Disable
CTO	PCI Express Completion Timer T0 Enable/Disable
SEFE	Root PCI Express System Error on Fatal Error Enable/Disable
SENFE	Root PCI Express System Error on Non-Fatal Error Enable/Disable
SECE	Root PCI Express System Error on Correctable Error Enable/Disable
PME SCI	PCI Express PME SCI Enable/Disable
Hot Plug	PCI Express Hot Plug Enable/Disable
Advanced Error Reporting	Enable/Disable Advanced Error Reporting
PCIe Speed	Configure PCIe Speed
Transmitter Half Swing	Enable/Disable Transmitter Half Swing
Detect Timeout	The number of miliseconds reference code will wait for link to exit Detect state for enable ports before assuming there is no device and potentially disabling
Extra Bus Reserved	Extra Bus Reserved (0-7) for bridges behind this root bridge
Reserved Memory	Reserved Memory for this root bridge (1-20) MB
Reserved I/O	Reserved I/O (4K/ 8K/ 12K/ 16K/ 20K) range for this root bridge
PCH PCIE1 LTR	PCH PCIE Latency Reporting

Sub-Screen	Function	Description
			Enable/Disable
Snoop Latency Override	Snoop Latency Override for PCH PCIE
Non Snoop Latency Override	Non Snoop Latency Override for PCH PCIE
Force LTR Override	Force LTR Override for PCH PCIE
PCIE1 LTR Lock	PCIE LTR Configuration Lock
PCIE1 CLKREQ Mapping Override	PCIE CLKREQ override for default platform mapping
Extra options	Detect Non- Compliance Device	Detect Non-Compliance PCI Express Device
Prefetchable Memory	Prefetchable Memory Range for this Root Bridge
Reserved Memory Alignment	Reserved Memory Alignment (0-31 bits)
Prefetchable Memory Alignment	Prefetchable Memory Alignment (0-31 bits)
SATA and RST Configuration	SATA Controller(s)	Enable/Disable SATA Port
SATA Mode Selection	Determine How SATA controller(s) operate
SATA Test Mode	Enable/Disable SATA Test Mode
Software Feature Mask Configuration	HDD Unlock	If enabled, indicates that the HDD password unlock in the OS is enable
LED Locate	If enabled, indicates that the LED/SGPIO hardware is attached and ping to locate feature is enable on the OS
Aggressive LPM Support	Enable PCH to aggressively enter link power state
SATA Controller Speed	Indicates the maximum speed the SATA controller can support
SATA0 M.2: Software Preserve	Unknown Software Preserve
Port 0	Enable/Disable SATA Port
Hot Plug	Designates this port as Hot Pluggable

Sub-Screen	Function	Description
		Configured as eSATA	Hot Plug Supported
Spin Up Device	Enable/Disable Spin Up Device
SATA Device Type	Identify the SATA port is connected to solid state drive or hard disk drive
Topology	Identify the SATA Topology if it is default or ISATA or Flex or Direct Connect or M2
SATA Port0 DevSlp	Enable/Disable SATA Port0 DevSlp
DITO Configuration	Enable/Disable DITO Configuration
DITO Value	Display DITO Value
DM Value	Display DM Value
SATA1 mSATA: Software Preserve	Unknown Software Preserve
Port 1	Enable/Disable SATA Port
Hot Plug	Designates this port as Hot Pluggable
Configured as eSATA	Hot Plug Supported
Spin Up Device	Enable/Disable Spin Up Device
SATA Device Type	Identify the SATA port is connected to solid state drive or hard disk drive
Topology	Identify the SATA Topology if it is default or ISATA or Flex or Direct Connect or M2
SATA Port1 DevSlp	Enable/Disable SATA Port1 DevSlp
DITO Configuration	Enable/Disable DITO Configuration
DITO Value	Display DITO Value
DM Value	Display DM Value
SATA2 J10: Software Preserve	Unknown Software Preserve
Port 2	Enable/Disable SATA Port
Hot Plug	Designates this port as Hot Pluggable

Sub-Screen	Function	Description
		Configured as eSATA	Hot Plug Supported
Spin Up Device	Enable/Disable Spin Up Device
SATA Device Type	Identify the SATA port is connected to solid state drive or hard disk drive
Topology	Identify the SATA Topology if it is default or ISATA or Flex or Direct Connect or M2
SATA Port2 DevSlp	Enable/Disable SATA Port2 DevSlp
DITO Configuration	Enable/Disable DITO Configuration
DITO Value	Display DITO Value
DM Value	Display DM Value
SATA3 J12: Software Preserve	Unknown Software Preserve
Port 3	Enable/Disable SATA Port
Hot Plug	Designates this port as Hot Pluggable
Configured as eSATA	Hot Plug Supported
Spin Up Device	Enable/Disable Spin Up Device
SATA Device Type	Identify the SATA port is connected to solid state drive or hard disk drive
Topology	Identify the SATA Topology if it is default or ISATA or Flex or Direct Connect or M2
SATA Port3 DevSlp	Enable/Disable SATA Port3 DevSlp
DITO Configuration	Enable/Disable DITO Configuration
DITO Value	Display DITO Value
DM Value	Display DM Value
SATA6 J11: Software Preserve	Unknown Software Preserve
Port 6	Enable/Disable SATA Port
Hot Plug	Designates this port as Hot Pluggable

Sub-Screen	Function	Description
		Configured as eSATA	Hot Plug Supported
Spin Up Device	Enable/Disable Spin Up Device
SATA Device Type	Identify the SATA port is connected to solid state drive or hard disk drive
Topology	Identify the SATA Topology if it is default or ISATA or Flex or Direct Connect or M2
SATA Port6 DevSlp	Enable/Disable SATA Port6 DevSlp
DITO Configuration	Enable/Disable DITO Configuration
DITO Value	Display DITO Value
DM Value	Display DM Value
SATA7 J13: Software Preserve	Unknown Software Preserve
Port 7	Enable/Disable SATA Port
	Designates this port as Hot Pluggable
Configured as eSATA	Hot Plug Supported
Spin Up Device	Enable/Disable Spin Up Device
SATA Device Type	Identify the SATA port is connected to solid state drive or hard disk drive
Topology	Identify the SATA Topology if it is default or ISATA or Flex or Direct Connect or M2
SATA Port7 DevSlp	Enable/Disable SATA Port7 DevSlp
DITO Configuration	Enable/Disable DITO Configuration
DITO Value	Display DITO Value
DM Value	Display DM Value
USB Configuration	XHCI Disable Compliance Mode	Options to disable compliance mode
xDCI Support	Enable/Disable xDCI (USB OTG Device)
USB Port Disable Override	Selectively Enable/Disable the corresponding USB port from reporting a Device

Sub-Screen	Function	Description
			Connection to the controller
Security Configuration	RTC Lock	Enable will lock bytes 38h- 3Fh in the lower/upper 128- byte bank of RTC RAM
BIOS Lock	Enable/Disable the PCH BIOS Lock Enable feature
HD Audio Configuration	HD Audio	Control Detection of the HD-Audio Device
Audio DSP	Enable/Disable Audio DSP
Audio DSP Compliance Mode	Specifies DSP enabled system compliances
HDA-Link Codec Select	Select whether Platform Onboard Codec (Single Verb Table installed) or External Codec Kit (Multiples verb tables installed) will be used
iDisplay Audio Disconnect	Disconnects SDI2 signal to hide/disable iDisplay Audio Codec
PME Enable	Enables PME wake of HD Audio controller during POST
HD Audio Advanced Configuration	I/O Buffer Control: I/O Buffer Ownership	Select the ownership of the I/O buffer between Intel HD Audio link vs I2S port (for bilingual codecs)
I/O Buffer Voltage	Select the voltage operation mode of the I/O buffer
Statically Switchable BCLK Clock Frequency Configuration: HD Audio Link Frequency	Select HD Audio Link Frequency
iDisplay Link Frequency	Select iDisplay Link frequency
HD Audio DSP Features Configuration	Audio DSP NHLT Endpoints Configuration: DMIC	4 Mic Array
Bluetooth	Enables/Disables Bluetooth
I2S	Enables/Disables I2S
Audio DSP	Enables/Disables DSP

Sub-Screen	Function	Description
			Feature Support: WoV (Wake on Voice)	Feature
Bluetooth Sideband	Enables/Disables DSP Feature
BT Intel HFP	Enables/Disables DSP Feature
BT Intel A2DP	Enables/Disables DSP Feature
Codec based VAD	Enables/Disables DSP Feature
DSP based Speech Pre- Processing Disabled	Enables/Disables DSP Feature
Voice Activity Detection	Enables/Disables DSP Feature
Audio DSP Pre/Post- Processing Module Support: Waves Post- process	Enables/Disables 3rd Party Processing Module Support (identified by GUID)
DTS	Enables/Disables 3rd Party Processing Module Support (identified by GUID)
IntelSST Speech	Enables/Disables 3rd Party Processing Module Support (identified by GUID)
Dolby	Enables/Disables 3rd Party Processing Module Support (identified by GUID)
Waves Pre- process	Enables/Disables 3rd Party Processing Module Support (identified by GUID)
Audyssey	Enables/Disables 3rd Party Processing Module Support (identified by GUID)
Maxim Smart AMP	Enables/Disables 3rd Party Processing Module Support (identified by GUID)
FortMedia SAMSoft	Enables/Disables 3rd Party Processing Module Support (identified by GUID)

Sub-Screen	Function	Description
			Intel WoV	Enables/Disables 3rd Party Processing Module Support (identified by GUID)
Sound Research IP	Enables/Disables 3rd Party Processing Module Support (identified by GUID)
Conexant Pre- Process	Enables/Disables 3rd Party Processing Module Support (identified by GUID)
Conexant Smart Amp	Enables/Disables 3rd Party Processing Module Support (identified by GUID)
Realtek Post- Process	Enables/Disables 3rd Party Processing Module Support (identified by GUID)
Realtek Smart Amp	Enables/Disables 3rd Party Processing Module Support (identified by GUID)
Icepower IP MFX sub module	Enables/Disables 3rd Party Processing Module Support (identified by GUID)
Icepower IP EFX sub module	Enables/Disables 3rd Party Processing Module Support (identified by GUID)
Icepower IP SFX sub module	Enables/Disables 3rd Party Processing Module Support (identified by GUID)
Custom Module Alpha	Enables/Disables 3rd Party Processing Module Support (identified by GUID)
Custom Module Beta	Enables/Disables 3rd Party Processing Module Support (identified by GUID)
Custom Module Gamma	Enables/Disables 3rd Party Processing Module Support (identified by GUID)
Serial IO Configuration	I2C0 Controller	Enables/Disables Serial IO Controller
I2C1 Controller	Enables/Disables Serial IO Controller
I2C2 Controller	Enables/Disables Serial IO Controller
I2C3 Controller	Enables/Disables Serial IO Controller
SPI0 Controller	Enables/Disables Serial IO Controller

Sub-Screen	Function	Description
		SPI1 Controller	Enables/Disables Serial IO Controller
UART0 Controller	Enables/Disables Serial IO Controller
UART1 Controller	Enables/Disables Serial IO Controller
UART2 Controller	Enables/Disables Serial IO Controller
GPIO Controller	Enables/Disables the GPIO Controller
Serial IO I2C0 Settings	I2C IO Voltage Select	Select 1.8v or 3.3v for the controller
Connected Device	Indicate what type of device is connected to this serial IO controller
Serial IO I2C1 Settings	I2C IO Voltage Select	Select 1.8v or 3.3v for the controller
Connected Device	Indicate what type of device is connected to this serial IO controller
Serial IO SPI0 Settings	ChipSelect Polarity	Sets initial polarity for ChipSelect signal
Serial IO UART0 Settings	Bluetooth Device	Enables/Disables the vendor Sensor
Wireless Charging Mode	Set the wireless charging mode
Hardware Flow Control	When enabled configures additional 2 GPIO pads for use as RTS/CTS signals for UART
Serial IO GPIO Settings	GPIO IRQ Route	Route all GPIO to one of the IRQ
WITT/MITT Test Device	Choose if WITT Device is used and with which controller
UART Test Device	Choose if UART Test Device is used and with which controller
Additional Serial IO devices	When enabled, ACPI will report additional devices connected to Serial IO
SerialIO timing parameters	SerialIO timing parameters (test only)

Sub-Screen	Function	Description
		UCSI/UCMC device	When enabled, ACPI will report UCSI/UCMC device
TraceHub Configuration Menu	TraceHub Enable Mode	Select Enable, Disable or Debugger
MemRegion 0 Buffer Size	Select size of mem region 0 buffer
MemRegion 1 Buffer Size	Select size of mem region 1 buffer
Pch Thermal Throttling Control	Thermal Throttling Level	Determine if use Intel suggested setting
DMI Thermal Setting	Determine if use Intel suggested setting
SATA Thermal Setting	Determine if use Intel suggested setting
SB Porting Configuration	SB Porting Configuration
DCI enable (HDCIEN)	When DCI enable, it is taken as user consent to enable the DCI which allows debug over the USB3 interface
DCI Auto Detect Enable	When set to Auto Detect, it detect DCI being connected during BIOS post time and enables DCI
Debug Port Selection	Select Kernel Debug Port and report in ACPI DBG2 table
GNSS	ISH – GNSS is connected to ISH. Serial IO UART – GNSS is connected to serial IO
PCH LAN I219 Controller	Enable/Disable onboard NIC
DeepSx Power Policies	Configure the DeepSx Mode configuration
LAN Wake from DeepSx	Wake from DeepSx by the assertion of LAN_WAKE pin
Wake on LAN – (LAN3-I219)	Enable/Disable integrated LAN to wake the system
SLP_LAN# Low on DC Power	Enable/Disable SLP_LAN# Low on DC Power
K1 off	Enable/Disable K1 off feature (CLKREQ)
Wake on WLAN and BT Enable	Enable/Disable PCI Express Wireless LAN and Bluetooth to wake the system
Disable DSX ACPRESENT PullDown	Disable PCH internal

Sub-Screen	Function	Description
		ACPRESENT PullDown when DeepSx or G3 exit
CLKRUN# logic	Enable the CLKRUN# logic to stop the PCI clocks
Serial IRQ Mode	Configure Serial IRQ Mode
Port 61h Bit-4 Emulation	Emulation of Port 61h bit-4 toggling in SMM
State After G3	Specify what state to go to when power is re-applied after a power failure
Port 80h Redirection	Control where the Port 80h cycles are sent
Enhance Port 80h LPC Decoding	Support the word/dword decoding of port 80h behind LPC
Compatible Revision ID	Enable/Disable the PCH Compatible Revision ID feature
PCH Cross Throttling	Enable/Disable PCH Cross Throttling feature
Disable energy reporting	Enable/Disable energy reporting feature
Enable TC0 Timer	Enable/Disable TC0 timer
Pcie Pll SSC	Pcie Pll SSC percentage
Unlock PCH P2SB	Unlock PCH P2SB SBI and configuration space by PSF
PMC READ DISABLE	This is TEST feature for PMC XRAM read
Flash Protection Range Registers (FPRR)	Enable Flash Protection Range Registers
SPD Write Disable	Enable/Disable setting SPD Write Disable
Chipset Init HECI Message	Enable/Disable Chipset Init HECI Message
Bypass Chipset Init sync reset	Setting this option to skip ChipsetInit sync reset

Security Setup Menu

The Security Setup menu provides information about the passwords and functions for specifying the security settings. The passwords are case-sensitive.

Table 16: Security Setup Menu Functions

Function	Description
Administrator Password	Set Administrator Password
User Password	Set user password
Trusted Computing	Security Device Support	Enable/Disable BIOS support for security device
SHA-1 PCR Bank	Enable or Disable SHA-1 PCR Bank
SHA 256 PCR Bank	Enable or Disable SHA-256 PCR Bank
Pending Operation	Schedule operation for the security device
Platform Hierarchy	Enable or Disable Platform Hierarchy
Storage Hierarchy	Enable or Disable Storage Hierarchy
Endorsement Hierarchy	Enable or Disable Endorsement Hierarchy
TPM2.0 UEFI Spec Version	Select TCG2 Spec Version support
Physical Presence Spec Version	Select PPI Spec
Device Select	Select TPM Device 1.2 or 2.0 or Auto Select
Intel® BIOS Guard Technology	Intel BIOS Guard Support	Enable or Disable Intel BIOS Guard Support
Intel TXT Information	Display Intel TXT Information (Chipset, BiosScm, Chipset Txt, Cpu Txt, Error Code, Class Code, Major Code and Minor Code)
Secure Boot	System Mode	Display System Mode
Secure Boot	Display Secure Boot Active / Not Active
Vendor Keys	Display Vendor Keys Active / Not Active
Attempt Secure Boot	Secure Boot Activated when Platform Keys (PK) is enrolled, system mode is user/deployed, and CSM function is disable
Secure Boot Mode	Secure Boot mode selector: Standard/Custom. In Custom mode secure boot variables can be configured without authentication
Key Management	Provision Factory Defaults	Allow to provision factory default secure boot keys when system is in setup mode
Install Factory Default Keys	Force system to user mode – install

Function	Description
		factory default keys
Enroll Efi Image	Allow the image to run in Secure Boot mode
Save all secure boot variables	Secure boot variables
Platform Key(PK)	Enroll Factory Defaults or load certificates from a file:
Key Exchange Keys	Enroll Factory Defaults or load certificates from a file:
Authorized Signatures	Enroll Factory Defaults or load certificates from a file:
Forbidden Signatures	Enroll Factory Defaults or load certificates from a file:
Authorized TimeStamps	Enroll Factory Defaults or load certificates from a file:
OsRecovery Signatures	Enroll Factory Defaults or load certificates from a file:

Boot Setup Menu

The Boot Setup menu lists the for boot device priority order, which is dynamically generated.

Table 17: Boot Priority Order

Function	Description
Boot Configuration Setup Prompt Timeout	Number of seconds to wait for setup activation key
Bootup NumLock State	Select the keyboard NumLock state
Quiet Boot	Enables/Disables Quiet Boot option
Boot Option Properties Boot Option #1	Sets the system boot order
Fast Boot	Enables/Disables boot with initialization of a minimal set of device required to launch active boot option
New Boot Option Policy	Controls the placement of newly detected UEFI boot options

Save & Exit Setup Menu

The Save & Exit Setup menu provides functions for handling changes made to the UEFI BIOS settings and the exiting of the Setup program.

Table 18: Save & Exit Setup Menu Functions

Function	Description
Save Changes and Exit	Exit system setup after saving the changes
Discard Changes and Exit	Exit system setup without saving any changes

Function	Description
Save Changes and Reset	Reset the system after saving the changes
Discard Changes and Reset	Reset system setup without saving any changes
Save Changes	Save changes done so far to any of the setup option
Discard Changes	Discard changes done so far to any of the setup option
Restore Defaults	Restore/Load Default values for all the setup option
Save as User Defaults	Save the changes done so far as User Defaults
Restore User Default	Restore the User defaults to all the setup option
UEFI: Built-in EFI Shell	Go to UEFI shell
Launch EFI Shell from filesystem device	Attempts to Launch EFI Shell application (Shell.efi) from one of the available filesystem devices

Technical Support

For technical support contact our Support department:

E-mail: [email protected]Phone: +49-821-4086-888

Make sure you have the following information available when you call:

Product ID Number (PN),Serial Number (SN)

The serial number can be found on the Type Label, located on the product’s rear side.

Be ready to explain the nature of your problem to the service technician.

Warranty

Due to their limited service life, parts that by their nature are subject to a particularly high degree of wear (wearing parts) are excluded from the warranty beyond that provided by law. This applies to the CMOS battery, for example.

If there is a protection label on your product, then the warranty is lost if the product is opened.

Returning Defective Merchandise

All equipment returned to Kontron must have a Return of Material Authorization (RMA) number assigned exclusively by Kontron. Kontron cannot be held responsible for any loss or damage caused to the equipment received without an RMA number. The buyer accepts responsibility for all freight charges for the return of goods to Kontron’s designated facility. Kontron will pay the return freight charges back to the buyer’s location in the event that the equipment is repaired or replaced within the stipulated warranty period. Follow these steps before returning any product to Kontron.

Visit the RMA Information website: http://www.kontron.com/support-and-services/support/rma-information

Download the RMA Request sheet for Kontron Europe GmbH and fill out the form. Take care to include a short detailed description of the observed problem or failure and to include the product identification Information (Name of product, Product number and Serial number). If a delivery includes more than one product, fill out the above information in the RMA Request form for each product.

Send the completed RMA-Request form to the fax or email address given below at Kontron Europe GmbH. Kontron will provide an RMA-Number.

Kontron Europe GmbH RMA Support

Phone: +49 (0) 821 4086-0Fax: +49 (0) 821 4086 111Email: [email protected]

The goods for repair must be packed properly for shipping, considering shock and ESD protection.

Goods returned to Kontron Europe GmbH in non-proper packaging will be considered as customer caused faults and cannot be accepted as warranty repairs.

Include the RMA-Number with the shipping paperwork and send the product to the delivery address provided in the RMA form or received from Kontron RMA Support.

List of Acronyms

ECC	Error Checking and Correction
GPIO	General Purpose Input Output
HD	Hard Disk
PCIe	PCI-Express
PECI	Platform Environment Control Interface
RTC	Real Time Clock
SATA	Serial ATA
SELV	Safety Extra Low Voltage
SPI	Serial Peripheral Interface
TPM	Trusted Platform Module
UEFI	Unified Extensible Firmware Interface
VMM	Virtual Machine Monitor

kontron FlexATX-KBL-S-C236 User Guide – kontron FlexATX-KBL-S-C236 User Guide –

[xyz-ips snippet=”download-snippet”]

Posted

2023-01-13

kontron

admin

Tags:

FlexATX-KBL-S-C236, kontron
