lacamax Topzone User Manual

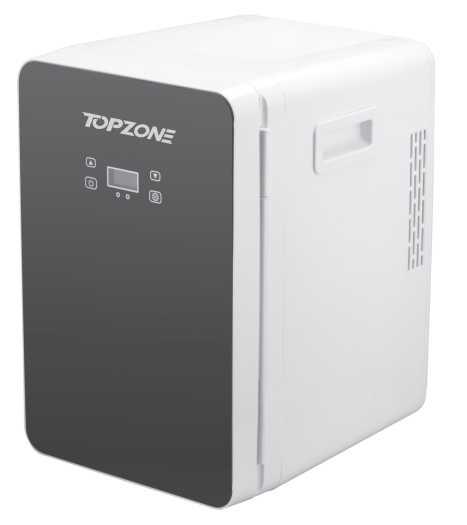

TOPZONECar RefrigeratorUSER MANUAL

Power :DC 12V or AC 110V/60Hz 60W

Electronic Refrigerator Dear Users: Welcome to use the electronic Vehicle Refrigerator. Before using this product, please read this instruction carefully and use it correctly according to the instruction. It is welcomed by household users, motorists, and outdoor tourists. In the hot summer, you can enjoy the cool feeling, and in the bitter winter, you can enjoy warm food and send you a piece of warmth.

Product characteristics

1. This refrigeration/heat preservation dual-purpose bar fridge, using imported semiconductor refrigeration technology, can not only refrigerate, but also warm and hot, with quiet, non-CFC, low power consumption, high-efficient cooling and heating functions, long life, beautiful appearance, small size, portable convenient, is recognized as an environmental protection product in the world, and also a good helper for home tourism.2. Using the new concept of the PELTIER effect of space technology, there is no compressor bulky, noise and Freon pollution.3. Long life, lovely appearance, small size and portable, suitable for indoor and outdoor use, with dual-purpose functions of heat and cold.4. The service life of the product is as long as 85,000 hours of refrigeration pieces, 30,000 hours of life of direct current fan heat dissipation, thermal insulation to ensure the product’s service life, strong refrigeration capacity.

Power supply diagram

General troubleshooting

1. If the refrigerator does not work, please check whether the power supply is connected to the socket. It may be that the cigarette igniter can’t be ignited. Please follow the following measures to operate.A. Check whether the cigarette igniter is onB. Check the cigarette holder. It may be not properly connected or stained on the base. Please clean it with a non-metallic brush.2. If the refrigeration effect is not good, please take the following measures to deal with it.A. If the refrigeration effect of the refrigerator is not good and the fan does not turn, the fan may be damaged, please go to the repair center to repair it.B. If the fan runs normally and has no freezing effect, this is a problem of refrigerating sheet, please send it to the repair center in time for repair.

Technical parameter

Cooling and heating type electronic refrigerator

Correct use method

I Connection of in-car power supply (DC 12V)1. When the car’s key power supply is on, start the car engine first.2. Insert the vehicle power line into the socket of the machine to the end.3. Insert the 12V plug of the car power cord directly into the socket of the car cigarette lighter.

II Connection of Household Power Supply (AC110V)Operating Method of Built-in Power SupplyA. Insert one end of the household power cord into the AC socket of the refrigerator (AC 110V) and the other end into the ordinary household socket.

IH. Refrigeration and heating operation1 .Press the setting key until the temperature number on the screen flashes and the refrigerator enters the temperature setting mode.2. Press the down arrow button, the temperature on the screen is reduced, the refrigerator is green, the refrigerator is cooled.3. Press the up arrow button, the temperature on the screen rises, the refrigerator red lights, the refrigerator starts to heat up.4. For hot and cold conversion, please press and hold the key, turn off the refrigerator power, wait 5-10 minutes to re-open, and adjust the refrigerator temperature, if you do not shut down the direct heat and cold conversion, the refrigerator cooling system may be damaged by drastic changes in temperature.

Use Skills of Electronic Refrigerator1. Semiconductor electronic refrigeration is Freon-free, receiving can be directly plugged in and used without stationary2. The closer to the position of the refrigerating plate, the better the refrigerating effect.3. Ordinary household can keep the power on or off at any time.4. Water vapor in the air of a small refrigerator will condense into droplets attached to the inner and outer layers of the refrigerator. When used, some droplets appear to be normal. There are no other liquid components in the refrigerator. Usually, only dry cloth or towel can be used to wipe them dry, and no droplets can be heated.5. For short-distance use, it is recommended that the household power supply in the front room be turned on ahead of time, then plugged in the car, or used together with the frozen ice bag, which has the best refrigeration speed and effect.

Refrigeration Preservation Temperature Reference1. Refrigerated fruits are stored in refrigerators. The temperature in the refrigeration room is about 32-50°F, which can maintain the quality and flavor of fruits and prolong the freshness period of fruits.2. The storage environment temperature of refrigerated beer should be between 32-59°F, around 50°F is appropriate, while bottled cooked beer should be kept between 41-77°F,3. If the temperature of refrigerated tea is controlled between 41 and 50°F, the quality of preserved tea is better, and the flavor of tea can be maintained for more than one year.4. The storage of refrigerated cosmetics and skincare products should be below 77°F at room temperature, and the best temperature for storing cosmetics  (skincare products) is 50-57°F. Therefore, too high or too low a storage temperature will deteriorate cosmetics. Cooled cosmetics (skincare products) will have a  good sense of cooling feverish skin and can make the skin contraction and comfortable.Scope of suitabilityApplicable Places: Car, Household, Yacht, Office, Drugstore Cosmetics Shop, etc.Suitable for refrigeration: beverage and fruit, milk and yoghurt, breast milk, cooked food, vegetables, leftovers, beer, red wine, tea, cosmetics, medicines, etc.Heat preservation: cooked food, milk, drinks, coffee, etc.Cleaning and Maintenance1. It is necessary to turn off the heat and cold switch, pull out the plug and cut off the power supply.2. Use soft cloth with a little detergent to wipe the dirt and dust on the surface of the body. The soft cloth can be used inside the machine to wipe gently with warm water.3. Don’t use water to dousing or wash the body directly. Especially, don’t splash water on the body parts such as inlet and outlet of heat dissipation of switch socket. Otherwise, it will cause damage to the parts of the product, and it will be more dangerous of electric shock.Safe Use Tips1. Before refrigerators work, keep ventilation to prevent strong light irradiation, airflow interference, in order to ensure good heat dissipation, which can’t be used in water. (Do not use in a poorly ventilated place)2. Don’t pour water directly into the box. Don’t scrub with water. It’s better to clean with a wet cloth.3. Keep clean, dry and noisy. Put it in the ventilation after a period of time.4. Do not knock hard, and do not block the vent, to avoid damaging the system.5. Do not open the door frequently in order to avoid energy loss and poor effects. When not in use for a long time, please clean the machine and store it in a cool place.6. Do not change the power cord without authorization.

TOPZONE

Infbrmationen zum Produkt
Modell Nr：	MH-20L
Marke：	Topzone
EC REP	Informationen fur EU-Vertretern
Name：	LacaMax GmbH
Adresse：	Laubenhof 23,45326 Essen,Germany
Telefon：	017665123479
E-mail：	[email protected]
