LIMITLESS E236070 6-Port Tower Charger User Manual

6-Port Tower ChargerDesktop Charging StationUser Manual

Safety Information

By using the 6-Port Tower Charger you hereby agree that Limitless Innovations, Inc., an Illinois corporation, and its affiliates (“Limitless”) shall have no liability for any losses associated with property damage, personal injury or loss of life that are incurred by you or by any third party in connection with or relating in any manner whatsoever to your use of the 6-Port Tower Charger. By using the 6-Port Tower Charger, you hereby agree at all times to comply fully with all safety warnings, operating instructions and general safety information in this User Manual. By using the 6-Port Tower Charger,  you further agree to hold harmless Limitless, (and Limitless’ officers, directors, shareholders and employees) in connection with any losses sustained by you (including, without limitation, losses arising in whole or in part from property damage, personal injury or loss of life) relating in any manner whatsoever to your use of the 6-Port Tower Charger.

Safety Warnings

  • The 6-Port Tower Charger is NOT a toy and should be kept away from children.
  • Do NOT attempt to modify, disassemble, or repair the 6-Port Tower Charger or any of its features. Doing so will void the warranty.
  • Do NOT expose the 6-Port Tower Charger to fire or extreme heat, moisture, water, rain, or snow.
  • Do NOT use the 6-Port Tower Charger if it has been damaged and/or modified.
  • Do NOT stick foreign objects in any port or opening of the 6-Port Tower Charger. Doing so may cause electric shock.
  • Do NOT force a connector into a port of the 6-Port charger. Always check for obstructions in the port.
  • Do NOT clean the 6-Port Tower Charger with harsh chemicals and keep it away from liquids.
  • Do NOT paint or apply coatings to the 6-Port Tower Charger, as you might affect moving parts or damage internal components.
  • Do NOT use third-party power supplies or non-approved adapters with the 6-Port Tower Charger.
  • If this device is accessible to or may be used by a minor, purchasing adult agrees to be solely responsible for providing supervision, instruction,  and warnings. Purchaser agrees to defend, indemnify, and hold Limitless harmless for any claims or damages arising from unintended use or misuse by a minor.

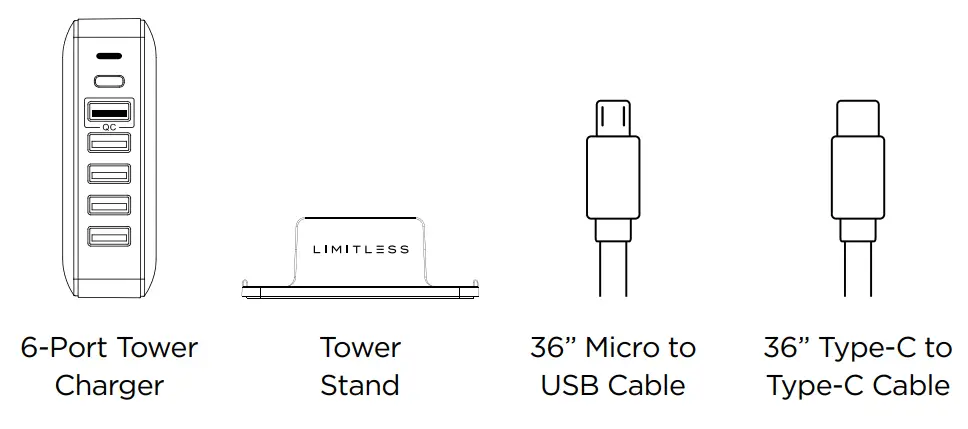

What’s Included



Components

  1. LED Power Indicator Light
  2. Type-C Port (Output)
  3. USB-A Quick Charge Port (Output)
  4. 4x USB-A Ports (Output)
  5. Tower Stand
  6. AC Power Input

Operation Instructions

Setting Up the 6-Port Tower Charger

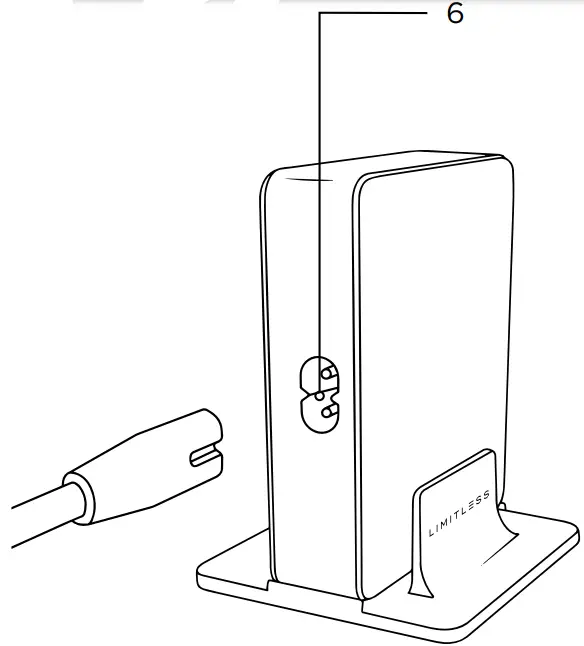

  1. Plug the AC Power Cord into the AC Power Input of the 6-Port Tower Charger.
  2. Plug the opposite end of the AC Power Cord into a Wall Outlet. The LED Power Indicator Light will illuminate.
  3. Choose to stand the 6-Port Tower Charger vertically or lay it horizontally.a.Use the Tower Stand for a  vertical setup.b. Remove/do not use the Tower  Stand for a horizontal setup.

NOTE: There is a protective film on the non-skid pad located on the bottom of the Tower Stand that should be removed.

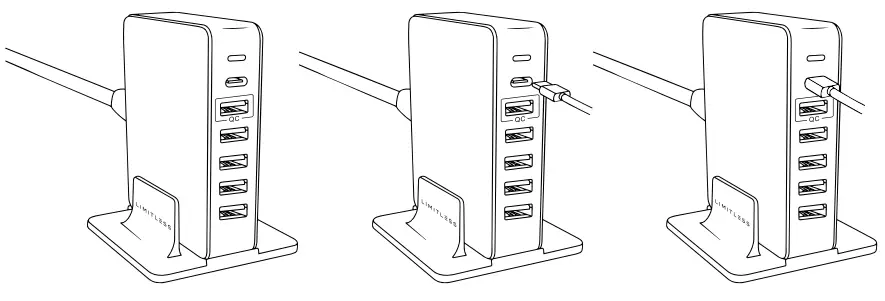

Charging with the Type-C Port

  1. Plug the Type-C connector of a charging cable into the Type-C Port (Output).
  2. Plug the other end of the Type-C charging cable into a device.

NOTE: Not all devices and laptops are compatible with Type-C. Please refer to the device’s user manual for instructions on the proper way to charge the device.

Charging with the USB-A Quick Charge Port

  1. Plug the USB connector of a charging cable into the USB-A Quick Charge Port (Output).
  2. Plug the other end of the charging cable into a device.

Charging with the USB-A Port

  1. Plug the USB connector of a charging cable into one of the USB-A Ports (Output).
  2. Plug the other end of the charging cable into a device.
  3. Repeat steps 1-2 to add additional devices to the 6-Port Tower Charger.

NOTE: Charging times may vary by device. The 6-Port Tower Charger has a max total output of 53W. Exceeding these limits may cause the 6-Port  Tower Charger to go into overdraw protection. Refer to page 10 for additional information.

Overdraw Protection

Charging times may vary by device. The 6-Port Tower Charger has a max total output of 53W. Exceeding this limit may cause the 6-Port Tower  Charger to go into overdraw protection.When multiple devices are connected, the 6-Port Tower Charger may, at times, reach its maximum charge capacity causing the connected devices to charge at a slower rate. If this occurs, remove a connected device to resume optimal charge.

Recommended Accessories

– Limitless-Branded USB Cables– CableLinx USB CablesIt is critical to use Limitless-branded power supplies and approved adapters, only. The use of non-approved Limitless products may cause safety hazards and damage your personal electronic devices undercharge. For a list of approved Limitless accessories, visit our website at: LimitlessInnovations.com/Shop

Tower Specification Units
Input 100-240VAC  50/60Hz  1.2A Volts | Hertz | Amps
Type-C (Output) 5V/3A | 15W Volts/Amps | Watts
USB-A QC (Output) 3.6-6.5V/3A | 6.5-9V/2A | 9-12V/1.5A | 18W Volts/Amps | Watts
USB-A (Output) 5V/4A | 20W (2.4A Max Current Per Port) Volts/Amps | Watts
Total Power 53W Watts

Limited Warranty

Your use of the product shall at all times require you to comply with all terms, conditions of use, instructions and recommendations set forth within  this User Manual and the Limitless Terms and Conditions found at:

Warranty Terms and Conditions:LimitlessInnovations.com/Warranty

Are you having issues with your Limitless™ product?

We stand behind each product with a (1) Year Limited Warranty by Limitless Innovations.Contact our support team today at:LimitlessInnovations.com/Support[email protected](855) 843-4828

Subject to the exclusions contained below, Limitless Innovations, Inc. (“Limitless”) warrants the Limitless product to be free from defects in materials and workmanship under normal consumer usage for a period of one (1) year from the date of original purchase, (the “Limited Warranty”). As utilized herein, the term “6-Port Tower Charger” (or the singular, Limitless product) shall include all products set forth above in the what’s included section of this User Manual that may be sold by Limitless now or in the future.

This Limited Warranty is a consumer’s sole and exclusive remedy regarding any  express warranty claim by a consumer and is subject to the exclusions on the following pages:

Exclusions: The Limited Warranty shall not apply in the  event of the occurrence of any of the following:

  1. Normal Wear and Tear. The Limited Warranty shall not apply to cover the maintenance, repair, and/or replacement of parts or the Limitless products due to normal wear and tear by the consumer.
  2. Abuse and Misuse. The Limited Warranty shall not cover defects or damage that result in whole or in part from: (a) improper operation, storage,  misuse or abuse, accident or neglect by the consumer (including, without limitation, physical damage, cracks, and scratches to the surface of the  Limitless product; (b) contact with liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt or the like, extreme heat, or food; (c) use of the Limitless product for commercial purposes; (d) subjecting the Limitless product to abnormal usage or conditions; and/or (e) other acts which are not the sole and absolute fault of the Limitless product.
  3. Unauthorized Service or Modification. The Limited Warranty shall not cover defects or damages resulting in whole or in part from service,  testing, adjustment, installation, maintenance, alteration, or modification in any way by someone other than Limitless or its authorized service centers.
  4. Altered Products. The Limited Warranty shall not cover defects or damages to a Limitless product with (a) serial numbers or date tags that have, at any time, been removed, altered, or obliterated; (b) broken seals or that show evidence or tampering; (c) mismatched board serial numbers; or  (d) nonconforming or non-Limitless housings, or components.
  5. Communication Services. Defects, damage, or the failure of the Limitless products due to any communication service or signal you may subscribe to or use with the Limitless product or software.

WHO IS COVERED?This warranty extends only to the first consumer purchaser and is not transferable to any third party nor applicable to any subsequent owner other than the first consumer purchaser.

WHAT WILL LIMITLESS DO?If Limitless determines, in its sole and absolute discretion, that a claim is subject to the Limited Warranty, it will, at its sole option, repair or replace the  Limitless product or alternatively, it will, in its discretion, refund the purchase price of any Limitless products or software. The Limitless product replacement will be with a functionally equivalent reconditioned / refurbished/pre-owned or new Limitless product or part. For additional  information, visit us at:LimitlessInnovations.com/Support[email protected](855) 843-4828

WHO DO I CONTACT TO MAKE A CLAIM?

In the event of any warranty claim under the Limited Warranty, you can contact the telephone number below or provide a written correspondence to  the address below at which time and in response thereto, you will receive instructions on how to ship any Limitless product at your expense, to a  Limitless authorized repair center.

To obtain service, you must include: (a) a copy of your receipt, bill of sale or other comparable proof of purchase; (b) a written description of the problem; (c) the name if your service provider, if applicable; and (d) your mailing address, email address and telephone number.

Mailing Address(Please call (855) 843-4828 first to obtain RMA #)Limitless Innovations, Inc.4800 Metalmaster WayMcHenry, IL 60050WHAT OTHER LIMITATIONS ARE THERE?

ANY WARRANTY CLAIM SHALL BE LIMITED TO LIMITLESS COST OF MATERIAL ON THE LIMITLESS PRODUCT DETERMINED  TO HAVE A MANUFACTURER’S DEFECT. IN NO EVENT SHALL LIMITLESS BE LIABLE TO ANY PARTY FOR ANY LABOR COSTS  OR ANY OTHER DIRECT, INDIRECT, CONSEQUENTIAL, INCIDENTAL OR SPECIAL DAMAGES, WHETHER IN CONTRACT OR TORT AND LIMITLESS EXPRESSLY DISCLAIMS LIABILITY FOR ANY DAMAGES OF ANY KIND ARISING UNDER ANY THEORY  OF LAW WHATSOEVER. THE PERFORMANCE OF THE LIMITLESS PRODUCT DEPENDS ON THE PURCHASER’S ADHERENCE  TO MANUFACTURER PRODUCT INSTRUCTIONS AND LIMITLESS WILL NOT BE RESPONSIBLE TO PURCHASER FOR ANY  DEVIATIONS THEREFROM. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR  CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION REGARDING INCIDENTAL OR CONSEQUENTIAL  DAMAGES MAY NOT APPLY TO YOU. ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED  WARRANTY OF MERCHANTABILITY AND THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE SHALL EXPIRE  ON THE DATE WHICH IS 1 YEAR FROM THE DATE OF FIRST PURCHASE OF THE LIMITLESS PRODUCT BY THE  CONSUMER. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE  LIMITATION MAY NOT APPLY TO YOU. WITH RESPECT TO THAT PERIOD OF TIME BEYOND THE LIMITLESS 1 YEAR LIMITED  WARRANTY  PERIOD, LIMITLESS DISCLAIMS AND FURTHER MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, ANY WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.PLEASE NOTE THIS LIMITLESS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER  RIGHTS WHICH VARY FROM STATE TO STATE.

NATIONAL STATUTORY RIGHTS

CONSUMERS IN SOME JURISDICTIONS MAY HAVE LEGAL RIGHTS UNDER APPLICABLE NATIONAL LEGISLATION GOVERNING THE SALE OF CONSUMER GOODS,  INCLUDING, WITHOUT LIMITATION, NATIONAL LAWS IMPLEMENTING EC  DIRECTIVE 99/44. THESE RIGHTS ARE NOT AFFECTED BY THE WARRANTIES IN THIS LIMITED WARRANTY.

For the full Warranty, Terms, and Conditions, please visit:LimitlessInnovations.com/Warranty

Copyright Notice

 All rights reserved. Limitless™, Limitless Innovations®, and CableLinx® are trademarks of Limitless Innovations, Inc. Design and specifications are subject to change without notice. Products may vary from the images shown. Electronic devices and accessories are not included. All other trademarks included herein are property of their respective owners. Refer to your device’s user manual for technical specification compatibility.

All Limitless products and information shared in this manual are protected by copyright. Copying, reproducing, reverse engineering or distributing any information of Limitlessrelated product hardware or software without a formal and written authorization and license from Limitless Innovations, Inc. is prohibited and may result in legal action to the full extent of the law.

FCC Notice

NOTE: This equipment has been tested and found to comply with the limits for a Class C digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the  interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the quipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.

WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Made in ChinaPhone: (855) 843-4828Email: [email protected]Website: LimitlessInnovations.com© Limitless Innovations, Inc.
