LOTO OSC 4800 USB Oscilloscope Data logger Device Family Data Sheet

OSC 4800 series

USB Oscilloscope / Data loggerDevice FamilyData Sheet

June 2019, Version 6.0

Features:

• Hand-held portable, 153(L) x 93(W) x 23(H) mm, up to 210g.
• General Purpose I/O interface (TTL 3.3V).
• Open source hardware interface to support expansion modules.
• Open software API for third party development.
• USB 2.0 interface, USB powered.
• 72 hours long time data logger.
• OSC482M support oscilloscope software on Android Mobile Phone.
• Waveform recording and playback review.
• Support waveform image import as the comparison reference for real-time waveform.
• Support Serial bus decoding (selected models).
• Support buffer waveform preview and mouse wheel operations.

APPLICATIONS:

General-purpose and precision testing.

Embedded in industrial testing equipment for use.

Embedded electronics courses for the educational market.

Ripple and noise measurements for power supply characterization.

Multi-sensor systems and Serial bus decoding.

Car inspection and maintenance.

Current/Voltage recording and analysis System for Solar Power Supply and Lighting System.

Diagnosis device for field engineers.

Basic equipment for DIY makers to develop their own modules.

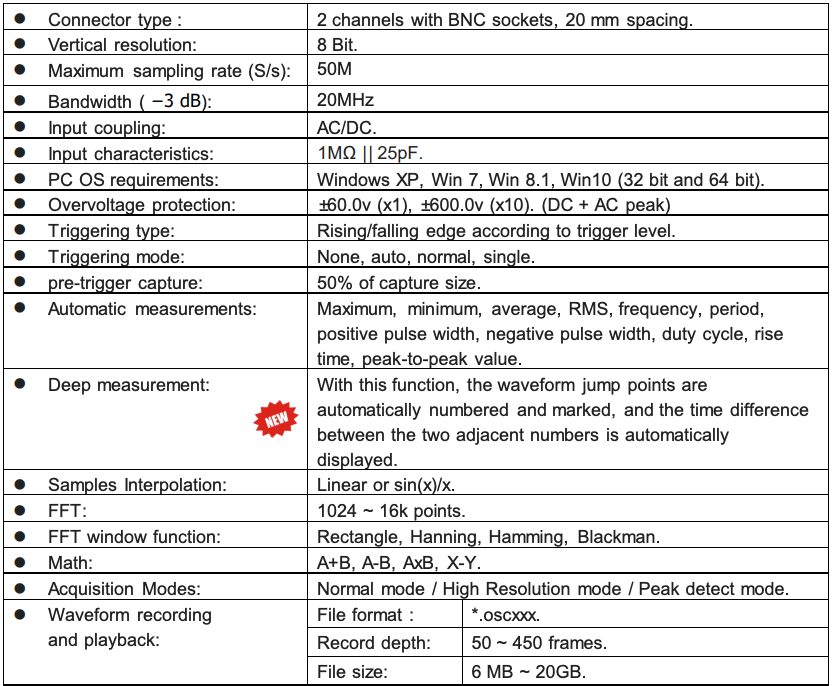

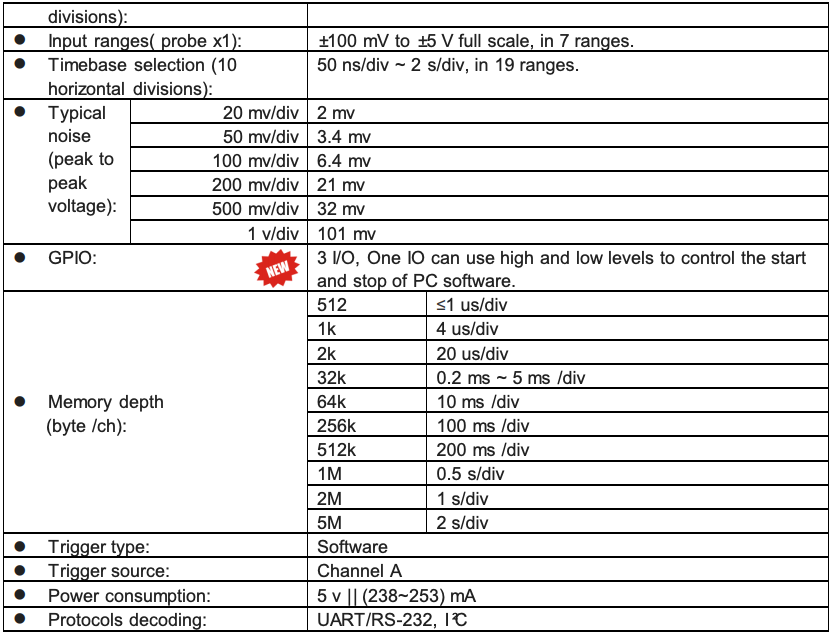

SPECIFICATIONS:

AT A GLANCE

Expansion modules & Accessories:

This 4 , 5 and 6 , 7 are standard or optional, depending on the host you purchased. If the host you purchased supports the feature of the module and do not provide it as standard, then you can buy it separately as an optional one.

INTERFACES:

The input voltage between 2V and 3.3V is considered to be high and the input voltage between 0.8V and 0V is considered to be low for the four channels input L0~L3 of the logic analyzer shown above.

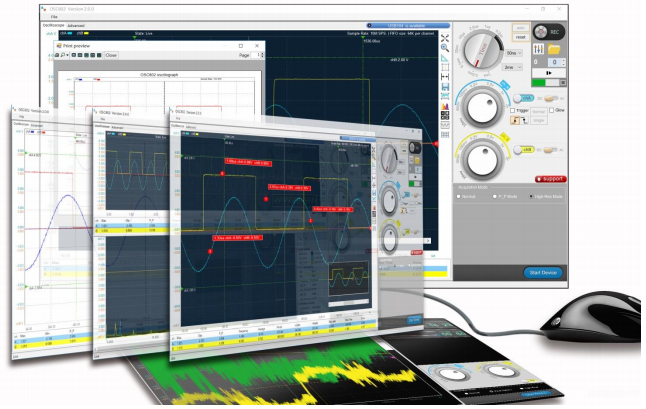

Windows software

App for Android phone(OSC482M/OSC482F)：

LOTO OSC 4800 USB Oscilloscope Data logger Device Family Data Sheet – LOTO OSC 4800 USB Oscilloscope Data logger Device Family Data Sheet –
