Lowell DMR-19 Display Mount for Racks User Guide
The adjustable-depth display mount for 19 inch E.I.A. two-post and fourpost racks, is made to hold a flat panel display or LCD monitor that features a standard VESA 75mm or 100mm hole pattern. The mount is ideal for AVor security installations, control rooms, and similar applications.
The DMR-19 features multiple access points to accommodate a variety of inputs/outputs from displays or monitors.
DMR-19 mounted to 22 in. flat panel display (rear view)

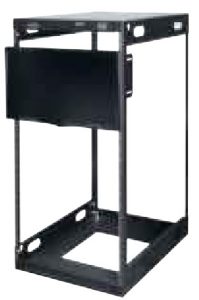

Four-post rack with DMR-19 and 22 in. display.
Small monitors can be recessed along the mounting ears.
- Unit Height: 6.97 in. (4U)
- Unit Depth: 5.20 in.
- Unit Width: 19.00 in.
- Unit Weight: 4.2 lbs. (shipping wt. 4.5 lbs.)
- Load Capacity: 40 lbs.
- Materials & Construction:
- 14-gauge U.S. steel center plate with multiple access points
- 16-gauge U.S. steel mounting ears
- Smooth black powder epoxy finish
- Ships unassembled (includes assembly hardware)
Installation
- Flush-mount the center plate with the mounting ears, or recess thecenter plate along the ears up to approx.4 in.
- Slots on the center plate allow the monitor to be adjusted vertically (2.31 in.) to accommodate a VESA 75mm or 100mm hole pattern (typically a 12 in. to 23.9 in. screen)
- Multiple access points allow for a variety of input/output locations on the mounted display
- Origin: Made in the U.S.A.
- Compliance: E.I.A. compliant
A&E Specifications:
The rack shall include a display-mounting panel, Lowell model DMR-19, to accommodate a flat panel display or monitor that has a standard VESA 75mm or 100mm hole pattern (display/monitor not included). The E.I.A. compliant unit shall feature a center plate with multiple access points and rack-mounting ears. It shall be made in the U.S.A. with certified U.S. steel and have a smooth black powder epoxy finish. Overall measurements shall be 6.97 in. high (4U) x 5.20 in. deep x 19 in. wide. Load capacity shall be 40 lbs.
Summary
| Summary | ||||||
| Rack | Overall | Overeall | Overall | Load | Unit | |
| Model No. | Units | Height | Width | Depth | Capacity | Weight |
| DMR-19 | 4 | 6.97″ | 19.00″ | 5.20″ | 40 lbs. | 4.2 lbs. |
