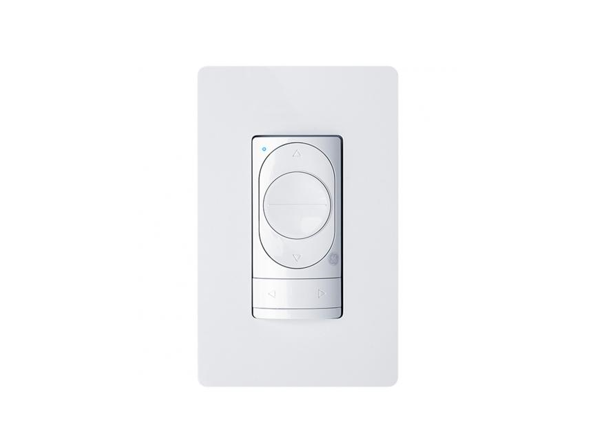

Smart Wall Switch Installation GuideOn/Off SwitchModelsCSWONBLBWF1
Simple DIY Setup
Compatibility Requirements
Rating 120V AC 60HzA neutral wire is required (Wire is usually white or grey)The ground wire is required (Wire is usually green, green with a yellow stripe, or copper)
Works with halogen, incandescent, and LED bulbs, including C by GE Smart Bulbs.LED up to 1.25 ampsIncandescent/halogen up to 5 ampsMotor up to 1/4HP
Let’s Do It
You Got This!And we’re here to help.For in-depth instructional videos and a guided tour through the installation, go to cbyge.com/switch-support.
BEFORE YOU DO ANYTHING: Step 1Turn Off The Power!1. Turn off the power for the switch located at the circuit breaker box.2. Test existing switch by toggling switch on/off, ensuring lights do not turn on.3. Now, follow these setup steps for a single gang switch.
STEP 2
Remove Your Old Switch
1. Remove the existing wall plate and switch from the wall.2. Use voltage tester on the black wires to confirm power to the switch is off (recommended).3. Before disconnecting the wires from the wall, label each with the provided wire labels.
STEP 3
Connect The Wires

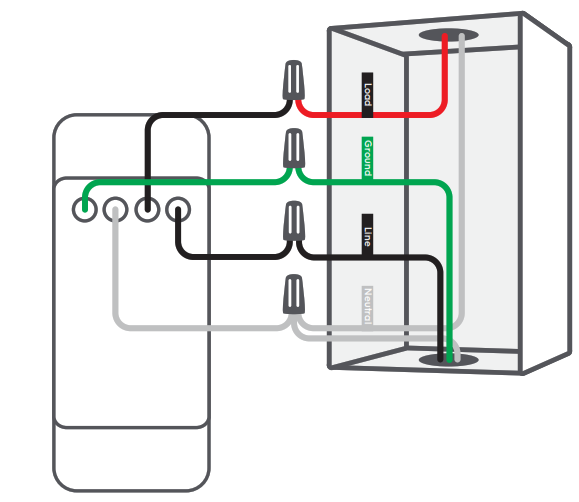

1. Connect the neutral (white) wire on the switch to the neutral (white label) wire from the wall.2. Connect the line (black) wire on the switch to the line (black label) wire from the wall.3. Connect the load (black) wire on the switch with the load (black label) wire from the wall.NOTE: Both black wires on the switch are interchangeable and can be connected to either the load or line wire from the wall4. Connect the ground
USING WIRE NUTS1. Insert wires into wire nut.2. Turn wire nut clockwise.3. Pull gently on wires to test connection.
STEP 4
Fit Wires Into Wall Box
Neatly push the wires back into the box, rotating the switch so it’s oriented according to the image.
STEP 5
Secure The Switch
1. Using a Phillips screwdriver and the screws provided, secure the switch to the wall until level and flush.2. Screw on the faceplate bracket, then snap the faceplate cover onto the bracket.
STEP 6
Turn The Power Back On
After the switch is secured and faceplate mounted, turn the power back on at the circuit breaker box.At the switch, the light ring will flash blue indicating the device is wired correctly and the device is in setup mode.
Light ring will continuously flash blue until the switch is added to the C by GE app.Light ring will flash red if the circuit is overloaded.Max load rating 1.25 amps for LED and 5 amps for incandescent/halogen.Light ring will not illuminate if wired incorrectly.IF LIGHTS DON’T TURN ON:1. Check that power to the switch is on at the breaker.2. Turn power off at the breaker, return to the switch to confirm the wires are securely and properly wired according to the installation guide.3. Go to cbyge.com/switch-support for more troubleshooting.
Congratulations!You’ve completed the Smart Switch installation.
Next…
Enable Your Voice AssistantAmazon AlexaTo set up, open the Alexa app, search for the C by GE skill, follow the setup instructions.Try this…Alexa, turn off the living room.Alexa, turn on the bedroom.Google AssistantTo set up, open the Google Assistant or Google Home app, search for the C by GE action, follow the setup instructions.Try this…Hey Google, turn on the lights.Hey Google, good morning.Hey Google, I’m leaving.
Additional Information and WarningsFCC Compliance Statement Compliance Notice:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.This device complies with part 15 of FCC rules. Operation is subject to the following two conditions:1. This device may not cause harmful interference.2. This device must accept any interference received, including interference that may cause undesired operation.Changes or modifications that are not expressly approved by the manufacturer could void the user’s authority to operate the equipment.
RF Exposure Information:This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 8 inches during normal operation.RF Exposure Statement:This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This transmitter must be installed to provide a separation distance of at least 8 inches from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter.
