SRM V- CLASS
SRM | V-Class
High-Performance Powered Loudspeaker Series
SRM | V-Class High-Performance Powered Loudspeakers are a whole new tier of SRM portable loudspeakers that aren’t just made to get the job done, but to get it done better than anything else with unmatched clarity, output, and control packaged into sleek, rugged enclosures.Robust 2000W amplifiers with our Advanced ImpulseTM DSP tuning and Intelligent Bass ManagementTM deliver a consistent listening experience to your whole audience even at extreme volumes.A built-in digital mixer with a full-color display features Bluetooth® streaming and powerful processing plus complete wireless control via the SRM ConnectTM app.Experience the new definition of high-performance for DJs, clubs, HoW, rental, and beyond with SRM | V-Class.
APPLICATIONS:
Singer-songwriters, announcement PA, karaoke, clubs / cafés, houses of worship, schools, small restaurants, outdoor events/barbeques, banquet halls, conference rooms, boardrooms, and many, many more.
FEATURES:
Industry-leading 2000W Class-D amplifiers
- Our most advanced amplifier platform ever, delivering incredible stability, headroom, and audio fidelity
- Unrivaled reliability and rock-solid operation can withstand the most demanding applications
- Universal power supply (100-240VAC) with Power Factor Correction for stable operation even with unstable AC power
Advanced ImpulseTM DSP Proprietary Acoustic Tuning
- Crystal clear sound across the entire dispersion zone means the whole room is the sweet spot
- Precision crossover and transducer time alignment ensures balanced and accurate sound
Intelligent Bass ManagementTM
- Our proprietary LF management technology maintains tonal balance and output level when operating at very high volumes while keeping the bass tight and punchy
Custom Sym-XTM Horn
- Allows for total efficiency from the HF transducer minimizing distortion and increasing output
- Creates a perfectly symmetrical, flat response at the crossover point for exceptionally smooth midrange
- The horn-loading frequency is set below the drivers’ LF capability allowing for maximum efficiency and optimal performance at the crossover point
High-Performance Custom Transducers
- Large, powerful magnets partner with robust motors, voice coils and spiders to provide the highest possible efficiency and transient accuracy
- Additional cooling vents surrounding the specially designed voice coil plus directional cabinet porting ensures maximum heat dispersion and reliability
- Premium polymer high-frequency driver provides the flattest possible response for incredibly smooth highs that sound natural and balanced
Transparent System Limiting and Protection
- A dedicated processing module monitors and protects the amplifier in real time
- Sound quality and tonal balance is maintained even under heavy limiting
- Utilizing powerful multi-band compression, the amplifier can target specific frequency ranges to prevent the system from being overloaded rather than turn everything down at the expense of overall output
- Input limiting keeps your source signal in check so if you’re sending audio that’s a bit too hot, the speaker will cool it down
SRM Mix ControlTM Built-in 4-Channel Digital Mixer with Bluetooth®
- Dual independent channels that support mic, line, and instrument signals
- Dedicated 1/8″ stereo aux channel · Stream music from any Bluetooth® enabled device · High-contrast full color display for easy single-knob access to mixer and processing
- Adjust channel levels and EQ · Application and venue specific voicing modes · Alignment delay up to 100 feet · Save and recall up to 10 user preset · Screensaver plus dimmer and contrast control · System lock with 4-digit passcode
- Change front LED function: Green, white, off, signal present, multi (cycle through colors)
Complete Wireless Control via the SRM ConnectTM App
- The SRM ConnectTM app gives you access to all adjustments and settings including EQ, levels, and presets
Wirelessly link two SRM | V-Class speakers together for music streaming applications plus complete control over both speakers
- The latest Bluetooth technology allows up to 100 meters of the range between linked speakers
- Stereo or dual zone linking modes allows discrete control over the inputs and outputs of the entire system across two rooms or zones
- Creates an incredibly clean setup in minutes
Versatile configuration options
- Dual-angled cabinet design allows for use as a high-performance floor monitor
- Dual angle pole-mount provides optimal coverage and minimal reflections in most venues. The 7-degree downward tilt is perfect for when the speakers are on elevated stages
- M10 fly points for professional installation Like us Follow us Watch our dang videos
Like us
Follow us
Watch our dang videos
SRM | V-CLASS SPECIFICATIONS
Acoustic PerformanceFrequency Response (10 dB) – 45 Hz 20 kHz [SRM210]42 Hz 20 kHz [SRM212]40 Hz 20 kHz [SRM215]Frequency Response (3 dB)55 Hz 20 kHz [SRM210]50 Hz 20 kHz [SRM212]44 Hz 20 kHz [SRM215]Horizontal Coverage90°Vertical Coverage60°Maximum SPL Peak131 dB [SRM210]135 dB [SRM212]136 dB [SRM215]Monitor Angle45°
TransducersLow Frequency10 in / 254 mm [SRM210]12 in / 305 mm [SRM212]15 in / 381 mm [SRM215] with ferriteHigh Frequency1.4 in / 36 mm polymercompression driverPower AmplifiersSystem Power Amplification Rated Power2000 watts peakLow-Frequency Power Amplifier Rated Power1800 watts peakRated THD<1%CoolingConvectionDesignClass DHigh-Frequency Power Amplifier Rated Power200 watts peakRated THD<1%CoolingConvectionDesignClass DSystem ProcessingVoicing10 speaker modes [5 inside, 5 outside]Subwoofer HPFOff, DRM18S, VarInput Ea3-bandDelay0 -100 msEqualizaticnLow±12 dB @ 80 HzMid±12 dB @ 2.5 kHzHigh1.12 dB @ 5 kHzHPF20 Hz -150 Hz (Var)
Input OutputInput Type2x Female XLR Balanced 1/4″ Balanced 1/8″ StereoMic-Line Impedance20 kΩ balanced1/4″ Hi-Z Impedance100 kΩ balancedDirect Out and Mix OutMale XLR BalancedMix Out Impedance300 Ω balancedMain ControlRotating Knob
Bluetooth InformationBluetooth Protocol4.2Bluetooth FunctionAudio Streaming and User Interface ControlBluetooth ClassClass 1
Electronic CrossoverCrossover Type24 dB / octaveCrossover Frequency2.0 kHz
Line Input PowerDetachable line cord-100-240 VAC, 50- 60 Hz, 110W -220-240 VAC, 50 – 60 Hz, 110WAC Connector3-Pin IEC 250 VAC, 10 A malePower Supply TypeSwitchmode
Safety FeaturesInput ProtectionPeak and RMS limiting, power supply and amplifier thermal protection, overcurrent, over-voltage, dynamic thermal protections and forced air-coolingDisplay LEDsdefeatable front power, speaker controlStatus InfoInput and output levels, voicing mode, sub HPF, EQ and delay settings
Construction FeaturesBasic DesignAsymmetricalEnclosure MaterialBlack PolypropyleneEnclosure FinishLight Black TextureGrille Material16-18 gauge perforated steel w/nylon net backingGrille Finish HandlesPowder-coated black One [SRM210], two on each side and one partial on top [SRM212 and SRM215]Display LEDsFrontPower / SignalRearSpeaker ControlOperating Temperature0 – 40 °C 32 – 104 °F
Physical Proparties (Product)SRM210 I V-Class:Height: 23.0 in / 584 mmWidth: 15.1 in / 384 mmDepth: 12.9 in / 328 mmWeight: 30.9 lb /14.0 kgSRM212 I V-Class:Height: 25.9 in / 658 mmWidth: 15.2 in / 386 mmDepth: 14.2 in / 361 mmWeight: 40.6 lb /18.4 kgSRM215 I V-Class:Height: 28.8 in / 732 mmWidth: 17.6 in / 447 mmDepth: 15.4 in / 391 mmWeight: 48.9 lb /22.2 kg
Physical Pschcities (packaged product)SRM2101V-Class:Height: 27.2 in / 691 mmWidth: 177 in / 450 mmDepth: 16.5 in / 419 mmWeight: 36.4 lb / 16.5 kgSRM2121V-Class:Height: 29.9 in / 759 mmWidth: 18.1 in / 460 mmDepth: 177 in / 450 mmWeight: 472 lb / 21.4 kgSRM2151V-Class:Height: 32.3 in / 820 mmWidth: 20.5 in / 521 mmDepth: 18.9 in / 480 mmWeight: 55.8 lb / 25.3 kgOptionSRM2101V-Class -P/N 2036809-54Cover SRM2121V-Class – P/N 2036809-55Cover SRM2151V-Class – P/N 2036809-56Cover SRM2101V-Class – P/N 2036809-57Rolling Bag SRM2121V-Class Rolling Bag – P/N 2036809-58SRM215 I V-Class Rolling Bag – P/N 2036809-59T100 Loudspeaker Tripod Stand – P/N 2052464SPM400 Loudspeaker Pole Mount – P/N 2051055PA-A2 Eyebolt Kit – P/N 2051054
Ordering InformationSRM210IV-Class -10″ 2000W High-Performance Powered LoudspeakerP/N 2050960-00 (US)P/N 2050960-01 (EU)P/N 2050960-03 (UK)P/N 2050960-04 (AU)P/N 2050960-05 (CN)P/N 2050960-06 (BZ -120V)P/N 2050960-07 (AR)P/N 2050960-08 (KR)SRM212IV-Class -12’2000W High-Perfonnance Powered LoudspeakerP/N 2050940-00 (US)P/N 2050940-01 (EU)P/N 2050940-03 (UK)P/N 2050940-04 (AU)P/N 2050940-05 (CN)P/N 2050940-06 (BZ -120V)P/N 2050940-07 (AR)P/N 2050940-08 (KR)SRM215IV-Class -15″ 2000W High-Performance Powered LoudspeakerP/N 2050930-00 (US)P/N 2050930-01 (EU)P/N 2050930-03 (UK)P/N 2050930-04 (AU)P/N 2050930-05 (CN)P/N 2050930-06 (BZ -120V)P/N 2050930-07 (AR)P/N 2050930-08 (KR)
SRM V- CLASS DIMENSIONS

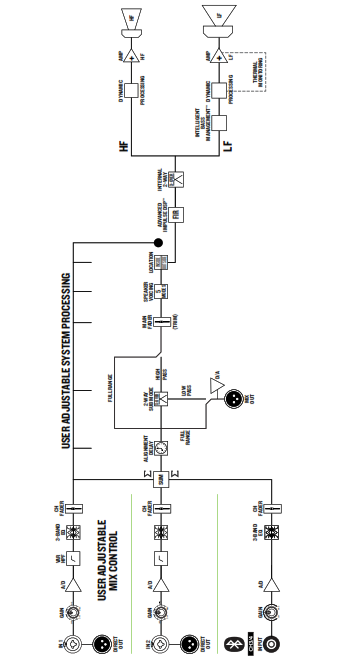

SRM | V-CLASS BLOCK DIAGRAM – SRM MIX CONTROLTM
SRM V- CLASS EXPLODED VIEW
SRM I V-CLASS FREQUENCY RESPONSE LEGEND & GRAPHS
FLAT Voicing Mode – No question about this speaker mode; it’s flat! This plug-and-play mode is perfect for singer-songwriters and listening to mastered music.LIVE Voicing Mod( – This mode features a low-frequency roll-off to get rid of unwanted thumps and adds boost and sparkle to mid-range and high frequencies. SPEECH Voicing Mode – This mode features a significant low-frequency roll-off to get rid of unwanted thumps. It also adds boost and sparkle to mid-range and high frequencies, critical for speech applications. Lastly, a compressor has been added to help control spoken audio levels. This plug-and-play mode is perfect for larger venue applications where speech is the primary audio source in need of clear and precise intelligibility.
CLUB Voicing Mode – This mode is full range, but focuses on increased bass and brilliant high frequencies. This is the place to start for most DJ / music playback applications.MONITOR Voicing Mode -Monitor mode was designed primarily to remove unwanted low-frequency buildup while also improving mid-range articulation for the artist(s). This mode should only be engaged when the speaker is in its monitor orientation and coupled with a stage or other hardwood floor… if not, the speaker won’t sound right.
SRM210 V CLASS FREQUENCY GRAPH
SRM215 V CLASS FREQUENCY GRAPH
SRM | V-CLASS POLAR MEASUREMENTS OF HORIZONTAL DISPERSION (MF + HF)
SRM | V-CLASS 3D MEASUREMENTS OF HORIZONTAL + VERTICAL DISPERSION (MF + HF)
SRM | V-CLASS REAR PANEL
www.mackie.com19820 North Creek Parkway #201 Bothell, WA 98011 USA800-898-3211, Fax 425-487-4337Part No. SW1298 Rev. A 05/20
Electronic files for this product are available at: www.mackie.com
Specification Sheet – SRM V-Class_SS.PDFOwner’s Manual – SRM V-Class_OM.PDF
LOUD Audio, LLC. is always striving to improve our products by incorporating new and improved materials, components, and manufacturing methods. Therefore, we reserve the right to change these specifications at any time without notice.
“Mackie” and the “Running Man” figure are registered trademarks of LOUD Audio, LLC. All other brands mentioned are trademarks or registered trademarks of their respective holders and are hereby acknowledged.
©2020 LOUD Audio, LLC. All rights reserved.
