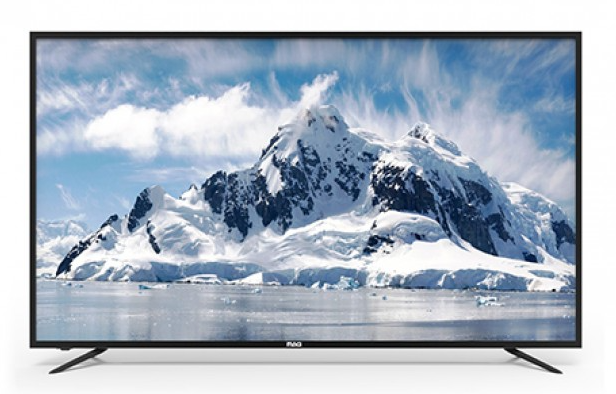

MAG 75” UD LED TV

• 75” LED TV
• Resolution 3840×2160
• Analogue+DVB-C/T2
• Low power consumption
• Fast response time
• Wide viewing angle
• USB input

DISPLAY

Screen Size                                             75‘’

Aspect Ratio                                           16:9

Resolution                                              3840*

Response Time                                       6ms

Max Brightness                                      300cd/m2 ±10%

Contrast ratio                                         5,000,000:1

View Angle H/V                                      H176°，V176°

Pixel Pitch                                               0.14325(H)x0.42975(V)mm

Color Depth                                            16.7M

TUNER

Analogue+DVB-C/T2                              YESCompatibility (FULL HD/HD

READY)                                                   UHD

I/O JACK

COAX                                                      1

HDMI                                                      3

VGA                                                        1

Pc audio in                                             1

RF IN                                                       1

YPBPR IN                                                1

Dolby Surround Virtual                          YES

CVBS IN                                                  1

CVBS/YPBPR AUDIO IN                          1

Speakers                                                 10W+10W

Output SUB woofer                                NO

Earphone OUT                                        1

USB                                                         2

Line OUT                                                0

RJ45                                                        1

SMART SYSTEM

CPU                                                           ARM Cortex-A53 quad core

RAM                                                           1G

ROM                                                          8G

WIFI                                                           2.4G,IEEE 802.11b/g/n

Ethernet                                                    10/100M

Android                                                     7.0

ENHANCEMENT

Cinema adaption                                       16:9

Voltage                                                      100V-240V~ 60/50Hz

Max. Power Consumption                         <290W

Stand By                                                    0.5W

MECHANICAL

TV set WxDxH mm (with leg)                    1689*1027*321mm

TV set WxDxH mm (without leg)               1689*972*89mm

Carton WxDxH                                           1897*250*1165

Net Weight                                                30.5kgs

Gross Weight                                             40.8kgs

Wall Mount vesa standard                            400 * 300mm

OTHER

Image processor                                             3D+3DChannel scan (manual/Auto)                          YES

Timer (Turn off /Turnon/Turn off no broadcast)                              NO

Screen saver                                                   NO

Remote (YES/NO)                                           YES

Teletext                                                            NO

Channel Lock                                                    YES

Eco control                                                        NO
