MAIYAN Non-contact thermometer HX-YL001 User Manual

MAIYAN Non-contact thermometer HX-YL001
User Manual

Scope of application

The body temperature of the subject is displayed by measuring the heat radiation from the forehead.

Product composition

The forehead thermometer consists of an infrared sensor, a microprocessor, and a liquid crystal display.

Precautions, contraindications, warnings

Precautions

  1. Please read this manual carefully before use
  2. The ambient temperature of this product is 10 ° C to 40 ° C, and the optimal temperature is 25 ° C.
  3. Do not use this product in an environment where the temperature is below 40 ° C or below 0 ° C.
  4. Please don’t place the product too close to the charged object to avoid electric shock.
  5. Do not use this product in an environment where the relative humidity is below 80%
  6. Please do not place this product too close to the electromagnetic range (such as radio, radio, etc.)
  7. Please do not expose this product to the sun or near the oven, let alone touch the oven
  8. Do not bump or drop the product, do not use it if it is damaged
  9. The hair on the forehead, sweat, cap or girth will affect the accuracy of the measurement data
  10. Make sure that the measurement distance is not less than 15cm
  11. In order to obtain accurate, stable and reliable measurement data, the product should be placed in the room for 15-20 minutes when the room temperature changes significantly.
  12. When the forehead sweats or other reasons cause the forehead temperature to not properly respond to body temperature, please measure from the ptosis
  13. When cleaning is required, wipe the meter with alcohol
  14. If there is a problem with the product, please contact the distributor and do not attempt to repair it

Contraindications

There is no standard value for body temperature, please consult your doctor if you have a fever.

Warning:

Make sure to remove the hair and sweat from your forehead before measuring. MakeUse of this product is not a substitute for medical diagnosis.If there is a problem with the product, please contact the distributor, do not try to repairThe protective glass outside the LCD frame is often important, and it is also the fragile part of the instrument. Please use it. Do not charge non-rechargeable batteries and do not throw them into the battery.Do not expose this product to the sun, and do not touch it.

Technical indicators

Advice before use

In order to obtain stable and reliable measurement data, when using a non-contact infrared forehead thermometer, please follow the steps below to make the necessary checks.

please follow the steps below to make the necessary checks.Step 1:Use a traditional thermometer to measure someone, assuming a temperature of 37.5 ℃.Step 2: Use a non-contact infrared forehead thermometer to measure the same person. Keep the distance between the thermometer and the forehead 5 to 15 centimeters. If the same temperature is obtained at 37.5 ° C, it means that the non-contact infrared forehead thermometer is set normally and can be used. If you get a low reading, such as 36.4 ℃, the difference is 1.1 ℃, you need to calibrate the non-contact infrared forehead thermometer, plus the difference. Hold down the “MODE” button for two seconds, the screen displays F1, then press “MODE” until it enters F3, and then press the “UP” key to add the difference.Step 3: Measure again to check. Normal body temperature range at different measurement positions of the human body

Normal body temperature range at different ages：

Quick use

a) Install the battery.b) Wait for 10 minutes to warm up for the first time or immediately after inserting a new battery.c) The instrument time is not used, the first time the machine is turned on for environmental temperature detection, and the startup time is extended by one to two seconds.d) Align the forehead with a distance of 5 cm and press the measurement switch. The temperature is displayed immediately. Also make sure there is no hair, sweat, makeup or hats covered.e) When the environmental temperature changes greatly affect the forehead temperature or sweating on the forehead, please measure after measuring the earlobe. At the same time, please ensure that there is no hair, sweat, cosmetics or hat.

Note: The measured temperature value will vary depending on the person’s skin color, thickness, and body part, and when the ambient temperature changes greatly, which is normal. The reason is that the more exposed human body parts, the more affected by the environmental temperature.

Battery replacement

The instrument uses a 3V battery. Generally, it can be used continuously for more than 4,000 times. When a battery symbol appears on the top right of the screen and flashes, it indicates that the battery is insufficient and the battery needs to be replaced as soon as possible.

  1. Open the battery cover and replace the battery. Pay attention to the correct position of the positive and negative electrodes. The product is designed with a battery anti-reverse device. Even if the battery is installed in the wrong polarity, it will not cause damage to the product, but it will not work.
  2. Do not use rechargeable batteries. Use disposable batteries. Use alkaline batteries whenever possible.
  3. When the instrument is not working, the static current is extremely small, but when it is not used for a long time, it is recommended to remove the battery to prevent battery leakage from damaging the product.

Precautions

  1. When opening the battery cover to replace the battery, pay special attention to the polarity of the battery. Misplacement may cause product damage.
  2. When not in use for a long time, please remove the battery to prevent the thermometer from being damaged due to battery leakage.
  3. Do not use when the battery is leaking or moldy
  4. Do not place the battery close to the fire source or throw it into the fire, otherwise the battery will explode.
  5. Do not store the battery in high temperature or high humidity environment
  6. In order to avoid short circuit, please do not put the battery together with metal objects such as coins or keys in the same pocket or other containers that may short the battery

Operating instructions

Thermometer site description

（1） Infrared sensor（2） LCD display creen（3） SETTING（4） UP（5） Down（6） Measurment（7） Battery cover

Install battery

2 AAA alkaline batteries are attached to this machine.Push down the cover of the battery and load the battery into the battery bin. At this time, the product starts self-inspection. Pay attention to the positive and negative electrode and close the battery cover.

Measurement mode setting:

At startup, select the desired measurement mode (body temperature/object temperature) by toggling the setting selection switch.

Measurement method:

  1. the thermometer is in the temperature mode, press and hold the measurement button to turn on, the instrument will self-test
  2. aim the infrared sensor of the non-contact infrared thermometer at the middle of the forehead and keep it vertical, with a distance of about 3-5cm.Press the measurement button, and a “Di” will appear after about 1 second. The measurement is completed (when measuring, make sure the measurement mode is the human body temperature mode).
  3. if the instrument is not operated within 30 seconds after the measurement, it will be shut down automatically.

Memory query

  1. when the thermometer is on, press “up” or “down” to view the memory record
  2. counter after “memory” in the bottom left corner of the screen. The count goes from 1 to 32, and the counter increases by 1 for each valid measurement, and then returns 1 again after 32
  3. historical data review. After each test, the instrument will automatically record the test data, up to 32 historical test data can be recorded, press “up” or “down” key.
  4. Press and hold the “down”button for 3 seconds to select the Temp model between Centigrade and Fahrenheit degree.

Routine maintenance

The probe part is the most precise part of the product and must be carefully protected. Wipe the surface of the meter with 70% alcohol cotton. Do not use aggressive cleanersNever immerse the product in water or other liquids.Keep this product in a dry place to avoid dust, pollution and direct sunlight.

Troubleshooting

If you encounter the following problems during use, please follow the instructions in the maintenance instructions to find a solution. If the problem persists, please contact our customer service.LCD cannot display the valueIf it is lower than 32 ℃ or higher than 42.5 ℃ in the anthropometric state, the LCD will not display data, but will display “LO” or “HI”. LCD display message “HI”Using a non-contact infrared forehead thermometer, the HI analysis of the LCD display shows that the human body temperature is higher than 42.5°C.LCD display message “LO”Using non-contact infrared forehead temperature timer, LCD display information Lo analysis table when body temperature is below 32°C

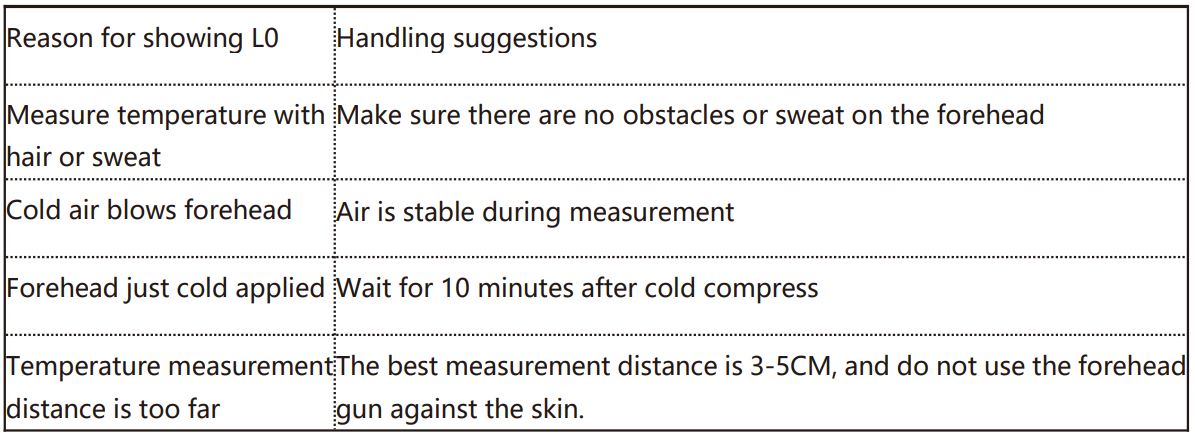

The main reasons why the screen displays “HI” and “L0”

Parts list

Two AAA batteriesManualWarranty CardCertificate of conformity

report this ad

Medical device registration certificate No.: 20202070080Medical device production license No.: 20200030
