Megateh Vues PoE Switch 4+1 User Manual

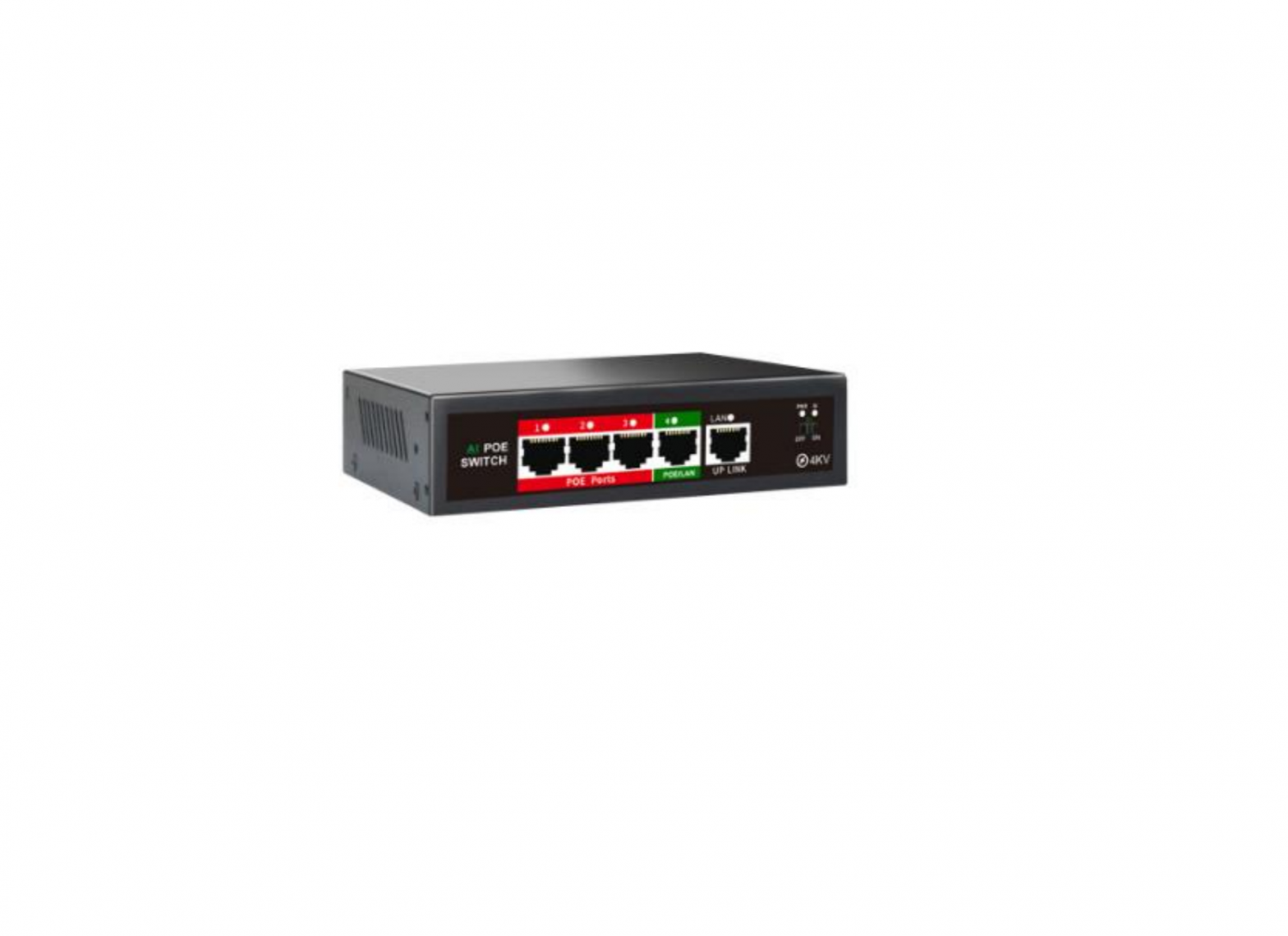

Megateh Vues PoE Switch 4+1

WarningImproper use of this product and accessories are dangerous to you and others and can damage, destroy or cause a serious accident. We therefore ask you to read the manual carefully and to read and strictly observe the danger, safety and warning messages.

Introduction

hanks for choosing Vues! Read the manual carefully for correct and safe operation of the product. Always follow these instructions for safe usage. If you have any questions about the product or encounter problems, you can contact us by email: [email protected]

Vues PoE Switch

The Vues PoE Switch is a 100M Ethernet POE power supply switch. It provides 5 10/100M adaptive RJ45 ports.At the same time, ports 1~4 has a PoE power supply function and can be used as Ethernet power supply equipment. All power supply ports can Automatically detect and identify the power receiving equipment that meets the IEEE 802.3af/at standard.

Getting started

The illustrations in this manual have been created with care. However, some parts of the product may differ from the illustration shown in this manual. In that case, Vues is not obliged to adjust the part or the manual.This manual is intended for the end user of the product. Using the table of contents on the next page you can find the necessary information in the manual.

Specifications

PORT POE 4*100Mbps POE Port
RJ45 Uplink 1*l00Mbps Uplink
Features Store and forward Support
Exchange content 1.2G
MAC 2K
Using environment Working temperature : 0°C~40″C Storage temperature : -40°C~70°C
Working humidity : 10%~90% RH Storage humidity : 5%~90% RH
POE Standard Standard IEEE802.3af / at The single port is30WMAX, the power of switch is 52WSupport protection of over current, over voltage and short circuitSupport high-power PD soft start
Input power AC 220V 50/60HZ
Output power DC52V Power 52W
Supported standards and protocols IEEE802.3 IEEE802.3i 10BASE-TIEEE802.3u lO0BASE-TX IEEE802.3af IEEE802.3atIEEE802.3x
Default system mode Ordinary POE switch250M transmissio111
Data transfer rate Ethernet l0Mbps half duplex, 20Mbps full duplexFast Ethernet 100Mbps half duplex, 200Mbps full duplex
Network medium 10Base-T: 2 to Cat3 or  UTP/STP(Sl00m) 100Base-TX: 2 to cats or UTP/STP(S100m)10Base-TX: 2 to Cat6 or UTP/STP(S250m)
Physical specifications 124mm\’”115mm*33mm (L* W*H)

Instructions

Packing List

Open the packing box carefully, confirm the items should be as follows:

  1. 1 pcs x PoE switch
  2. 1 pcs x AC power cable (EU plug)
  3. 1 pcs x user manual

PS: Please contact a local dealer timely if you find the accessories missed or damaged.

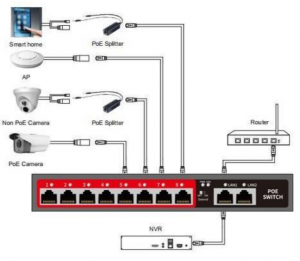

The schematic of device connection

Precautions for installation
Warming: It is A-level products, which might cause wireless interference in the living. Environment. Some practical measures might be taken to deal with the interference under the condition
Note: Please obey the precautions below to avoid product damaged and personal injury caused by improper using
Precautions for installation:
  • Please keep the power off during the whole installation.
  • Please provide the power which consistent with the power marked because the switch only works well under the correct power.
  • Please confirm that it will not cause the overload on the circuit and the power before energizing the switch, to avoid affecting the normal working on the switch even unnecessary damage. Please do not open the shell of the switch when it is
  • working, to avoid the danger of the electric shock; do not open it yourself even if it is not energized.
Precautions for installation environment

Temperature and humidity

  • To guarantee the long-life stable working of the switch, please keep the stable temperature and humidity of the environments.
  • It will cause the leakage of insulation materials, deformation even metal shedding to corrosion when under the too high or too low humidity.
  • It will accelerate the aging process of insulation materials, seriously affect the service life of the device when the temperature is too high

The temperature and humidity for normal working and storage:

Environments Temperature Relative humidity
Working environment -15C–55C 10%– 90%RH
Storage environment – 40C– 70C 5%–90%RH

Indoor dust proof

It will cause electrostatic adsorption and poor contact of the metal connector when the dust is attached to the surface of the switch. Some measures have been taken on anti-static of the device itself, but fatal damage can happen on the electronic component of the inside circuit board when the static is beyond a certain intensity.To avoid static on the normal working, please pay attention to the below:

Remove the dust regularly, keep the air clean indoor.Confirm the well connection of the device, ensure the smooth transfer of the static.

Electromagnetic interference

It will affect the capacitance, inductance, and other electronic components inside the device by capacitive coupling, inductive coupling, impedance coupling, etc.To reduce the adverse effects caused by electronic magnetic interference, please pay attention to the below.The necessary measures of anti-power grid interference should be taken with the power system.The switch 2 be kept off the high frequency and high-power devices, etc.The measures for electromagnetic shielding should be taken when necessary.

Demand for Lightning Protection

It will cause the fatal damage to the electronic device by the split-second powerful current when the lightning occurs. To achieve the better effect of lightning protection, please pay attention to the below:

  • Confirm the rack with good grounding.
  • Confirm the power outlet with good grounding.
  • Reasonable wiring to avoid lightning internal induction.
  • Recommend usage of signal lightning arrester when wiring outdoor

Connection of the hardware

Please confirm that the device is equipped with the PoE if the switch is passive; at the same time, please confirm the voltage of the access device is matched with the switch’s, otherwise it will burn the access device.
Connect to the RJ45 Port

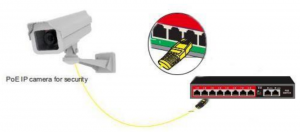

  1. Connect one end of the cable to the switch and the other end to the corresponding device, as shown as illustration 2illustration 2. Device connection
  2. Please check the condition of the corresponding indicator when electrified. It means the connection works well when the indicator is ON; blocked when it is OFF, please check the wiring and confirm the corresponding device start up
Connect to the Power Cable
  1. Confirm the consistency of the chosen power and the power marked on the switch.
  2. Connect the switch with the outlet by the original power cable, as shown as illustration5-2
