Shower Wall
Swivel PanelEnd PanelINSTALLATION GUIDE
Swivel Panel
End Panel

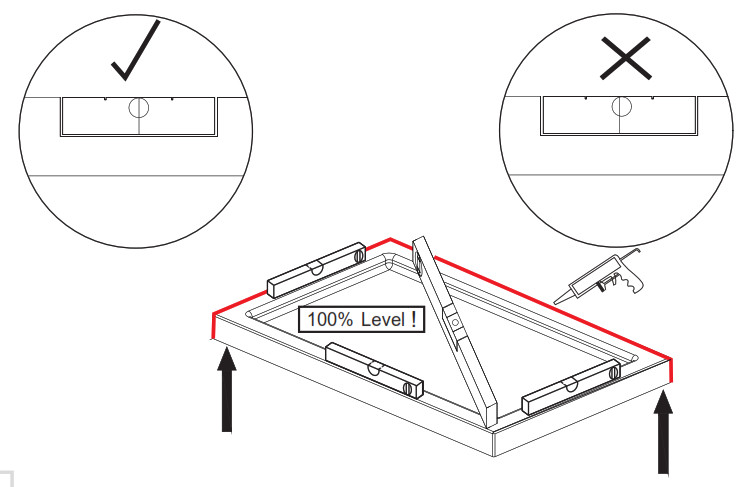

INSTALLATION GUIDEIf you install the product in a way that differs from this manual this will void all guarantees. Before installation check that the product meets all your requirements and is not damaged. By proceeding with installation, you accept the condition of the product.The wall plugs supplied with the installation kit are for use in solid walls. Hollow or `stud partition’ walls will require alternative fixings. Please consult your local hardware supplier for the correct type.
|
No. |
Size |
Adjustment |
|

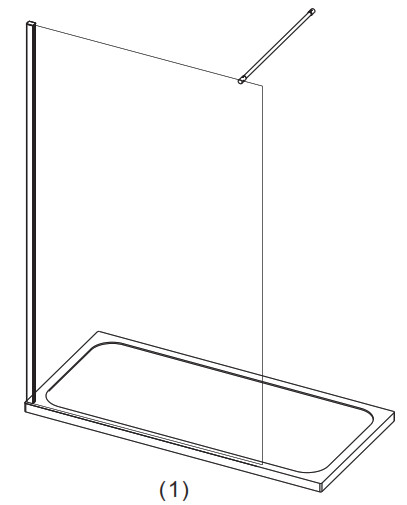

(1)(4) |
800 | 775-790 |
|
(1)(4) |
900 | 875-890 |
| (1)(4) | 1000 |
975-990 |
|
(1)(4) |
1100 | 1075-1090 |
|
(1)(4) |
1200 | 1175-1190 |
| (2) | 200 | |
| (2) | 300 | |
| (2) | 400 |
Shower Wall
|
No. |
Qty | Part No. | No. | Qty |
Part No. |
|
1 |
1 | A04S0028B | 9 | 1 |
SP0N069B |
|
2 |
1 | A04S0014B | 10 | 1 | SP0N068B |
|
3 |
1 | A04S0027B | 7 | 1 | SP0N071B |
|
4 |
5 | SP02SP12 | 8 | 1 |
SP0N072 |
| 5 | 3 | A | 11 | 1 |
SP0N070 |
| 6 | 5 | SP02SY51 | 12 | 1 |
A04S0010B |

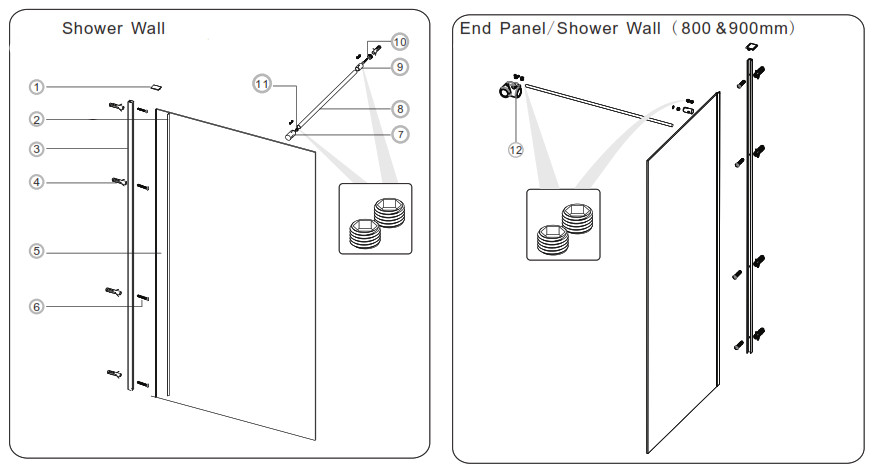

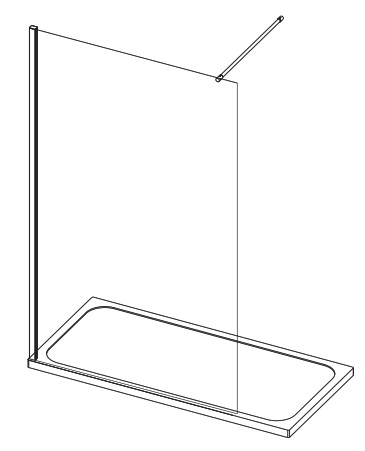

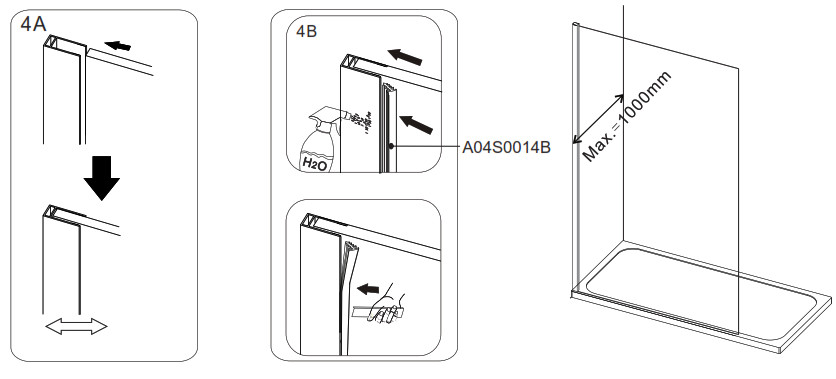

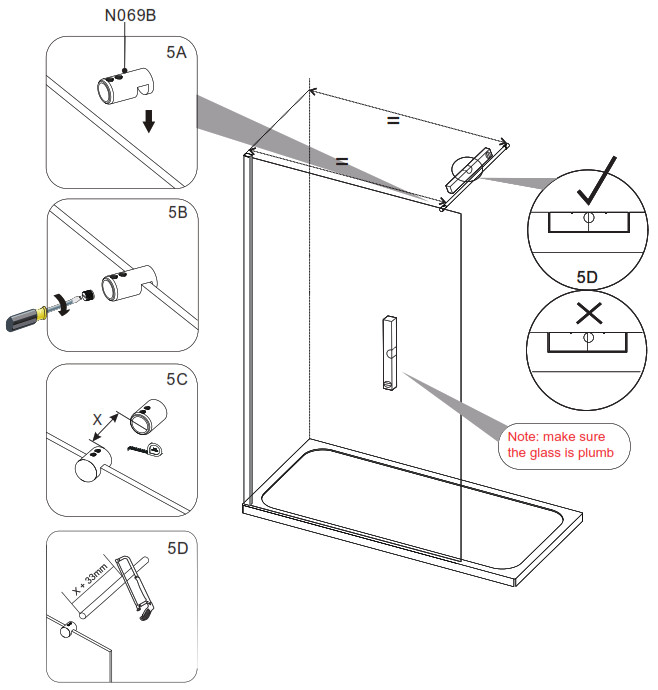

Shower Wall
Shower wall

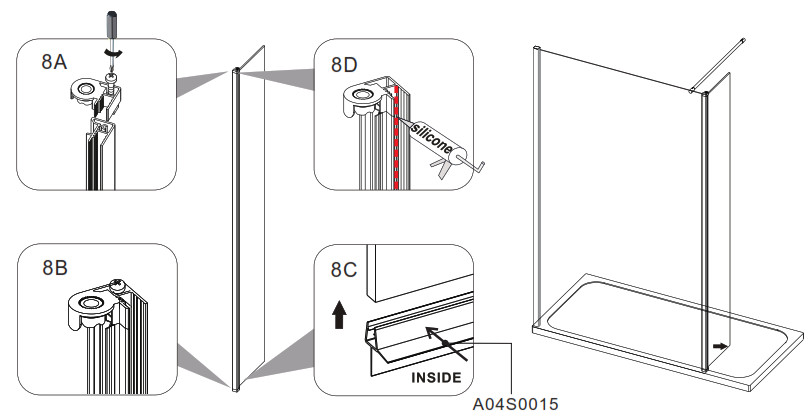

End Panel
Swivel Panel
Merlyn Industries Ltd (MER13)Purcellsinch, Kilkenny, IRL.16EN 14428Shower enclosures with aluminumprofiles and safety glassCleanability:PassImpact resistance/ :Passshatter propertiesDurability:Pass
To download the Declaration of Performance (DOP) for this product please use the link below. http://merlynshowering.com/aftersales-support/dop-certs/For further information please contact IRL: 056 7791 555, UK: 08081011429
