MICHELANGELO 25229959 Air Fryer Lid for Pressure Cooker 6 Quart and 8 Quart Instruction Manual

Table of Contents

MICHELANGELOCRISP TOP

AIR FRY, BROIL & CRISP ALL IN ONE TECHNOLOGYPERFECT GEAR FOR YOUR PRESSURE COOKER*INSTRUCTION MANUAL

*Compatible with 22cm diameter 6-quart and 24cm diameter 8-quart inner cooking pots.

Thank you for purchasing the Michelangelo Crisp Top.The Crisp Top is a fun and easy way to crisp, broil, and air fry food for home used pressed cooker 6qt or 8qt.Michelangelo Crisp Top is designed to be compatible with a multi-size electric pressure cooker. The newly designed Crisp Top delivers the safety and satisfaction for you to enjoy cooking.This manual introduces you to how to use the Crisp Top and how it performs. Please read all instructions carefully and thoroughly before ﬁrst using the CrispTop. Save this guide for future reference.Note: Pictures in this guide are only for reference.

IMPORTANT SAFEGUARDS SAFETY FIRST

NEVER use an extension cord with your Michelangelo Crisp lid. The short power cord is speciﬁcally made as a safety precaution to reduce the risk of children grabbing or playing with the cord, and to keep you from tripping over a long cord.
NEVER use a Crisp lid without an inner pressure cooker cooking pot in place.NEVER use a Crisp lid with bowls or pots other than the inner pot of an electric pressure cooker.NEVER use Crisp Top with ceramic.
NEVER use Crisp Top when the pressure cooker is on or plugged in.
NEVER place Crisp Top on or near hot gas, ceramic, induction, or electric burners. Doing so can cause damage, injury, and will void your warranty.
NEVER place Crisp Top in an oven. Doing so can cause damage, injury, and will void your warranty.
NEVER move electric pressure cooker when Crisp Top is positioned and in use. Doing so may cause damage, injury, and will void your warranty.
The Crisp Top is only for household use.NEVER use Crisp Top for anything other than its intended use.Do NOT use in moving vehicles or boats.Do NOT use outdoors.
NEVER tamper with, disassemble, or otherwise remove any portion of the Crisp Top. This may damage the Crisp Top and invalid for warranty service.
Do NOT use abrasive cleaners, steel wool, or scouring pads to clean your Crisp Top.
NEVER drape the cord over the counter edge.
Do NOT cover the air intake vent or outlet vent while Crisp Top is in use. This can cause uneven cooking and damage the Crisp Top.
Do NOT use other accessories with the Crisp Top, only the provided or approved accessories.
NEVER put sealed canned food into the pot for using Crisp Top, which will be dangerous and void your warranty.
NEVER use plastic bags/wrap or any other plastic accessories in the pot when using Crisp Top.
NEVER connect Crisp Top to an external timer switch or separate remote-control system.
To prevent electrical shock, NEVER immerse the cord or Crisp Top in water or any other liquid.Do not rinse Crisp Top under a tap. Doing so can cause damage, injury, and will void your warranty.
NEVER use Crisp Top or accessories in a microwave, oven, or outdoor grill. This can damage your Crisp Top and void your warranty.
NEVER use your Crisp Top to deep fry foods with oil, which can cause damage, injury, and void your warranty.
ALWAYS ensure Crisp Top is properly positioned before use.
ALWAYS use caution when operating your Crisp Top. Keep Crisp Top away from children or individuals whose physical, sensory, or mental abilities may prevent safe use of the appliance.
ALWAYS ensure the electric pressure cooker is off and unplugged before using Crisp Top.
ALWAYS set hot Crisp Top on provided silicone trivet or another heat-resistant surface after use until device cooks down. NEVER place hot Crisp Top directly on countertop or heat-sensitive surface.
ALWAYS provide adequate space above and around Crisp Top for proper air circulation. Suggested at least 150mm from the wall side.
ALWAYS ensure Crisp Top is clean before using. NEVER let power cord contact with hot surfaces.
The Crisp Top is intended for countertop use only with an electric pressure cooker. Ensure the surface is level, clean, and dry.
To prevent overheating, temperatures have a maximum of 420 and cook time for 60 minutes at most.
To reduce the risk of electric shock, cook only in the pot of an electric pressure cooker.
To eliminate a choking hazard for young children, remove and discard any protective ﬁlm and bags ﬁtted over the device and its accessories.
Use extreme caution when handling hot food and hot surfaces to avoid injury. Must use protection gloves or mittens and stainless steel tongs for hot food.
The pressure cooker pot will be extremely hot during and after cooking. Always use protective gloves or mittens.
Regularly inspect your Crisp Top and its power cord and plug. Do not use Crisp Top if there is damage to the power cord or plug. If Crisp Top malfunctions or is damaged in any way, stop using it and ask for help from customer service.
The Crisp Top becomes extremely hot during the cooking process. ALWAYS use care and caution when removing Crisp Top.
To prevent possible illness, ALWAYS use a thermometer to verify that food is cooked to the temperatures recommended.
The Crisp Top is only compatible with the 120V~60Hz electrical systems. It has a 3-pronged grounding plug, can only be plugged into a grounded electrical outlet.
Make sure no programs are running before unplugging.
Make sure the Crisp Top is unplugged and cool down before cleaning or storing.

INTRODUCTION

The Michelangelo Crisp Top is designed to anticipate your every broiling, crisping, and air frying need. The Crisp Top is packed with a 3-inch raised trivet, air frying basket, silicone trivet, stainless steel tongs, and a recipe booklet. Your Michelangelo Crisp Top is compatible with most brands of 6-8 quart electric pressure cookers on the market today. We have built the Crisp Top to the highest safety and functional standards for your safety and satisfaction.

	MODEL	MICHLINCRT-01
	POWER SUPPLY	120V ~ 60Hz
	RATED POWER	1000W
	WEIGHT	3.66 lbs
	DIMENSIONS	10 x 10 x 5.5 in

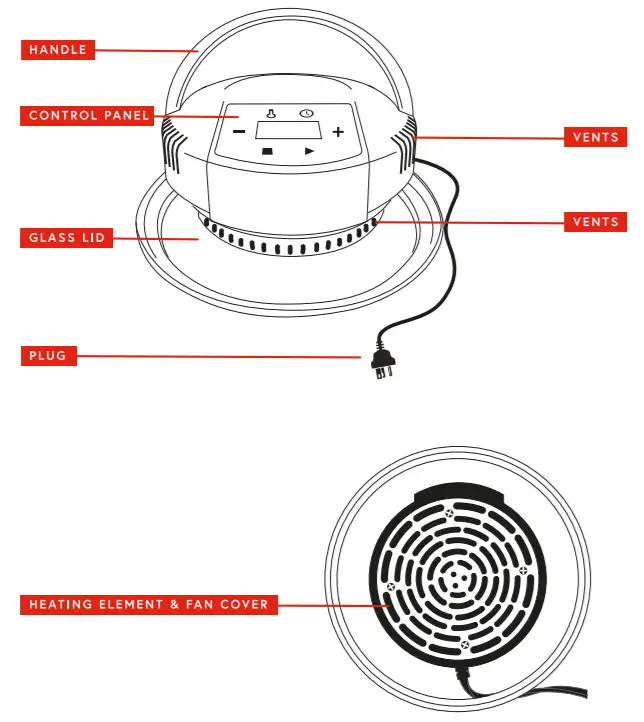

CONTROL AND FEATURES

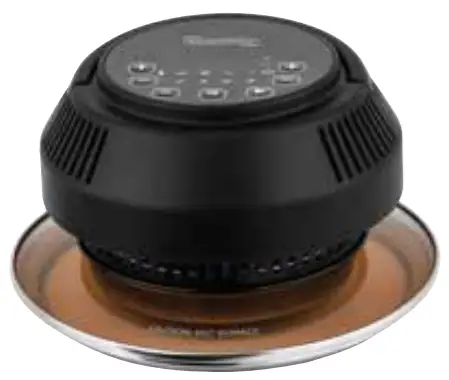

The Michelangelo Crisp Top consists of the main housing with heating unit and control panel situated on a glass lid. The glass lid ﬁts most 6-8 quart electric pressure cookers. The main housing consists of the handle, control, panel, vents, heating element, fan, and stainless steel cover over. （Below draft is only for reference, not the real product）

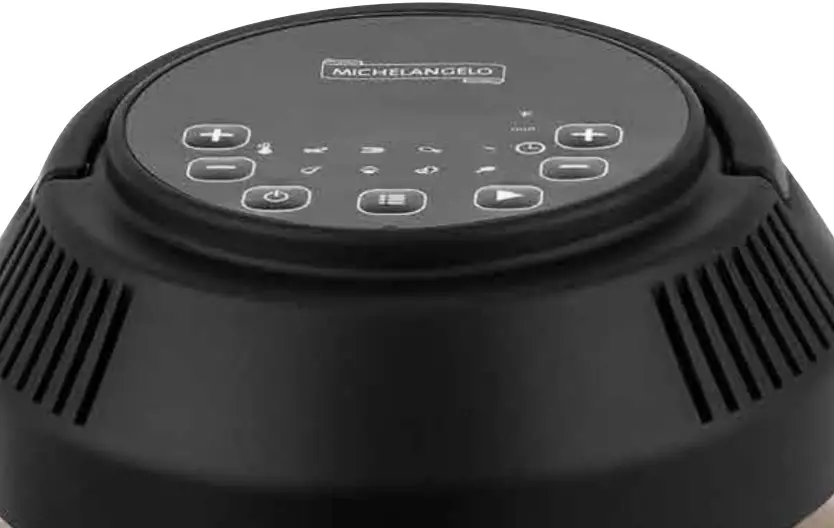

The Michelangelo Crisp Top control panel consist of seven buttons(temperature, time, +/-, menu, pause and stop), eight food logos which represent difierent type of food. The LED screen displays time and temperature you set. Below outline is for your reference.

Note: The handle of Crisp Top can pause the cooking when it is raised up. To restart cooking, just lower back the handle to correct position(you will hear clicks), press button will resume cooking.

INSTRUCTION FOR USE

Make sure your 6-8 quart electric pressure cooker is power off, unplugged and sit on a ﬂat surface.
The inner pot of your pressure cooker is on the base correctly.
Put the Crisp Top trivet in the pot and basket(if needed) on the trivet, put food onto the basket, make sure no food is higher than the rim of inner pot.
Place the Crisp Top on top of the inner pot and plug in the Crisp Top. Press menu to choose the function, press the temperature+/- to set temperature, and press time+/- to set time. Finally press the start button, the Crisp Top start cooking.
If you want to ﬂip the foods or shake the basket during the cooking, just pull the handle of the Crisp Top up, it will pause cooking. Remember to place the Crisp Top on the silicone trivet when not in use.
After turning or shaking your food, replace the Crisp Top and press the handle back into the down position. The Crisp Top will remember your preset for seconds, just press button to continue the cooking. Or you can also resume to set time and temperature and press to start.

Note: When pressing the button, it will beep. If you don’t want the sound, just press and hold pause button for few minutes until SOFF display on the panel, it will be silent. If press and hold pause button for few minutes more until S on display on the panel, beeps will be back. Press and hold for seconds, the original default settings will display on the LED screen. The Crisp Top light will turn on and off during cooking for your checking of the food process.

BROIL/ CRISP/ AIR FRYER/ DEHYDRATE

For some foods, you can choose to broil or crisp after pressure cooking or just need air fryer or dehydrate the food

Unplug the pressure cooker after releasing and cancelling all pressure programs.Remove the pressure cooker lid as pre instructions.
Transfer cooked food to the broiler basket and remove the liquid inside the pot.Then return the inner pot to the pressure cooker base and place the stainless trivet into inner pot. Place the basket on the trivet.
Put on the Crispy Top on top of inner pot and plug the lid into a grounded 3-prong outlet.
Press menu button and set the temperature and time as per instruction for using.
Finally press button to start broiling. And enjoy your food at last.

CARE AND CLEANING

Wait until the Crispy Top has completely cooked before cleaning.
Use a clean damp cloth to wipe down the interior of the lid.
The perforated steel heating element cover can become discolored after using.This is normal occurrence with stainless steel, as it is exposed to high heat long time.This does not indicate damage or afiect performance.To restore the shine of the steel portions, you need dip a clean cloth in white vinegar and rub into steel. Afterwards, dry or bufiit with a clean dry cloth.

Note: The trivet, basket, silicone plate, tong are dishwasher safe.NEVER remove perforated steel cover, screws, or dismantle lid in any way when cleaning; or you may damage the Crisp Top and will void your warranty.

TROUBLESHOOTING

The issues outlined below don not necessarily indicate a faulty Crisp Top.If you need more support, please contact our customer service.

*The Issue*	*Possible causes*	*Solutions*
LED screen flashes continuously, beeps several times and the unit will not start	The handle is not locked in the down position.	Press handle down until it clicks into place of the locked position.
The Crisp Top may have a faulty sensor or circuit	Contact customer service
The Crisp Top handle may have a faulty sensor	Contact customer service
Steel portions of unit are discolored	This is normal occurrence.	Refer to care and cleaning part.

In some rare situations, there will be error code display on the LED screen and the unit will beep several times. The below table is to determine the cause of the error code and its solution.

Error code	Possible causes	Solutions
F001	The Crisp Top may have a faulty sensor.	Contact customer service
E002	The Crisp Top may have a faulty sensor or has short-circuited.	Contact customer service
E003	The Crisp Top may have overheated.	Unplug Crisp Top and cool completely. Contact customer service if it recurs.
E004	The Crsip Top may have a faulty temperature sensor.	Contact customer service
E006	Heating light turns on immediately upon plug in: the Crisp Top may have a faulty sensor	Unplug Crsip Top and contact customer service.

LIMITED WARRANTY

Michelangelo warrants this appliance to be free from defects in workmanship and material, under normal residential use, for a period of one (1) year from the date of purchase. This warranty extends only to the original purchaser and use in USA and Canada. A purchase receipt, purchase order number or other proof of date of original purchase is required before warranty service is performed.

Michelangelo obligation under this warranty is limited to replacing or repairing, or assisting in the repair at Michelangelo option. All repairs for which warranty claims are made must be pre-authorized by Michelangelo.

This appliance comes equipped with many safety features. Any attempt to interfere with their operation may result in serious injury/damages and void this warranty. No warranty service will be provided to any appliance that has been tampered with, unless directed by a Michelangelo representative.

This warranty does not cover normal wear of parts or damage resulting from negligent use or misuse of the appliance, use contrary to the operating instructions, failure to provide reasonable and necessary maintenance, or disassembly, repair or alteration by anyone unless directed by a Michelangelo Representative.

This warranty does not cover units that are used outside of US and Canada. Further, the warranty does not cover damage resulting from Acts of God, such as fire, flood, hurricanes and tornadoes. Michelangelo is not responsible for shipping cost for warranty service.

Limitation and Exclusions

To the extent permitted by applicable law, the liability of Michelangelo, if any, for any allegedly defective appliance or part shall be limited to repair or replacement of the appliance or part and shall not exceed the purchase price of a comparable replacement appliance or part.

THE PROVISIONS OF THIS WARRANTY ARE YOUR SOLE AND EXCLUSIVE REMEDY WITH RESPECT TO THE PRODUCT(S) COVERED BY THIS WARRANTY. ALL IMPLIED WARRANTIES WITH RESPECT TO THE APPLIANCES(S) INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY EXPRESSLY EXCLUDED.

Michelangelo is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the appliance or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some provinces/ states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.

You as the buyer may have other rights and remedies under your state’s or province’s applicable laws, which are in addition to any right or remedy which may be available under this limited warranty.

WARRANTY SERVICE

If the appliance should become defective within the warranty period, please contact Michelangelo Customer Service team by Email to [email protected] representative To facilitate speedy service, please provide:

Your name, email address or phone number
A copy of the original purchase receipt with order number, the model and serial number
Description of the product defect, pictures or video if possible

All contents in this document have been checked carefully. Michelangelo Company reserves the right to interpret any printing mistake or mis under-standing of content.

For any technical improvement or change in appearance or name plate, changes shall be placed in the revised manual without further notice. In case of changes in appearance and color, please refer to the actual product for detailed information.

How to contact Michelangelo Customer Service : Sign in your Amazon account – My Orders – Click”Ask Seller” or “Ask Product Question” to send emails. We are always here to help you 24/7.

Please read this manual carefully and retain for future reference.Thanks for your trust!
