Micsig Tablet Oscilloscope tBook Mini TO1000 Series

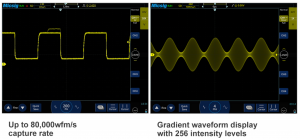

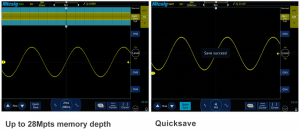

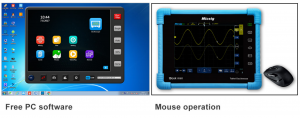

70MHz, 100MHz and 150MHz bandwidth, 2 or 4 analog channels1 GSa/s real-time sample rate14Mpts or 28Mpts memory depthUp to 80,000wfm/s waveform capture rateUp to 5 hours optional Li-ion battery (Options)8″TFT LCD & 800*600 pixels high resolution Multi-touch capacity screenSupport serial bus trigger and decoding UART, I2C, SPI, CAN and LIN(Options)Gradient waveform display with 256 intensity levels7 types of trigger function: Edge, Pulse, Logic, Time Out, Runt, Slope, N Edge, and VideoBuilt-in 8G storage capacity, waveforms and screenshots can be viewed and edited in scopeVarious 1/0 port, LAN, Wi-Fi, USB2.0, USB Device, HDMI, Trigger outSupport Android and iOS Application and PC software ware remote control
Innovation, makes test simpler.
Compared with traditional oscilloscope, Micsig tablet oscilloscope will bring you new operation experience and it will make your test and measurement work simpler & easier.

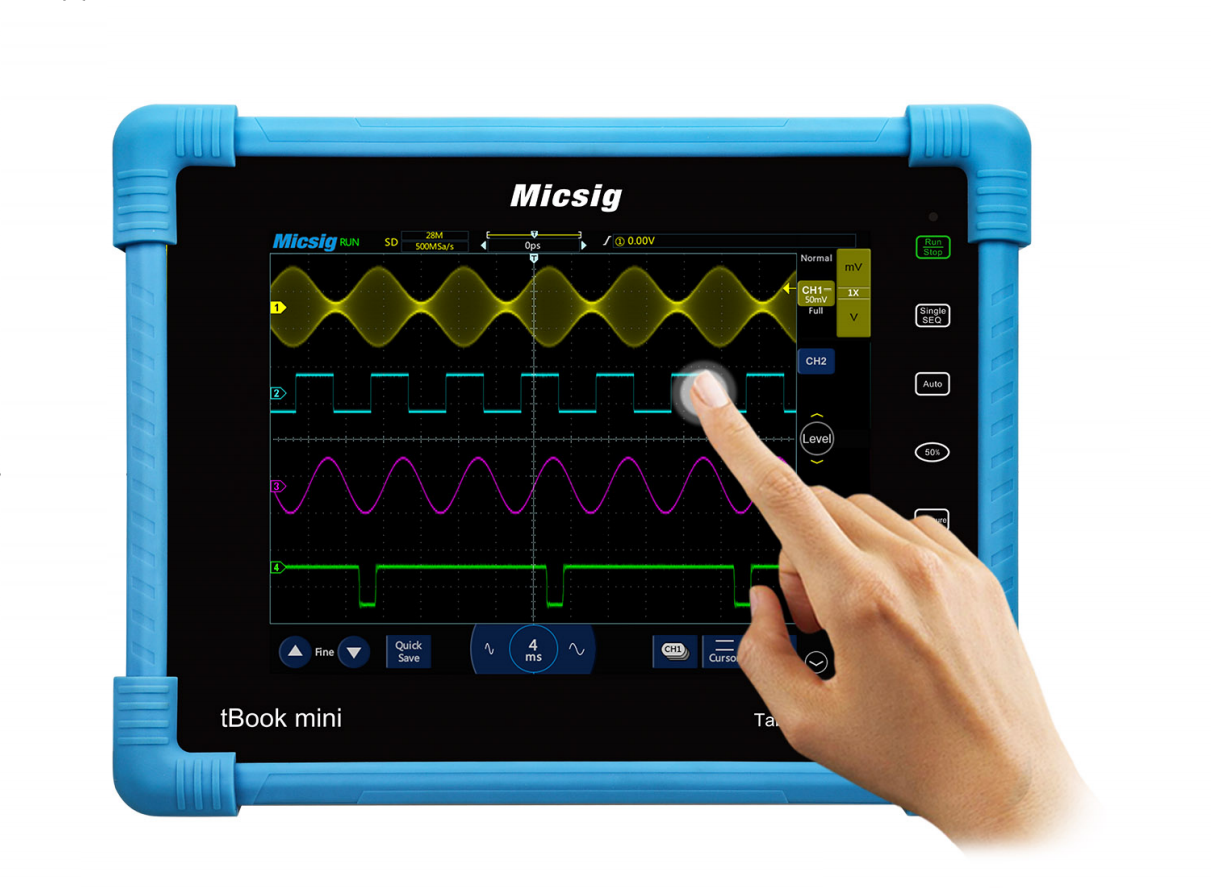

Micsig tBook mini TO1000 series is an entry level digital oscilloscope that will meet your requirements for excellent performance at an ultra-low price point. A portable and sleek design saves previous space on your workbench. Using high resolution multi-touch capacitive screen with intuitive menus, the TO1000 series is engineered to deliver a truly state-of-the-art experience.
Specification
Features and benefits
Optional software accessories

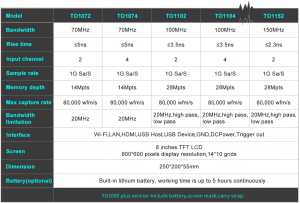

Specifications
Horizontal system
Time base range: 2ns/div to 1 ks/divTime base delay range: -14 divisions to 14ksClock skew: <±2ppm/YearTime based accuracy: ±20ppm
Vertical system
Bandwidth limitation: 20MHz(TO1072/TO1074) 20MHz high pass, low pass(TO1102/TO1104/TO11 52)Input coupling: DC, AC, GNDInput impedances: 1 M
±1 %!114.5pF±3pFVertical resolution: 8bitsDC gain accuracy: < ±2% ( 1 M)Vertical scale:1 mV/div to 1 0V/div ( 1 M )Channel to channel: 2’40dB ( 100:1 )Offset range: ±6divMaximum input voltage: CAT I 300V ( 1MO)
Sampling system
| Sampling mode | Real time sample rate |
| Peak samplingSample rate 1 G Sais | All the sampling glitches in scanning rate are narrow to single channel 1 ns, dual channel 2 ns. four channel 4ns |
| Max duration in the max sampling rateSample rate 1 G SaisSample rate 500MSa/sSample rate 250MSa/sAverage | 28/14ms56/28ms56/28msAverage of sampling for N times N is chosen from 2, 4, 8, 16, 32, 64, 128, 256 |
| Envelope | Envelope of sampling for N times N is chosen from 2, 4, 8, 16, 32, 64, 128, 256, 00 |
Trigger system
Trigger mode: Normal, Auto, SingleTrigger coupling: DC, AC, HF reject( >50KHz ), LF reject( <50KHz }, noise rejecthold off range: 200ns to 10sTrigger type Edge: Positive, negative, or either slope on any channel input. Coupling includes DC, AC, HF reject, LF reject, and noise rejectPulse Width: Trigger on width of positive or negative pulses that are > . < . =. “# , or inside/ outside a specified period of time (8ns~10s).Logic: Trigger when any logical pattern of channels goes false or stays true for specified period of time (8ns~10s). Any input can be used as a clock to look for the pattern on a clock edge. Pattern (AND, OR, NANO, NOR) specified for all input channels defined as High, Low, or Don’t CareVideo trigger: Trigger on all lines or individual lines, odd/ even or all fields on PAL/625 SECAM, NTSC/525, 720P, 10801, 1080P video signals.Time out: Trigger on an event which remains high, low, oreither, for a specified time period. Selectable fromSlope: Positive slope (Great than, lower than, within specific interval)Negative slope (Great than, lower than , within specific interval)Runt: Trigger on a pulse that crosses one threshold but fai ls to cross a second threshold before crossing the first again. Event can be time- or logic qualified.Nth edge: Edge type: Risingm Falling Idle time: 16ns to 4s Number of edges 1 to 65535
Waveform measurement

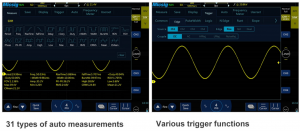

Cursor: Horizontal Cursor, Vertical Cursor, Cross CursorAuto measurements: 23, of which up to five can be displayed on-screen at any one time. Measurements include: Period, Frequency, Rise Time, Fall Time, Delay, Positive duty Cycle, Negative Duty Cycle, Positive Pulse Width , Negative Pulse Width, Burst Width, Positive Overshoot, Negative Overshoot, Phase, Peak to Peak, Amplitude, High, Low, Max, Min, Mean, Cycle Mean, RMS, Cycle RMS.Waveform mathDual Waveform FFT: Add, subtract, multiply, and divide waveformsFFT: Spectral magnitude. Set FFT Vertical Scale to Linear RMS or dBV RMS, and FFT Window to Rectangular, Hamming, Hanning, or Blackman Harris.
Display system
| Display type | 8” TFT LCD Multi point capacitive screen |
| Display resolution | 800*600 |
| Max touch point on touch screen | 5 points |
| Operation way | Full touch. Mouse |
| Afterglow time | Auto, 10ms to 10s, ∞ |
| Time Base format | YT, XY, Roll, Zoom |
| Expansion bench mark | Center, Trigger Position |
| Waveform display | Brightness is adjustable, point, Line |
| Grid | 14*1 0 div, Brightness of the grid is adjustable |
| Grey level | 256 level |
| Language | English. Simplified Chinese. For more languages please contact Micsig |
Storage
| Storage media | Native, U Dis |
| Built-in memory | 8G |
| Storage format | csv,wav,bin |
| Waveform quantity | Unlimited |
| waveform storage name | Support |
| display the reference waveform quantity | 4 piece |
| screenshot | Support |
| User setting number storage | Unlimited |
| User name setting | Support |
| Flash format | Comply with industry standards |
Power source
| Power source voltage | 100 to 240V AC, 50/60Hz |
| Power consumption | < 60W |
| Fuse | 12V DC, 5A |
| Battery (Optional) | 7.4V 8000mAH Lithium battery |

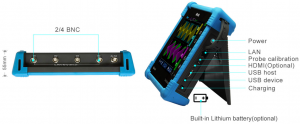

Interface
| USB Host | Support USB mass storage devices, support read and write |
| USB Device | Support read and write |
| DC interface | For charging |
| Probe calibration Port | 1KHz, 2Vpp |
| LAN | Support |
| HDMI | Optional |
| Wi-Fi | Support |
Environment
| TemperatureOperating Non-operating | 0°c to 45°c-40°c to 60°c |
| HumidityOperating Non-operating | 5% to 85%, 2s0 c5% to 90%, 2s0 c |
| AltitudeOperatingNon-operating | < 3000m< 12000m |

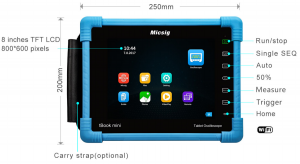

Physical characteristics
| DimensionsHeightWidthDepth | 200mm250mm55mm |
| WeightNet2CH Bare4CH BareShipping4CH Bare2CH Bare | 040g
1125g
2445g 2630g |
| Battery | 263g |
Ordering information
| Description | Order Number | |
| Model | TO1152 (150 MHz, 2 CH)TO1104 (100 MHz, 4 CH)T01102 (100 MHz, 2 CH)TO1074 (70 MHz, 4 CH)T01072 (70 MHz, 2 CH | TO1152TO1104TO11 02TO1074TO1072 |
| Standard Accessories | Tablet Oscilloscope! Book MiniLocalized power cordPower adapterProbes (quantity depends on the oscilloscope channel)BNC cap | See modelMS-CableMS-PA-1205MS-PR-P1 30AMS-Cap |
| Hardware Optional Accessories | ! Book mini batteryCarry strap ScreenProtector FilmOscilloscope Handbag | MS-BAMS-BeltMS-MaskMS-Handbag |
| Software Optional Accessories | HDMI+ HDMI cableSerial bus decode: UART, CAN, LIN, SPI, I2C | MS-HOM!MS-decode |
| Warranty | Repair Service 3 Years (including warranty)Probes and accessories are not covered by the oscilloscope warranty and service offerings.Refer to the datasheet of each probe and accessory model for its unique warranty and calibration terms. |
Contact us
Shenzhen Micsig Instruments Co., Ltd.Micsig® Tel: +86-755-86-88600880 Fax : +86-755-26078507-818Web: www.micsig .com E-mail: [email protected]Add: 305 Block A , CLOU Building, Baoshen RD, North Area,Nanshan Science& Technology Park .Shenzhen , Guangdong, China. 518000
