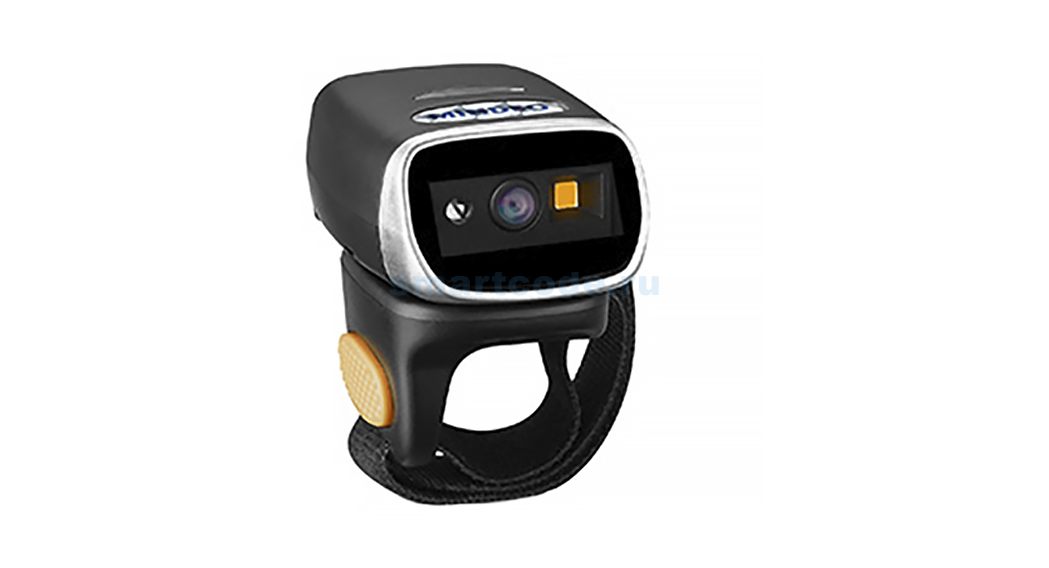

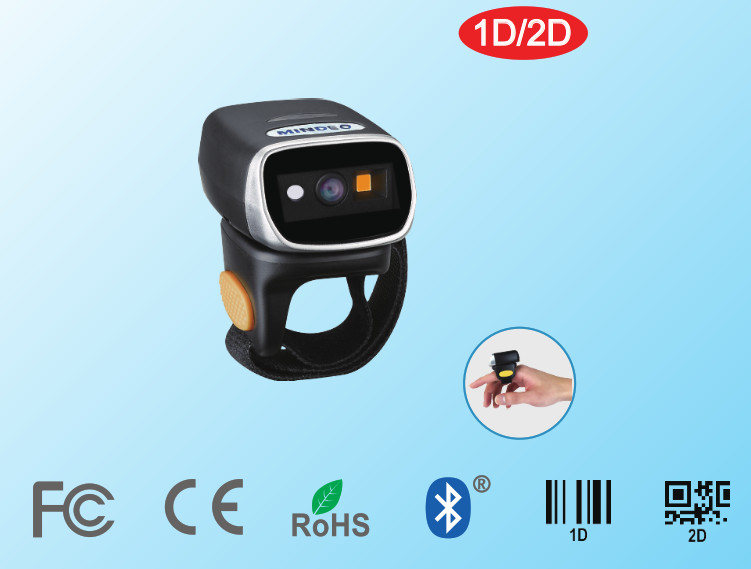

CR40-2DBluetooth Ring Scanner
Features
- Ergonomic, lightweight, non-slip design, and support 180° rotation
- 380 mAh lithium polymer battery, 5 hours of sustainable use
- Read all common 1D/2D barcodes from paper and electronic screens
- Bluetooth is compatible with 4.0 standard, working range up to 30 meters
- Support offline storage for about 3000 barcodes
- Compatible with Windows, Android, iOS devices (such as computers, smartphones, tablets, etc.)
CR40-2D Technical Specifications
| Working range | 30 m(line of sight) |
| Radio link | 2.4 GHz, Bluetooth4.0, Class1.5 |
| Interface | Bluetooth: HID keyboard, SPP, BLE | USB: USB HID keyboard, USB virtual COM |
| Data storage | 6 KB for out of range batch: 375 barcodes(each barcode is of 15 bytes)52 KB for data batch mode: 3250 barcodes(each barcode is of 15 bytes) |
| Keyboard layout | USA 、Turkish F/Q 、French 、Italian、Spanish 、Slovak 、Denmark 、Japanese、German |
| Dimensions | Length×Width×Depth: 52.6 mm×36 mm×47 mm |
| Case material | ABS+PC |
| Weight | 40 g |
| Indicator | Beeper 、LED 、Vibrator |
| Programming method | Manual(reading special barcode) |
| Firmware upgrade | Online via USB interface |
| Input voltage | 4.75-5.25 V |
| Operating current | sleeping: 14 mA, working: 46 mA(Bluetooth On), scanning: 460 mA(Bluetooth On) |
| Battery | 380 mAh Lithium-ion battery, Charge current 400mA, Fully charged in 1 hour |
| Working time | Standby time: 48 hours, Operating time: 5 hours, based on 1 scan/5 seconds |
| Scan engine | ME5800 |
| Light source | white LED, 2700K |
| Target light source | green LED, wavelength 525 nm |
| Image size | 1280×800 pixels |
| Field angle | Horizontal: 42°, vertical: 26.5° |
| Scanning angle | ±70°, ±72°, ±360°(Skew 、Pitch 、Roll) |
| Minimum resolution | 1D: 4mil Code 39, 2D: 6.7mil PDF417 |
| Decode capability | 1D: UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codabar(NW7), Code 128, Code 93, Code 11(USD-8) ，MSI/Plessey, UK/Plessey, UCC/EAN 128, China Post, China Finance, GS1 ataBar(formerly RSS)variants 2D: PDF417, MicroPDF417, QR code, DataMatrix, Han Xin Code, Aztec Code |
| Decoding depth | 4mil Code 128 （9 bytes ） 85–145mm10mil Code 39 （3 bytes ） 30–310mm13mil UPC （6 bytes ） 25–330mm20mil Code 39 （1 bytes ） 30–485mm6.7mil PDF417（20 bytes ）75–190mm10mil QR（20 bytes ） 48–190mm10mil DM（20 bytes ） 50–185mm20mil QR（20 bytes ） 20–390mm |
| Temperature | working: -15°C to 50°C(5°F to 122°F)，storage: -20°C to 60°C(-4°F to 140°F) |
| Humidity | 5% to 95%(non-condensing) |
| Safety | Laser safety: EN60825-1, Class 1 EMC: EN55022, EN55024Electrical safety: EN60950-1 Illumination: 0 to 100000LUXProtection class: IP50 Environmental: RoHS compliant |
Shenzhen MinDe Electronics Technology Ltd.Telephone : (+86)0755-8614 1288Website : www.mindeo.cnCR40-2D V1.0© 2018 MINDEO
