LCD Programmable Panel HeaterINSTRUCTION MANUAL FOR MODELSMYC01-10A, MYC01-15A, MYC01-20A

BEFORE USE:Please read the instructions carefully. You must inspect the appliance including its cable and plug for any signs of damage. If the product is damaged, DO NOT USE and contact your supplier immediately for a refund or replacement.This product is only suitable for well-insulated spaces or occasional use.

General Information:Thank you for choosing the Mylek LCD weekly programmable Panel heater with Open window function. Please take time to carefully read and understand the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. If you have any questions concerning operational or technical problems please contact our Customer Services on 0800 091 3171.

Before Using This Heater:When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons. This includes but is not limited to the following:

CAUTION:This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge of the product. The appliance is to be operated by responsible adults only after reading and understanding these instructions. Children should be supervised at all times to ensure that they do not play with the appliance. Children under 16 years should not operate the unit or carry out maintenance and/or clean the unit. Any infirmed persons in the vicinity of the unit should be accompanied by a responsible and competent able-bodied adult. Remove the packing and make sure that the appliance is intact. If there is any doubt concerning the integrity of the unit do not use the appliance and contact our recommended after-sales service. Do not leave any packaging materials within easy reach of children. Before switching on appliance check if the electrical voltage and frequency of the circuit correspond to those indicated on the appliance. Use the appliance only for the stated purpose, namely as a heater for domestic use. Do not use it for any other application as it could be dangerous.

Safety Instructions:

• The product is for indoor use only.
• The item should be used only as intended.
• Check item carefully before use. Do not switch on heater with defects or damaged power cable.
• The appliance should be connected to the same voltage as shown on the rating label and printed in the manual.
• The heater should only be plugged into grounded sockets.
• Before plugging in the heater, make sure it is switched off.
• Do not use the appliance near flammable liquids or any flammable materials.
• The appliance must not be located immediately below a socket outlet.
• If the power cable is damaged in any way, send it to the nearest after-sales service recommended by the manufacturer for replacement.
• Do not connect the appliance to extension cables or multiple outlets.
• Do not damage or knot the power cable.
• Before cleaning the appliance or carrying out any maintenance switch off the heater, unplug from its power source and leave to cool for 1 hour.
• Never expose the appliance to external weather conditions (rain, sun, etc.)
• The appliance must always be placed on a flat and stable surface with the feet fitted correctly or fitted correctly to a wall using the correct fixings.
• If the appliance is not being used switch it off. If any repair is required please contact the after-sale centers approved by the manufacturer.
• Do not touch heater with wet hands.
• Always unplug the item, before cleaning or if the item becomes faulty.
• Never carry the heater by the power cable.
• When you switch off the heater unplug from the power source by the plug. Do not pull on the cable to unplug from the power source.
• Do not wrap the cable around the appliance after use.
• Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
• CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• The appliance should only be connected to the same voltage as printed on the rating label and manual.
• If used as a portable heater do not use in the immediate surroundings of a bath shower or a swimming pool.
• WARNING: In order to avoid overheating, do not cover the heater.
• Never place foreign objects into the air vents.

Installation:Floor Standing:

• The heater carries an IP22 waterproof rating, If this unit is to be fitted in a bathroom then it must be “INSTALLED BY A QUALIFIED ELECTRICIAN”.
• The LCD panel heaters can be wall-mounted or floor standing.

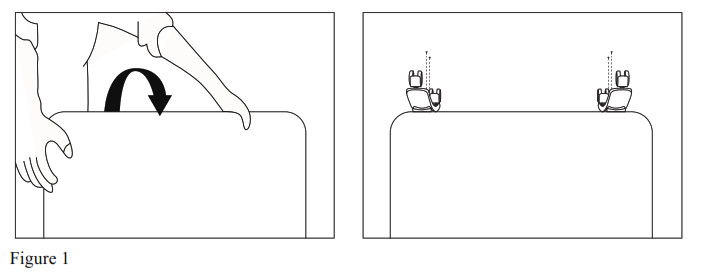

• Mount feet on the base of the unit using the 6 screws provided (3 screws per foot) in accordance with Figure 1 below making sure the screws are securely tightened.

Wall Mounting:

• For wall mounting, carefully remove the already constructed hanging bracket from the rear of the heater by turning the two plastic securing grips located at the top of the bracket. It is good practice to remove the bracket and replace a few times so you are familiar on how it attaches before securing to the wall.
• Using the hanging bracket as a template, place the hanging bracket level against the wall as a guide ruler (please make sure the holes are parallel level), use a marker pen to mark the hole position. Image 2 on Figure 2 below.
• Drill holes on the wall with ɸ 8mm drill bit and insert the plastic wall plugs. Image 2 on Figure 2 below.
• Securely fasten the hanging bracket to the wall with the screws provided. Make sure the hanging bracket is in the correct direction. Image 3 on Figure 2 below.
• Gently insert the bottom of the heater to the hanging bracket first and then push the top of the heater body onto the hanging bracket. It is good practice to try attaching the hanging bracket to the heater and taking off, so you are familiar with how it attaches and detaches.
• When the heater is attached to the hanging bracket, secure it into place by turning the two plastic securing grips. Image 4 on Figure 2 below.

Warning:Be sure to keep a distance around the heater of at least 15cm (150mm) see image below. Warning! When drilling holes, always check to ensure there is no electrical wiring, gas pipes, water pipes etc in the area to be drilled.

LCD Control Panel:

Program P1 is preset for days 1-7 (Monday – Sunday), but the hour and heat mode can be adjusted to your requirements, the program repeats your set time and heat mode Monday-Sunday (1-7). This program is ideal to set if you want the time and heat to operate at the same time every day.

Below is an example of P1 set for Days 1-7 (Monday – Sunday). You can set your own hours and heat modes for these set days.

How to Set Program 1:Press M until P1 is selected, Press, the first hour bar and P1 will flash and show days 1-7 (Monday–Sunday) under the clock. Press M to choose the heat mode for each hour and use + to move to the next hour or – to move back to the previous hour, remember for each hour to choose your heat mode by pressingM. Carry out this process until you have chosen your required heat modes for each hour over a 24 hour period. Once set, press to confirm your settings. The unit will now operate your same set heat mode for each hour over each day of the week.

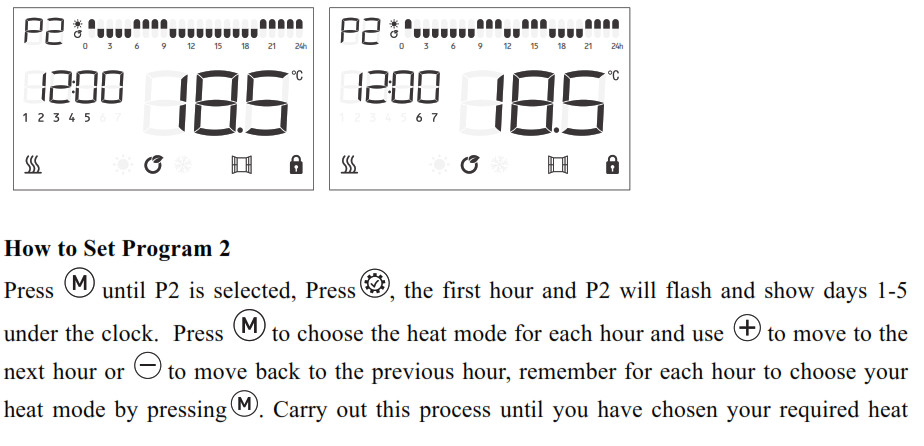

Program P2 is preset for days 1-5 (Monday-Friday) and 6-7 Saturday –Sunday), but the hour and heat mode can be adjusted to your requirements, the program repeats your set time and heat mode Monday-Friday (1-5) and Saturday and Sunday (6-7). This program is ideal to set if you work Monday to Friday and at home Saturday-Sunday.Below is example of P2 set for Days 1-5 (Monday –Friday) and days 6-7 (Saturday – Sunday). You can set your own hours and heat modes for these set days.

How to Set Program 2

Press M until P2 is selected, Press, the first hour, and P2 will flash and show days 1-5 under the clock. Press M to choose the heat mode for each hour and use + to move to the next hour or – to move back to the previous hour, remember for each hour to choose your heat mode by pressing M. Carry out this process until you have chosen your required heat modes for each hour over a 24 hour period. Once set, press to confirm your settings for days 1-5 (Monday – Friday). The display will now show days 6-7 (Saturday-Sunday) under the clock, repeat the process above to set days 6-7, once set press to confirm the settings for P2. The unit will now operate your set heat modes for each hour for days 1-5 (Monday – Friday) and 6-7 (Saturday – Sunday).

Program P3 lets you individually program each day, time and heat mode to your requirements, the program repeats your set time and heat mode for each individual day Monday-Sunday (17). This program is ideal if you want to set each individual day to your requirements.

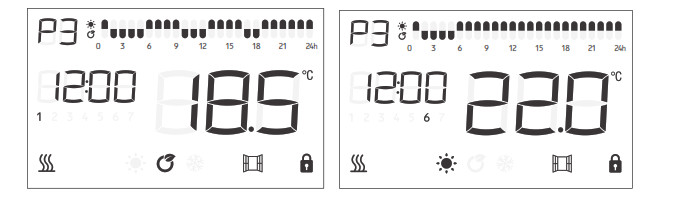

Below is example of P3 set for Day 1 (Monday) and day 6 (Saturday). You can set your own hours and heat modes for any day 1-7 (Monday – Sunday).

Open window function:

• Press button and the indicator light will illuminate to show the open window function is activated. If the unit detects an open window or sudden drop in temperature the open window function is activated, the indicator light flashes and stops heating to save energy.
• Press button again to cancel open window function and revert back to previous operational settings.

Screen lock:If the unit controls are not used for more than a minute the controls will automatically lock as a child safety function. To unlock, simply press and at the same time.

MAINTENANCE:The appliance needs regular external cleaning only.After use and before cleaning always unplug the appliance and wait until the item is cool. When switched off and cool any dust can be lightly brushed off the grilles. Do not clean the unit with abrasive materials or solvents. Use only a damp cloth.

PAT TESTING:When used in a workplace, this product must be safety-tested yearly by a qualified electrician(PAT Tested) in order to comply with the Electricity at Work Regulations. We recommend that it is PAT tested regularly when used in a domestic environment.

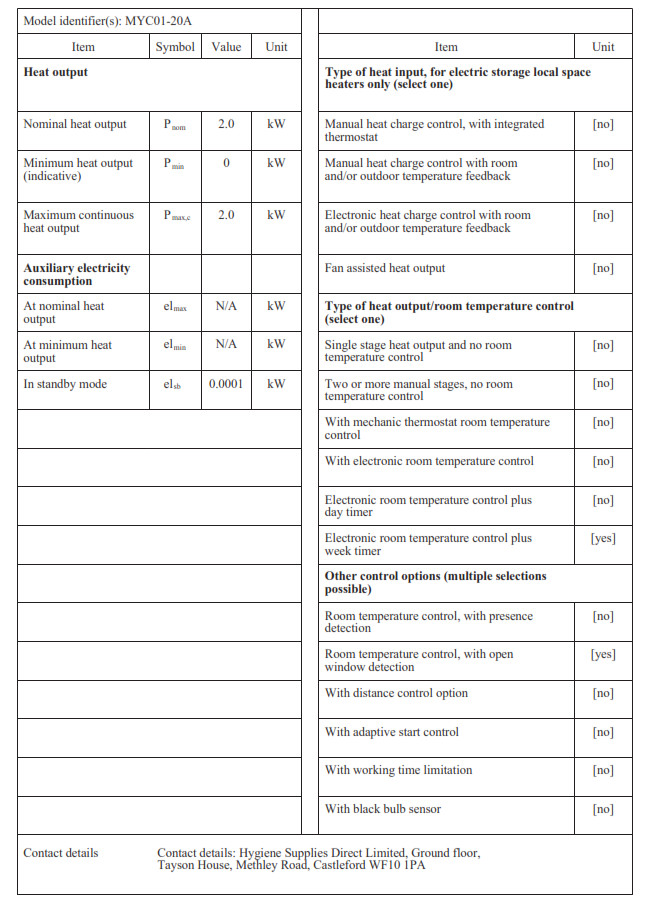

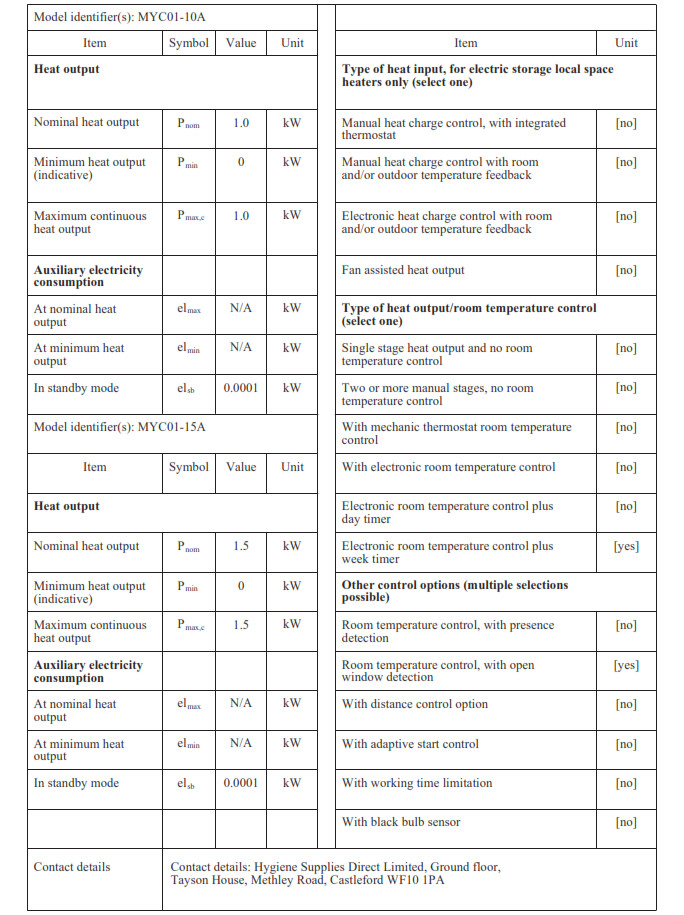

Information requirements for electric local space heaters

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

The importer retains his right to make changes in appearance and completeness of the item without preliminary notification to the customer.The item is for indoor use only.The manufacturer does not assume any liability for any damage caused directly or indirectly by not following this instruction manual, general safety rules, or interference in the construction of the product.

SERVICE WARRANTY:

Hygiene Supplies Direct guarantees the product free from defects in materials and workmanship for a period of 1 year from date of purchase. Should this unit be operated under conditions other than those recommended, at voltages other than the voltage indicated on the unit, or any attempts made to service or modify the unit, then the warranty will be rendered void. The product you buy may sometimes differ slightly from illustrations. This warranty is in addition to, and does not affect, your statutory rights. If you have any problems with this product, please call our Help Desk on 0800 091 3171 or email:

City Electrical Factors, Castleford, WF10 4SR declares that the Mylek Heaters are exclusivelymanufactured and imported for Hygiene Supplies Direct Ltd.Made In China
