Rotating Digital Outdoor TV AntennaUser Manual
Retain this manual for future reference please read this manual carefully before use
Features
- VHF/UHF full channel with booster.
- Two directors, two dipoles for good receptivity.
- Full-direction (360º) rotation.
- Infrared remote control and electrical controlled rotation.
- Low noise, high definition, clear pictures, good voice-overs.
- Solid structure, rain proof.
- Easy to use and install.
Caution
- Rotating motor and booster cannot be disassembled freely.
- Power supply should be kept at a 1 metre distance with the TV. Switch it off when not in use.
- Remote control should be towards the direction of the reception window.
- Adjust the direction by pushing the button on the power supply.
Specifications

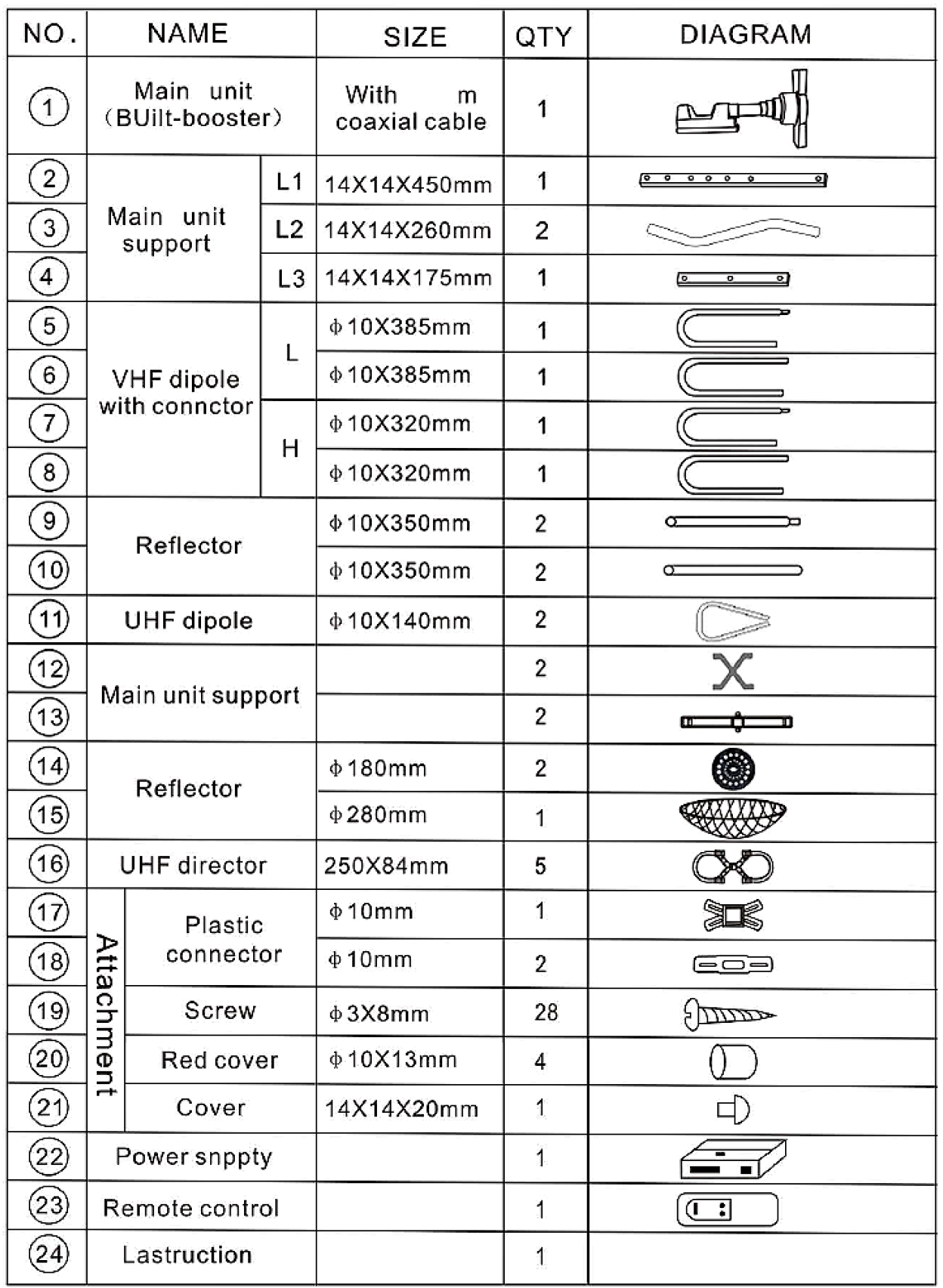

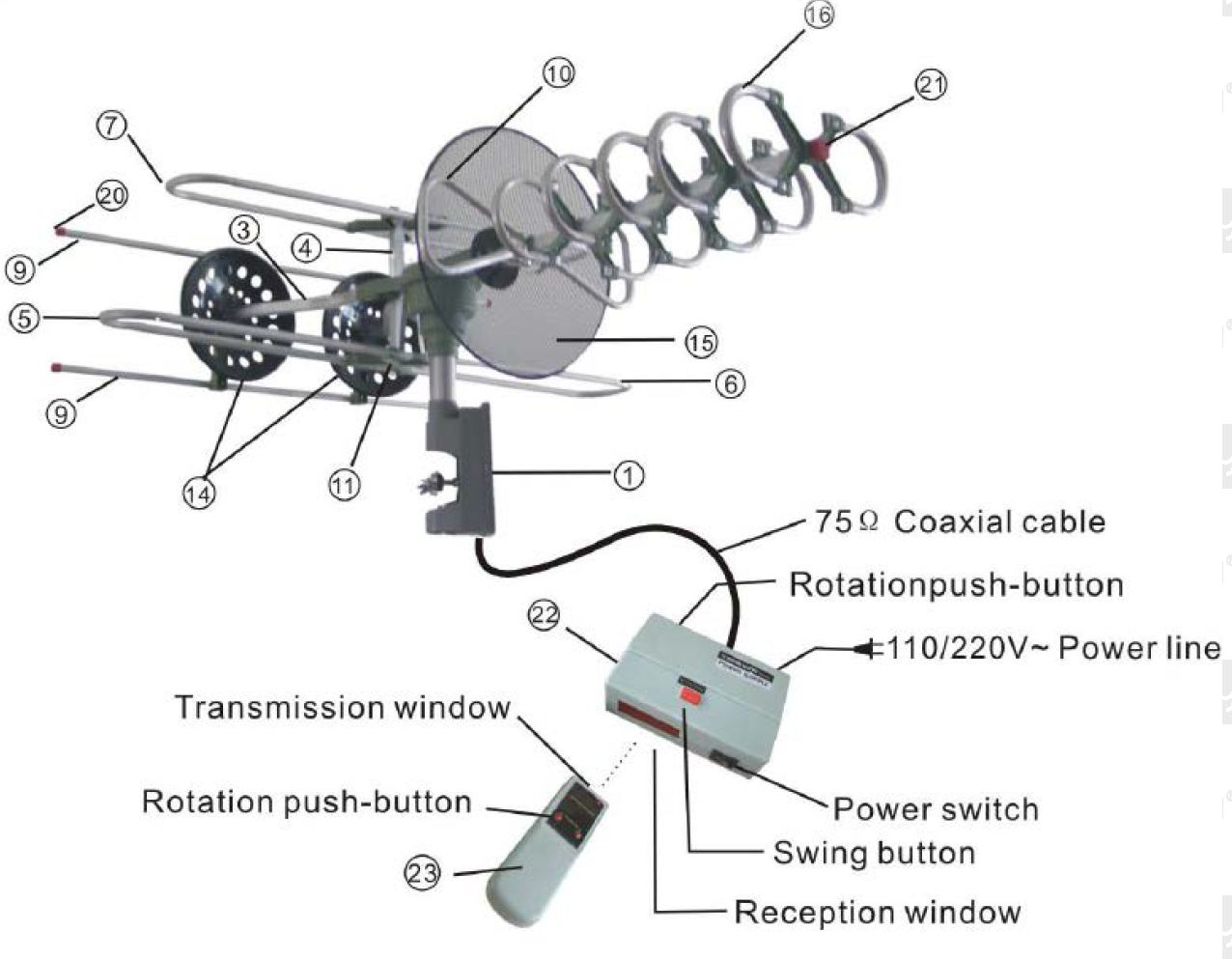

Parts Schematic

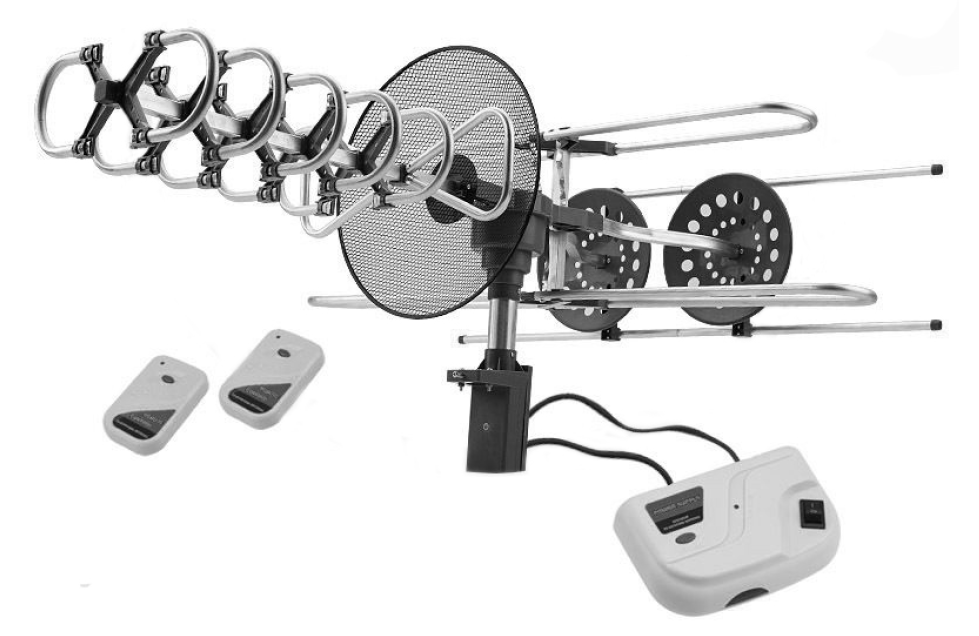

Rotating Digital Outdoor TV Antenna

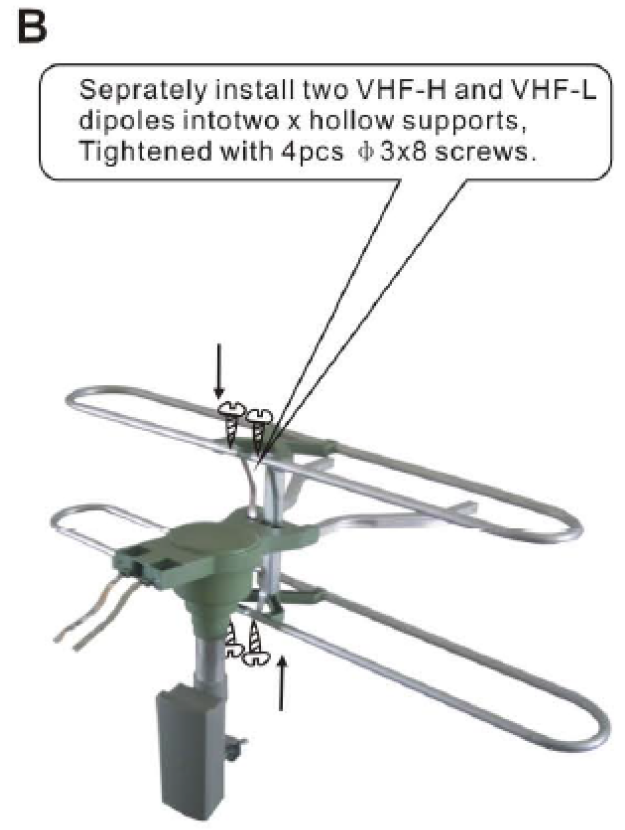

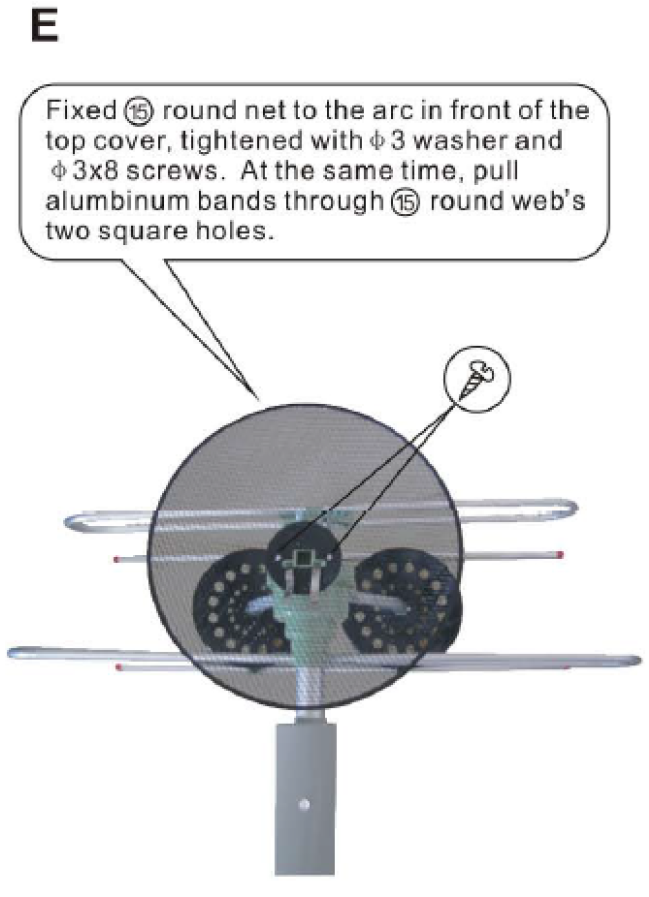

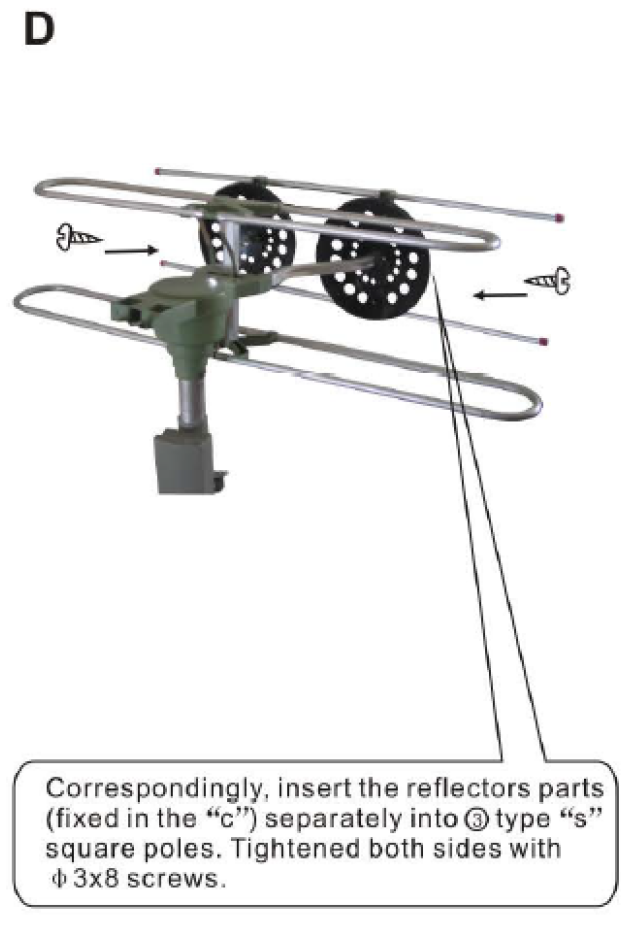

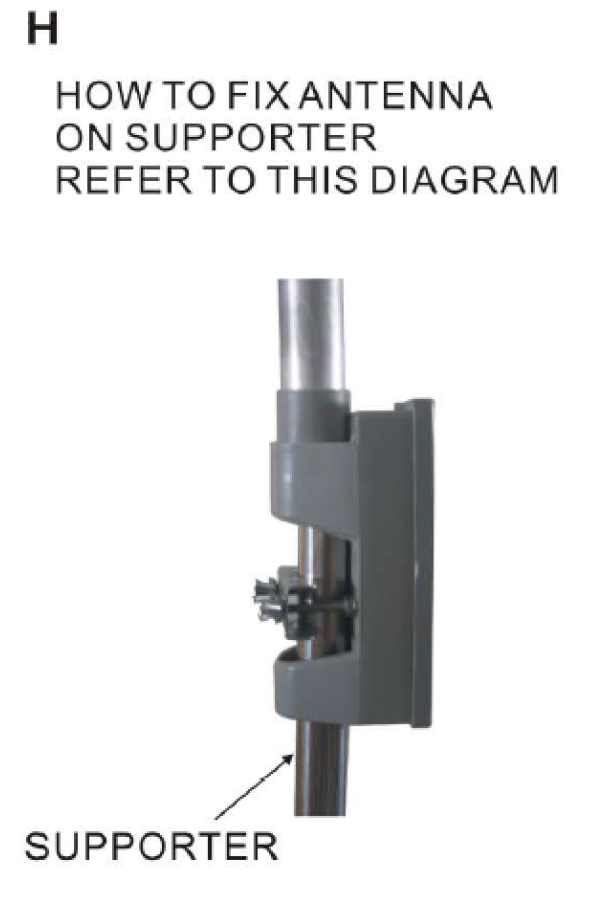

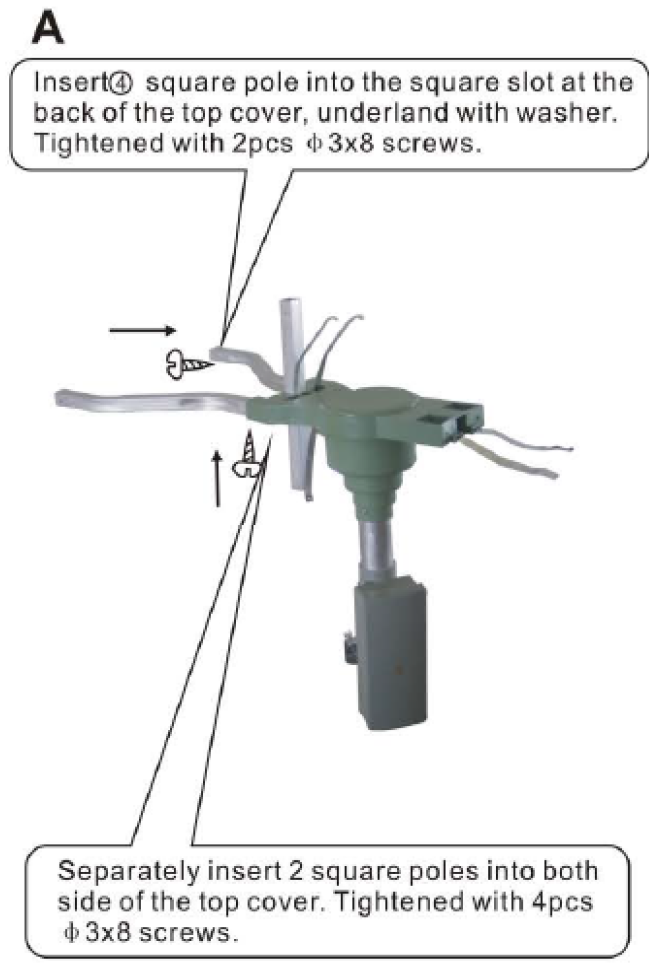

Assembly Diagram
Warning
Some experts believe the incorrect or prolonged use of almost any product could cause serious injury or death. For information that may reduce your risk of serious injury or death consult the points below and additionally, the information available at www.datastreamserver.com/safety
- Consult all documentation, packaging and product labelling before use. Note that some products feature online documentation which should be printed and kept with the p roduct.
- Check product for loose / broken / damaged /missing parts, wear or leaks (if applicable) be fore each use. Never use a product with loose / broken / damaged / missing parts, wear or leaks (if applicable).
- Products must be inspected and serviced (if applicable) by a qualified specialist every 6 months assuming average residential use by a person of average weight and strength, ab ove average technical aptitude, on a property matching average metropolitan specification. Intended use outside these guidelines could indicate the product is not suitable for intended use or may require more regular inspection or servicing.
- Ensure all possible users of the p roduct have completed an industry recognised training course before being given access to the product.
- The product has been supplied by a general merchandise retailer that may not be familiar with your specific applic ation or your description of the application. Be sure to attain third party approval for your application from a qualified specialist before use regardless of prior assurances by the retailer or its representatives.
- This product is not intended for use where fail-safe operation is required. As with any product (take an automobile, aircraft, computer or ball point pen for example) there is always a small chance of a technical issue that needs to be repaired or may require replacement of the product or a part. If the possibility of such failure and the associated time it takes to rectify could in any situation inconvenience the user, business or employee or could financially affect the user, business or employee then the product is not suitable for your requirements. This p roduct is not for use where incorrect operation or a failure of any kind, including but not limited to a condition requiring product return, replacement, service by a technician or replacement of parts could cause a financial loss, loss of empl oyee time or an in convenience requiring compensation.
- If this item has been purchased in error considering the points above simply contact the retailer directly for details of their returns policies if required.
