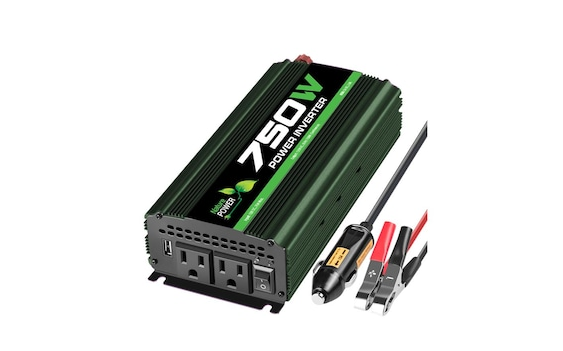

Nature Power 750 Watt Power InverterUser Manual
WARNING Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.
Item #37750SAVE THESE INSTRUCTIONS
Thank you for choosing a Nature Power Product.This product is designed for certain applications only. The distributor cannot be responsible for issues arising from modification. We strongly recommend this product not be modified and/or used for any application other than that for which it was designed. If you have a question relative to a particular application, o not use the product until you have first contacted the distributor to determine if it can or should be performed on the product.For technical question please call 1800-588-0590
PART LIST
|
Reference |
Part Description |
Quantity |
| 1 | 750W Inverter | 1 |
| 2 | User Manual | 1 |
| 3 | Connecting Cable with Battery Clamp | 2 |
| 4 | Connectiong Cable with 12V Car plug | 1 |
WARNINGThis product can expose you to chemicals, including Di (2-ethylhexyl) phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS.
- SAVE THESE INSTRUCTIONS. This manual contains important safety and operating instructions for power inverter 750W.This manual will show you how to use your inverter safely and effectively. Please read, understand and follow these instructions and precautions carefully.
- Keep out of reach of children.
- Do not expose inverter to rain or snow.
- Use of an attachment not recommended or sold by the unit manufacturer may result in a risk of fire, electric shock, or injury to persons.
- Do not disassemble the unit; take it to a qualified serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.
- To reduce risk of electric shock, unplug unit from outlet before attempting any maintenance or cleaning. Turning off controls will not reduce this risk.
- For the most effective use, place the power inverter on a flat surface.
- Do not place the inverter on or near heating vents, radiators or other sources of heat or flammable materials.
- Do not place the inverter in direct sunlight. The ideal air temperature for operation is between 50° and 80°F.
- Only connect the power inverter to a 12V battery or power supply. Do not attempt to connect the inverter to any other power source, including an AC power source. Connecting to a 6V or 16V battery will cause damage to the inverter.
- Do not use the inverter with a product that draws a higher wattage than the inverter can provide, as this may cause damage to the inverter and product.
FEATURES
- ON/OFF rocker switch
- LED indicatorGreen indicates Power ON Red indicates Overload/Interruption in power
- 12 Volt power cord
- 120V standard AC outlets x2
- USB port 5V, 2.0A
- High-speed cooling fanTo keep the inverter cool, the fan turn on depend on the load on the inverter or temperature in the inverter. The fans do not run when the inverter is turned off.
- Positive Battery Cable Terminal (Red)
- Negative Battery Cable Terminal (Black)
CONNECTING INVERTER CABLES
The inverter and power source must be in the OFF mode.IMPORTANT: Make sure to connect your inverter only to a 12 volt power supply.
CONNECTING INVERTER CABLES TO THE INVERTER
- Locate the Positive and Negative terminals on the right side of the inverter
- From the POSITIVE (RED) and the NEGATIVE (BLACK) terminals, remove the hex nut, split lock and flat washer.
- Place the POSITIVE (RED) ring connector onto the POSITIVE (RED) inverter terminal. Place the NEGATIVE (BLACK) ring connector onto the NEGATIVE (BLACK) inverter terminal.
- Place a flat washer and split lock on top of each ring connector. Put a hex nut over these and tighten.
OPERATING INSTRUCTIONS
- Connect the inverter (see Connecting Inverter Cables section).
- Switch the inverter’s ON/OFF switch to the ON (I) position.
- The GREEN LED indicator will light, indicating the inverter is receiving power.
- Switch the inverter’s ON/OFF switch to the OFF (O) position. (The Green LED may flash briefly and/or the internal speaker may make a brief “beep”. This is normal.)
- Make sure the device to be operated is turned OFF.

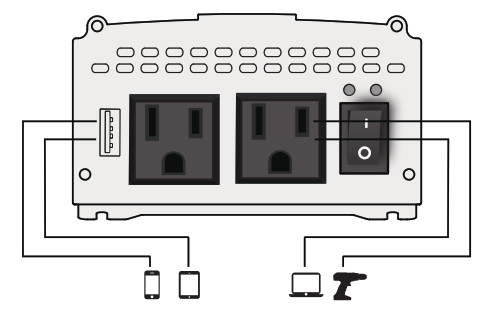

- Plug the device into the inverter’s AC outlet.
- Switch the inverter’s ON/OFF switch to the ON (I) position.
- Turn the device on.
- To disconnect, reverse the above procedure.
NOTE: If more than one device is to be powered, start one device at a time, to avoid a power surge and overloading the inverter. The surge load of each device should not exceed the inverter’s continuous peration wattage rate.IMPORTANT: Using the inverter with some rechargeable devices may damage the inverter and/or device. If you are using the inverter to operate a rechargeable device, monitor the temperature of the inverter for about 10 minutes. If the inverter becomes abnormally hot, disconnect it from the device immediately; do not use the device with the inverter.
POWER SOURCE
Your average automobile battery at full charge will provide an ample power supply to the inverter when the engine is on. Keep the car running at all times when using the inverter. The actual length of time the inverter will function depends on the age and condition of the battery and the power demand being placed by the device being operated with the inverter.When possible, recharge your batteries when they are not more than 50% discharged. This gives the batteries a much longer life cycle than recharging when they are more deeply discharged.
The power inverter has a battery low voltage shutdown at 10V±0.5V DC. With moderate to heavy loads, this will protect against over-discharging the battery. If the inverter is running only light loads it is advisable to recharge before the inverter low voltage shutdown point is reached.IMPORTANT: The inverter draws low amperage from the battery with the main ON/OFF switch turned on and no load connected. To prevent battery discharge, turn the inverter off when you are not using it.
LED INDICATOR AND SHUTDOWN PROTECTION
The Green LED lights automatically when the inverter is plugged into a 12 volt DC power source and is turned on. The Red LED lights, the alarm sounds and the inverter automatically turns itself off under the following conditions:
- When the power input from the vehicle’s battery drops to approximately 10.5 volts, the low voltage alarm will sound. When the voltage goes down below 10 VDC, the inverter shuts off. Recharge or replace the battery.
- When the power input from the vehicle’s battery exceeds 16 volts, high voltage protection occurs.
- The continuous load demand from the equipment or device being operated exceeds the continuous load rating of the inverter. Use a higher capacity inverter or lower rated device.
- The thermal resistor exceeds 80° C (176° F.) Allow the inverter to cool. Do not block the cooling slots or inverter Reduce the load on the inverter to the continuous rated output.
RESET: To reset after shutdown occurs, switch the inverter’s ON/OFF switch to the OFF (O) position. Check the source of the problem and correct. Switch the inverter’s ON/OFF switch to the ON (I) position.
IF THE INVERTER’S FUSE BLOWS
Your power inverter is fitted with fuses, which should not have to be replaced under normal operating conditions. A blown fuse is usually caused by reverse polarity or a short circuit within the device or equipment being operated. If a fuse does blow, take the inverter to
MAINTENANCE AND STORAGE INSTRUCTIONS
- Before each use, ensure that all of the inverter’s components are in place and in good working condition.
- After use and before performing maintenance, unplug and disconnect the inverter.
- Use a clean, dry cloth to wipe external surfaces of the inverter’s case.
- Servicing does not require opening the unit, as there are no user-serviceable parts. All servicing should be performed
- Store inside, in a cool, dry place, out of the reach of children.
- Recycle or properly dispose of internal electrical components.
TROUBLESHOOTING
| PROBLEM | POSSIBLE CAUSE | REASON/SOLUTION |
| Red LED is on, alarm sounds, and/or inverter does not function. |
Poor contact at terminals. Connections are reversed. Fuse is blown. Over voltage protection Overload protection |
Check for poor connection to battery or power supply. Make sure connection points are clean. Rock clamps back and forth for a better connection. Unplug the inverter and reverse the clamps. See inverter Fuse Blow See LED Indicator and Shutdown Protection section. |
|
Device does not operate properly when first connected to the inverter. |
The inverter may not have the required capacity to operate the device. |
Turn the inverter switch OFF and ON, to reset the inverter. If device still does not operate, the inverter should not be used with this device. Use a higher capacity inverter or lower rated device. |
SPECIFICATIONS
Nominal input voltage ……………………………………………………………………… 12.8-13.2 VDCNominal output voltage ………………………………………………………………………..115±10 VACOutput frequency ………………………………………………………………………………… 60 Hz±3 HzOperating input voltage ……………………………………………………………………. 10.0-15.0 VDCContinuous output power …………………………………………………………………….. Up to 750 WSurge output power ………………………………………………………………………………………..1500 WWaveform ………………………………………………………………………………….. Modified sine waveTypical Effciency (at nominal input voltage) …………………………………………………….. 86%Typical No Load Current (at nominal input voltage) ………………………………….. 0.5 ADCInput overvoltage shutdown ………………………………………………………………..15.5±0.5 VDCInput undervoltage alarm …………………………………………………………………….10.5±0.5 VDCInput low voltage shutdown…………………………………………………………………10.0±0.5 VDCOutput power overload shutdown level…………………………………………………… 850±100 WExternal fuse …………………………………………………………………………………………………. 40A x 2AC receptacles……………………………………………………………………….. . . 2x NEMA 5-15 USAUSB port ……………………………………………………………………………………………… . One, 5V/2ACable with battery clamps …………………………………………………………………….. 8AWG, 2×23”Cable with 12V car plug………………………………………………………………………… 16AWG,1×21”
LIMITED WARRANTY
Nature Power warrants our products to the original purchaser that this product is free from defects in materials and workmanship for the period of one year from date of purchase. In the case of product defect, contact Nature Power customer service to receive troubleshooting. If defective part or unit should be returned, a Return Authorization Number must be issued by Nature Power and the defective part or unit should be returned to the authorized location at the purchasers’ expense. A dated proof of purchase is required to receive warranty service. Once received at authorized location and defect proves to be the result of defective material and workmanship, the defective part or unit will be replaced at warrantors’ option and returned to the original purchaser at warrantors’ expense. No refunds will be granted by the warrantor, In the event of buyer’s remorse, please contact your point of purchase and adhere to their return policy.
Please contact Nature Power Products to acquiremore information:1-800-588-0590[email protected]www.naturepowerproducts.comMade in Taiwan
