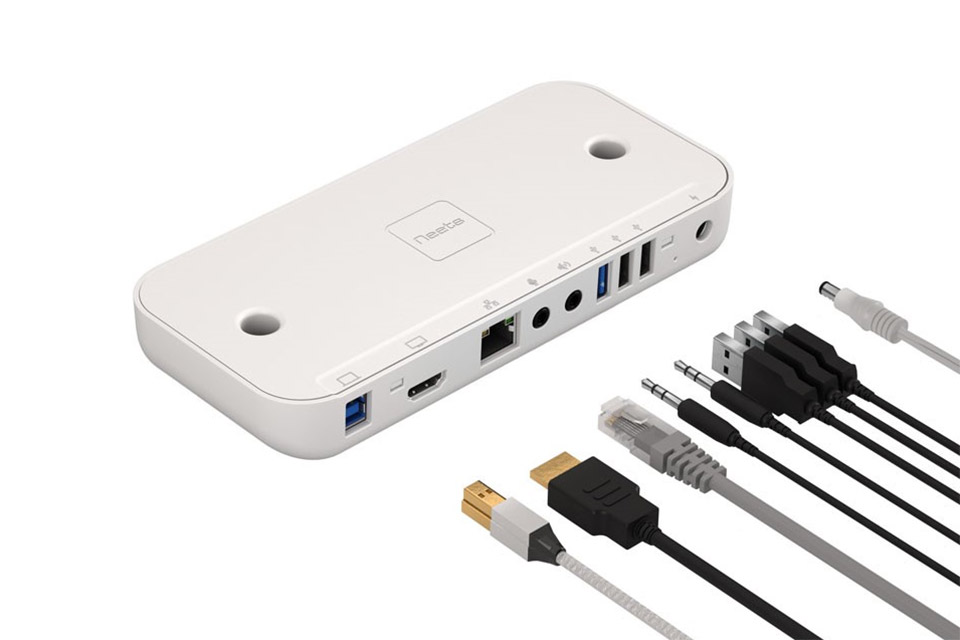

Neets Solvo Intelligent AV system hub
Solvo by Neets is an AV system hub that enables you to upgrade small, minimally equipped meeting rooms or huddle rooms and create an automated, video conferencing system with the utmost level of user-friendliness.
The hub is installed behind a display. Peripheral AV devices are connected with the available USB and AUX ports. Users simply connect to the system with their device using the provided USB 3.0 cable, turning the system on automatically.
FEATURES
AutomationCEC and wake-on-signal technology turns the display and the connected peripheral devices on/off based on signal detection from a user’s device.
ConnectionsCombine your choice of up to 3 USB and 2 AUX peripheral devices to create your video-enabled AV system for huddle rooms. Compatible with any model or brand.
User-InterfaceConnecting to the system requires a single USB connection to a user’s device using the provided USB 3.0 cable.
CompatibilityAn AV system built on Solvo by Neets is compatible with any UC platform, giving meeting attendees the freedom to use the platform they are most comfortable with.
Network accessThe Gigabit Ethernet port enables you to connect Solvo by Neets to the network, providing users with a stable internet connection and access to corporate server.
DriverSolvo by Neets uses DisplayLink technology. The driver is pre-installed on some devices and requires manual installation on others. Learn more on neets.io/solvo-drivers
MountingSolvo by Neets is designed to be wall-mounted behind the display with the provided screws and plugs, or on a display stand with the provided zip ties.
What’s in the box1x Solvo by Neets, 1x power supply, 1 x USB 3.0 3m cable, 2 x screws, 2 x plugs, 2 x zip ties.
TECHNICAL SPECIFICATIONS
Product Number325-0001
VideoUp to 4K/UHD (3840×2160), 30fps – DisplayLink technologyCompliance – HDMI 1.4, HDCP 2.0, EDID
Connections1 x USB-B (3.0)1 x USB-A (3.0)2 x USB-A (2.0)1 X HDMI type A (CEC compatible)5VDC Power inlet, 5.5×2.5mm – DC inputAudio Out (Analog) – 3.5mm stereo jackAudio In (Analog) – 3.5mm stereo jackGigabit Ethernet – RJ45 ethernet port
Other interfacesStatus Indicator – 1x LED (RG Light Emitting Diode) Power SupplyExternal PSU – 100-240VAC (50/60Hz); 5VDC/3A Consumption – Type: <5W (Max: 15W)
Dimension/WeightLength: 185 mmWidth: 85 mmHeight: 23 mmWeight: 200g
Mounting/InstallationWall mounting – 2x 4x40mm Screw w. plug Bracket/Frame Mounting – 2x 4,5x200mm zip ties
Material/ColorABS Moulded PlasticWhite (RAL9016), matt
Approval/CertificationCE regulations – EN 55035:2017 | EN 55032:2012 FCC regulations – FCC Part 15, Class A
EnvironmentFor indoor useOperational temperature: 10 °C to 30 °C Operational humidity: 10 – 90 %
Neets A/S l Langballe 4,8700 Horsens, Denmarkl +45 75 666 099 l[email protected] l neets.io
