NEXA Relay For Wall Socket User Guide

Table of Contents

NEXA Relay For Wall Socket

THIS PRODUCT SUPPORTS SMART MODE.Devices that support Smart Mode can save up to 3 different favourite scenarios, and these can be activated easily using a Nexa Smart Mode transmitter.

Built-in receiver, which makes your socket outlet wireless. The receiver needs both phase and neutral. The receiver is fully compatible with other System Nexa products.

SAFETYRead through the entire instruction first. Engage a professional if so required. Nexa cannot be held liable if the product is used for any purpose other than the one for which it is designed, or if there is failure to comply with the instruction. Never connect bulbs or equipment exceeding the receiver’s maximum stated load – this may lead to faults, short-circuiting or fire.Do not attempt to repair the product. The product contains no repairable parts.

INSTALLATION

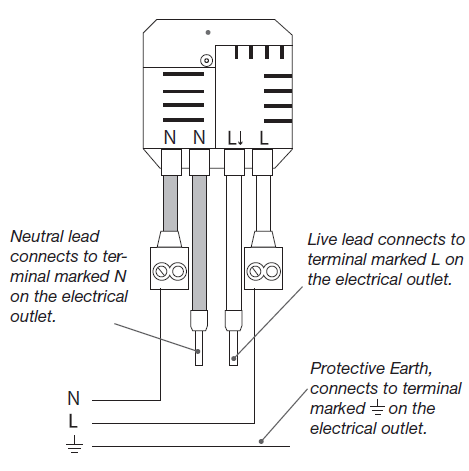

Make sure that the conductors are powered down by turning off the power in the distribution box.Connect the MSOR-3500 according to the wiring diagram. Note, do NOT disconnect protective earth lead from the electrical outlet.

PROGRAMMING

Power up MSOR-3500
Press the learn button, the LED indicator starts to flash
Press the “ON” button for the selected channel on a System Nexa remote control within 12 seconds.

PROGRAMMING CONFIRMATIONThe LED indicator on the receiver flashes rapidly.

DELETING A MEMORY SLOT

Power up MSOR-3500
Press the learn button, the LED indicator starts to flash
Press the “OFF” button for the selected channel on a System Nexa remote control within 12 seconds

CONFIRMATION OF DELETIONThe LED indicator on the receiver flashes rapidly.

DELETING ALL MEMORY SLOTS

Power up MSOR-3500
Press and hold down the learn button for 6 seconds, the LED indicator starts to flash.
Release the learn button and then press it again briefly. All storage locations are now deleted.MEMORY SLOTSEvery MSOR-3500 receiver has 32 storage locations. When storage location 32 is occupied, location 1 is overwritten during programming.

CONTROLThe receiver can be controlled in a number of ways.

With a programmed System Nexa remote control
With other programmed System Nexa transmitters
With a Nexa Bridge.

SAFETY INSTRUCTIONS AND INFORMATION

Indoor range: up to 30 m (optimal conditions). The range is strongly dependent on local conditions, such as the presence of metals. For example, the thin metal coating in Low-emissivity (Low-E) glass has a negative impact on the range of radio signals.There may be restrictions on the use of this device outside the EU. If applicable, check whether this device complies with local directives.Maximum load:Never connect lights or equipment that exceed the maximum load of the receiver, as it can result in defects, a short circuit or fire.Life-support:Never use Nexa products for life-support systems or other applications in which equipment malfunctions can have life-threatening consequences.Interference:All wireless devices may be subject to interference, which could affect performance. The minimum distance between 2 receivers should be at least 50 cm.Repairing:Do not attempt to repair this product. There are no user-serviceable parts inside.Water-resistance:This product is not water-resistant. Keep it dry. Moisture will corrode the inner electronics and can result in a short circuit, defects and shock hazard.Cleaning:Use a dry cloth to clean this product. Do not use harsh chemicals, cleaning solvents, or strong detergents.Environment:Do not expose the product to excessive heat or cold, as it can damage or shorten the life of electronic circuit boards.
