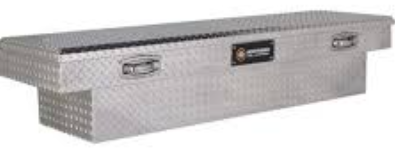

NORTHERN TOOL EQUIPMENT 200783 Rev2 Truck Chest Mounting
Read these instructions to familiarize yourself with assembly and installation. This tool box is designed for certain applications only.
NOTE:
- If your truck has a bed liner, use these instructions as a guide only.
- Due to the many differences in bed liner thickness and fit, longer fasteners are highly recommended.
- You will need to ensure that your new truck box is mounted securely to the truck, not the bed liner.
CAUTION: This tool box must be securely mounted to prevent movement or shifting.
WARNING: Any leaking caused by unsealed holes in the box bottom will void the warranty.
MOUNTING INSTRUCTIONS
- Place the tool box in the location desired. Make sure the bottom is in full contact with the truck bed and that the lid will operate without interference. Some trucks have a radius junction where the side of the bed meets the floor and will prevent the chest from sitting flat on the floor. If this is the case, the next smaller chest may fit better.
- Find the location of the “ridges” (high points) in the bottom of the truck bed. You will need to know where these are located when you anchor the chest to the floor. See the drawing above for example.
- Decide where to place the four (4) mounting screws through the box bottom and into the floor ridges. Screws between 3/16” and 1/4” work best. Look under the truck bed to ensure you will not be drilling into any electrical or fluid lines.
- Center punch the locations where the screws will be inserted. Drill the correct size holes for the screws you select, or use self-drilling type screws.
- Before you tighten the screws completely, seal the holes by applying a caulk or silicone sealant. Some chest installers remove the screws and reinstall them through rubber washers. The purpose of this is to keep water from entering the box from the holes and screws just installed.
Distributed by:Northern Tool & Equipment Company, Inc. Burnsville, Minnesota 55306www.northerntool.com
LIMITED WARRANTY
Northern Tool and Equipment Company, Inc. (“We” or ‘”Us”) warrants to the original purchaser only (“You” or “Your”) that the Northern Tool + Equipment product purchased will be free from material defects in both materials and workmanship, normal wear and tear excepted, for five years from date of purchase. The foregoing warranty is valid only if the installation and use of the product is strictly in accordance with product instructions. There are no other warranties, expresswith this limited warranty, Your sole and exclusive remedy is that We will, at our sole option and within a commercially reasonable time, either replace the product or product component without charge to You or refund the purchase price(less shipping). This limited warranty is not transferable.
Limitations on the WarrantyThis limited warranty does not cover: (a) normal wear and tear; (b) damage through abuse, neglect, misuse, or as a result of any accident or in any other manner; (c) damage from misapplication, overloading, or improper installation; (d) improper maintenance and repair; and (e) product alteration in any manner by anyone other than Us, with the sole exception of alterations made pursuant to product instructions and in a workmanlike manner.
Obligations of PurchaserYou must retain Your product purchase receipt to verify date of purchase and that You are the original purchaser. To make a warranty claim, contact Us at 1-800-222-5381, identify the product by make and model number, and follow the claim instructions that will be provided. The product and the purchase receipt must be provided to Us in order to process Your warranty claim. Any returned product that is replaced or refunded by Us becomes our property. You will be responsible for return shipping costs or costs related to Your return visit to a retail store.
Remedy LimitsProduct replacement or a refund of the purchase price is Your sole remedy under this limited warranty or any other warranty related to the product. We shall not be liable for: service or labor charges or damage to Your property incurred in removing or replacing the product; any damages, including, without limitation, damages to tangible personal property or personal injury, related to Your improper use, installation, or maintenance of the product or product component; or any indirect, incidental or consequential damages of any kind for any reason.
Governing LawSome states do not allow limitations or exclusions on implied warranties or incidental or consequential damages, so the above limitations may not apply to You. This limited warranty is governed by the laws of the State of Minnesota, without regard to rules pertaining to conflicts of law. The state courts located in Dakota county ,Minnesota shall have exclusive jurisdiction for any disputes relating to this warranty.
