nuband JR Champs NU-G0045/NU-G0046
DEVICE ACTIVATION AND CHARGING

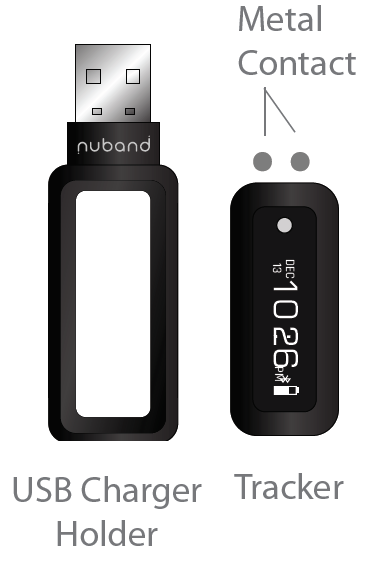

How to charge it
- Insert tracker into USB charger holder. Ensure direction is correct for both metal contacts touch.
- Plug USB charger directly into any USB port. Laptop or an adapter to charge the battery.
Activate the Device
Before use, please connect the USB charger to charge the device for activation. The progress bar will change from empty to full to indicate full activation. After activation, the device will start charging the battery.
Battery Indicator
The battery indicator is displayed on the home screen of the device. When the battery of the device is lower than 10%, all functions are closed and only lower battery icon will show to remind you to charge the battery.
When using this band for the first time, please charge 2-3 hours prior to use. When charging, the battery symbol will appear and the band will automatically switch on, time and date will automatically update when the phone is synced and connected.
Notice:
- Press the front touch button, the band screen will lit up, and it will enter the clock interface by default
- Open ‘Lift wrist to light on screen’ under app setting, the screen would lit up when the wrist is turned over.
PRODUCT QUICK USE
Download and installYou have to download and install the “Nuband Health” App from the App store or Google Play store.
BINDING BRACELET
- Open the Bluetooth on the phone
- Open App > Select Nuband Jr Champs > click “Pair Device” > ”Searching Device ” > click the device code when it is searched > bind successfully.
- After binding , it will show “Bluetooth Pairing Request ”, click “Pair”.

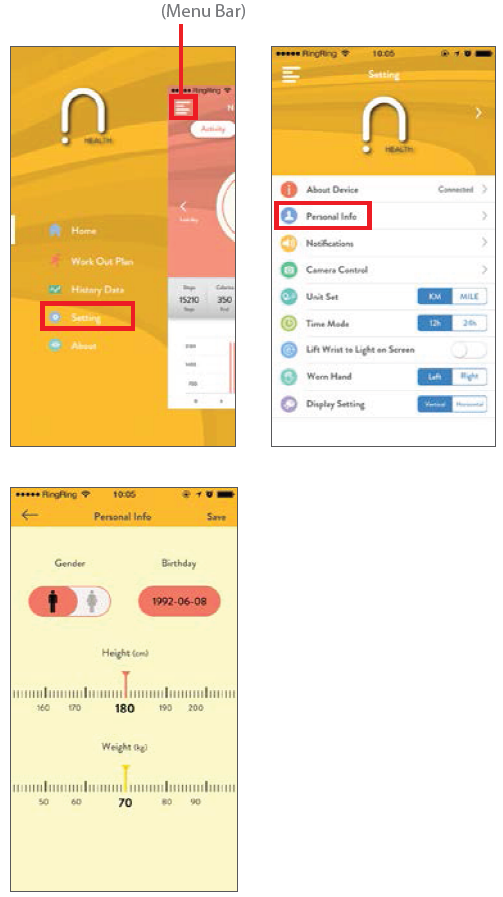

PERSONAL DATA SETTINGS
Under Home Screen click on the left top Menu Bar, then click Setting > Personal Info to enter personal information. This will then personalize information on your band for more accurate data.
SYNCHRONOUS DATA
The band automatically synchronizes the data after pairing/connecting with the smart phone or you may hold and swipe down the interface to manually synchronize. Data includes steps, calories, distance, date and time. You can check the history data by the menu bar .
FUNCTION ICONS
Touch the screen to to cycle through each function display.
SLEEP MONITOR
You need to wear the band during sleep, the band will analyze the quality of your sleep according to your nocturnal movements and monitor your entire sleep schedule. You can view this information daily or check the History Data by the menu bar.
CALL AND NOTIFICATION REMINDER
After connecting the band to your smart device, enter the notification page under setting to turn on the incoming call and message reception, and the band will receive the message, phone call, Facebook messages and/or selected chat apps.* Android phone – Please accept phone app permission under the Phone Setting.
SEDENTARY REMINDER
To set a sedentary reminder, go under the notification page, go to Sedentary Reminder > Start Date > Set Your Time. If you are not active within the set time, the band will vibrate to remind you to move.
ALARM SETTING
Under the notification screen, select ‘Wakeup Alarm’ to set the alarm; the band will vibrate at the preset times. The alarm clock can be set daily, by a day of the week, alarm type, and you can create up to 5 alarm clocks.
REMOTE CAMERA CONTROL
Go to Setting > Camera Control, turn on the phone camera > then shake the band to take a photo. The screen will display taking photo. Remember to accept the app to access your camera.

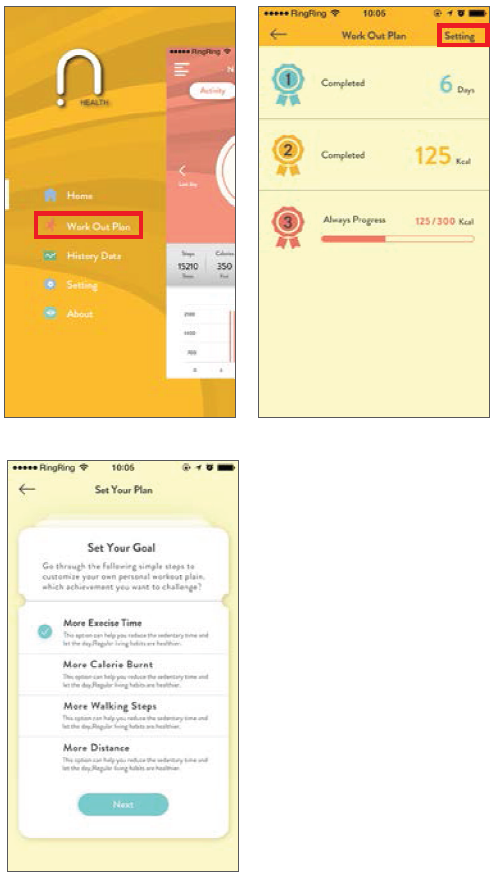

SET YOUR GOAL
You can set your goals by selecting ‘Work Out Plan’ under homepage, then select ‘Setting’ and select your customize workout plan.
NUBAND JR CHAMPS FAQ
There are “FAQ” under the About page, it will answer the most common questions about the application, including setting and using additional functions.

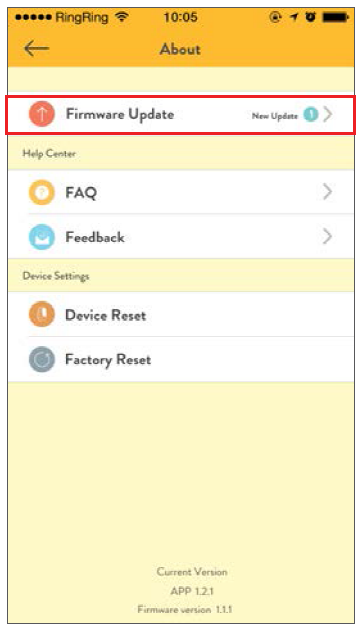

FIRMWARE UPDATE
There is a “Firmware upgrade” section under the About page, which will show the current firmware version and new update for the latest firmware version.
Click on the Sharing icon to share your information via Facebook, Twitter and Instagram.
UNPAIR
If you need to disconnect the band , click ‘Setting’ , click “About Device” , press “Unpair”.
PRODUCT SPECIFICATION
- Size: Main body: 38 X 15.5 X 11mm
- Wristbands: 230*14mm / 190*14mm
- Weight: 22g
- Battery: 55mAh Rechargeable lithium polymer battery
- Display: 0.91’ OLED
- Data Memory: 30 days
- Walking distance: Max 999.99km
- Calories burned: Max 9999.9kcal
- Activity time: 99h59min
- Waterproof Level: IP65
- Bluetooth: 4.0
- Working condition: -10°C~50°C
Nuband Jr Champs 24 month Warranty
Nuband Jr Champs is covered by a 24 months (2 years) warranty against defects in materials and workmanship under normal use.If a hardware defect occurs within the warranty period of 24 months Nuband Jr Champs will either replace defective part or provide a replacement product, providing proof of purchase is sent with the item. A replacement product or part assumes the remaining warranty of the original product or 24 months from the date of replacement or repair, whichever is longer.
When a product is exchanged or part of product is exchanged, any replacement becomes your property and replaced item becomes Nuband Jr Champs property. Parts provided by Nuband Jr Champs in fulfillment of this warranty obligation must be used in products for which warranty services is claimed. When returning product under warranty, item must be returned along with original packaging and retailer receipt. Without the receipt, the warranty will be considered invalid.It is your responsibility to back any data up. If in repair or replacement, goal data is lost Nuband Jr Champs claim no responsibility for this. Nuband Jr Champs is not responsible for product failure caused by none compliance with product instructions.
The warranty does not cover the cost of returning the product, this must be born by the customer.No Nuband Jr Champs reseller, agent or employee is authorized to make any modification, extension or addition to this limited warranty. If any term is held to be illegal, or unenforceable, the legality or enforceability of the remaining terms shall not be affected or impaired.
Nuband Jr Champs Product Disclaimer
Nuband Jr Champs is a device developed to assist monitoring aspects of your health but should never replace the professional advice of your Doctor or Physician.
Nuband Jr Champs are not a licensed medical conditions or any kind, or determining the effect of any specific exercise on a medical condition.We strongly recommend that you should consult a Doctor or Physician before partaking in any type of physical exercise fitness plan or diet.
Returns
If your Nuband Jr Champs should ever need to be replaced under warranty, send yourNuband Jr Champs along with proof of purchase to the following address:Dartmouth Brands LtdC/O Connexions LogisticsLink House, Bute StreetFenton, Stoke On TrentStaffs, ST4 3PWUKEmail: [email protected]
Because of possible loss, we recommend insuring your Nuband Jr Champs , return receipt requested, when using the mail. If you do not obtain the proper receipt within a reasonable time, start a tracer through the originating post office. Please allow 2 to 3 weeks from the date we receive your package for your replacement Nuband Jr Champs to arrive.iPhone®, iPod®, iPad®, iPad Mini®, iPad Air®, iOS®, Retina display®, Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple IncAndroid and Google Play are trademarks of Google Inc.Samsung Galaxy S® and Samsung Galaxy Note® are trademarks of Samsung in the United States and other countries.All other trademarks are property of their respective owners.
Eu Declartion Of Conformity
This product conforms with Radio Equipment Directive (RED) 2014/53/EU. You can download the full declaration letter from our website. See below URL link for details.https://www.nutechdesign.com/pages/declaration-of-conformity
