NusGear T101 Portable Power Supply Instruction Manual

PORTABLE POWER SUPPLYUniversal Instruction manualT101

ATTENTION: This product user manual is universal for portable solar generator AC output range between 100V~240V/50Hz~60Hz.Actual product specification, actual AC outlets will be different according to different countries, areas or customers. Please refer to the actual product before you use the product.ABOUT THE UNITThank you for applying our multi-function portable power supply In case of power failure or you need to charge on travel, you can temporarily charge your electrical or digital devices with this unit.This unit can provide USB, DC and AC output You can keep laptops, appliances, lights, and more going for hours longer. Before using this unit, please read the user manual carefully and properly keep it for reference.ATTENTION!This manual is to help you use the product correctly; it does not represent any description on the hardware and software configuration of the product. About the product configuration, please refer to the contract related to this product (if there is), or consult to the seller that sells the product. Pictures in this manual is for reference only, if there are individual pictures do not match the actual, please prevail in actual products.The unit provides Modified Sine Wave outputThe unit provides Modified Sine Wave output, and can be compatible to AC electric appliance that works with Sinusoidal waveform(power <150W). However; anything that uses an AC motor isn’t going to work to full capacity on a modified sine wave, such as an electrical fan, It will even make the electric appliance arouse some noise. Appliances like refrigerators, microwaves, and compressors that use AC motors and some delicate medical equipment will be better off with a pure sine wave inverter. This product is only used for emergencies, it cannot replace the normal alternating current for long-term use, please adapt the power station specification required by electrical appliances.

PRODUCT PARAMETERS

※ There may be some differences on different spare parts. Please adhere to the actual product instead.

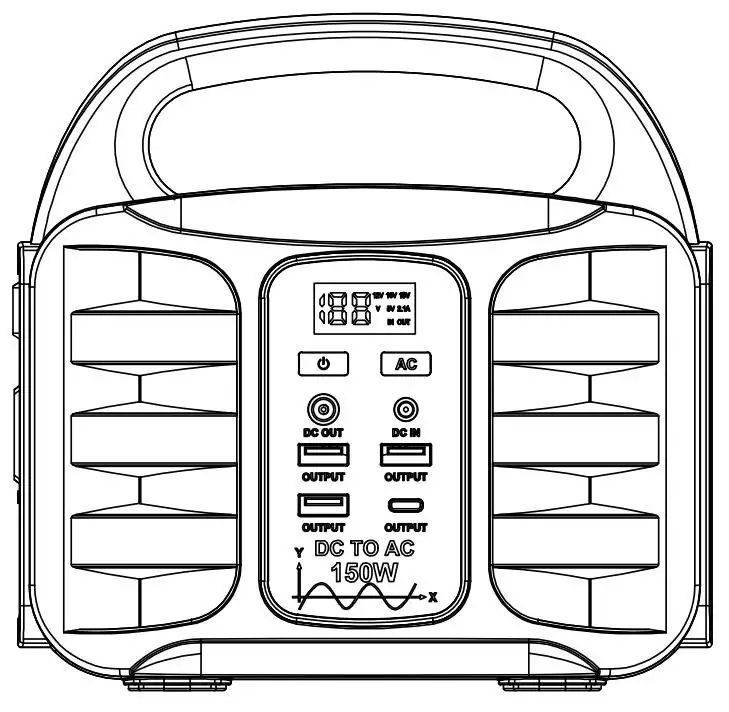

PRODUCT DESCRIPTION

ATTENTION: AC Outlets, AC output voltage and frequency will be different according to different countries or areas. Please refer to the actual product before using it.

PRODUCT INSTRUCTION

1)How to provide power for AC appliances with this product?Connect the power cable plug of the electrical appliance to the AC outlet of the product, switch on the power button and the unit will start providing power to your appliances.WARNING! The Ac outlets, AC voltage and frequency are different according to different countries; please carefully check whether the product specifications are consistent with the appliance specifications before use, otherwise, it can lead to dangerous situations.

When the AC port is not in use, turn it off to conserve power.ATTENTION!: AC Outlets, AC output voltage, and frequency will be different according to different countries or areas. Please refer to the actual product before using it.Protection Mode:Short-circuit/Overpower Protection: If the AC output is short-circuited or overpowered(Load(s) power>150W), the unit will shut down AC output to protect itself. Please clear the problem and re-press the AC button for AC output.※ Some devices, such as a refrigerator, ice maker or a laser printer may require a surge power to start or work during a very time period, the surge power could exceed 150W or even higher this could cause overpower protection with this unit. Please remove the devices and consult with the device manufacturers for more information. Please clear the problem and re-press the AC button for AC output.2) How to provide power for USB(C) digital appliances with this product?Connect the standard USB cable of the digital appliance to the USB output of the unit, press the “ “to turn on USB output.Qualcomm Quick Charge 3.0 Technology: This product supports Qualcomm Quick Charge 3.0 output technology. Support 5V-9V-12V /2A max output, used for smart USB devices such as mobile phones or tablets that also support Qualcomm Quick Charge 3.0 technology for fast charging endurance. The actual charging voltage and current are related to the actual USB smart device, you can consult the device manufacturer to get the corresponding information.PD Type-c: PD Type-c port input 5V/2.4A 9V/3A 12V/3A 15V/3A 20V/3A, for smart devices such as mobile phones or tablets that also support the PD fast charge protocol for fast charging endurance, When in use, you must press the “Power On Key” screen to light up for normal output charging.

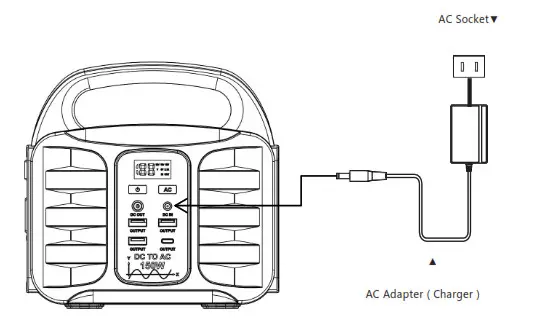

When using the Type-c port, you must press” Power On Key” to Normal charging when the screen is on.3) How to charge the unit?a.Charge through AC Wall ChargerConnect the AC adapter of the charging adapter that comes standard with this product to a household AC outlet to charge the product. When the screen number reaches 100%, the product is fully charged. Please unplug the charging adapter from the AC outlet in time.

b.Charge from Solar panel

1. Place your solar panel where it will get as much direct sunlight as possible.
2. Plug the output of the solar panel into the input of the unit to start charging. You will know the unit is charging when the blue LED Battery Indicator lights up and blinks.The unit is fully charged when all battery indicators stop blinking and remain solid.

c. DC port 12V /50W output used to charge 12V car and home appliances

When using the DC port output, you must press the “Power On Key” screen to light up normal output charging.

SECURITY AND MAINTENANCE

a) Do not short-circuit the unit. To avoid short-circuiting, keep the unit away from all metal objects (e.g. coins, hair-pins, keys, etc.).b) Do not heat the unit, or dispose of it in fire, water or other liquids. Keep away from high temperatures. Do not expose the unit to direct sunlightc) Keep away from high humidity, dusty places.d) Do not disassemble or reassemble this unit.e) In order to extend the life of the product (lithium battery), it is best to charge within 3 Do not drop, place heavy objects on, or allow a strong impact to this unit.f) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.g) Children should be supervised to ensure that they do not play with the appliance.h) Do not cover the device with towels, clothing and another item.i) The unit may become hot when charging. This is normal. Use caution when handling.j) Do not charge the unit over the required time.k) Disconnect the unit when fully charged.l) Use the unit properly to avoid electronic shock.

PRODUCT APPLICATION SKILLS

a) This product is a built-in high-quality original lithium-ion battery, it has no memory effect but is high-capacity, and it is durable. However, we still recommend you toapply in the range of 10 ‘C ~30 ‘C, so as to obtain the optimal charging capacity.b) When charging, in order to avoid interference, please stay away from TV radio and other equipment.c) If the device has not been used for a long time, please disconnect the cable and store it.d) Some portable devices may need to be set in charge mode to charge, see the corresponding equipment use manual for more information.e) In order to extend the life of the product (lithium battery), it is best to charge within 3 months and charge at least once within 6 months.Cold Weather UsageCold temperatures (below freezing) can affect the unit’s battery capacity due to the chemical characteristics of the battery. If you’ll be living off-grid in sub-zero conditions, we recommend you keep your unit in an insulated cooler and connected to a power source (solar panels). The natural heat generated by the unit contained in an insulated cooler will keep battery capacity at its highest.RecycleAlways return your used electronic products, batteries, and packaging materials to dedicated collection points. This way you help prevent uncontrolled waste disposal and promote the recycling of materials.Battery informationYour device has an internal, non-removable, rechargeable battery. Do not attempt to remove the battery, as you may damage the device.The battery can be charged and discharged over 500 times, but it will eventually wear out.StatementAll rights reserved. Reproduction in whole or in part without written permission is prohibited. All other trademarks are trademarks of their respective owners. Features and specifications are subject to change without notice.

report this ad

MADE IN CHINA
