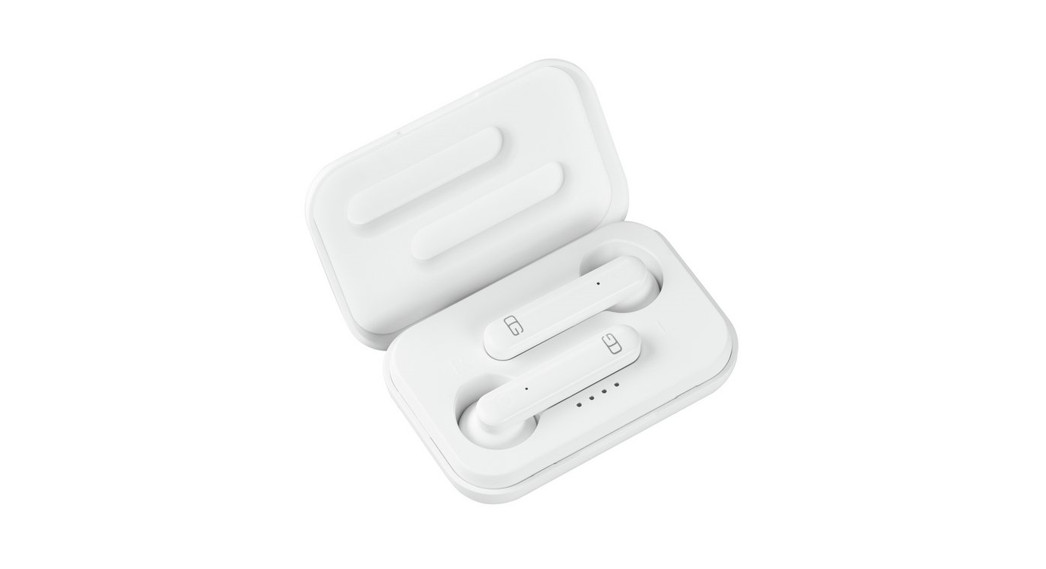

ZERO-G PODSZG-0001Instruction Manual
Thank you for purchasing this product.Please read the instruction manual carefully before using the product. The documentation provided will allow you to fully enjoy all the features this unit has to offer.Please keep this manual for future reference.
POWER ON/OF
Method A:To Switch On, press and hold the function button for 3 seconds. The red and blue lights will flash alternately on pairing mode then automatically pair with each other.– To Switch Off, press and hold the function button for 3 seconds while it’s turned on.When the earpods are disconnected from any connected device, it will automatically switch off after 3 minutes.Method B: Make sure the charging box is charged, take the earpods from the charging box (power on), put the earpods into the charging box (power off).
QUICK PAIRING:
When the earpods are turned on, the red and blue lights of the earpods flash alternately.Both earpods will pair automatically.Search “Zero G-0001” in phone Bluetooth settings. Select “Zero G-0001”, pair and connect it from your smartphone.
FUNCTIONS:
– To pause or play music/answer the phone or hang up the phone, tap once on the touch panel.– To Connect to Siri, tap the touch panel and hold for 2 seconds.– To select the next song (right earpods) / last song (left earpods), double-tap the touch panel.– To reject a call press the touch panel and hold for 2 seconds.– To increase the volume (right earpods) / reduce the volume (left earpods), tap 3 times on the touch panel.
CHARGING THE EARPODS:
The earpods do not have to charge port but have two touch points for charging on the docking. The two charging pins will connect with the two touching points on the earpods to realize the charging. The indicator on the earpods becomes red when it is charging, and it will go off when fully charged.
CHARGING THE CHARGING BOX:
– Charging port: Micro USB– Charging time about 2 hours for a full charge.– Fully charged charging box can support earpods charging 3 times
SPECIFICATION
ZERO-GModel : Zero-GBluetooth : BT5.0
Support Profile: A2DP 1 HFP 1 HSP 1 AVRCPEarpods Battery : 40mAh / 3.7V 0.148Wh x 2Charging Case Battery : 400mAh / 3.7V 1.48WhTransmission Distance : 10mCalling Time : 4-5 hoursMusic Time : 4-5 hoursStandby Time: 100 hoursCharging Time: About 2 hoursFrequency Range: 2.402GHZ-2.480GHZ Transmitted Out Power : 3mW x 2Charging case size/weight : 68 x 45 x 22mm/35g Earpods size/weight : 41 x 15 x 8 mm/3.5g x 2 Manufactured by : Solar Time Ltd.Imported by : Dartmouth Brands Ltd.
FAQ’S:
- Q) Can’t find the earpods in the Bluetooth list?
- A) Please make sure your earpods are not connected with any other devices before searching the earpods from phone Bluetooth settings. If it is connected with another device, either switch off or clear the pairing of the connected device Bluetooth. Turn off and on the earpods again so it can be searched and connected with the intended device.
- Q) Can’t turn on the earpods?A) Make sure both earpods are fully charged.
MAINTENANCE:
Retain these instructions for future use.
- Clean the product with a damp cloth and mild soa
- Be careful not to turn or twist the cables used in this product too much as it can lead to malfunction and failure.
- This product is not designed to be submerged in water and will malfunction if this occurs.
- This product has no user-serviceable items inside. Do not open this product as the user risk injury and would void the warranty.
- Keep the unit away from strong magnetic fields to avoid interference with the product.
NOSOUND ZERO•G PODS 24 MONTH WARRANTY
We at NOSOUND pride ourselves in the quality of our products but occasionally there may be a bump in the road. We, therefore, guarantee our products for 24months against defects in materials and workmanship under normal use.If a hardware defect occurs within the warranty period of 24months, NOSOUND will either replace the defective part or provide a replacement product, providing proof of purchase is sent with the item.A replacement product or part assumes the remaining warranty of the original product or 24months from the date of replacement or repair, whichever is longer.When a product is exchanged, or part of a product is exchanged, any replacement becomes your property and replaced item becomes N USOUN D’s property. Parts provided by NUSOUND in fulfillment of this warranty obligation must be used in products for which warranty services is claimed.When returning the product under warranty, the item must be returned along with original packaging and retailer receipt. Without the receipt, the warranty will be considered invalid.It is your responsibility to back any data up.If, during repair or replacement, goal data is lost. NUSOUND cannot be held responsible.NUSOUND is not responsible for product failure caused by non-compliance with product instructions.The warranty does not cover the cost of returning the product; this must be borne by the customer.No NUSOUND reseller, agent or employee is authorized to make any modification, extension or addition to this limited warranty. If any term is held to be illegal or unenforceable, the legality or enforceability of the remaining terms shall not be affected or impaired.
RETURNS
If your NUSOUND should ever need to be replaced under warranty, send an £8.00 check or money order payable to Ibex Fulfilment to cover costs of postage and handling. Please send it to the following address:Dartmouth Brands LtdCIO Ibex Fulfilment LogisticsUnit 15 Hearder Court Beechwood WayPlymouthPL7 5HHUKEmail: [email protected]Because of possible loss, we recommend insuring your NUSOUND, return receipt requested, when using the mail. If you do not obtain the proper receipt within a reasonable time, start a tracer through the originating post office. Please allow 2 to 3 weeks from the date we receive your package for your replacement NUSOUND to arrive.
EU DECLARATION OF CONFORMITY
This product conforms with Radio Equipment Directive (RED) 2014/53/EU. You can download the full declaration letter from our website. See below the URL link for details.https://www.nutechdesign.com/pages/declaration-of-conformity
VersionV.1.3
For more information please visitwww.nutechdesign.comFollow us on
