NZXT N7 Z499 ATX Motherboard User Manual

SAFETY PRECAUTIONFollow these safety precautions when installing the motherboard:

It is recommended to wear a grounding strap attached to a grounded device to avoid damage from static electricity.
Discharge static electricity by touching the metal case of a safely grounded object before working on the motherboard.
Leave components in the static-proof bags.
Always remove the AC power by unplugging the power cord from the power outlet before installing or removing the motherboard or other hardware components.

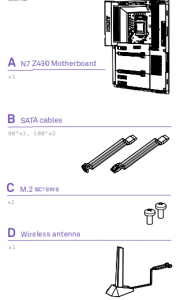

PACKAGE CONTENTS

A. Placa base N7 Z490B. cables SATAC. Tornillos M.2D. Antena inalámbrica

SPECIFICATIONS

CPU & SocketLGA socket 1200 for Intel® 10th Generation Core™ i9/ Core™ i7/Core™ i5/ Core™ i3 Processors

Supports Intel 14nm CPU
Supports Intel Turbo Boost Technology 2.0

ChipsetIntel® Z490

Memory4 x DIMM, Max. 128GB, DDR4

4266 (O.C.)/4133 (O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2933/2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
Dual-channel memory architecture
Support Intel® Extreme Memory Profile (XMP) 2.0

Integrated GraphicsIntegrated Graphics Processor- Intel® HD Graphics SupportSingle-graphic output support: HDMI port

HDMI™ with max. resolution of 4096×
Maximum shared memory of 1024MB (for iGPU exclusively)

Multi-GPU SupportSupports AMD 2-Way CrossFireX™ Technology

StorageIntel® Z490 Chipset

1 * M.2 type 2242/2260/2280 (PCIe 3.0 x4 & SATA mode)
1 * M.2 type 2242/2260/2280 (PCIe 3.0 x4 mode only)
4 * SATA 6Gb/s portsSupports RAID 0/1/5/10Supports Intel® Smart Response TechnologyIntel® Rapid Storage Technology 15Intel® Optane Memory Ready

LANRealtek® RTL8125BG 2.5G LAN

WirelessIntel® Dual Band Wireless-AX200 Wi-Fi 6

Wi-Fi 802.11 a/b/g/n/ac/ax
Supports dual band frequency 2.4/5GHz
Supports MU-MIMO

BluetoothBluetooth V5.1

AudioRealtek® ALC1220 Codec8-Channel High Definition Audio, 32-bit /192KHz DACNichicon Fine Gold Series Audio Capacitors

USB Ports

1 x USB 3.2 Gen 2 ports (1 at back panel [blue])
1 x USB 3.2 Gen 2 Type-C (at back panel)
1 x USB 3.2 Gen 2 front panel port (For USB Type-C)
4 x USB 3.2 Gen 1 ports (2 at back panel [blue], 2 at mid-board)
8 x USB 2.0 ports (2 at back panel, 6 at mid-board)

Expansion Slots

2 * PCIe 3.0 x16 (x16 or dual at 16/x4)
3 * PCIe 3.0 x1

Rear I/O

1 * USB 3.2 Gen 2 ports (Light Blue)
2 * USB 3.2 Gen 1 ports (Blue)
1 * USB 3.2 Gen 2 Type-C port
2 * USB 2.0 ports
1 * HDMI™ 1.4b
1 * 2×2 Wireless antenna
1 * Clear CMOS button
1 * LAN (RJ45) port
1 * Optical S/PDIF Out port
1 * 5.1-Channel audio jacks

Internal I/O

1 * 24-pin EATX power connector
1 * 8+4-pin ATX 12V power connector
1 * 4-pin CPU_FAN connector (Up to 24W per channel)
1 * 4-pin AIO_PUMP connector (Up to 24W per channel)
5 * 4-pin SYS_FAN connectors (Up to 24W per channel)
2 * NZXT RGB LED connectors
1 * 5V Addressable RGB LED connectors
1 * 12V RGB LED connectors
3 * USB 2.0 header (Up to 6 USB 2.0 ports)
1 * USB 3.2 Gen1 header (Up to 2 USB 3.2 Gen 1 ports)
1 * USB 3.2 Gen2 front panel header (For USB Type C)
4 * SATA 6Gb/s connectors
1 * M.2 Socket 3 with M Key, type 2242/2260/2280storage device support (PCIe 3.0 x4 & SATA mode)
1 * M.2 Socket 3 with M Key, type 2242/2260/2280storage device support (PCIe 3.0 x4 mode only)
1 * M.2 Socket 1 with E Key, (For wireless cards,supports CNVio)
1 * Power button
1 * Reset button
1 * Front panel audio connector
4 * POST LEDs

Operating SystemMicrosoft® Windows® 10 (64-bit)

Form FactorATX

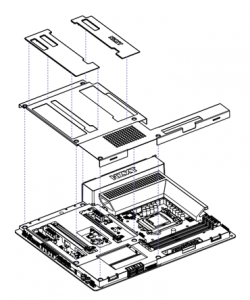

COVER

COMPONENTS & PORTS

CPU Socket LGA 1200 socket for Intel® 10th Generation processor
AIO_PUMP 4-pin AIO pump connector
NZXT RGB 1 & 2 4-pin LED header
DIMM A1-B2 288-pin DDR4 memory slots
SYS_FAN 4-5 4-pin fan connectors
ATX_POWER 24-pin ATX power connector
USB3G2C_1 Front panel USB 3.2 Gen 2 Type-C header
USB3G1_1 Front panel USB 3.2 Gen 1 header
SATA 1-4 Serial ATA 6Gbps connectors
Front Panel Connecters Front panel switches and LED connectors
Power Button Power Button
Reset Button Reset Button
M2_2 M.2 Socket 3 with M key, supports type 2242/2260/2280 storage devices (Supports PCIE)
POST LEDs Boot status indicator
SYS_FAN 1-3 4-pin fan connectors
USB2_1-3 Front panel USB 2.0 headers
12V RGB1 4-pin 12V LED header
5V ARGB1 3-pin 5V LED header
FRONT_AUDIO Front panel audio connector
PCIEX1_3 PCI Express x1 Gen3 slot
PCIEX1_2 PCI Express x1 Gen3 slot
PCIEX16_2 PCI Express x16 Gen3 slot for GPU
Battery CMOS Battery
M2_3 M.2 Socket 1 with E key, supports type 2230 wireless devices with CNVio
PCIEX16_1 PCI Express x16 Gen3 slot for GPU
M2_1 M.2 Socket 3 with M key, supports type 2242/2260/2280 storage devices (Supports PCIE & SATA mode)
PCIEX1_3 PCI Express x1 Gen3 slot
ATX_12V 8+4-pin +12V power connector
CPU_FAN 4-pin CPU fan connector

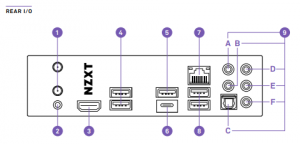

Wireless Antenna
Clear CMOS Button
HDMI 1.4b port
USB 2.0 x 2
USB 3.2 Gen 2
USB 3.2 Gen 2 Type-C
RJ45 LAN port
USB 3.2 Gen 1 x 2
Audio portsA. Center and SubwooferB. Rear SurroundC. Optical SPDIF Out portD. Line-inE. Front Left and RightF. Microphone

CPU SOCKETThe surface of the LGA 1200 CPU has two notches and a golden triangle to assist in correctly lining up the CPU for placement within the socket.

DIMM SLOTS

The DIMM slots are located here. Please see the diagram for recommended memory configuration.

PCI EXPRESS EXPANSION SLOTS

See the diagram below for the list of slots. Please install graphics cards using the PCIEX16_1 first then the PCIEX16_2

SATA CONNECTORS

These connectors are SATA 6Gb/s interface ports. Each connector can connect to one SATA device. No ports utilize the same bandwidth with any M.2.

M.2 SLOTS FOR STORAGE

There are two M.2 slots on the N7 motherboard. You will need to remove the steel cover pieces prior to installation. The M.2 slots supports form factors up to type 2280.

M.2 SLOT FOR WIRELESS CONNECTIVITY

ANTENNA

POWER CONNECTORSThese connectors connect to an ATX power supply

24-pin ATX_POWER8+4-pin ATX_12V

USB CONNECTORSThese connectors allow you to connect to the front panel USB ports or devices requiring internal USB ports.

FRONT PANEL AUDIO CONNECTORThis connector connects to the front panel audio on the case.

FRONT PANEL CONNECTORThese connectors connect to the switches and indicator LEDs on the case.

FAN CONNECTORSThe CPU_FAN connector supports 4-pin PWM fans up to 2A (24W). The AIO_PUMP and the five SYS_FAN connectors automatically detects if a 4-pin PWM(Pulse Width Modulation) or 3-pin fan is in use and supports up to 2A(24W) each. The fan speeds can be adjusted within CAM.

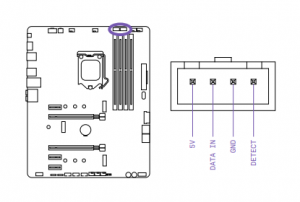

NZXT RGB CONNECTORSThere are two NZXT RGB headers located on the motherboard. The NZXT RGB ports are compatible with NZXT lighting accessories. Each channel supports up to 40 LEDs and up to 6 accessories.

5V ADDRESSABLE RGB CONNECTORA 5V Addressable RGB is located on the motherboard. This port supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V) and supports up to 40 LEDs.

12V RGB CONNECTORA 12V RGB is located on the motherboard. This port supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

BUTTONS AND POST LEDSPower and Reset ButtonThe power and reset button allow you to power on and reset the motherboard without connecting to a switch which is useful when testing.

Post LEDsPost LEDs diagnoses the computer when users power on their system. It will light up to indicate whether the CPU, memory, VGA or storage is dysfunctional. The lights go off if the four mentioned above are functioning normally.

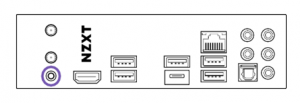

Clear CMOS ButtonThe Clear CMOS button located on the rear I/O can be used to revert BIOS settings to default. To clear CMOS, turn off the power and remove the AC power to the power supply. Allow 30 seconds to ensure no standby power exists. Press and hold the Clear CMOS button for 3 seconds.

DOWNLOADING NZXT CAMDownload and install NZXT CAM from www.nzxt.com/camapp

REGULATORY NOTICESFCC Compliance StatementThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in aresidential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installedand used in accordance with the instructions, may cause harmful interference to radio communications. However,there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna
Increase the separation between the equipment and the receiver
Connect the equipment onto an outlet on a circuit different from that to which the receiver is connected
Consult the dealer or an experienced radio/TV technician for helpShielded interconnect cables and a shielded AC power cable must be employed with this equipment to ensurecompliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system’s manufacturer could void the user’s authority to operate the equipment.

Declaration of Conformity

I. This device complies with part 15 of the FCC rules. Operation is subject to the following conditions:

This device may not cause harmful interference
This device must accept any interference received, including interference that may cause undesired operation

II. This device is in conformity with the following EC/EMC directives:EN 55022 Limits and methods of measurement of radio disturbance characteristics of information technology equipmentEN 61000-3-2 Disturbance in supply systems causedEN 61000-3-3 Disturbance in supply systems caused by household appliances and similar electrical equipment “Voltage fluctuations”EN 55024 Information technology equipment-immunity characteristics – Limits and methods of measurementEN 60950 Safety for information technology equipment including electrical business Equipment

III. CE Conformity NZXT Inc, declares that this device is in compliance with the essential safety requirements and other relevant provisions set out in the European Directive.

IV. Canadian Department of Communications This class B digital apparatus meets all requirements of the Canadian Interference-causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur le matériel brouilieur duCanada.V. Korean Certification MarkIncludes a KCC (Korean Communications Commission) certification number:KCC-R-R-ZXT-N7Z49XT.

BATTERY INFORMATIONEuropean Union Batteries, battery packs, and accumulators should not be disposed of as unsorted household waste. Please use the public collection system to return, recycle, or treat them in compliance with the local regulations.

Taiwan For better environmental protection, waste batteries should be collected separately for recycling or special disposal.

California, USA The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California. For further information please visit: http://www.dtsc.ca.gov/hazardouswaste/perchlorate.

CAUTION(!)There is a risk of explosion, if battery is incorrectly replaced. Replace with the same or equivalent type recommended by the manufacturer.

NZXT GLOBAL WARRANTY POLICYThis NZXT Global Warranty Policy governs the sale of products by NZXT to you.

I. WARRANTY LENGTH

New NZXT Product	Warranty Length for Parts
Computer Cases	2 Years
Temperature Meters	2 Years
Fans	2 Years
Lighting	2 Years
Accessories	2 Years
Kraken M Coolers	2 Years
Headset/Headphone	2 Years
Headset/Headphone Storage	2 Years
Mixer	2 Years
Motherboards	2 Years
Power Supply	10 Years
Kraken X/Z Coolers	6 Years
Mini ITX Case with PSU, AIO, and Riser Card	3-year warranty on case, riser card, and AIO.10-year warranty on PSU.
Refurbished NZXT Product	Warranty Length for Parts
All NZXT Certified Refurbished Products	1 Years

Any replacement product will be covered under warranty for the remainder of the warranty period or thirty days,whichever is longer. Proof of purchase is required for warranty service.

II. WHO IS PROTECTEDThe Warranty covers only NZXT products purchased by the original consumer.

III. WHAT IS AND IS NOT COVEREDPlease note that our warranty is not an unconditional guarantee. If the product, in NZXT’s reasonable opinion,malfunctions within the warranty period, NZXT will provide you at its sole discretion with a repaired or replacement product, either new or refurbished, with a similar function that is equal or greater in value depending on supply. Our warranty does not cover the following:

any product or serial number/warranty sticker modification applied without permission from NZXT;
any damage that is not a manufacturing defect;
damage, deterioration or malfunction resulting from: accident, abuse, misuse, neglect, fire, water, lightning, or other acts ofnature, unauthorized product modification or failure to follow instructions included with the product;
improper installation, unauthorized alterations or modifications, or repair or attempted repair by anyone not authorized by NZXT;
shipping or transport damage (claims must be made with the carrier);
normal wear and tear.

NZXT does not warrant that this product will meet your requirements. It is your responsibility to determine thesuitability of this product for your purpose. For NZXT Store orders, we cover two way return shipping for allexchanges and returns. For all other authorized dealers, NZXT Support does not cover return shipping and onlycovers one way shipping from NZXT back to the end user for exchanges. Two way expedited shipping is provided for all PSUs covered under the Less Than Three program, indiscriminate of purchase location, provided the location is an approved NZXT reseller.

IV. EXCLUSION OF DAMAGES (DISCLAIMER)NZXT’s sole obligation and liability under this warranty is limited to the repair or replacement of a defective product with either a new or refurbished product with a similar function that is equal or greater in value at our option. NZXT shall not, in any event, be liable for any incidental or consequential damage, including but not limited to damages resulting from interruption of service and loss of data, business, or for liability in tort relating to this product or resulting from its use or possession.

V. LIMITATIONS OF IMPLIED WARRANTIESThere are no other warranties, expressed or implied, including but not limited to those of merchantability or fitness for a particular purpose. The duration of implied warranties is limited to the warranty length specified in Paragraph I.

VI. TO OBTAIN TECHNICAL SUPPORTIf you have already referenced your product owner’s manual and still need help, you may contact us by phone at +1 (800) 228-9395, by email at , or visit the NZXT Support site at nzxt.com/customer-support.

VII. HOW TO OBTAIN A WARRANTY SERVICE FROM NZXTTo receive a warranty service for your product when purchased directly from NZXT, you must submit a request via the NZXT Support site outlining the problem. If a technician deems the product defective or requiring testing, you will be required to provide a copy of your proof of purchase, which will enable you to submit a Return Merchandise Authorization “RMA” request. Once approved, you`ll receive an RMA number, upon which you will be asked to ship the defective item back to NZXT with the RMA number clearly marked or labelled on the package. NZXT recommends that appropriate measures are taken to safeguard the product from damage during shipping.

VIII. APPLICABLE LAW AND ADDITIONAL LEGAL RIGHTS FOR CONSUMERSThis warranty gives you specific legal rights. These conditions are governed and construed in accordance withthe laws of California (with exception of its conflict of law provisions), and the application of the United NationsConvention of Contracts for the International Sale of Goods is expressly excluded. The non-exclusive jurisdiction of the courts of California is agreed, which means that you may bring a claim to enforce your consumer protection rights in connection with this Global Warranty in the country which you have your habitual residence where you may have additional rights. These rights may vary. For original consumers who are covered by consumer protection laws or regulations in their country, state, or province of purchase or, if different, their country, state, or province of residence, the benefits conferred by this warranty are in addition to all rights and remedies conveyed by such consumer protection laws and regulations. To the extent that liability under such consumer laws can be limited, NZXT’s liability is limited, and its sole option, to repair or replacement, either new or refurbished, with a similar function that is equal or greater in value depending on supply.

In the United Kingdom:

For NZXT products sold to customers in the UK, during the expected lifespan of your product your legal rights entitle you to thefollowing:> Up to 30 days: if your goods are faulty, then you can get an immediate refund.> Up to six months: if your goods can’t be repaired or replaced, then you’re entitled to a full refund, in most cases.> Up to six years: if your goods do not last a reasonable length of time you may be entitled to some money back.
If the person seeking to rely on the guarantee is not the original consumer, the NZXT Warranty will cover the product in relation to that person provided that they are able to provide proof of the transfer of the benefit of the guarantee from the original consumer.
The implied warranties under the Consumer Rights Act 2015 says that your goods must be as described, fit for all purposes for which such goods are usually supplied, and of satisfactory quality.

In the EU:

If you are a consumer and have your habitual residence in the EU, you additionally enjoy the protection afforded to you by provisions that cannot be derogated from by agreement by virtue of the law where you have your habitual residence.

IX. WARRANTY SERVICE FROM RESELLERSIn the event that a warranty service is sought, you must provide proof of purchase (store receipt or invoice) in order to receive the service and if deemed necessary, repair or replacement product.

In North America:Within the first 60 days after purchase, please return your product (or for power supplies installed within ourenclosures, just the failed power supply) to your dealer or reseller for a replacement. If the product is still withinwarranty and you can no longer return it to your dealer, please contact NZXT Customer Support (see above) forassistance and instructions. NZXT will not accept returns without prior approval and an RMA number.

In Europe:Within the first year after purchase, please return your product (or for power supplies installed within ourenclosures, just the failed power supply) to your dealer or reseller for a replacement. If the product is still withinwarranty and you can no longer return it to your dealer, please contact NZXT Customer Support (see above) forassistance and instructions. NZXT will not accept returns without prior approval.

In Australasia:Within the first two years after purchase, please return your product (or for power supplies installed within ourenclosures, just the failed power supply) to your dealer or reseller for a replacement. If the product is still withinwarranty and you can no longer return it to your dealer, please contact NZXT Customer Support (see above) forassistance and instructions. NZXT will not accept returns without prior approval.

The cost of shipping will be borne at the first instance by you; however, if the purchased item is defective, NZXT will reimburse reasonable postage or transportation of costs.

Outside North America, Europe, and Australasia:If your product needs to be returned within the warranty period, please contact the retailer or distributor from whom you purchased the product.

X. NZXT.COM STORE RETURNS/EXCHANGE POLICYEligible products under this NZXT Warranty qualify for a full refund or exchange only with an authorized RMA number and if the item is returned to the NZXT.com store inventory within 30 days of purchase. Returns are not allowed beyond 30 days of the purchase date. The NZXT.com Store reserves the right to deny any return or exchange. Refunds will be credited to the original method of payment. To initiate a return, simply submit a request via NZXT support site.

Visit nzxt.com/warranty and support.nzxt.com for information on warranty coverage and service

SUPPORT AND SERVICESUPPORT AND SERVICEIf you have any questions or problems with the NZXT product you purchased, please don’t hesitate to contact us using our support system. support.nzxt.com

Please include a detailed explanation of your problem and your proof of purchase. For comments and suggestions, you can e-mailour design team, . Lastly we would like to thank you for your support by purchasing this product.For more information about NZXT, please visit us online. NZXT Website: nzxt.com
