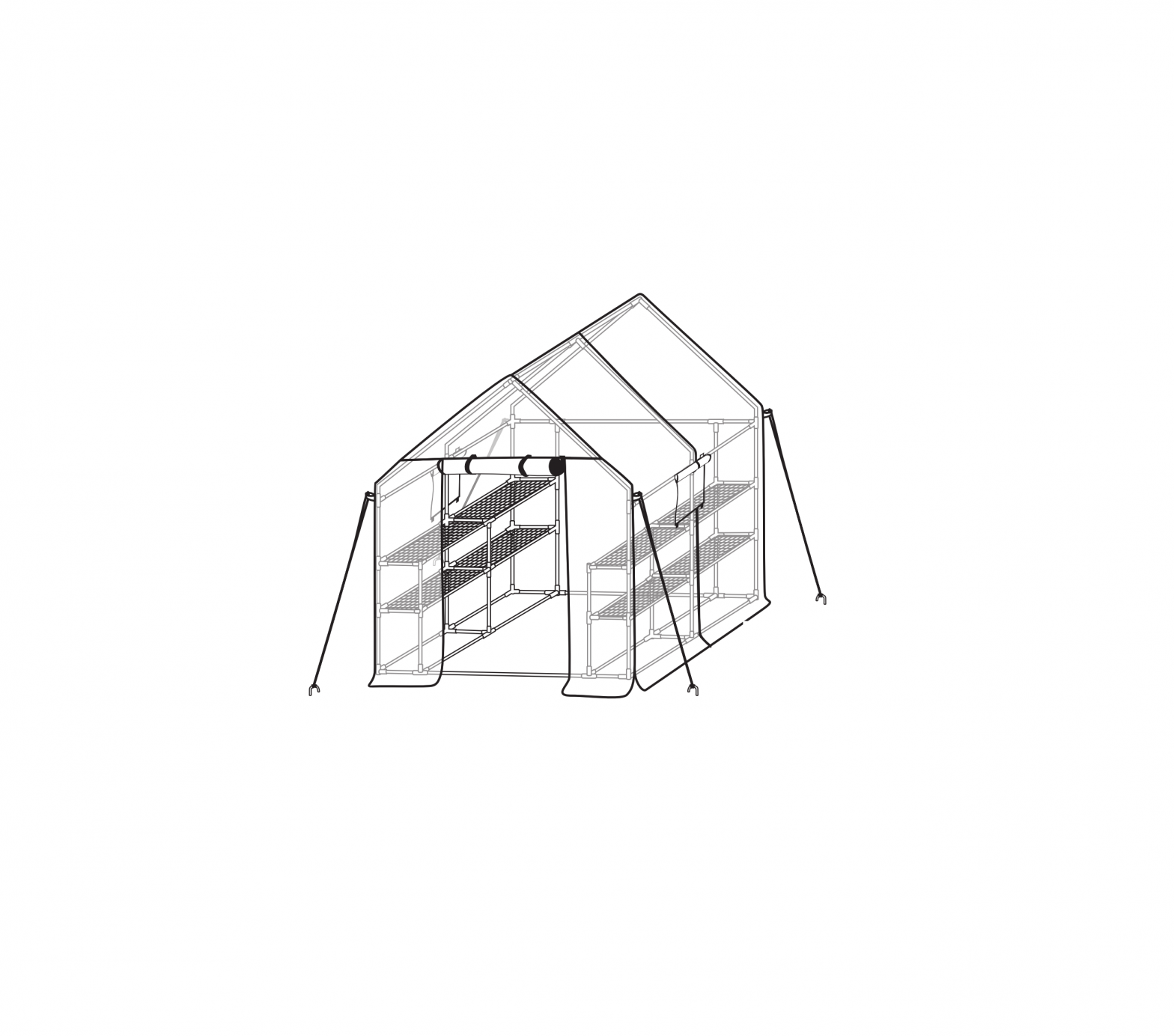

Ogrow OG4979-2T8/OG03-GBK7449E Portable Lawn and Garden Greenhouse
Package Contents
|
Number |
Picture |
QTY. |
|
A |
 |
4 |
|
B |
 |
6 |
|
C |
 |
2 |
|
D |
 |
6 |
|
E |
 |
26 |
|
F |
 |
1 |
|
G |
 |
2 |
|
Anchors |
 |
4 |
|
2 |
(25 in.) |
3 |
|
6 |
(10 in.) |
20 |
|
7 |
(31 in.) |
6 |
|
11 |
(17.5 in.) |
32 |
|
16 |
(35.5 in.) |
30 |
|
X |
 |
8 |
|
Y |
 |
1 |
|
Ropes |
 |
4 |
| IMPORTANT: Please check contents before attempting to construct growhouse. |
ARRANGE PARTS INTO GROUPS AS LISTED IN YOUR PACK CONTENTS UNFOLD COVER AND PUT TO ONE SIDE
STEP 1: 4xD 8xE 8×16 2×2 6×6 12×11Assemble the base with the above parts. 1 Once base is assembled build upwards using the parts listed in step 2.STEP 2: 8xE 4xB 4×6 12×11 6×6 8×16 4xXThis forms the next level. Once completed build the next level with parts listed in step 3.STEP 3: 8xE 2xB 4×6 8×11 2xD 6×6 8×16 4xXThis forms the next level. Once completed build the next level with parts listed in step 4.STEP 4: 4xA 2xC 2xE 1×2 4×16 2×6 6×7This forms the next level. Once completed build the next level with parts listed in step 5.STEP 5: 2xG 1xF 2×16 This forms the final level. Once completed, place the cover (Y) over the frame and attach.STEP 6: In order to have the frame connected you will need to assemble the frame by pushing downward while connecting two rods at a time, giving it an extra force (when frame is complete repeat from all angles, as picture shown). This will result in a tighter and smaller frame enabling the greenhouse cover to slide on easily.
Anchor kit Assembly Instructions
Step 1Hammer the anchors into the soil, placing them on all four sides of the greenhouse.
Step 2Connect the top end of the rope into the strap on the top of the greenhouse for all 4 sides as image shown.
Step 3Take the other end of the rope and pass it through the bended side of anchor as shown in Figure. Repeat the step for all 4 sides.
USA1.855.354.GROW (4769)www.ogrow.com[email protected]
UK1.888.555.4769www.ogrow.com[email protected]
