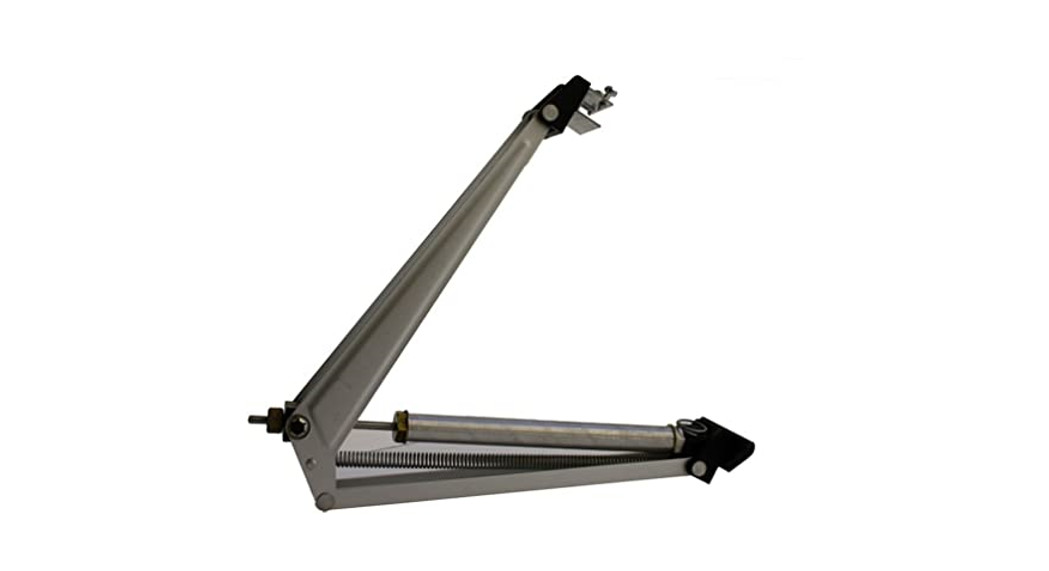

Rion Automatic Vent Opener
Assembly Instructions
AFTER-SALE SERVICE
http://palramapplications.com/after-sales-service
| LOCATIONS |  |
 |
| USA | [email protected] | 877-627-8476 |
| England | [email protected] | 01302-380775 |
| France | [email protected] | 0169-791-094 |
| Germany | [email protected] | 0180-522-8778 |
| International | [email protected] | +972 4-848-6816 |
IMPORTANT
- Please CAREFULLY READ ALL notes, instructions & remarks, BEFORE STARTING THE ASSEMBLY of the Automatic Vent Opener.
- CARRY OUT the assembly steps IN THE ORDER SET OUT in the instructions.

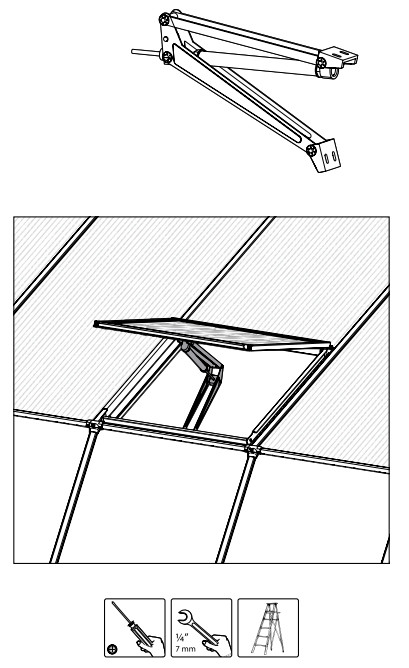

» Fitting the unit
- A manual vent opener, if already assembled, should be removed
- Follow the next steps for fitting the unit according to the greenhouse model you have purchased
- In the last step using the plastic knurled adjuster to adjust the closing gap

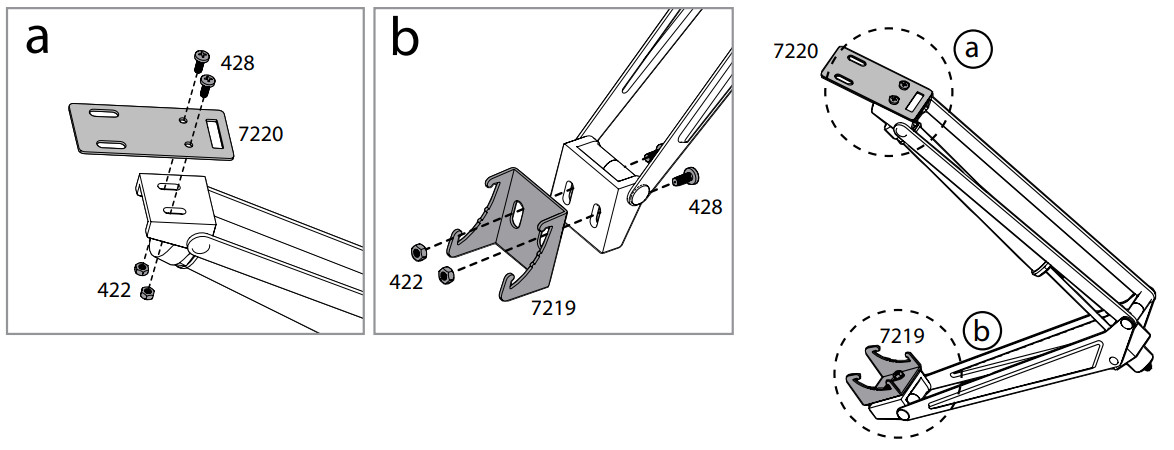

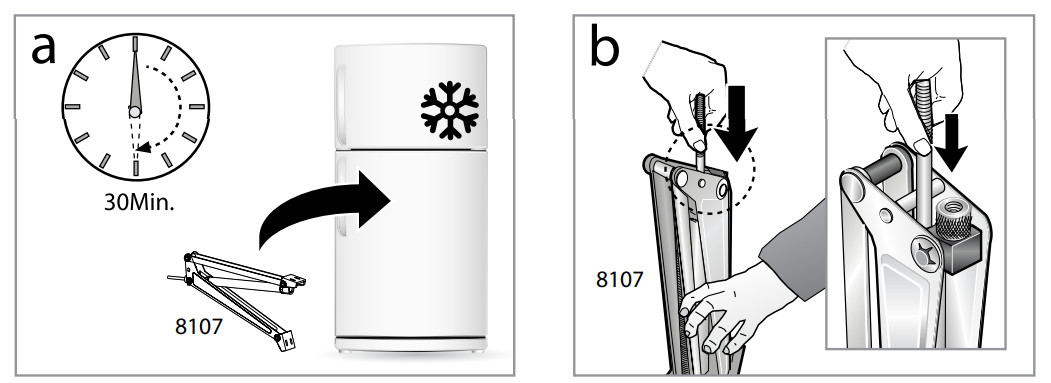

» Preparing the unit for fittingStep 1a – Prior to fitting the Automatic Vent Opener, the power tube has to be cooled by placing it in a refrigerator for approximately 30 minutes.Step 1b – Place the cool steel piston rod against a hard surface and push it firmly back into the power tube.Step 1c&d – Lift the Automatic Vent Opener with one hand, and slip the threaded steel piston rod into the plastic-knurled adjuster, which is fixed in the swiveling block.Step 3a – Screw the upper part of the auto vent opener to the vent’s frame (a)Step 3b – Clamp the lower part of the Auto vent opener to the greenhouse’ frame (b)Step 3c – The plastic-knurled adjuster will be used later to adjust the vent closing position. (Twist clockwise to open the gap wider)
» Important InformationLubricate all moving parts after fitting and before each spring and autumn using light oil. Use grease or petroleum jelly for the piston rod.In case of snow accumulation during the winter season and if you deploy a heating system inside your greenhouse, please remove the Automatic Vent Opener and switch to a manual opener.
