Portable Laser Rangefinder Parameters User Manual LS1

Portable Laser Rangefinder Parameters

Product Overview

Main Parameters

Product type Portable laser rangefinder
Accuracy ± 2mm
Unit m/in/ft
Operating temperature 0°C-40°C
Storage temperature -20°C-60°C
Endurance 180mAh/About 3,000 times
Measuring range 0.03-40m
Laser type Class2 620~670nm, <1mw
charging method DCSV
warranty period 1 year

Operation Method

On/Off:Long switch for about 1.5 secondsLong switch for about5 seconds or 45 seconds without operation automatic shutdown

Measurement:Single short-twist switch.starts measuring again to get the measurement data

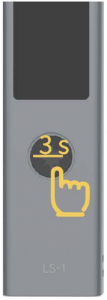

Switch starting point:Long switch for 3 seconds in the power on state

Supplementary explanations before and after the benchmark:

Screen Description

In the setting mode, the meaning of the icon:

Setting Mode

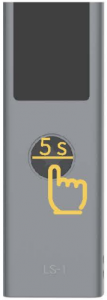

The way to enter the setup mode:Turn on and keep pressing for 5 seconds

The basic operation logic:Single short, change setting data/mode longer short(l seconds),save the current settings and go to the next setting

Setup Page 1:Calibrating the Laser RangefinderOn this page, the LS1 can be calibrated within ±7mm

Page 2: Switch LS1 measurement unitOn this setup page, you can change the unit of measure

Setup page 3: Turn the backlight on/offyou can set whether or not to display the LCD backlight.

Setup page 4: Turn on/off the buzzeryou can set whether the buzzer is turned on.• Due to different versions, this feature may not be installed, in order to configure the machine itself prevail.

Problems /Solutions

Fault type Possible causes and solutions
Cannot boot
  1. The battery has no power, charge and then try to boot.
  2. Long switch time is not enough, please confirm move for more than 1.5 seconds
  3. Switch or damage, please contact the dealer to solve
No backlight
  1. Set the mode to turn off the backlight by mistake. turn it on.
  2. The display backlight is damaged, please contact your dealer
Large Error
  1. The environment is bad, please add a white reflector.
  2. Correct calibration accuracy on the settings page.
Error code D.E Measuring distance too close/far
Error code T.L/T.H The ambient temperature is too low/ too high. please warm/ cool the equipment
Error code B.L Battery voltage is too low, please charge
No data
  1. Laser receiving head fouling cleaning treatment
  2. Rangefinder shaking too large, please stand

Usage Notice

Please read all the terms and operating instructions in this manual carefullybefore using this product. Failure to follow these safety guidelines and operating instructions may result in hazardous laser radiation damage or personal injury.& Do not attempt to alter the performance of the laser in any way, which cancause laser exposure to be dangerous. Turn on the laser only when using the instrument, and do not look directly at the laser. Please keep your instrument in a safe place to avoid the use of unrelated personnel., Do not intentionally use a laser to illuminate other or beam to objects on high reflective surfaces., Please keep it out of the reach of children.& Do not repair the instrument without authorization.& Electromagnetic radiation may interfere with equipment and devices [such as medical instruments such as pacemakers or hearing aids).Dispose of the discarded instrument in accordance with the laws of your location.

Class 2 safety laserBut direct view strictly prohibited
