PPNXiSPECIALIST NAILER
NEVER STOP BUILDING
CONGRATULATIONSThank you for choosing a Paslode tool. The PPNXI specialist nailer provides an efficient safe way of installing hangers, brackets, and straps. The tool accurately delivers a hardened twist nail in the precise required location.

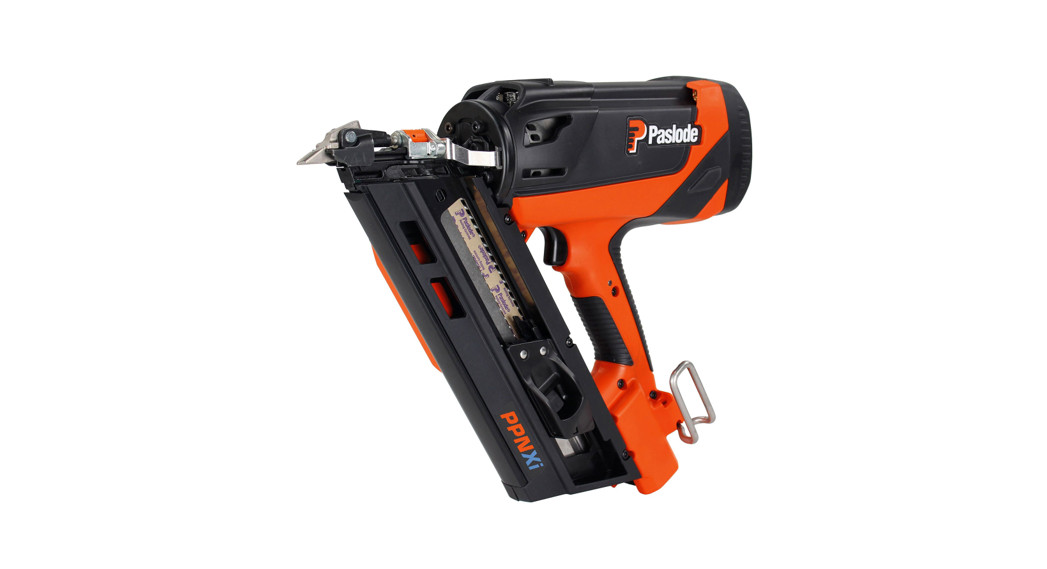

THE TOOL
TECHNICAL DATA
| Product weight | 3.7 kg |
| Size / depth | 381 mm / 121 mm |
| Power | 77 J |
| Fastener length range | 35 mm |
| Maximum Cycle rate per hour (fixings) | 1000 fixings |
| Maximum Cycle rate per sec (fixings) | 2-3 fixings |
| Magazine capacity | 29 fixings |
| Fuel cell capacity | 1250 (-VC) shots |
| Fixings per battery charge | 13000 shots |
| Battery charge time | 90 Min. |
| Battery type | Lithium |
| Operating temperature range | -15°C…+49ºc |
| Peak Sound Pressure (EN 12549) LpCpeak | 135 dB(C) |
| Workplace Relevant Emission, LpA | 95 dB(A) |
| Vibration (EN ISO 8662-11) ahv | 4,7 m/s² |
IN YOUR KIT
- PPNXi Specialist Nailer
- Lithium Battery
- Lithium Battery Charger
- Safety eye protection to EN166-F standard Allen Key
- Instruction Manual
- Tool Schematics
- Safety Instructions
- CE & UKCA Declaration of Conformity
|
CONSUMABLES YOU NEED |
|
| Hardened Twist NailsØ = 3.4 mmL = 35mm |  |
IF YOU NEED EXTRA ACCESSORIES
 |
 |
 |
 |
| Series-iFuel Cell300348 | Li-ionBattery018880 | ImpulseCleaning Kit013690 | BatteryCharger018882 |
INDEX:
- Getting Started Pg 4-5
- Tool Lights Pg 5
- Tool Adjustment Pg 6-7
- Tool Maintenance Pg 8-9
- Trouble Shooting Pg 10
- Paslode Range Pg 11
GETTING STARTED
|
FUEL CELL |
CONSUMABLES |
 |
 |
BATTERY

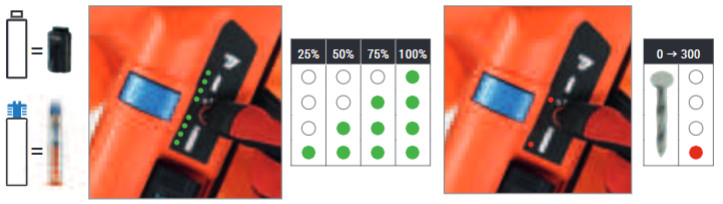

LED LIGHTS
RESTING POSITION
If you need to rest or place the tool down, please place it in the following position:
TOOL ADJUSTMENTS
ROTATING BELT HOOK
DEPTH OF DRIVE
ACTUATING THE TOOL

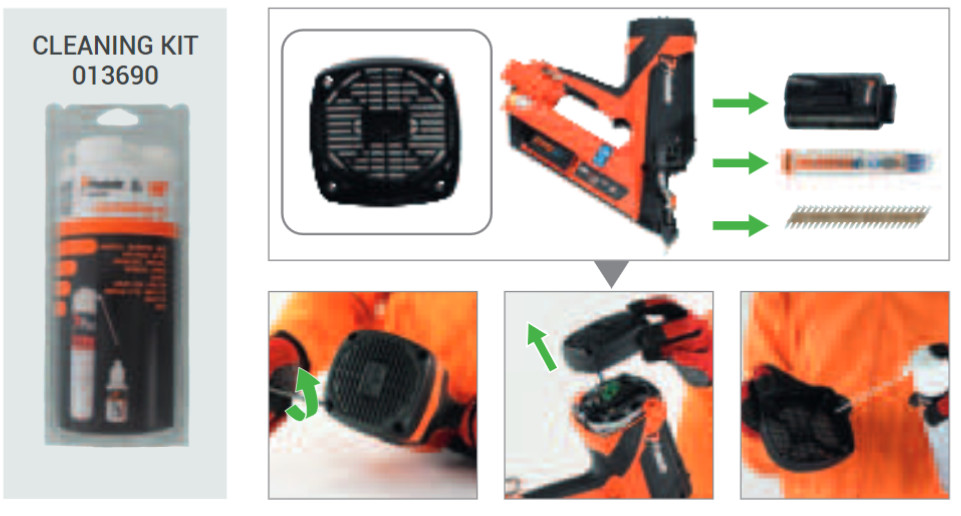

TOOL MAINTENANCE: FILTER
TOOL MAINTENANCE: FAN
PLEASE USE:
- CLEANING KIT 013690 AND THE O RING 013231
MAINTENANCE LIGHT RESET
The tool will flash green/red once the tool has fired 50 000 shots. This maintenance light can be reset by holding the start button for 10 seconds. Only reset once maintenance has been carried out on the tool.
TROUBLESHOOTING
ISSUE: HOW TO CLEAR A NAIL JAM

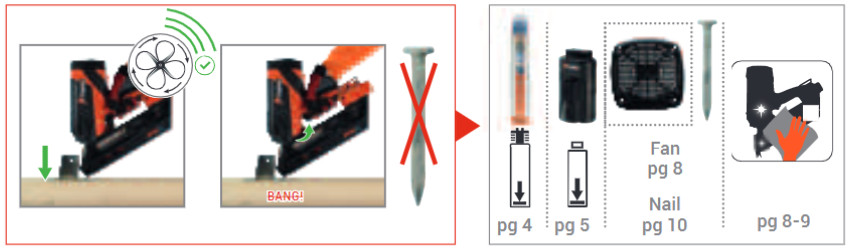

ISSUE: TRIGGER WORKS HOWEVER FAN NOT WORKING AND NO NAIL COMES OUT
ISSUE: TRIGGER & FAN WORKING HOWEVER NO NAIL COMES OUT
ISSUE: FANWORKS AND EXPLOSION HAPPENS HOWEVER NO NAIL
Refer to www.paslode.co.uk for further information on your tool and FAQ.
PASLODE RANGE
|
FRAMING |

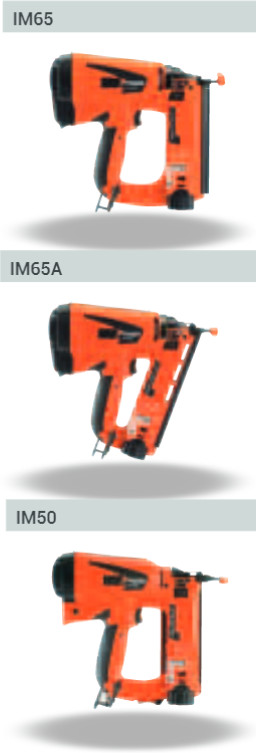

FINISHING |
SPECIALIST |
| Paslode Framing systems have been the cornerstone of first fix carpentry across the globe for over 30 years, minimizing user fatigue and downtime on site. | Paslode finish nailing systems offer the lightest and most compact range of reliable tools on the market.With precision in tight spaces ensures each brad is consistently driven flush which guarantees a high-quality finish | Paslode Specialist systems offer a lightweight, versatile alternative to hand nailing. They have the power to deliver a secure fixing whilst reducing installation time and labour on site. |
 |
 |
 |
WARRANTY
Paslode tools have a standard 2-year warranty, covering all components providing that the Manufacturer’s Operating Instructions have been followed, that no modifications have been made or non-original components or spare parts have been used, and that the tool has not been accidentally damaged or neglected.
ITWCP UK GlenrothesFife UK KY6 2SW4303 MANUEL PPNXi _FINAL.indd 1220/01/2021 11:34
