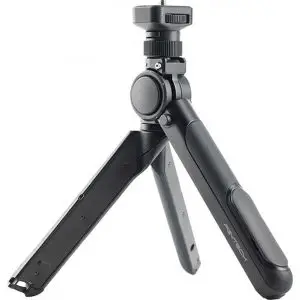

PGYTECH MANTISPOD PRO P-CG-020 Instruction Manual
Specification
The Product Name: PGYTECH MANTISPOD PROSku: P-CG-020Material: magnesium, aluminium alloy, silicone, TPU

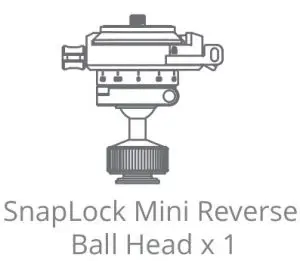

In the Box
Get to know your vlog tripped
- a.SnapLock Plate is Arca-Swiss compatible
- b. The Panorama Knob
- c. The Ball Head Lock
- d.Ball Head
- e. Dovetail cold shoe mount knob
- f. Dovetail cold shoe mount
- g. Anti-slip button
- h. The Third Gear Position
- i. The button for tilting upwards and downwards
- j. The Second Gear Position
- k. The First Gear Position c
- I. The lock to deploy the tripod
- m. Dovetail cold shoe mount for Extended Mode
- n. Hanging Position for Hand Strap
- o. Extra Lock for SnapLock Plate
- p. Button for Removing the SnapLock Plate
- q. 1/4 Inch Screw Hole and Dovetail cold shoe mount.
- r. Damping Adjustments
- s. The cold shoe mount on the side
- t. The Built-in Mini Phone Holder

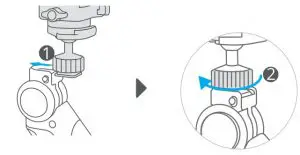

Quickly Attach/Detach SnapLock Mini Reverse Ball Head
How to operate
Quickly Mount the SnapLock Plate
Quick tripod installation
Quick angle adjustment
Note:The size of ball head damping can be adjusted according to your needs
Note: change the locking position to accommodate more ARCA-Swiss quick plates
How to disassemble
How to disassemble the SnapLock Plate from ARCA-Swiss slot.
How to disassemble the SnapLock Mini Reverse Ball Head from tripped.
Allround vlogging tripod

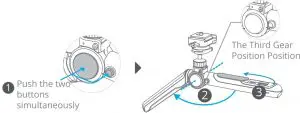

- How to use the button
- The Tripod Mode

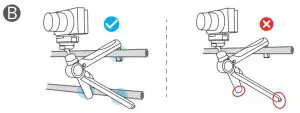

- MantisPod ModeNote: Please avoid using Mantis mode on moving objects such as vehicle, boats, etc.
- Extended Mode
- Mobile Vlogging Mode
Note: Please avoid using Mantis mode on moving objects such as vehicle, boats, etc.
How to use the Mini Phone Holder
Scan the QR code to watch detailed tutorials
MantistPod Pro has a three- year warranty. For more details by visiting ourwebsite: www.pgytech.com
