5766 seriesProduct design is for illustrative purposes only.The actual product may vary.
Quick start guideFor further assistance, please call customer support in your country or check the Philips website for chat support.To obtain assistance, contact Philips customer care center;In the U.S.A., Canada, Puerto Rico, or the U.S. Virgin Islands
|
Call us:1-866-309-5962 |
Scan to call us: 18663095962 |
| Chat with us:http://tinyurl.com/y2e29xsq |
Scan to call us: |

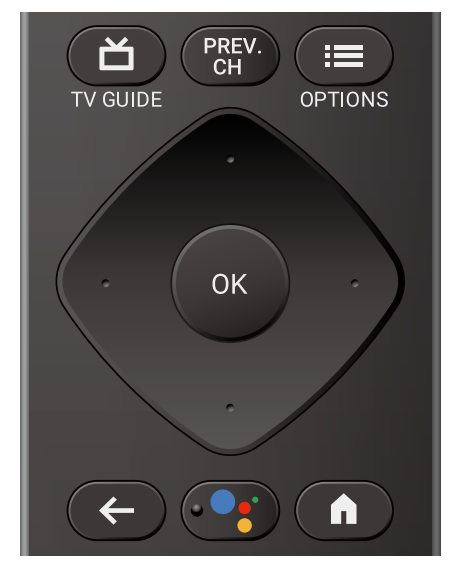

Using the remote
How to install the batteries in the remoteOpen the battery cover by firmly sliding down. Insert 2 AAA (1.5 V) batteries matching the polarity indicated inside the battery compartment of the remote.
(POWER)Turn the TV on/off into Quick Start Standby. Holding the button for 1 second or more will put the TV into Low Power Standby.- (TV GUIDE)Access to the Electronic Program Guide (EPG).
- Google AssistantPress the Google Assistant button on your remote to ask Google.
←(BACK)Returns to the previous menu screen.- PREV.CHDirect access to the Live TV channels.Displays the last selected terminal or channel.
- (OPTIONS)Displays a list of menu options applicable to the active screen.
- *(CURSOR as ) and OKMoves to select an item and to determine the various menu.
- (HOME)Access to your apps, Live TV, input devices, settings, and the Google Play Store.
- (INPUT)Change the input source.Select and change access to the attached devices such as Blu-ray players, gaming consoles, or cable boxes.
(POWER)Turn the TV on/off into Quick Start Standby. Holding the button for 1 second or more will put the TV into Low Power Standby.
(OPTIONS)Displays a list of menu options applicable to the active screen.Best Experience
Google accountUnleash your television’s true potential. With a Google® account, you can effortlessly expand your entertainment library via the Google Play Store and Google Play app and also keep apps up-to-date.While you can enjoy this Philips Android TV™ without a Google Account via the preinstalled selection of applications, we recommend a Google account to download additional apps from the Google Play Store or use Google Assistant.
Note:Simply log in with your Google account.Network routerWired Connection:For the best experience, a wired connection is preferred. Connect an ethernet cable from your router or modem to the LAN port located on the back of your Philips Android TV.Wireless Connection:The Philips 5000 Series Android TV is equipped with Wireless LAN 802.11ac MIMO for wireless streaming of up to 4K content.Note:Wireless performance may be affected by various factors, including the distance between the TV and your Wi-Fi router. To improve wireless performance, we recommend placing your Wi-Fi router within 15 feet of your TV.Note:The use of open or unencrypted Wi-Fi networks is not recommended, as these networks are not secured, and your data could be at risk.
Tip:If your Wi-Fi Router was set up by your internet service provider (ISP), you may find a sticker on the bottom of your router indicating your Wi-Fi SSID and password.Set up Android TV with your Android smartphone or tabletIf you have an Android™ phone or tablet, you can quickly and easily set up your Android TV from your Android device. Pairing your Android device will allow you to wirelessly sync your Wi-Fi credentials, Google account, and Android TV-compatible apps. During the initial setup, you willbe prompted to set up your TV with your Android device, select Yes, and follow the on-screen instructions.Note:Be sure to enable pairing mode on your Android device in the beginning.
Explore your television
From the Android TV home screen, you can easily access movies, TV shows, music, apps, input devices, settings, and more.To go back to the home screen at any time, press a
(HOME) on your remote.
- Google AssistantWith Google Assistant, quickly access entertainment, control smart devices, get answers on the screen, and more using your voice.
- Home screen tab
- Discover tabRecommendations are shown by topic or theme. Recommendations are based on watch history, interests, and new trends.
- Apps tabApps gallery which pre-installed or you installed.You must sign in with a Google account to visit and download apps from the Google Play store.
- HighlightsYou can find suggestions of movies and shows to watch which are handpicked by Google Play’s entertainment experts or sponsored by media partners.
- InputsToggle inputs between your favorite source devices and a built-in RF tuner.
- Network conditionDisplay the network status and open network settings if selected.
- SettingsConfigure your television settings and connect to wireless devices.
- How to organize your favorite appsSelect the application and long-press OK on your remote.To move, Select Move in the list, and press OK. Use to move left or right. Press OK.To delete, Select Remove from favorites in the list, and press OK.
to move left or right. Press OK.To delete, Select Remove from favorites in the list, and press OK.Live TV/Antenna
To select channels, use CH + / – on your remote. For installation of TV channels using a set-topbox, go to “7 Connecting your devices”.Add channelsTo add for the first time or additional channels, please follow the steps below:
- On the Home menu, go to the Apps row and select How to…
- Select Live TV to open the channel installation page. Once open, select Setup and press OK.
- Select your signal type Antenna / Cable to start the channel installation.
Channel listPress OK while viewing Live TV to open the channel list.Program guideTo view the latest TV program schedule, press
(TV GUIDE) on your remote.Tip:Live TV feature is only compatible with antenna and select cable broadcasting. To access your cable box or other source inputs, you must press
(INPUT) on your remote.
How to use Google Assistant with your remote
To use Google Assistant on your remote, make sure that the remote is connected via Bluetooth to the television. To check this, go to Settings >Remotes & accessories on your TV.If the remote is not connected, hold down the Volume (-) and the Google Assistant button together for 3 seconds and select “Add accessory” in the menu.You can start a conversation by simply pressing the Google Assistant button on your remote to ask Google a question or say a command.When activated by a button, the Google Assistant dialog bar will appear at the bottom of your television screen.Privacy protection built-inGoogle Assistant is designed with your privacy in mind. You can delete any voice-command history by pressing the Google Assistant button and simply saying “Delete what I just said”.For more details on privacy, please visit: https://safety.google/intl/en-US
Google DuoGoogle Duo is an app that provides simple, high-quality video calls right from your TV. To start calling with Google Duo, the below items are required:
- 10 Mbps or faster internet access for 1080p video calls.
- Google account
- External USB camera with a built-in mic that supports Android 9.0 and later.
The below USB camera is compatible with this 5766 series Philips Android TV.Check the Philips Android TV Hook Up Guide (http://www.philips.com/support) for the latest compatibility updates.
| Brand | Model |
| Logitech | C920s |
| Logitech | C922 |
- If connectivity issues arise, please turn on Data Saving Mode under Settings > Call Setup > Data Saving Mode. This reduces the necessary bandwidth as well as the call quality.
- A Google account is required. Sign in with an existing account or create a new one. If there is one already signed in on your Android TV, select the account that you want to use.
- The compatibility of USB cameras with this Philips 5766 series Android TV may change over time with USB camera hardware and/or software updates.For more details on how to get started, please visit https://support.google.com/duo/answer/10079968?hl=en&ref_topic=6376099
https://support.google.com/duo/answer/10079968?hl=en&ref_topic=6376099
Below is an example of how to connect and place a USB camera.
Connecting your devices

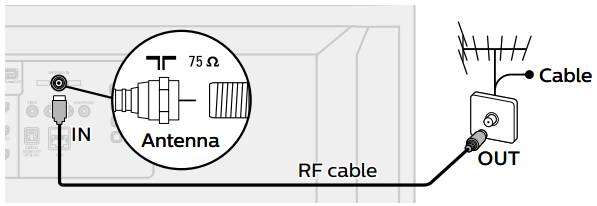

How to use external devicesConnecting antenna or cable / satellite / IPTV set-top boxTip:Connect your external devices to your Android TV before powering on.If connecting to an antenna via an RF cableDTV programs that are broadcasted in your area can be received for free through a digital antenna.

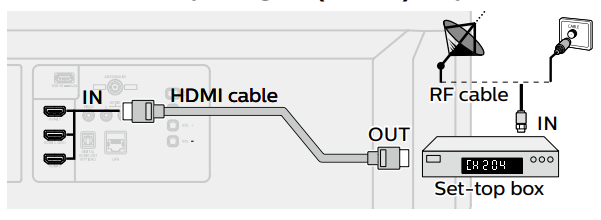

If connecting a set-top box via an HDMI cableIf the TV is connected to a cable or satellite set-top box via an HDMI cable, you must select the correct source by using (INPUT) on your remote.
Changing input to devices that are connected to the TVPress (INPUT) to switch the input device list.Tip:To get the best picture quality for your source device, you may have to adjust the EDID version.EDID 1.4 is used for legacy devices that can output in 2Kor 4K @ 30 Hz.EDID 2.0 is used for modern devices that can output 4K @ 60 Hz and 4K with HDR 10.
- Press (OPTIONS) on your remote and navigate to Settings and press OK.
- Select Device Preferences and press are OK.
- Select Inputs and press OK.
- Select HDMI EDID Version and press OK.
How to use Chromecast built-in™Casting allows you to mirror your favorite apps on the big screen.Tip:The device you are using to cast to your television must be on the same Wi-Fi network.
- Open a Chromecast built-in enabled app.
- Tap
- Tap the device you would like to cast to.
How to connect to your Bluetooth® devicesTo pair your Bluetooth® devices, such as a wireless headset, keyboard, game controller, with your Android TV.
- On the Android TV home screen, select Settings in the upper right corner of the screen.
- Select Remote & Accessories.
- Enable pairing mode on your device.
- Select Add accessory.
- Using your TV remote, select your device from the list shown on your TV.
- Your Android TV will pair with your device.
Tip:Some devices may require additional steps. Please consult your Bluetooth device manual for more information.
Parental Control
Parental ControlsYou can restrict your children from watching certain programs or channels, by setting parental controls using a rating lock.How to set up Parental Controls
- On the Android TV home screen, select Settings in the upper right corner of the screen, and press OK.
- Select Channel > Parental Controls and press OK.
- Enter your PIN (*) > Program Restrictions > Ratings.
- Select Ratings as described in the table below and press OK.
Note:The default setting of PIN is “1234”.If you have forgotten the current 4-digit PIN code, you can reset the code by performing Factory data reset.Program Restrictions are displayed only when the last selected input is not HDMI.*Rating types and restriction levels
| United States | United States (Film ratings) | ||||||||||
| TV-Y | TV-Y7 | TV-G | TV-PG | TV-14 | TV-MA | G | PG | PG-13 | R | NC-17 |
X |
| High RestrictionsContent suitable for children |  |
|
|
|
|
|
|
|
|||
| Medium RestrictionsContent suitable for older children | |
|
|
|
|
|
|
||||
| Low RestrictionsContent suitable for teens | |
|
SafeSearch filter for Google searchSafeSearch can help you block inappropriate or explicit images from your Google search results.The SafeSearch filter helps block most adult content from your television. Parental supervision is strongly recommended.
- On the Android TV home screen, select Settings in the upper right corner of the screen, and press OK.
- Select Device Preferences and press are OK.
- Select Google Assistant and press OK.
- Select SafeSearch filter and press OK.
For complete instructions, please visit www.philips.com/support to download the full version of the online user manual.This product has been manufactured by and is sold under the responsibility of Funai Corporation, Inc., and Funai Corporation, Inc. is the warrantor in relation to this product.The Philips trademark and the Philips shield emblem are registered trademarks of Koninklijke Philips N.V. used under license.
Troubleshooting
|
Category |
Problem |
Tip |
| Power | No power |
|
| Slow startup | Your TV takes a long time to start up when you turn it on. |
|
| Remote | Remote buttons are not functional |
|
| The Google Assistant button on your remote doesn’t work |
|
|
| Network | Cannot connect the network. |
|
| Slow Data Connection or buffering. |
|
|
| Performance | The remote response is delayed or sluggish during initial use. |
|
| Google Duo | USB camera does not work |
|
| Another party cannot hear anything (My microphone does not work) |
|
|
| I cannot hear another party (Speaker does not work) |
|
|
| Where can I find Google Duo app? |
|
|
| Picture | The power is on but the screen image is off. |
Change source input until you have picture and sound. |
| The picture on HDMI Input | Television has sound with no picture or abnormal picture. |
|
| Accessibility | Television is speaking prompts out loud. |
|
| Sound on HDMI withexternal devices | Television has no sound. |
|
For further assistance, call the customer support service in your country.
- To obtain assistance, contact Philips customer care center;In the U.S.A., Canada, Puerto Rico, or the U.S. Virgin Islands 1 866 309 5962Enter below the model and serial numbers located on the left side and the rear of the TV cabinet.
Model :Serial :
