PHILIPS 75PFL4756 4756 Series 4K UltraHD LED Roku TV User Guide

PHILIPS 75PFL4756 4756 Series 4K UltraHD LED Roku TV

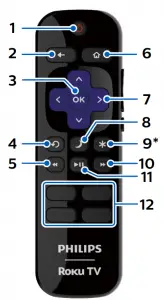

Using the remote

How to install the batteries in the remote

Open the battery cover by firmly sliding down. Insert 2 AAA (1.5 V) batteries matching the polarity indicated inside battery compartment of the remote

  1. PowerTurn TV on and off
  2. BackReturn to previous screen
  3. OKSelect an option from a menu
  4. Instant replayReplay the last few seconds of streaming video
  5. RWD scanRewind streaming video, scroll left one page at a time
  6. HomeReturn to Roku Home screen
  7. Directional keypadMove up or down; The left arrow will bring up the antenna TV channel list or Smart Guide.The left and right arrow are used for Live TV Pause to select scenes.
  8. SleepSet the sleep timer
  9. OptionsAccess to picture settings, move streaming channel icons and more
  10. FWD scanFast forward streaming video, scroll right one page at a time. This button is also used to fast forward paused live TV using Live TV Pause.
  11. Play / PauseStart or pause playback. This button is also used to activate and use the Live TV Pause feature when a 16 GB USB drive is attached to the TV.
  12. Featured channel shortcutLets you directly access featured channels
  13. Volume / MuteIncrease / Decrease volume and mutes the TV sound
  • The gives you easy access to picture settings, display options and more. Try it on every screen

Prepare to activate your smart TV

What you need (not included)

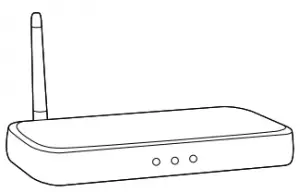

  • Wireless router(needed to connect your TV to the Internet)
  • Internet connection(needed for streaming)
  • Computer, tablet, or smartphone(needed for setup)
  • Roku account(needed to access entertainment across thousands of streaming channels)

For additional support, please see online owner’s manual at www.philips.com/supportKey things to know: A paid subscription or other payments may be required for some streaming channel content.Channel availability is subject to change and varies by country.

Your Roku account

During guided setup, you will be prompted to create your Roku account online. See more information below.

  • Roku accounts are free, and while a valid credit card number is not required to create your account, providing your credit card information makes renting and purchasing entertainment from the Roku Channel Store fast and convenient.
  • If you choose to save a payment method, you will be able to seamlessly rent content, download channels and subscribe to services without having to enter your credit card information each time.
  • A unique PIN can be added to the account to prevent unauthorized purchases.

Tip:Roku does not charge for activation support – beware of scams.

Plug in and turn on TV

Connect the AC power cord to the AC outlet. Press the power button on the TV’s remote.

Follow the on-screen instructions

  1. Once your Roku TV powers on, follow the on-screen instructions. Your Roku TV will walk you through initial setup and help connect to your preferred wireless network.
  2. Your TV will automatically detect wireless networks in your area. Have your network name and password handy and follow the easy on-screen instructions. x If you are not ready to connect your TV to a wireless network, you can still use it as a regular TV by selecting “Connect to the Internet later”.
  3. Once connected your TV will automatically update with the latest software. This can take a few minutes to update.

Once you complete guided setup, your TV will automatically update with the latest software. Your new Philips Roku TV automatically receives regular software updates in the background when it’s connected to the Internet. This allows it to give you a better experience over time.

Download the Roku mobile app (optional)

The free Roku mobile app allows you to use your mobile device as a fully functioning remote with voice search and keyboard.

  • Download the Roku mobile app on your smartphone or tablet through Google Play or Apple App Store.
  • Simply search for “Roku app” and choose the “Roku” app provided by Roku Inc.
  • Follow the on-screen prompts and you are on your way:

Caution:Funai Corporation Inc. does not warrant access to the portal or to any of the services, content, software and advertising. Funai Corporation Inc. may, in its sole discretion, add or remove access to any specific services, content, software and advertising at any time. Although Funai Corporation Inc. will strive to provide a good selection of services, content or software, Funai Corporation Inc. does not warrant continued access to any specific services, and content or software.Funai Corporation Inc. does not warrant Wireless Screencasting compatibility with all source devices such as smartphones, tablets, laptops, etc. due to large variability in hardware, firmware, drivers, software and implementation of wireless casting applications on these source devices. Although Funai Corporation Inc. will strive to enhance compatibility and performance across a range of source devices, Funai Corporation Inc. does not warrant compatibility with specific source devices.

Connect antenna or cable (optional)

With the tuner built-in you can connect your TV to antenna or cable (free cable only, does not work with cable TV using a set-top box) and enjoy over-the-air entertainment.

  1. When the setup wizard is complete, select the Antenna TV tile from the home screen.
  2. Follow the on-screen instructions.
  3. Whenever you want to watch local broadcast TV, select this tile.
  • User interface may vary.

Tip

While in the antenna TV input, you can use your remote to access additional features.

  • D-Pad left: Pressing this key brings up the smart guide, a list of antenna TV channels.
  • Play/Pause: Pause live TV for up to 90 minutes when a 16 GB USB drive is connected.
  • RWD scan and FWD scan: Allows you to fast forward and rewind while using the Live TV Pause feature.
  • D-Pad left and right: Allows you to scroll through the paused Live TV and select scenes.

For complete instructions, please visit www.philips.com/support to download the full version of the User manual.This product has been manufactured by and is sold under the responsibility of Funai Corporation Inc., and Funai Corporation Inc. is the warrantor in relation to this product.The Philips trademark and the Philips shield emblem are registered trademarks of Koninklijke Philips N.V. used under license.Roku, Roku TV and the Roku logo are the trademarks or registered trademarks of Roku, Inc. All other trademarks and logos herein are the property of their respective owners.

Parental Controls

Parental controls enable you to control whether the members of your household can view certain kinds of broadcast TV programs. When a program or feature is blocked, you can unblock it by entering a parental control PIN that only you know

Note

Parental controls block content from the TV tuner and from streaming options, if any, on the Home screen menu. Parental controls do not block content on other TV inputs or content from streaming channels you add to your TV.

Creating a parental control PIN

To create a new parental control PIN, from the Home screen menu navigate to Settings > Parental controls. The screen displays a numeric keypad. Use the purple directional pad to enter a four-digit code, and then press OK. Then repeat the process to enter the same PIN again, just to make sure you correctly entered the PIN you want to use.

Important:

If you forget your parental control PIN, the only way to recover is to perform a factory reset operation

Blocking broadcast TV programs

Enabling parental control of TV programs

The first step in blocking TV programs is to enable parental control of TV programs. To enable parental control of TV programs:

  1. In the Home screen menu, navigate to Settings > Parental controls, and then enter your parental control PIN.
  2. In the Parental controls screen, navigate to TV tuner > Parental control of TV shows.
  3. Make sure the check box next to Enable parental controls is checked. If not, highlight it and press OK.

Blocking based on US TV ratings

To block TV programs based on US television rating

  1. From the Home screen menu, navigate to Settings > Parental controls, and then enter your parental control PIN.
  2. In the Parental controls screen, navigate to TV tuner > TV ratings. Choose among the following settings:
  • Entire ratings – Highlight the rating you want to block, and then navigate to the right and select the first option that blocks the entire rating level (and all higher rating levels).
  • Individual content types – Highlight the rating that contains the content type you want to block, and then select the content types you want to block from among those listed. Remember that blocking a content type in one rating blocks the equivalent content type in all higher rating levels.

Copyright

All other registered and unregistered trademarks are the property of their respective owners.

The terms HDMI and HDMI HighDefinition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation

Portions of this software are copyright © The Free Type Project (www.freetype.org).The American Academy of Pediatrics discourages television viewing for children younger than two years of age. Some features may require an always-on broadband internet connection, firmware update and / or a minimum bandwidth Internet services vary by location.

Funai Corporation Inc. does not warrant access to the portal or to any of the services, content, software and advertising. Funai Corporation Inc. may, in its sole discretion, add or remove access to any specific services, content, software and advertising at any time. Although Funai Corporation Inc. will strive to provide a good selection of services, content or software, Funai Corporation Inc. does not warrant continued access to any specific services, and content or software.

Funai Corporation Inc. does not warrant Wireless Screen casting compatibility with all source devices such as smartphones, tablets, laptops, etc. due to large variability in hardware, firmware, drivers, software and implementation of wireless casting applications on these source devices. Although Funai Corporation Inc. will strive to enhance compatibility and performance across a range of source devices, Funai Corporation Inc. does not warrant compatibility with specific source devices.

Troubleshooting

Category  Problem  Tip
Power No power
  • Ensure that the AC outlet supplies the proper voltage. Plug another electrical appliance into the AC outlet to ensure that the AC outlet operates normally.
  • If a power failure occurs, unplug the AC p owe r cord for 1 minute to allow the unit to reset itself.
Remote Remote buttons are not functional.
  • Re- insertor replace the AAA batteries with their polarities (+/ -) as indicated on the remote battery area.
Network Cannot connect the network.
  • Check if your router and/ or modem is properly connected.
  • Check if the Ethernet cable connection between the TV and your router or modem is properly secured.
  • Power cycle the router and/or modem.
  • Check your network settings.
Stow Data Connection or buffering.
  • Check the settings between your router and ISP modem or gateway (if applicable).
  • Connect to a stable wireless connection from home wireless or wired network
  • The use of mobile hot spots or public wireless connections is not recommended.
Picture on HDMI Input Television has sound with no picture or abnormal picture.
  • HDMI EDID Version setting is set to a different mode than your source device.
  • Change the resolution output of your source device.
Sound on HDMI with external devices Television has no sound.
  • Please check to be sure the device is connected to the HDMI 2 (ARC) input on the TV.

For further assistance, call customer support in your country;In the U.S.A., Canada, Puerto Rico, or the U.S. Virgin Islands 1 866 309 5962México D.F. and Área Metropolitana; 58 87 97 36, Interior de la Republica; 01 800 839 19 89We also offer chat for products sold in the U.S. and Canada at https://tinyurl.com/yd277459Enter below the model and serial numbers located on the left side and the rear of the TV cabinet.

Model:________________________________________________________

Serial:________________________________________________________

(To find your Philips Roku TV model number, go to Home > Settings > System > About)

www.philips.com
