Philips AirBridge (ACC4100) User Manual

User manualAirBridge (ACC4100)

Important

Do not make any adjustments and modifications that are not described in this manual. Follow all safety instructions to ensure the proper operation of the device. The manufacturer assumes no liability for damages resulting from non-compliance with the safety instructions.

http://help.speechmike.com/acc4100

View this user manual online: help.speechmike.com/acc4100

Safety instructions

  • Protect the device from rain and liquids to prevent damage to the device or a short circuit.
  •  Do not expose the device to excessive heat caused by placing it on a heating device or in direct sunlight.
  •  Protect the cables from damage by being trapped, particularly at the plugs and where cables exit the housing.
  • Do not perform any maintenance operations that are not described in this user manual. Do not disassemble the device into its component parts to carry out repairs. Thedevice may only be repaired in authorized service centers.
  •  All wireless devices may be susceptible to interference, which could affect performance.
  •  Back up your data and recordings. The manufacturer’s warranty does not cover loss of data resulting from user actions.

Hearing protectionObserve the following guidelines when you use headphones:

  • Set the volume to a moderate level and don’t use headphones to listen for excessively long periods of time.
  • Be particularly careful to avoid adjusting the volume to a level that your hearing can’t deal with.
  • Don’t turn the volume up so high that you can’t hear what is going on around you.
  • In potentially dangerous situations, be particularly careful or temporarily discontinue use.
  • Don’t use headphones while you are operating a motorized vehicle, cycling, skateboarding, and so on.You could be a hazard to yourself and other road users, and possibly be breaking the law.

Small childrenYour device and its accessories may contain small parts.Keep them out of the reach of small children.Medical device interferenceOperation of any radio transmitting equipment may interfere with the functionality of inadequately protected medical devices. Consult a physician or the manufacturer of themedical device to determine if they are adequately shielded from external RF energy or if you have any questions.Switch off your device in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipmentthat could be sensitive to external RF energy.

Hearing aidsSome digital wireless devices may interfere with some hearing aids. If interference occurs, consult your service provider.Vehicles RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles such as electronic fuel injection systems, electronic antiskid (antilock)  braking systems, electronic speed control systems, and airbag systems. For more information, check with the manufacturer, or its representative, of your vehicle or any equipment that has been added.Only qualified personnel should service the device or install the device in a vehicle. Faulty installation or service may be dangerous and may invalidate any warranty that may apply to the device.Check regularly that all wireless device equipment in your vehicle is mounted and operating properly. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the device, its parts, or enhancements. For vehicles equipped with an airbag, remember that airbags inflate with great force.Use in aircraftWireless transmitters can negatively affect the operation of other electronic equipment, causing them to malfunction. Turn off your device when you travel in aircraft.Cleaning and disinfection

  • Before cleaning, disconnect all cables from the device.
  • To clean the device, use a soft dry cloth.
  • To disinfect the device, use products for disinfection of surfaces in clinical areas and patient care equipment, such as surface disinfectant wipes.
  • Do not use harsh chemicals or strong detergents.
  • Avoid getting moisture in openings.
  • Do not rub or strike the surface with anything hard or sharp as this may scratch or damage the surface permanently.

Disposal of your old productA crossed-out wheeled bin symbol attached to a product indicates that the product is covered by the European Directive 2011/65/EU. Please get informed about the local separate collection system for electrical and electronic products. Please act according to your local rules and don’t dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

About this user manualFind a quick overview of your device on the next pages. For a detailed description, see the following chapters of this user manual. Read the instructions carefully.Symbols used

TIPThis symbol identifies information that helps you to use your device more efficiently and simply.

NOTEThis symbol indicates notices which you should observe when handling or operating the device.

CAUTIONThis symbol warns of damage to the device and possible data loss. Damage can be caused by improper handling.

Your AirBridge

We are delighted that you have chosen a Philips device.Visit our website for comprehensive support, such as user manuals, software downloads, warranty information, and more: www.philips.com/dictation.

What’s in the box

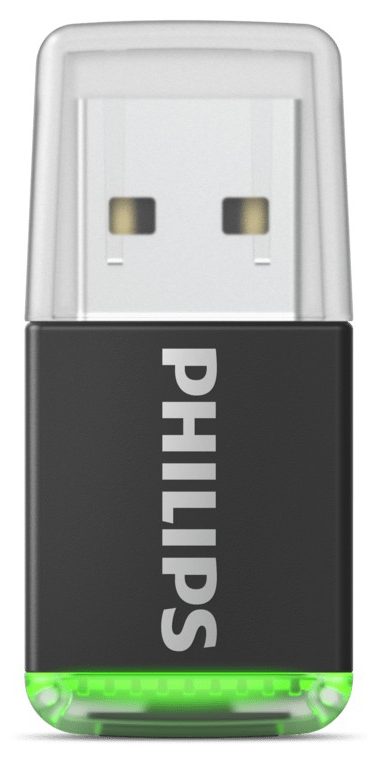

Overview of your AirBridge

  1. USB plug
  2. Status LED
  3. Pairing button

Connect your AirBridge

SpeechOne

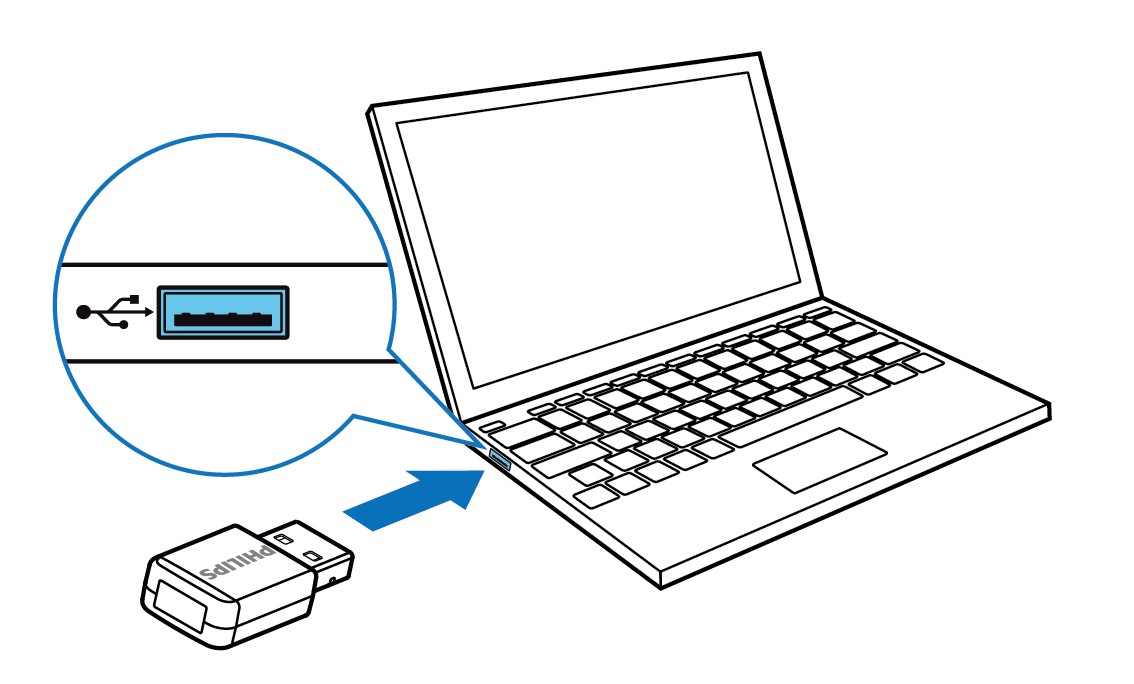

  1. Connect the AirBridge to your computer.NOTEDo not use any extension cables to connect the AirBridge to your computer to avoid connection problems.
  2. Hold the Pairing button of your AirBridge for 3 seconds.
  3. The status LED of your AirBridge starts to flash orange.

4. Keep the Pairing button of your SpeechOne for 3 seconds.

NOTE Make sure to turn on your SpeechOne headset by pressing the Headset button for 2 seconds.

5. The status LED of your SpeechOne headset starts to flash orange.

6. The SpeechOne headset automatically connects to the AirBridge. Once successfully connected, the status LED of both devices illuminates green.

 Once paired with the AirBridge, the SpeechOne headset will automatically reconnect to this AirBridge without the need for a manual pairing process.NOTEThe SpeechMike / SpeechOne only stores the last two connections, e.g. to the last docking station and the AirBridge it was connected to. If you connect your SpeechMike /  peach one to an additional docking station or AirBridge, only the two most recent connections are stored.CAUTIONUnplug the AirBridge from laptops or other portable computers before transport to avoid any damages to the AirBridge or the computer.

Power down your SpeechOneIf the SpeechOne is not used for more than 6 hours, it automatically turns off to save battery life. You can also power down your SpeechOne manually:

  1. Remove the headset from the docking station.
  2. Hold the Pairing button of your SpeechOne headset for 9 seconds.

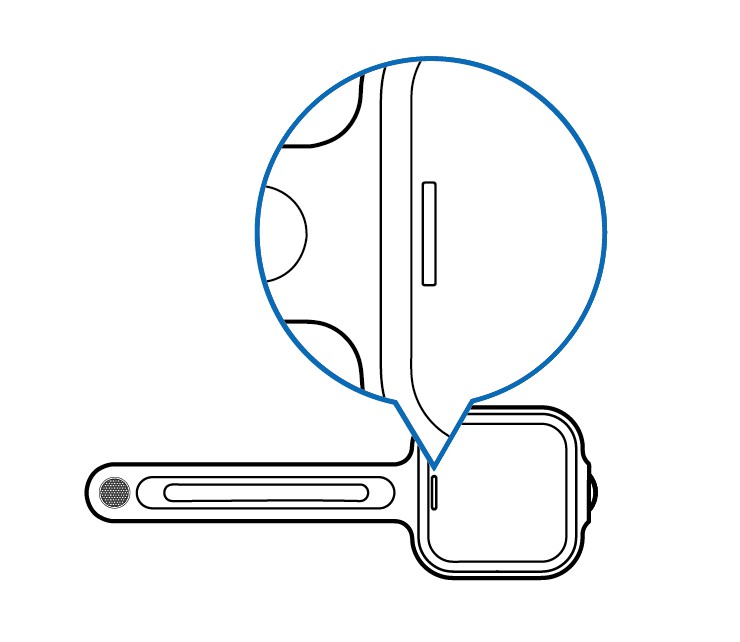

  3. The status LED of your SpeechOne headset is no longer illuminated, indicating that you turned off the device.To turn the device on again, press the Headset button for 2 seconds.

SpeechMike Premium Air

  1. Connect the AirBridge to your computer.NOTEDo not use any extension cables to connect the AirBridge to your computer to avoid connection problems.
  2. Hold the Pairing button of your AirBridge for 3 seconds.
  3. The status LED of your AirBridge starts to flash orange.
  4. Hold both the F1 and F2 buttons of your SpeechMike for 3 seconds.
  5. The status LED of your SpeechMike headset starts to flash orange.

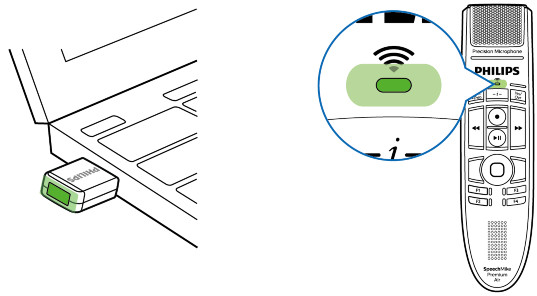

  6. The SpeechMike automatically connects to the AirBridge. Once successfully connected, the status LED of both devices illuminates green.

Once paired with the AirBridge, the SpeechMike will automatically reconnect to this AirBridge without the need for a manual pairing process.NOTEThe SpeechMike / SpeechOne only stores the last two connections, e.g. to the last docking station and the AirBridge it was connected to. If you connect your SpeechMike / peach one to an additional docking station or AirBridge, only the two most recent connections are stored.CAUTIONUnplug the AirBridge from laptops or other portable computers before transport to avoid any damages to the AirBridge or the computer.

Technical data

ConnectivityUSB: type AWireless connectivityWireless technology: 2.4 GHz ISM BandModulation: 8-FSKMaximum range: up to 5 m / 16 ft (in clear view)PowerPower consumption: 200 mWProduct dimensionsDimensions: 35 × 18 × 9 mm / 1.4 × 0.7 × 0.4 inWeight: 45 g / 1.6 oz.Green specifications

  • Compliant to 2011/65/EU (RoHS)
  • Lead-free soldered product

Operation conditions

  • Temperature: 5° – 45° C / 41° – 113° F
  • Humidity: 10% – 90%

Certifications

FCC Warning StatementChanges or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.FCC Compliance StatementThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

  1.  This device may not cause harmful interference, and
  2.  this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a  residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by    turning  the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
  • Consult the dealer or an experienced radio/TV technician for help.

Radiation Exposure Statement:This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.Industry Canada (IC) regulatory informationThis device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science, and  Economic Development Canada’s license-exempt RSS(s). Operation issubject to the following two conditions:

  • This device may not cause interference.
  • This device must accept any interference, including interference that may cause undesired operation of the device.

FOR MOBILE DEVICE USAGE (>20cm/lowpower)Radiation Exposure Statement: This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installedand operated with a minimum distance of 20cm between the radiator & your body.Open-source softwareProducts mentioned in this manual may contain open-source software.Speech Processing Solutions GmbH hereby offers to deliver, upon request, a copy of the complete corresponding source code for the copyrighted open-source software packages used in this product for which such offer is requested by the respective licenses. This offer is valid up to three years after the product purchase. To obtain the source code, please write in English to: [email protected].Neither Speech Processing Solutions GmbH nor its affiliates  shall be liable to the purchaser of this product or third parties with respect to claims for damages, losses, costs or expenses incurred by the purchaser or third parties as a result of an accident, misuse, or abuse of this product or unauthorized modifications, repair, modification of the productor failure to meet the operating and maintenance instructions provided by the manufacturer.This user manual is a document with no contractual nature. We accept no liability for changes, mistakes, or printing errors.

Issue date 2021-07-13© 2021 Speech Processing Solutions GmbH. All rights reserved.Specifications are subject to change without notice. Philips and the Philips shield emblem are registered trademarks of Koninklijke Philips N.V. and are used by Speech  Processing Solutions GmbH under license from Koninklijke Philips N.V. All trademarks are the property of their respective owners.
