PHILIPS Bluetooh Speaker User Manual
Important
Warning
- Never remove the casing of this product.
- Never lubricate any part of this product.
- Never place this product on other electrical equipment.
- Keep this product away from direct sunlight, naked flames or heat.
- Read these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Do not install near any heat sources such as radiators, heat registers, stoves, or radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Only use attachments/accessories specified by the manufacturer.
- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
- The battery shall not be exposed to excessive heat such as sunshine, fire or the like.Apparatus shall not be exposed to dripping or splashing.
- Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).
Note
- The type plate is located on the bottom of the apparatus.
Your portable speaker
Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.
Introduction
With this speaker, you can enjoy audio from Bluetooth-enabled devices or other external devices.
What’s in the box
Check and identify the contents of your package:
- Speaker
- USB cable for charging
- Short user manual
- Safety & notice leaflet

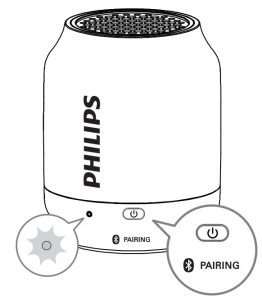

Overview of the speaker
- LED indicator
- Indicate battery or Bluetooth connection status.
- Source selector (OFF/ ON)
- Select Bluetooth source.
- Turn the speaker off.
- PAIRING
- Enter Bluetooth pairing mode.
- Disconnect Bluetooth connection.
- DC IN
- Recharge the built-in battery
Get started
Always follow the instructions in this chapter in sequence.
Charge the built-in battery
The speaker is powered by a built-in rechargeable battery.
Note
- Before use, fully charge the built-in battery.
- he micro USB socket is for charging only.
- t takes you approximately two hours to fully charge the battery.
- Rechargeable battery has a limited number of charge cycles. Battery life and number of charge cycles vary by use and settings.
Connect the USB cable between
- the DC IN socket on the speaker, and
- a USB socket on a computer.
The LED indicator indicates the battery status.
|
Under charging |
Fully charged |
|
|
“OFF” mode |
Flashing white |
Off |
|
“Bluetooth” mode |
Flashing blue or solid blue (depending on Bluetooth connection status) |
Flashing blue or solid blue (depending on Bluetooth connection status) |
Turn on/off
- To turn the speaker on, slide the source selector to
. - To turn the speaker off, slide the source selector to OFF.
.
Switch to standby mode
The speaker switches to standby mode automatically in the following situations:
- In Bluetooth mode, the connection with Bluetooth device is invalid for 15 minutes;or
Play from Bluetooth devices
With this speaker, you can listen to audio from Bluetooth-enabled devices.
Note:
- The speaker can memorize a maximum of four paired devices.The paired device willreplace the one.
- Any obstacle between this speaker and a Bluetooth device can reduce the operational range.
- Keep away from any other electronic device that may cause interference.
- The operational range between this speaker and a Bluetooth device is approximately 10 meters(30 feet).
- Make sure that no audio input cable is connected to the AUDIO IN socket.
Connect a device
- Slide the source selector to .» The LED indicator flashes blue.
- On your Bluetooth device, enable Bluetooth and search for Bluetooth devices that can be paired (refer to the user manual of the device).
- Select [Philips BT51] displayed on your device for pairing and connection. If necessary, input “0000” as the pairing password. » After successful pairing and connection, the speaker beeps twice, and the LED indicator turns solid blue.
- If you cannot find [Philips BT51] on your device, press and hold PAIRING for more than three seconds until you hear triple beeps.
- Play Bluetooth device.
Tip
- You can use your Bluetooth device to control play.
LED indicator (blue)
| Indicator | Bluetooth connection status |
| Fast flashing (2Hz) | Pairing |
| Slow flashing (1Hz) | Connecting |
| Solid blue | Connected |
Disconnect a device
- Press and hold PAIRING for more than three seconds;» The speaker beeps for three times.
- Disable Bluetooth on your device; or
- Move the device beyond the communication range.» The speaker beeps twice, and the LED indicator flashing blue.
Note:* Before connecting another Bluetooth device, disconnect the current device first.
Reconnect a device
When you turn on the speaker, it will reconnect the last connected device automatically; If not, select [Philips BT51] on your Bluetooth device to start connection.
Play from external devices
With the speaker, you can also listen to an external device such as an MP3 player.
Note:* Make sure that music playback through Bluetooth is stopped
Product information
Note:Product information is subject to change without prior notice
|
Amplifier |
|
|
Rated Output Power |
1.5W RMS |
|
Frequency Response |
100 -16000 Hz, ±3dB |
|
Signal to Noise Ratio |
> 70dBA |
|
Speaker |
|
|
Speaker Impedance |
4 ohm |
|
Speaker Driver |
4cm full range |
|
Sensitivity |
>82dB/m/W± 3db//W |
|
Bluetooth |
|
|
Bluetooth Version |
V 2.1 + EDR |
|
Bluetooth Profile |
A2DP |
|
Bluetooth Frequency Brand |
2.4GHz – 2.48GHz |
|
Bluetooth Range |
10m (Free space) |
|
General information |
|
|
Power Supply (through micro USB socket) |
5V, 0.5A |
|
Built-in Li-polymer Battery |
3.7 V, 365mAh |
|
Dimensions – Main Unit (W x H x D) |
61 x 76 x 61 mm |
|
Weight – Main Unit |
0.1 kg |
Troubleshooting
To keep the warranty valid, never try to repair the system yourself.If you encounter problems when using this device, check the following points before requesting service. If the problem remains unsolved, go to the Philips Web page (www. philips.com/support).When you contact Philips, make sure that the device is nearby and the model number and serial number are available.
General
No power
- Recharge your speaker.
No sound
- Make sure that your Bluetooth device is within the effective operational range.
No response from the speaker
- Recharge the speaker:
About Bluetooth device
The audio quality is poor after connection with a Bluetooth-enabled device.
- The Bluetooth reception is poor: Move the device closer to this product or remove any obstacle between them.
Fail to find [Philips BTS I ] on your device for pairing.
- Press and hold PAIRING for more than three seconds, and then try again.
Cannot connect with the device.
- The Bluetooth function of the device is not enabled. Refer to the user manual of the device for how to enable the function.
- This product is already connected with another Bluetooth-enabled device.Disconnect that device and then try again.
The paired device connects and disconnects constantly.
- The Bluetooth reception is poor. Move the device closer to this product or remove any obstacle between them.
- For some devices, Bluetooth connection may be deactivated automatically as a power-saving feature. This does not indicate any malfunction of t his product
Notice
Any changes or modifications made to this device that are not expressly approved by WOOX Innovations may void the user’s authority to operate the equipment.
Compliance
CE: 0700
Hereby.WOOX Innovations declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.You can find the Declaration of Conformity on www.philips.com/support.
Care of the environment
Disposal of your old product and battery
Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.
This symbol on a product means that the product is covered by European Directive 2012/19/EU.
This symbol means t hat the product contains a built-in rechargeable battery covered by European Directive 2013/56/EU which cannot be disposed o f with normal household waste.We strongly advise you to take your product to an official collection point or a Philips service centre to have a professional remove the rechargeable battery.Inform yourself about the local separate collection system for electrical and electronic products and rechargeable batteries. Follow local rules and never dispose of the product and rechargeable batteries with normal household waste. Correct disposal of old products and rechargeable batteries helps prevent negative consequences for the environment and human health.
Caution
- Removal of the built-in battery invalidates the warranty and may destroy the product.
Always bring your product to a professional to remove the built-in battery.
Environmental informationAll unnecessary packaging has been omitted.We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.
Trademark notice
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by WOOXInnovations is under license.
