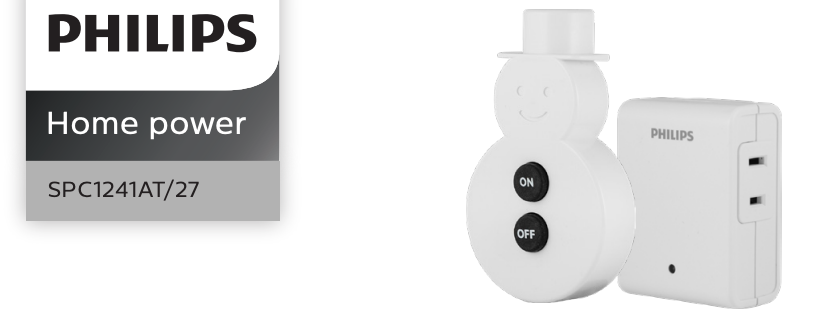

PHILIPS SPC1241AT/27 Home Power User Manual

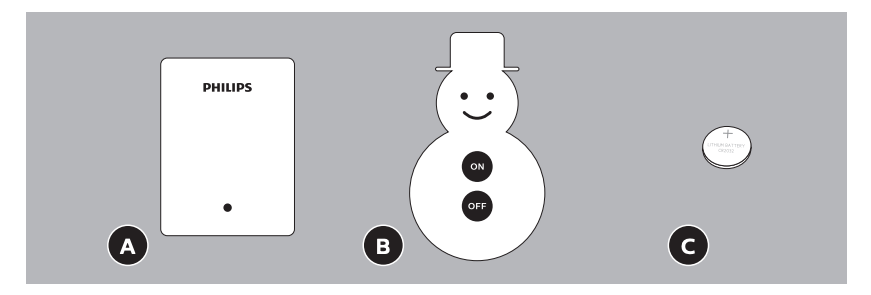

Enclosed
A. Plug-in receiverB. Remote transmitterC. CR2032 battery

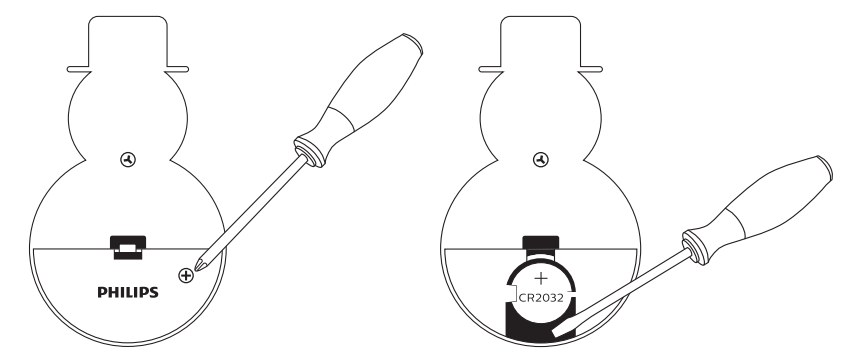

Battery Installation
- Remove the Phillips-head screw from the back of the remote.
- Press the tab to release the battery cover and lift the cover from the remote.
- Remove the white battery tab to activate the remote.
- If installing a new battery, place it in the battery compartment with the (+) side facing up.
- Replace the battery cover and install the screw.
Receiver Installation
- Plug lamp or device controlled into the outlet on the side of the receiver – device’s switch must be in the ON position.
- Plug the receiver into a standard indoor outlet.

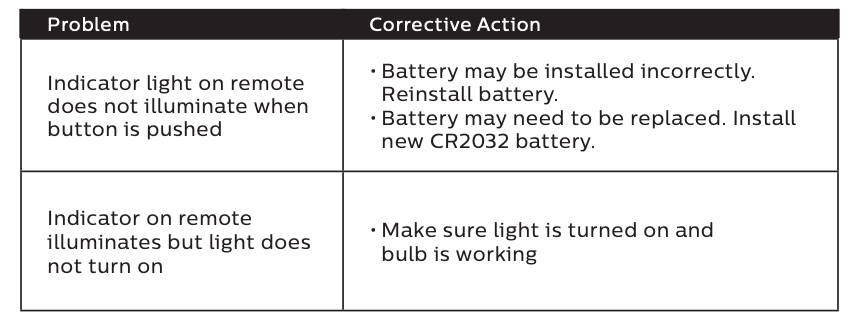

Troubleshooting
PLUG-IN RECEIVER
Functional range: up to 100ft.Maximum resistive load: 1800WRating: 120VAC/60Hz
REMOTE TRANSMITTER
Functional range: up to 100ft.Battery type: CR2032
* Functional range may be adversely affected by one or more of the following factors: weather, radio frequency interference, low transmitter battery and obstructions between the transmitter and receiver.
Suppliers Declaration of Conformity | Model #: SPC1241AT/27 | Jasco Products Co., 10 E. Memorial Rd, Oklahoma City, OK 73114, www.byjasco.com
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
MADE IN CHINA
Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license. This product has been manufactured by and is sold under the responsibility of Jasco Products Company, and Jasco Products Company LLC, 10 E. Memorial Rd., Oklahoma City, OK 73114 is the warrantor in relation to this product.
This product comes with a 1-year limited warranty. Visit www.philips.com/support for warranty details.
report this adQuestions? Contact our U.S.-based Consumer Care at 1-844-816-0320 between 7AM–8PM, M–F, Central Time.
